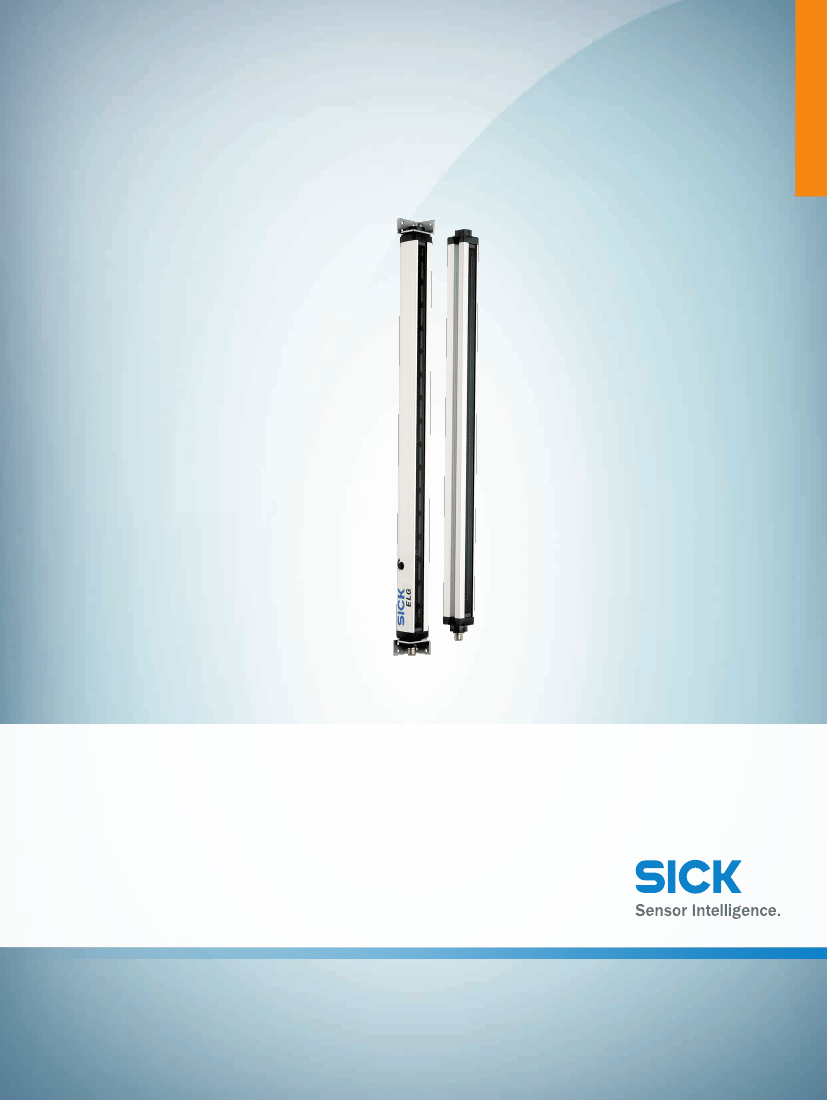

ELG6-0900R523
ELG
SWITCHING AUTOMATION LIGHT GRIDS
Online data sheet
ELG6-0900R523 | ELG
SWITCHING AUTOMATION LIGHT GRIDS
A
B
C
D
E
F
Detailed technical data
Features
Ordering information
Type
ELG6-0900R523
Other models and accessories
www.sick.de/ELG
Part no.
1025453
H
I
J
K
L
M
N
O
P
Q
R
S
T
Technology
Minimum detectable object (MDO)
Beam separation
Number of beams
Detection height
Evaluation beams
Sender/receiver
Cross beam: ≥ 20 mm ... 35 mm
60 mm
≥ 16
900 mm
Cross beam
Performance
Maximum range
Minimum range
Working range
Response time
1)
17 m
≥ 900 mm
12 m
Parallel beam ≥ 84 ms
1)
With resistive load.
Interfaces
Switching output
Connection type
Relay (DC 60 V, AC 25 V)
Male connector M12, 5-pin
Mechanics/electronics
Wave length
Supply voltage V
s
Power consumption sender
Power consumption receiver
Ripple
Output current I
max.
Output load capacitive
1)
2)
880 nm
DC 15 V ... 30 V
1)
< 100 mA
1)
< 100 mA
1)
< 5 V
pp
≤ 100 mA
100 nF
Typical value.
NC = closed if at least one beam is interrupted, NO = closed if all of the beams are free.
2
AUTOMATION LIGHT GRIDS | SICK
Online data sheet | 2016-03-09 17:40:10
Subject to change without notice
SWITCHING AUTOMATION LIGHT GRIDS
Output load inductive
Initialization time
Dimensions (W x H x D)
Housing material
Indication
Synchronization
Enclosure rating
Circuit protection
Weight
Switching frequency
Front screen
Output mode
1)
2)
ELG6-0900R523 | ELG
1 H
1 s
34 mm x 976 mm x 29 mm
Aluminum
LED
Optical
IP 65
U
V
connections, reverse polarity protected, Output Q short-circuit protected, Interference pulse
suppression
≥ 2,600 g
250 kHz
PMMA
Light switching
2)
Typical value.
NC = closed if at least one beam is interrupted, NO = closed if all of the beams are free.
Ambient data
Protection class
EMC
Ambient temperature
Ambient light immunity
Vibration resistance
Shock load
1)
III
EN 60947-5-2
Operation: –25 °C ... +55 °C
Storage: –40 °C ... +70 °C
Indirect: ≤ 150,000 lx
1)
5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
10 g / DIN EN 60068-2-29 / 16 ms
Sunlight.
2016-03-09 17:40:10 | Online data sheet
Subject to change without notice
AUTOMATION LIGHT GRIDS | SICK
3
ELG6-0900R523 | ELG
SWITCHING AUTOMATION LIGHT GRIDS
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
Dimensional drawing
(Dimensions in mm (inch))
ELG3/ELG6
(0.35)
(1.32)
1
33.5
9
2
11
(0.43)
3
4
5
(0.83)
21
9
(0.35)
6
29
(1.14)
34
(1.34)
① Detection
height
② Beam
separation ELG3: 30 mm/ELG6: 60 mm
③ Status
indicator (ELGE)/Power on (ELGS)
④ Sensitivity
control
⑤ Distance
to first beam; ELG3: 42.5 mm/ELG6: 72.5 mm
⑥ Connection
4
AUTOMATION LIGHT GRIDS | SICK
Online data sheet | 2016-03-09 17:40:10
Subject to change without notice
SWITCHING AUTOMATION LIGHT GRIDS
Adjustments
LED display receiver
ELG6-0900R523 | ELG
1
2
① No
object in the light path (alignment OK)
② Contamination
control
Connection type and diagram
Sender
brn
wht
Receiver
1
L+
brn
blu
blk
1
3
L+
2 nc
1
blu
3
M
4
blk
TEST
M
4 CO
2
2 NO
wht
gra
5 NC
3
4
① Not
assigned
② Change
over
③ Normally
open
④ Normally
closed
