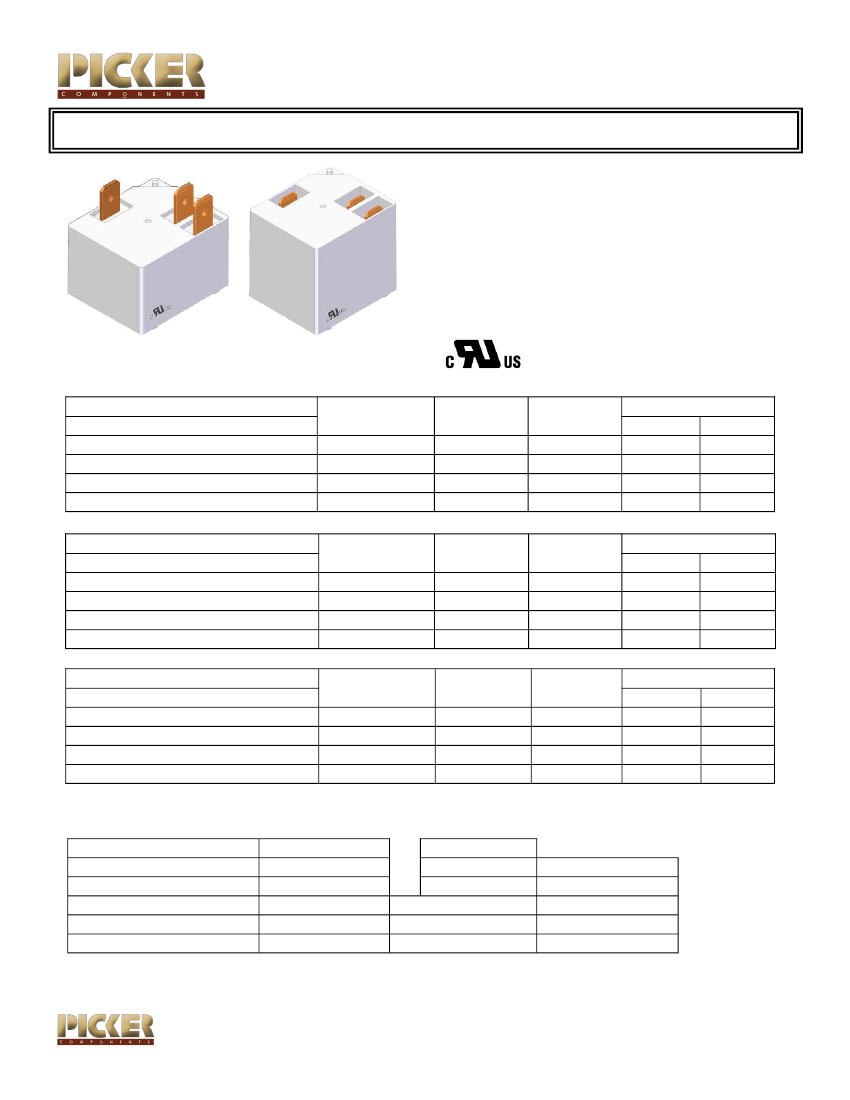

30, 40 or 50 Amp Latching PCB Relay with Spade Contacts
PCT91xL
FEATURES
Energy Saving
Latching Operation
Most Popular Power PCB Relay
30, 40 or 50 Amp Switching Capacity
Single Coil Latching
UL Class F Insulation Standard
Epoxy Sealed, Immersion Cleanable
Lead Free and RoHS Compliant
UL/CSA Ratings at 25C
PCT91EL 50 Amp Version
Load Type
Resistive 6,000 Cycles
Incandescent Lamp 3,000 Cycles
Electronic Ballast 6,000 Cycles
Motor Load 3,000 Cycles
PCT91DL 40 Amp Version
Load Type
Resistive 6,000 Cycles
Incandescent Lamp 3,000 Cycles
Electronic Ballast 6,000 Cycles
Motor Load 3,000 Cycles
PCT91CL 30 Amp Version
Load Type
Resistive 6,000 Cycles
Incandescent Lamp 3,000 Cycles
Electronic Ballast 6,000 Cycles
Motor Load 3,000 Cycles
Voltage
277 VAC
240 VAC
280 VAC
277 VAC
Voltage
277 VAC, 28VDC
240 VAC
280 VAC
277 VAC
Voltage
277 VAC, 28VDC
240 VAC
280 VAC
277 VAC
1 Form A
(SPST-NO)
50 A
5,000 W
16 A
5 HP
1 Form A
(SPST-NO)
40 A
5,000 W
5A
2 HP
1 Form A
(SPST-NO)
30 A
5,000 W
5A
2 HP
E93379
1 Form B
(SPST-NC)
50 A
5,000 W
16 A
5 HP
1 Form B
(SPST-NC)
40 A
5,000 W
5A
2 HP
1 Form B
(SPST-NC)
30 A
5,000 W
5A
2 HP
1 Form C (SPDT)
NO
NC
40 A
40 A
1 Form C (SPDT)
NO
NC
30 A
30 A
1 Form C (SPDT)
NO
NC
25 A
25 A
CONTACT DATA
Material
Initial Contact Resistance
Maximum Switching Voltage
Maximum Switching Power
Maximum Switching Current
AgSnO2
≤ 20mΩ initial
110VDC 300VAC
50 A
13,850 VA 1,500 W
50 A
Service Life
Electrical
Mechanical
40 A
11,080 VA 1,200 W
40 A
See Contact Data
1 x 10⁶ Operations
30 A
8,310 VA 1,200 W
30 A
3220 Commander Drive, Suite 102 Carrollton, TX 75006
Sales: (972) 713-6272 (888) 997-3933
Fax: (972)735-0964
PCTxL Rev A 7/30/14
www.PickerComponents.com
e-mail: sales@pickercomponents.com
Dimensions are listed for reference purposes only.
Specifications and Availability subject to change without notice.
PCT91xL
CHARACTERISTICS
Operate Time
Release Time
Insulation Resistance
Dielectric Strength
Between Contact and Coil
Between Contacts
Shock Resistance
Vibration Resistance
Operating Temperature
Storage Temperature
Weight
≤ 15 msec
≤ 15 msec
1,000 MΩ min @ 500VDC
50 Hz 2,500V 1 minute
50 Hz 1,500V 1 minute
200m/s² 11msec
10-55 Hz Double Amplitude 1.5mm
-55⁰C to +125⁰C
-55⁰C to +155⁰C
28 grams
PCT91xL
ORDERING INFORMATION
Example:
PCT91EL
-1C
-12
S
Model: PCT91EL (50 Amp)
PCT91DL (40 Amp)
PCT91CL (30 Amp)
Contact Form: 1A (SPST-NO)
1B (SPST-NC)
1C (SPDT BBM)
Coil Voltage: 5, 12, 24, 48
Enclosure: S: Sealed, E: Covered
Package Height: Nil: Standard, L: Low Profile
Coil Sensitivity: Nil: PCT90EL (50 Amp) 1.5 Watt
Nil: PCT90DL (40 Amp) 0.9 Watt
Nil: PCT90CL (30 Amp) 0.9 Watt
Coil: Nil: Single Coil Latching, Double Coil not available at this time
RoHS Compliant: -X
L
-X
COIL DATA
PCT91E (50 Amp)
Coil Voltage
Rated
Maximum
5
6
12
14.4
24
28.8
48
57.6
PCT91C/D (30/40 Amp)
Coil Voltage
Rated
Maximum
5
6
12
14.4
24
28.8
48
57.6
Resistance
(Ohms ± 10%)
16.7
96
384
1,536
Resistance
(Ohms ± 10%)
28
160
960
2,560
Must Operate
Voltage Max
(VDC)
4
9.6
19.2
38.4
Must Operate
Voltage Max
(VDC)
4
9.6
19.2
38.4
Pulse
Magnitude
(msec)
≥ 100
Coil
Power
(msec)
1.5
Operate
Time
(msec)
≤ 15
Reset
Time
(msec)
≤ 15
Pulse
Magnitude
(msec)
≥ 50
Coil
Power
(msec)
0.9
Operate
Time
(msec)
≤ 15
Reset
Time
(msec)
≤ 15
3220 Commander Drive, Suite 102 Carrollton, TX 75006
Sales: (972) 713-6272 (888) 997-3933
Fax: (972)735-0964
PCTxL Rev A 7/30/14
www.PickerComponents.com
e-mail: sales@pickercomponents.com
Dimensions are listed for reference purposes only.
Specifications and Availability subject to change without notice.
PCT91xL

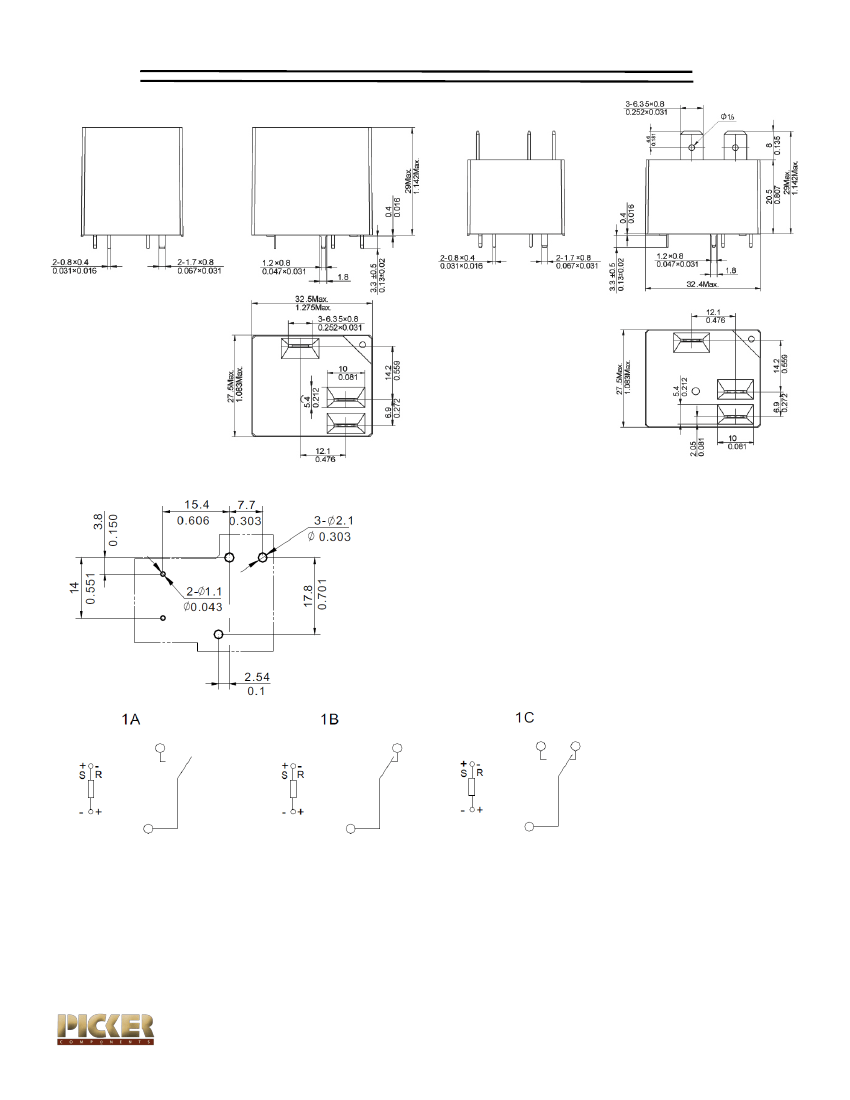

DIMENSIONS (mm / inches)
PCT91xL
PIN LAYOUT (mm / inches)
Low Profile (L)
SCHEMATIC
NOTES:
Coil should not be pulsed with less than the rated coil voltage and the pulse width should be a minimum of three times the spec-
ified operate time. If not, it is possible for the relay to settle in a magnetically neutral position.
Must Operate Voltage is listed for test purposes only and is not to be used as design criteria.
3220 Commander Drive, Suite 102 Carrollton, TX 75006
Sales: (972) 713-6272 (888) 997-3933
Fax: (972)735-0964
PCTxL Rev A 7/30/14
www.PickerComponents.com
e-mail: sales@pickercomponents.com
Dimensions are listed for reference purposes only.
Specifications and Availability subject to change without notice.
