Compact Slip Rings
1001847-001 Datasheet

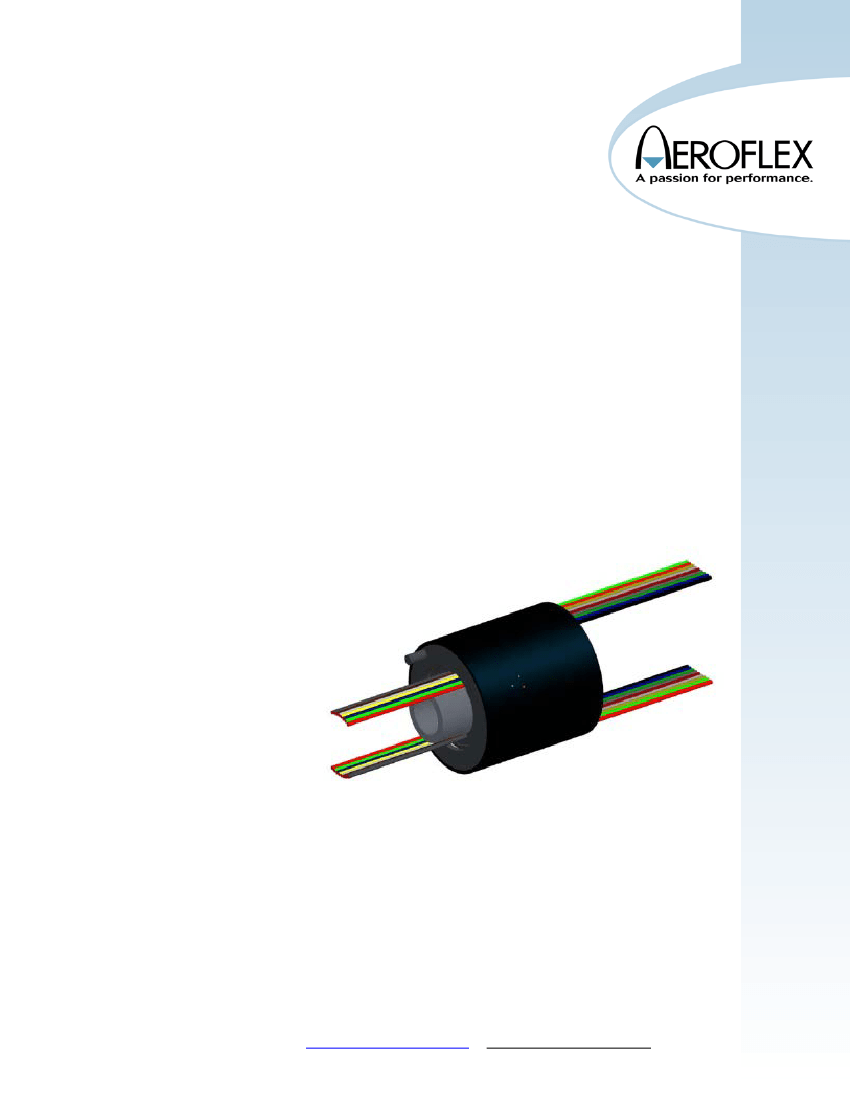

Description
Aeroflex Motion Control has developed a standard line of compact slip ring assemblies
that can be used for the transmission of low level signals up to 2 amperes per circuit.
These capsules feature gold alloy contacts, precision ball bearings, #26 AWG Teflon
insulated lead wires, and are cast in a durable high tech plastic. Each circuit has
redundant contacts that ride in V-grooved rings. This design provides the lowest
electrical noise in its class. These smooth running units operate with a very minimal
amount of torque and are an excellent choice for transmitting electrical signals
through a rotating joint.
Features
•
•
•
•
•
•
•
•
•
Transfers power, analog, digital and video signals
18 circuits
Compact size
Electrical Noise < 20 milliohm at max speed
Speeds up to 500 rpm
Gold on gold contacts
Precision ball bearings
RoHS Compliant
Made in USA
Typical Applications
•
•
•
•
•
•
CCTV pan / tilt camera mounts
Security cameras
Robotic systems
Medical equipment
Electrical test equipment
Manufacturing equipment
239-263-3102
●
sales-motion@aeroflex.com
●
www.aeroflex.com/sliprings
Compact Slip Rings
1001847-001 Datasheet

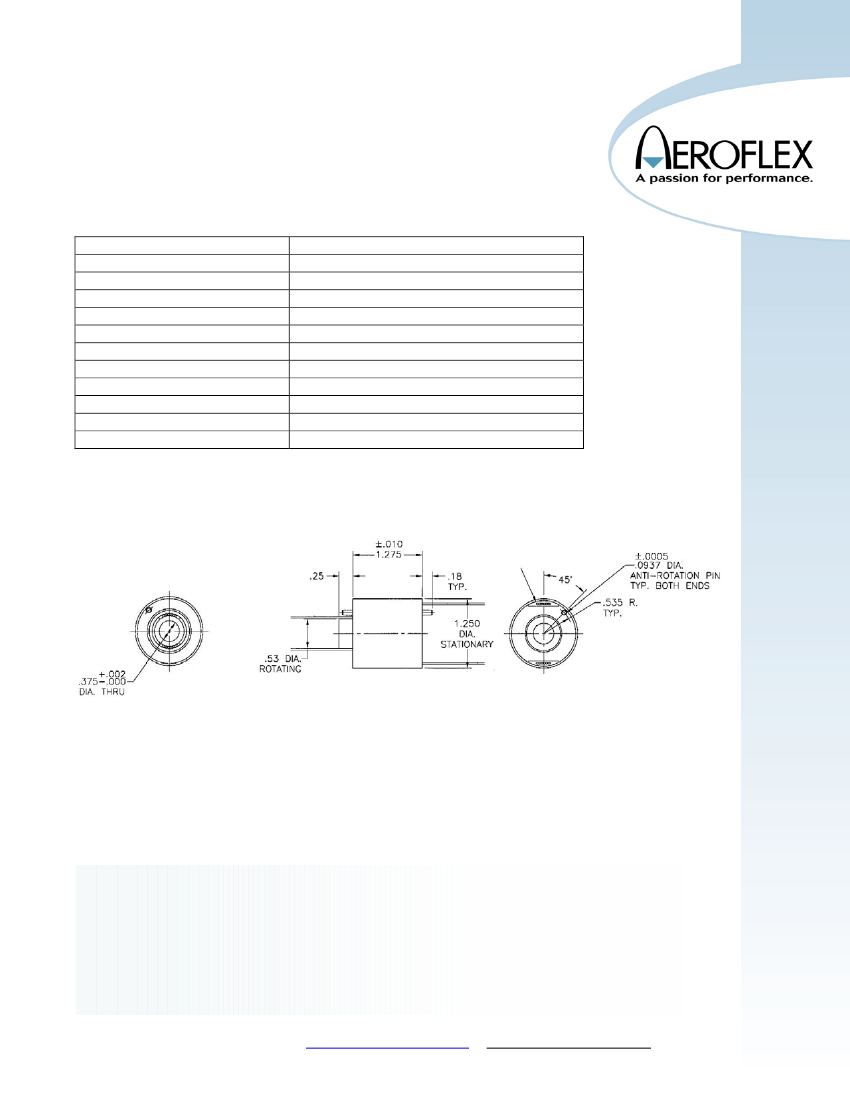

Specifications
Number of Circuits
Current Rating
Voltage
Dielectric Strength
Insulation Resistance
Electrical Noise
Lead Wire
Lead Wire Length
Operating Speed
Contacts
Rotation
Temperature Range
18
2 Amps per ring maximum
Micro-volts to 210 VDC / 240 VAC
500 VRMS, all combinations
500 megaohms min. @ 500 VDC
20 milliohms maximum
#26 AWG, Teflon insulated, stranded conductor
20”
0 to 500 rpm maximum, intermittent
Gold on Gold
Bi-directional
-40°C to +80°C
Aeroflex Motion Control
3030 Horseshoe Drive South, Naples, FL 34104
Tel: (239) 263-3102
Fax: (239) 261-3110
Aeroflex reserves the right to make changes to any products and services herein at any time without notice. Consult Aeroflex or an authorized sales representative to verify that the
information in this data sheet is current before using this product. Aeroflex does not assume any responsibility or liability arising out of the application or use of any product or
service described herein, except as expressly agreed to in writing by Aeroflex; nor does the purchase, lease or use of a product or service from Aeroflex convey a license under any
patent rights, copyrights, trademark rights, or any other of the intellectual rights of Aeroflex or of third parties.
Copyright 2013 Aeroflex Motion Control All rights reserved Rev. B1
