R574492825 datasheet, PDF - EEWORLD Datasheet

R574492825: DescriptionRF Coaxial Relay, SP8T, Latched, 0.96A (Coil), 12VDC (Coil), 11520mW (Coil), 18000MHz, DC Input, DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size166KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

R574492825 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	R574492825	-	-	View	Buy Now

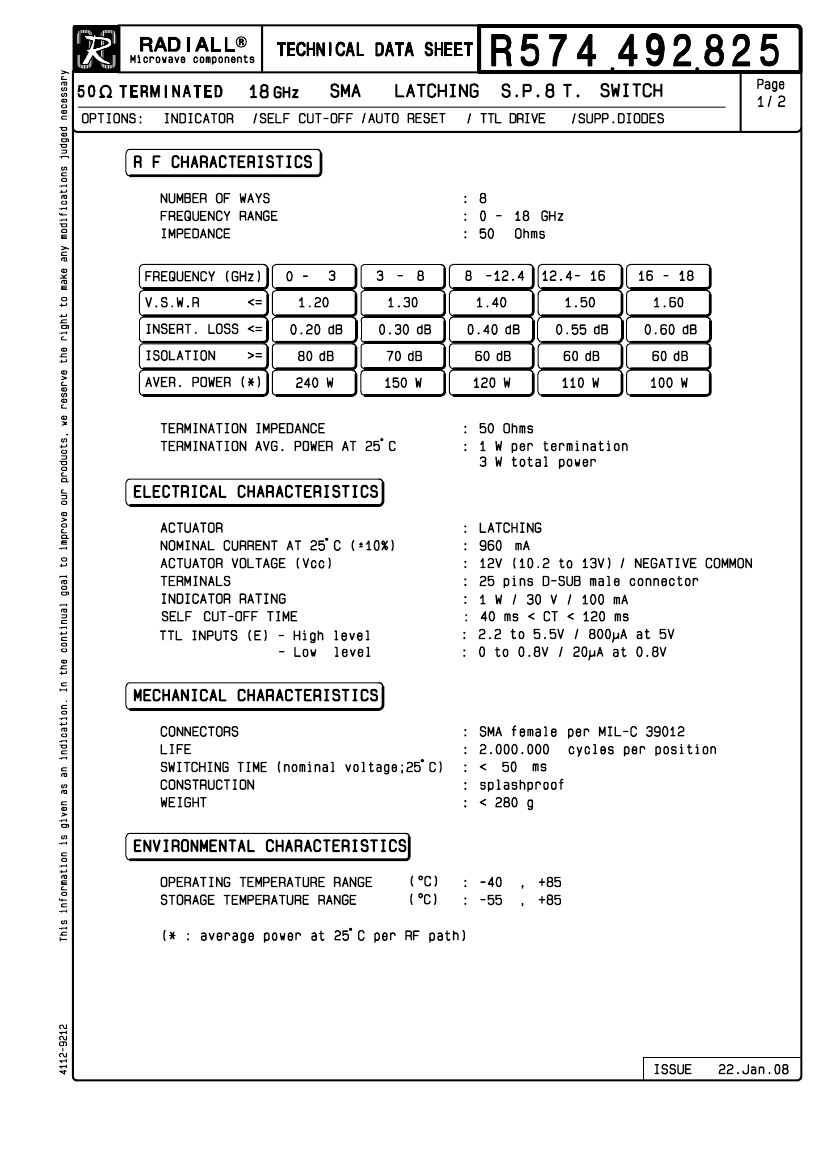

RF Coaxial Relay, SP8T, Latched, 0.96A (Coil), 12VDC (Coil), 11520mW (Coil), 18000MHz, DC Input, DC Output, Panel Mount

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Radiall
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	5 weeks 5 days
Other features	SMA, BUILT-IN TTL DRIVER, SELF CUT OFF AND INDICATOR

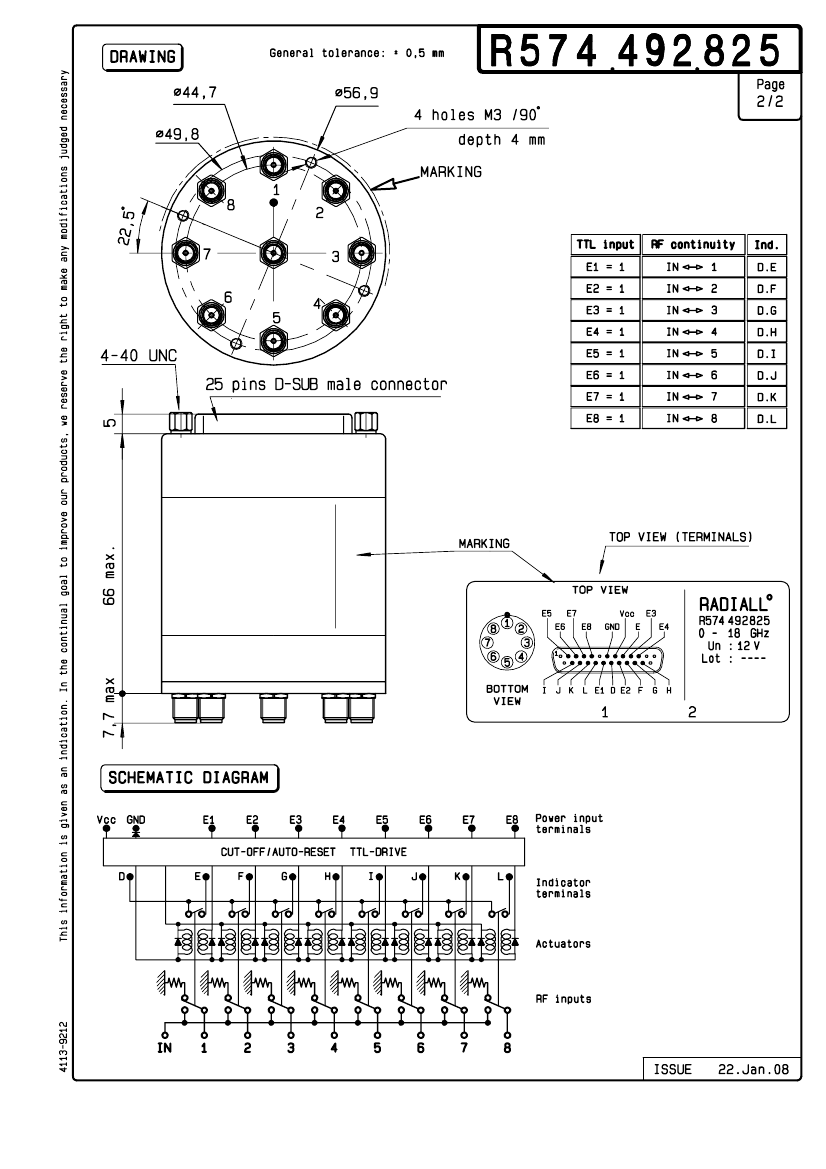

body height	66 mm
Body length or diameter	56.9 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.96 A
Coil power	11520 mW
Coil resistance	12.5 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Electrical life	2000000 Cycle(s)
Maximum insertion loss	0.6 dB
Maximum isolation	60 dB
Installation features	PANEL MOUNT
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Relay action	LATCHED
Relay function	SP8T
Relay type	RF COAXIAL RELAY
seal	SPLASH PROOF
surface mount	NO
switching time	50 ms
Termination type	CONNECTOR
voltage standing wave ratio	1.6
Base Number Matches	1

	R574492825	R574.492.825
Description	RF Coaxial Relay, SP8T, Latched, 0.96A (Coil), 12VDC (Coil), 11520mW (Coil), 18000MHz, DC Input, DC Output, Panel Mount	RF Coaxial Relay, SP8T, Latched, 0.96A (Coil), 12VDC (Coil), 11520mW (Coil), 18000MHz, DC Input, DC Output, Panel Mount
Is it Rohs certified?	conform to	conform to
Maker	Radiall	Radiall
Reach Compliance Code	compli	unknown
body height	66 mm	66 mm
Body length or diameter	56.9 mm	56.9 mm
Characteristic impedance	50 Ω	50 Ω
Maximum coil current (DC)	0.96 A	0.96 A
Coil power	11520 mW	11520 mW
Coil resistance	12.5 Ω	12.5 Ω
Maximum coil voltage (DC)	12 V	12 V
Coil/Input Power Type	DC	DC
Maximum insertion loss	0.6 dB	0.6 dB
Maximum isolation	60 dB	60 dB
Installation features	PANEL MOUNT	PANEL MOUNT
Maximum operating frequency	18000 MHz	18000 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Relay action	LATCHED	LATCHED
Relay function	SP8T	SP8T
Relay type	RF COAXIAL RELAY	RF COAXIAL RELAY
seal	SPLASH PROOF	SPLASH PROOF
surface mount	NO	NO
switching time	50 ms	50 ms
Termination type	CONNECTOR	CONNECTOR
voltage standing wave ratio	1.6	1.6
