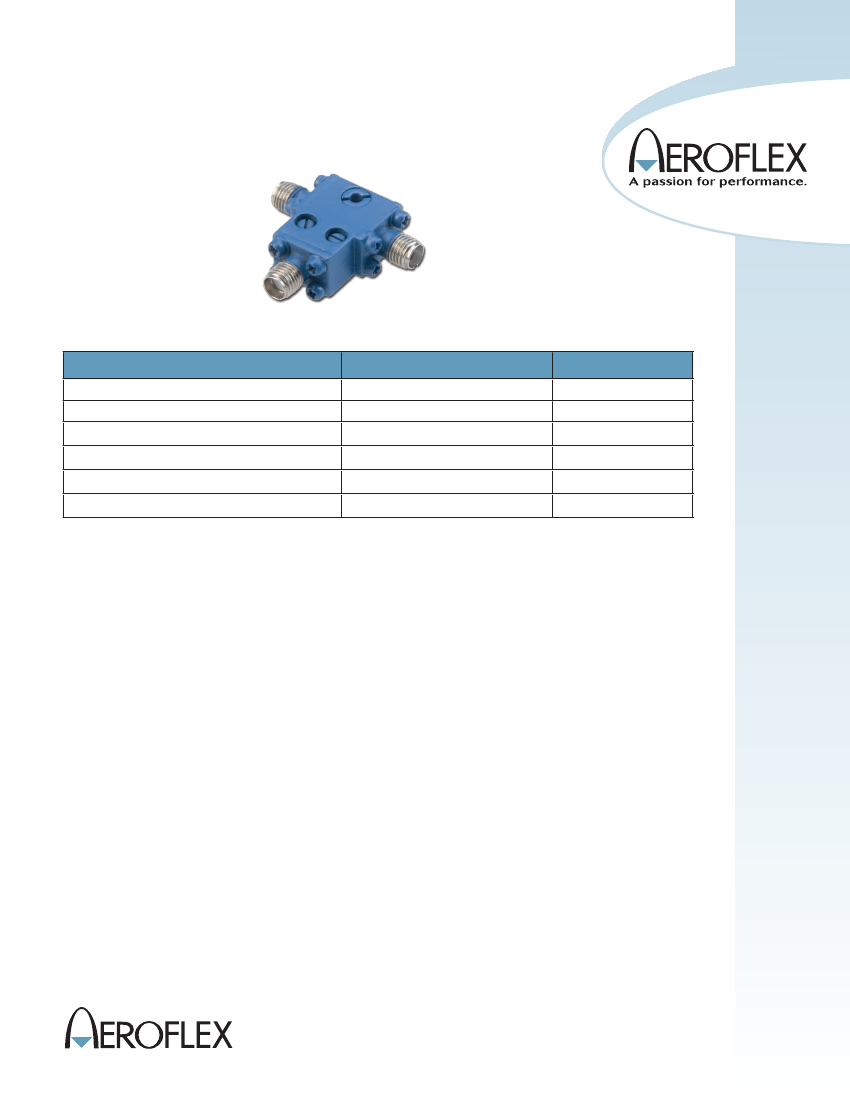

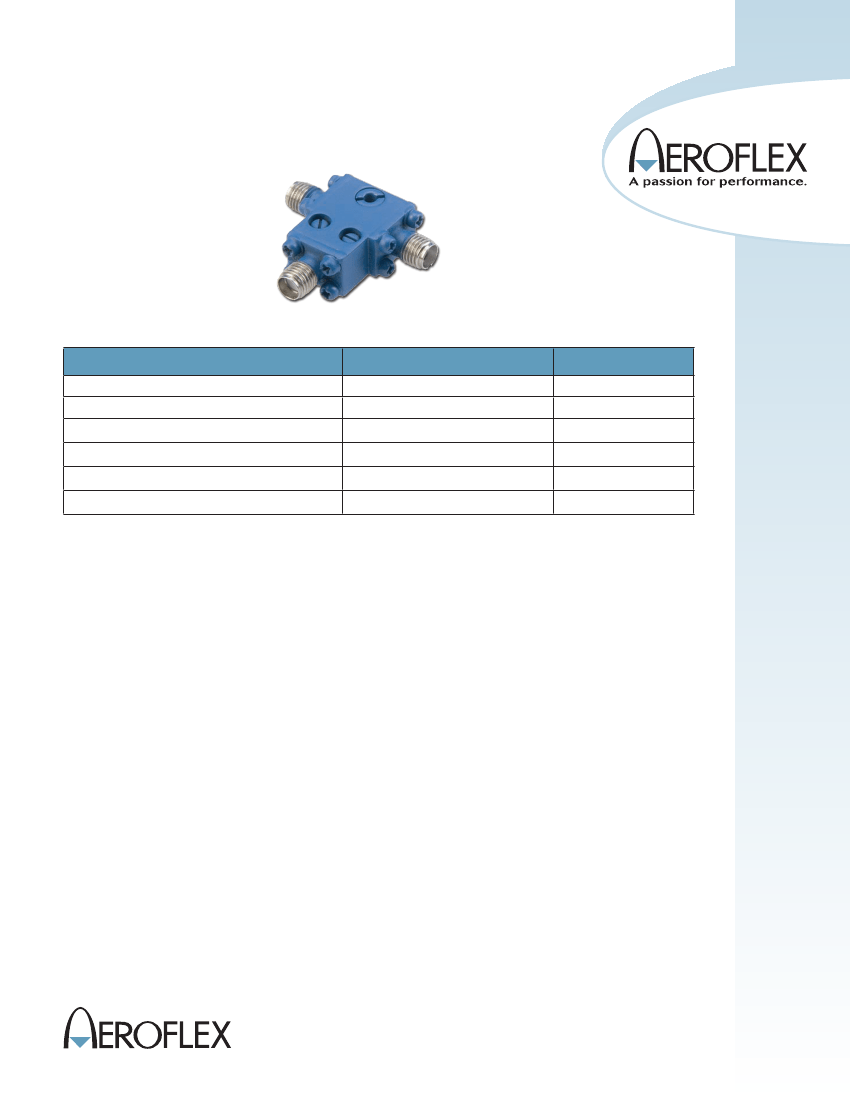

YLS-92
2 Way In-Phase
Power Divider / Combiner
Specifications:
Parameter
Frequency Range (Min)
In / Out VSWR (Max)
Insertion Loss (Max)
Isolation (Min)
Phase Balence
Amp Balence
Specification
12.0 – 18.0
1.50 / 1.40
0.70
18.0
6.0
0.30
Units
GHz
dB
dB
dB
Degrees
dB
Environmental Specifications:
Designed to meet:
MIL-E-5400, MIL-STD-202, MIL-E-16400
Operating Temp: -55°C to +125°C
Storage Temp: -65°C to +150°C
Humidity: MIL-STD-202F, M103, Cond B
Shock: MIL-STD-202F, M213, Cond B
Altitude: MIL-STD-202F, M105, Cond B
Vibration: MIL-STD-202F, M204, Cond B
Thermal Shock: MIL-STD-202F, M107, Cond A
Temperature Cycle: MIL-STD-202F, M105C, Cond D
Notes:
Please Contact the Factory for Custom Specifications
Mechanical Specifications:
Case Style:
Connectors:
YLS Outline
SMA Female per MIL-C-39012
SIGNAL & CONTROL SOLUTIONS
Revision Date: 12/5/2013
40 Industrial Way East, Eatontown , NJ 07724 [USA]
Phone: (732) 460-0212, Fax: (732) 460-0214
www.aeroflex.com/ascs • ascs-sales@aeroflex.com
SIGNAL & CONTROL SOLUTIONS
YLS-92, 2 Way In-Phase
Power Divider / Combiner
`A'
`C'

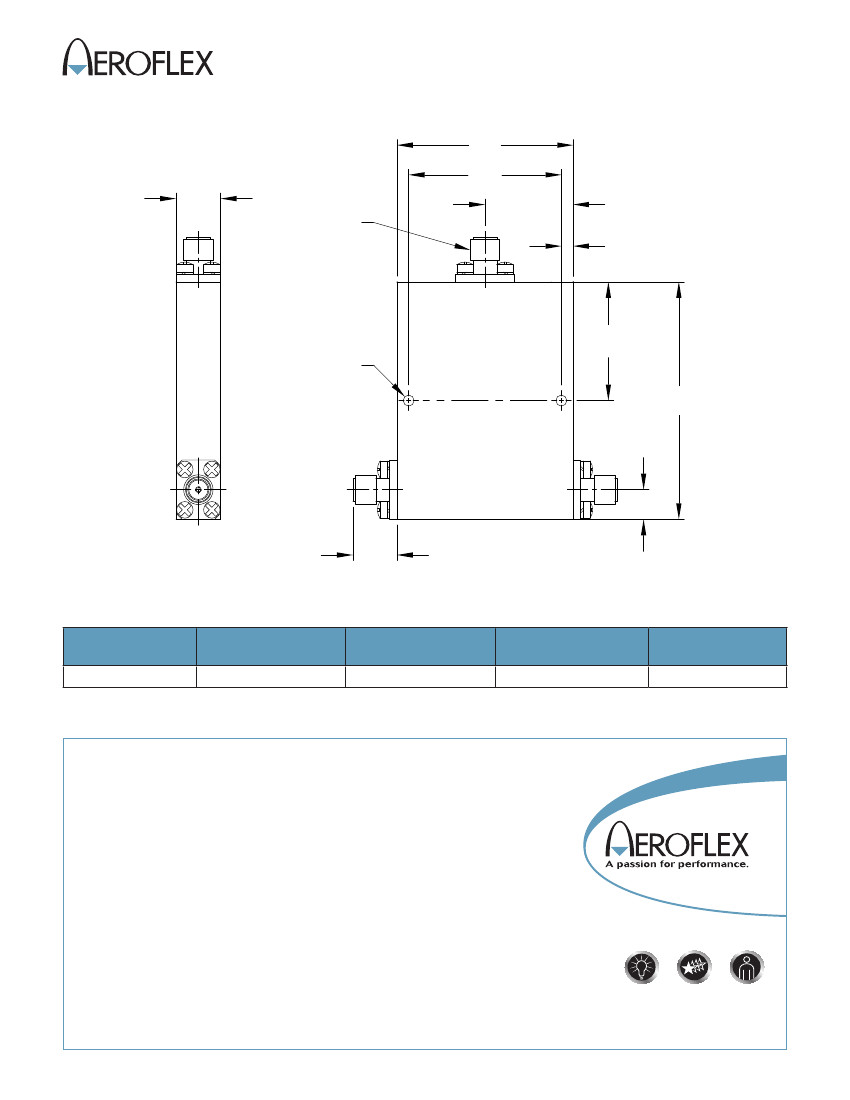

Outline Drawing:
.38
SMA FEMALE
CONNECTOR
3 PLS
A/2
.10
IN
.093 DIA THRU
2 MTG HOLES
B/2
`B'
OUT
.38
TYP
OUTLINE CASE STYLE YLS
“A”
in
0.85
“B”
in
0.82
“C”
in
0.65
OUT
`E'
“D”
in
0.38
“E”
in
0.20
