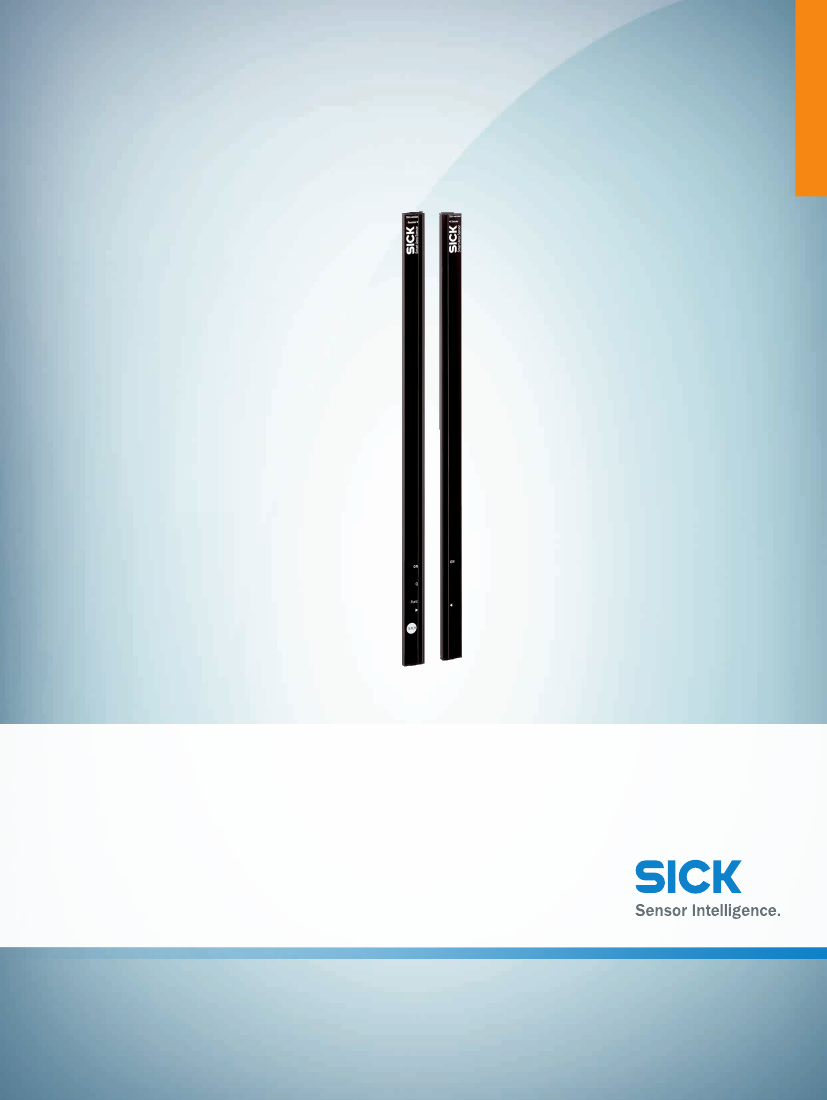

SAS4-F012P3PS1T00
SLG
SWITCHING AUTOMATION LIGHT GRIDS
Online data sheet
SAS4-F012P3PS1T00 | SLG
SWITCHING AUTOMATION LIGHT GRIDS
A
B
C
D
E
F
Detailed technical data
Features
Ordering information
Type
SAS4-F012P3PS1T00
Other models and accessories
www.sick.de/SLG
Part no.
1207475
H
I
J
K
L
M
N
O
P
Q
R
S
T
Technology
Minimum detectable object (MDO)
Beam separation
Optical light exit
Number of beams
Detection height
Configuration
Cross beam/parallel beam
Output 1
Automatic teach
Alignment aid
Muting function
Sender/receiver
Parallel beam, 45 mm
40 mm
Flat
≥4
120 mm
Teach button with configuration software
Parallel beam active
Output 1 active, if light beam interrupted
Automatic teach inactive
Without alignment aid
Muting function deactivated
Performance
Maximum range
Minimum range
Working range
Response time
1)
2)
4 m
1)
Parallel beam: ≥ 0 mm
2)
3 m
Parallel beam ≥ 19 ms
No reserve for environmental issue and deterioration of the diode.
Aperture ± 10°.
Interfaces
Switching output
Inputs
Connection type
1 x PNP
Teach-in input
Short cable with connector M8, 4-pin
2
AUTOMATION LIGHT GRIDS | SICK
Online data sheet | 2016-03-09 17:40:10
Subject to change without notice
SWITCHING AUTOMATION LIGHT GRIDS
Mechanics/electronics
Wave length
Supply voltage V
s
Power consumption sender
Power consumption receiver
Ripple
Output current I
max.
Output load capacitive
Output load inductive
Initialization time
Dimensions (W x H x D)
Housing material
Indication
Synchronization
Enclosure rating
Circuit protection
Weight
Switching frequency
Aluminum stabilizer
1)
2)
SAS4-F012P3PS1T00 | SLG
Infrared light, 950 nm
DC24 V, ± 20 %
1)
≥ 64 mA
2)
≥ 70 mA
2)
2)
< 5 V
pp
≤ 100 mA
100 nF
1 H
1 s
25 mm x 192.4 mm x 8 mm
PMMA
LED
Optical
IP 65
U
V
connections, reverse polarity protected, Output Q short-circuit protected, Interference pulse
suppression
≥ 20 g
500 kHz
Without stabilizer
Limit values.
Without load.
Ambient data
Protection class
EMC
Ambient temperature
Ambient light immunity
Vibration resistance
Shock load
1)
III
EN 60947-5-2
Operation: –25 °C ... +55 °C
Storage: –25 °C ... +70 °C
Direct: 100,000 lx
1)
Indirect: 150,000 lx
5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
10 g / DIN EN 60068-2-29 / 16 ms
Sunlight.
2016-03-09 17:40:10 | Online data sheet
Subject to change without notice
AUTOMATION LIGHT GRIDS | SICK
3
SAS4-F012P3PS1T00 | SLG
SWITCHING AUTOMATION LIGHT GRIDS
L = DH + RM + 33
(1.30)
DH = (n x RM) – RM
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
Dimensional drawing
(Dimensions in mm (inch))
Sxx-Fxxxxxxx1xxx
Flat, without stabilizer
Receiver
25
(0.98)
Sender
(0.05)
Receiver
(0.33)
8.2
(0.32)
8.5
RM
100
(3.94)
2
1.2
3
4
5
1
6
Ø 9
(0.35)
M8
① First beam
② Last
beam
③ Beam
separation (RM)
④ Number
of beams (n)
⑤ Detection
height (DH)
⑥ Connection
4
AUTOMATION LIGHT GRIDS | SICK
(0.05)
1.2
Online data sheet | 2016-03-09 17:40:10
Subject to change without notice
SWITCHING AUTOMATION LIGHT GRIDS
Adjustments
SAS, SGS, receiver, LED indication
SAS4-F012P3PS1T00 | SLG
ON
Q/Q
Func
1
2
3
constantly shining
out
TEACH
① Supply
voltage
② Active
if teach-in button is pressed
③ No
object in the light path
Connection type and diagram
SAS
Sender
1
2
3
4
L+
Test
M
NC
Receiver
1
2
3
4
L+
Teach
M
Q
1
2016-03-09 17:40:10 | Online data sheet
Subject to change without notice
AUTOMATION LIGHT GRIDS | SICK
5
