20-1B12IPA008SC-L239C09 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > 20-1B12IPA008SC-L239C09

Preview

20-1B12IPA008SC-L239C09: DescriptionOpen Emitter or Emitter Shunt; File Size696KB，9 Pages; ManufacturerVincotech; Websitehttps://www.vincotech.com/

Download Datasheet Compare View All

20-1B12IPA008SC-L239C09 Overview

Open Emitter or Emitter Shunt

Preview

Download Datasheet

View All

20-1B12IPA008SC-L239C09

20-PB12IPA008SC-L239C09Y

target datasheet

flow

IPM 1B

(CI)

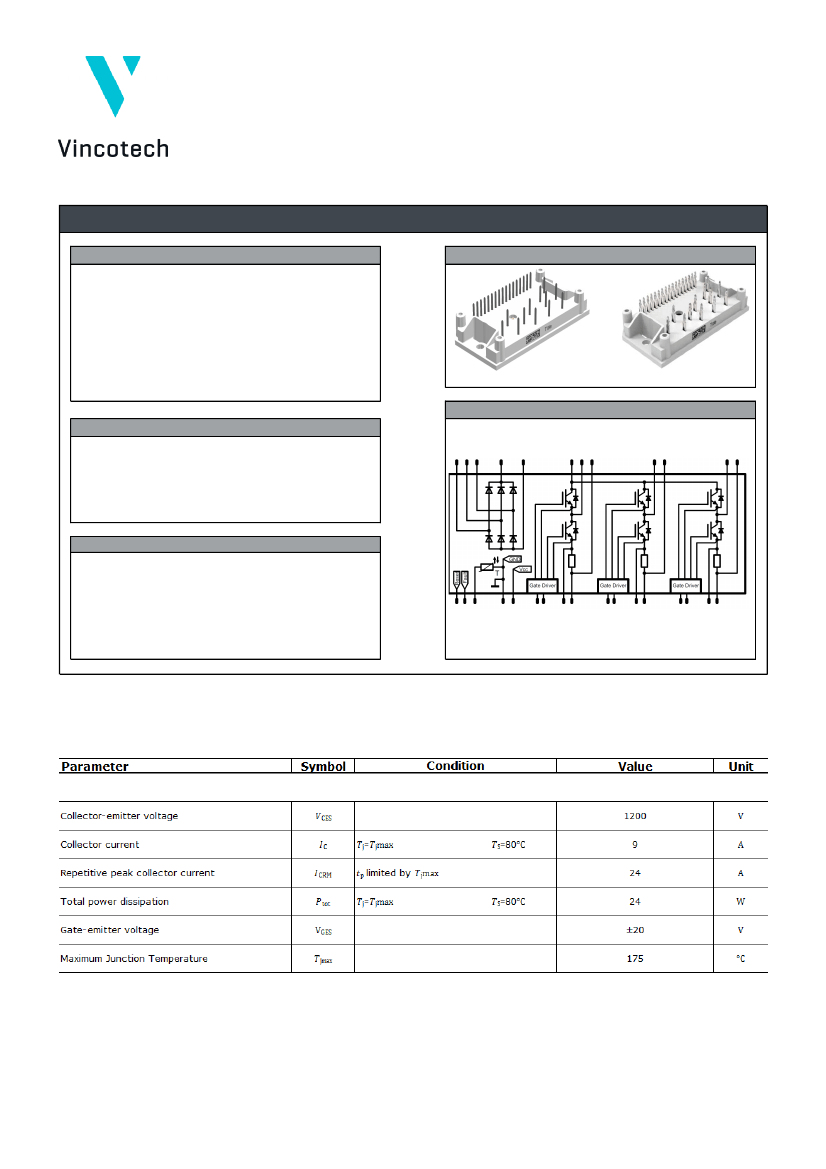

Features

Power

•

3 Phase Inverter

•

3 Phase Input Rectifier

•

Open Emitter or Emitter Shunt

Gate Driver

•

Booststrap circuit

•

Overcurrent protection

•

Undervoltage lockout

NTC

•

Temperature sensor

1200 V / 8 A

flow

1B 17mm housing

Solder pin variation

Press-fit pin variation

Schematic

Target applications

● Industrial motor drive

● Embedded Drive (fan, pump, compressor, etc.)

Types

● 20-1B12IPA008SC-L239C09

● 20-PB12IPA008SC-L239C09Y

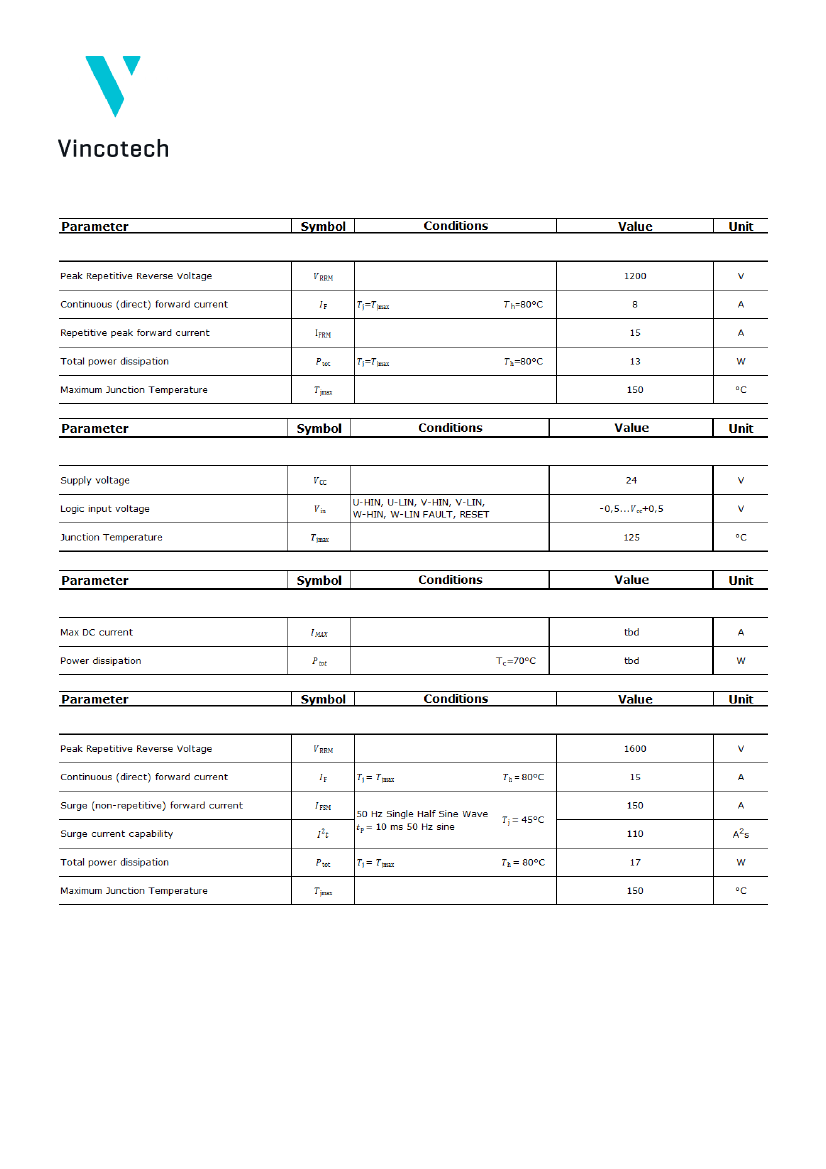

Maximum Ratings

T

j

=25°C, unless otherwise specified

Inverter Switch

Copyright Vincotech

1

22. May. 2015 / Revision 2
