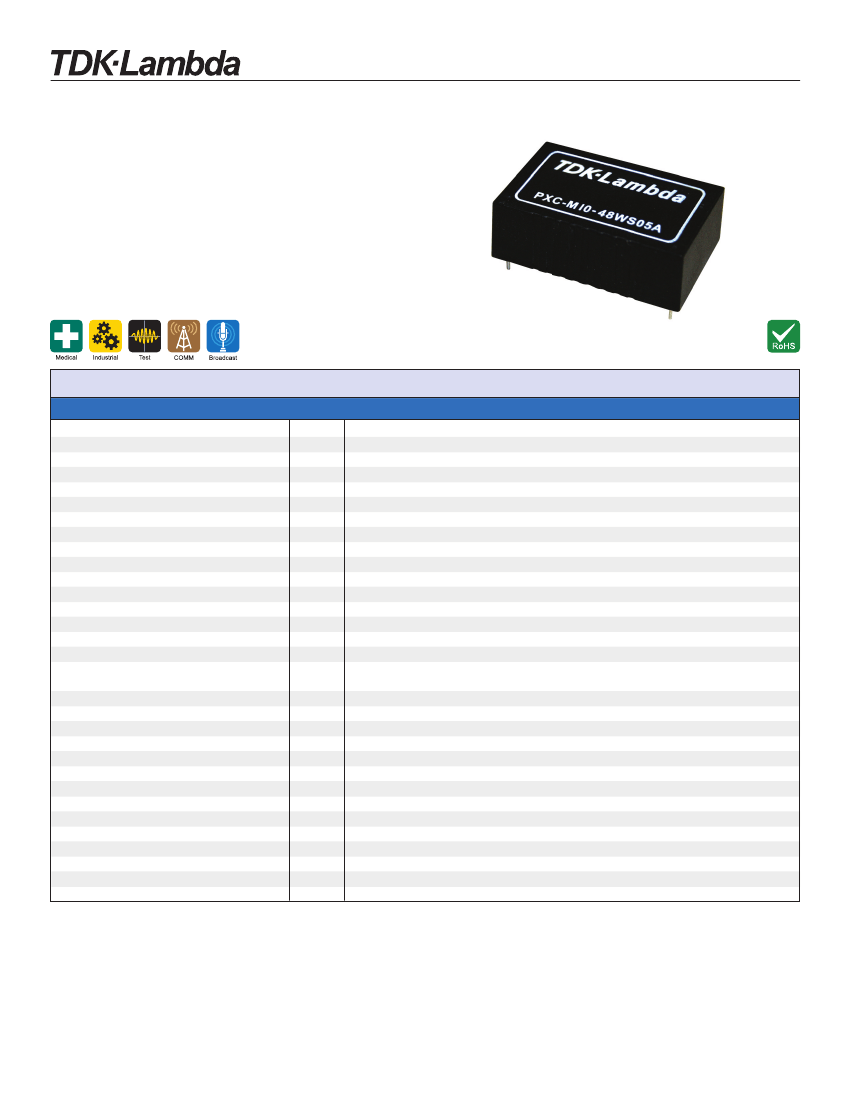

PXC-M10 Series
10W Medical & Industrial DC-DC Converters
Features
Industry Standard DIP-24 Package
9-36V or 18-75VDC Input
Medical & ITE Safety Certifications
5kVAC Isolation (2xMOPPs)
2uA Leakage Current
Low Off-Load Power Draw
Key Market Segments & Applications
Specifications
Model
Max Output Power
Voltage Accuracy
Voltage Adjustment (T)
Minimum Load
Line Regulation
Load Regulation
Cross Regulation
Ripple and Noise
Start up time
Remote on/off
Temperature Coefficient
Operating Temperature (1)
Storage Temperature
Thermal Shock
Relative Humidity (non condensing)
Transient Response (25% step load change)
Overvoltage Protection
Overcurrent and Short Circuit Protection
Input Surge Voltage (Maximum for 100ms)
Isolation Voltage
Isolation Resistance
Isolation Capacitance (max)
Typical Switching Frequency (Fixed)
MTBF (MIL-HDBK-217F)
Vibration
Conducted and Radiated Emissions
Immunity
Safety Agency Certifications
Size (L x W x H)
Weight
Warranty
Notes:
See installation manual for full specifications and test measurements.
(1) Convection cooling. See installation manual for forced air ratings.
PXC-M10
W
%
%
-
%
%
%
-
ms
-
%/°C
°C
°C
-
%RH
μs
V
%
V
V
Ω
pF
kHz
Hours
-
-
-
-
mm(”)
g
yrs
PXC-M10W
10W
±1%
+/-10% (-10% +20% on 15V & 24V single output models) (see options table)
None
Single Output: ±0.2%, Dual Output: ±0.5%
Single Output: ±0.2%, Dual Output: ±1%
±5% (25-100% load)
See table
30ms
See options table
<±0.02%/°C
-40 to +105°C, derating necessary above 77°C
-55 to 125°C
MIL-STD-810F
5 to 95%RH
< 250μs recovery
Single Output: 3.3V: 3.7-5V, 5V: 5.6-7V, 12V: 13.5-16V, 15V: 18.3-22V, 24V: 29.1-34.5V
Dual Output: 5V: 5.6-7V, 12V: 13.5-18.2V, 15V: 17-22V
Typically at 150%, hiccup with self recovery
5V input: 16V, 24V input: 50V, 48V input: 100V
5,000VAC
10
9
Ω
minimum
17pF maximum
300kHz (±30kHz)
3,849,000
MIL-STD-810F
See Installation Diagrams
EN61000-4-2, -3, -4, -5, -6 Pref Criteria A
IEC/EN60601-1, ES60601-1, CE Mark
31.8 x 20.3 x 10.2mm (1.25 x 0.8 x 0.4”)
14g
Two Years
1-800-526-2324 • www.us.tdk-lambda.com/lp/
143
Disclaimer: us.tdk-lambda.com/lp/legal.htm
PXC-M10 Series
Model Selector
Model
Single Outputs
PXC-M10-24WS3P3-A
PXC-M10-48WS3P3-A
PXC-M10-24WS05-A
PXC-M10-48WS05-A
PXC-M10-24WS12-A
PXC-M10-48WS12-A
PXC-M10-24WS15-A
PXC-M10-48WS15-A
PXC-M10-24WS24-A
PXC-M10-48WS24-A
Dual Outputs
PXC-M10-24WD05-A
PXC-M10-48WD05-A
PXC-M10-24WD12-A
PXC-M10-48WD12-A
PXC-M10-24WD15-A
PXC-M10-48WD15-A
±5
±5
±12
±12
±15
±15
±1
±1
±0.416
±0.416
±0.333
±0.333
10.0
10.0
10.0
10.0
10.0
10.0
9 - 36
18 - 75
9 - 36
18 - 75
9 - 36
18 - 75
6
4
6
4
6
4
85.0
85.0
89.0
88.0
88.0
88.0
30
30
40
40
40
40
±1440
±1440
±250
±250
±180
±180
3.3
3.3
5
5
12
12
15
15
24
24
2.5
2.5
2
2
0.83
0.83
0.67
0.67
0.416
0.416
8.3
8.3
10.0
10.0
10.0
10.0
10.1
10.1
10.0
10.0
9 - 36
18 - 75
9 - 36
18 - 75
9 - 36
18 - 75
9 - 36
18 - 75
9 - 36
18 - 75
6
4
6
4
6
4
6
4
6
4
83.0
82.5
86.5
86.5
89.0
89.0
89.0
89.0
89.0
88.5
30
30
30
30
40
40
40
40
50
50
3000
3000
2500
2500
430
430
350
350
125
125
Output
Output
Output
Input
Input Current Efficiency Ripple & Noise
Max Load
Voltage (V) Current (A) Power (W) Voltage (V) No Load (mA)
(%)
(Pk-Pk mV) Capacitance (uF)

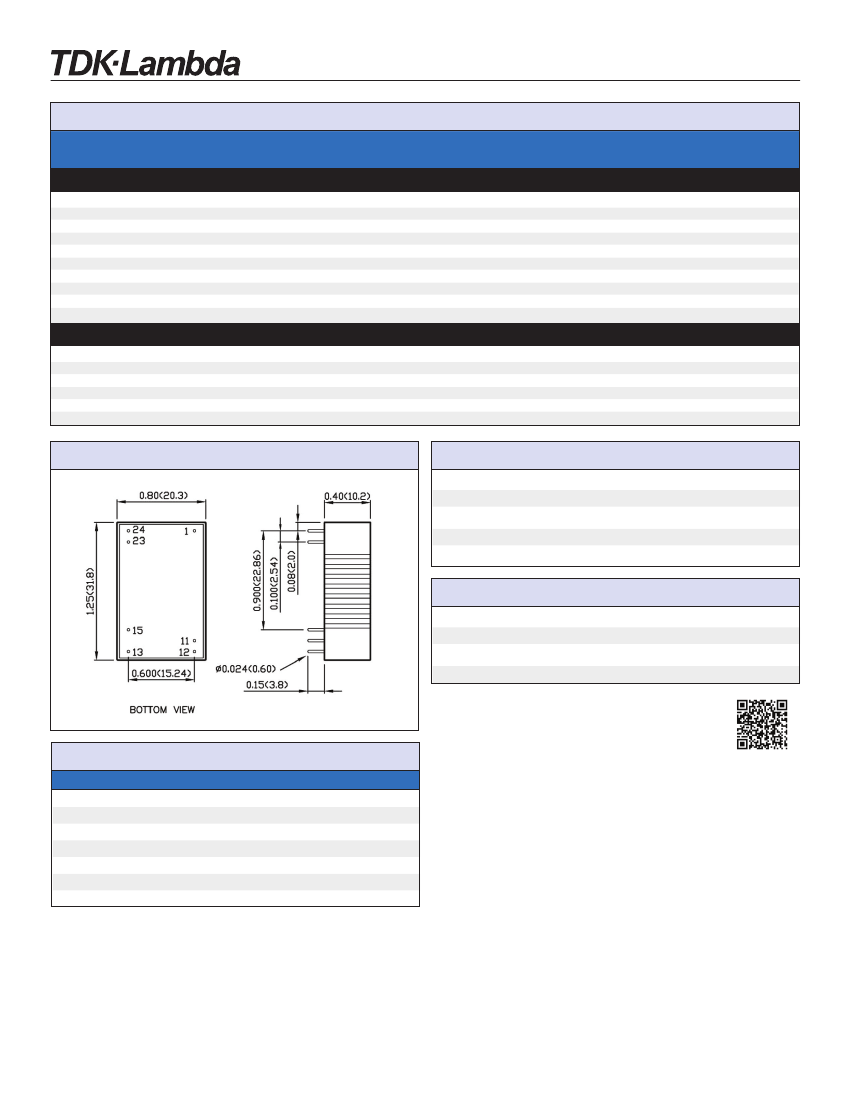

Outline Drawing, Pinout Style A
Options
-A
No suffix
-P
-T
-PT
Pinout style A (Standard Version)
Pinout style B (No remote on/off & no trim pin)
Pinout style B (Positive remote on/off & no trim pin)
Pinout style B (Trim pin & no remote on/off)
Pinout style B (Positive remote on/off & trim pin)
Other DC-DC Products
PX
CC-E
i6A
iA, iB, iC, iJ
10 - 60W, 12V, 24V, 48V input DC-DC
1.5 - 25W, 5V, 12V, 24V & 48V input DC-DC
14A, 9-40V input POL
3 - 60A, 5V & 12V input POL
For Additional Information, please visit
us.tdk-lambda.com/lp/products/pxc-m-series.htm
Pinout (Style A)
PIN #
1
11
12
13
15
23
24
Single Output
+ Input
No pin
- Output
+ Output
No pin
- Input
- Input
Dual Output
+ Input
Common
No pin
- Output
+ Output
- Input
- Input
(See website for Pinout Style B)
