OR2C12A-2ABA256 datasheet, PDF

OR2C12A-2ABA256: DescriptionField Programmable Gate Array, 324 CLBs, 15600 Gates, 51MHz, CMOS, PBGA256; CategoryProgrammable logic devices Programmable logic; File Size13MB，192 Pages; ManufacturerLSC/CSI; Websitehttps://lsicsi.com

Download Datasheet Parametric View All

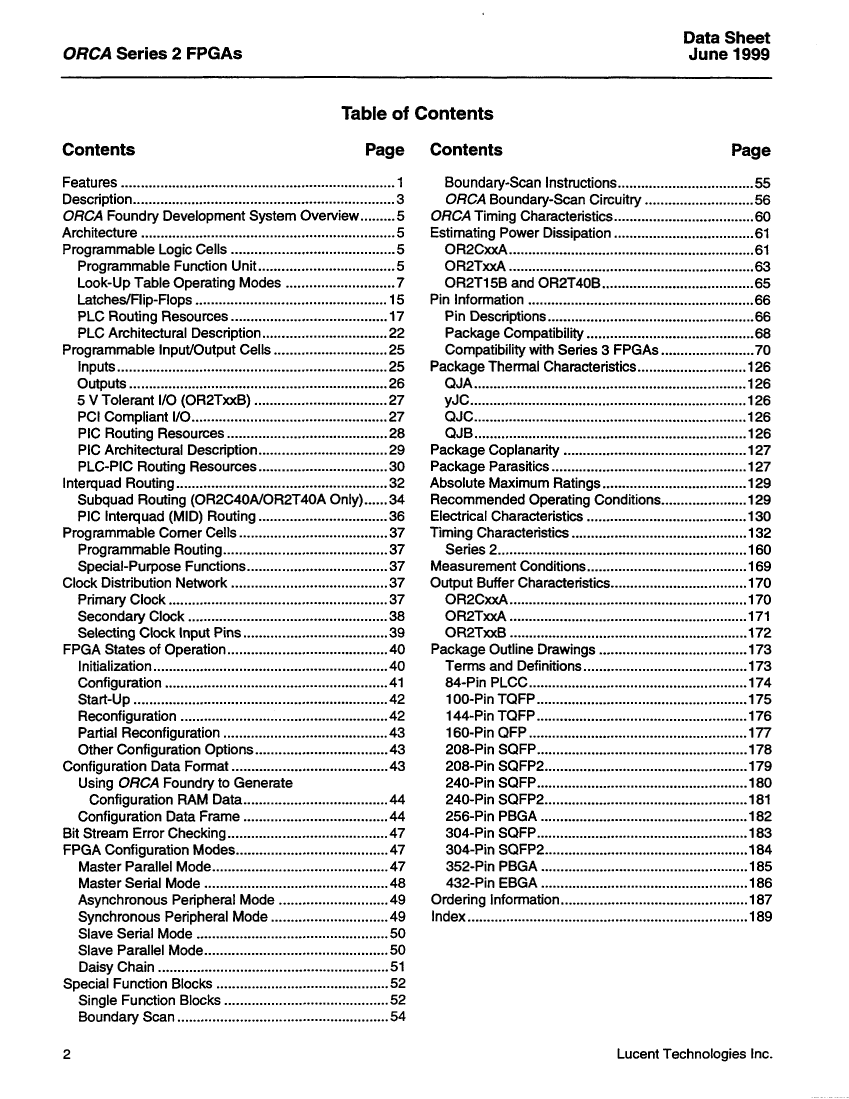

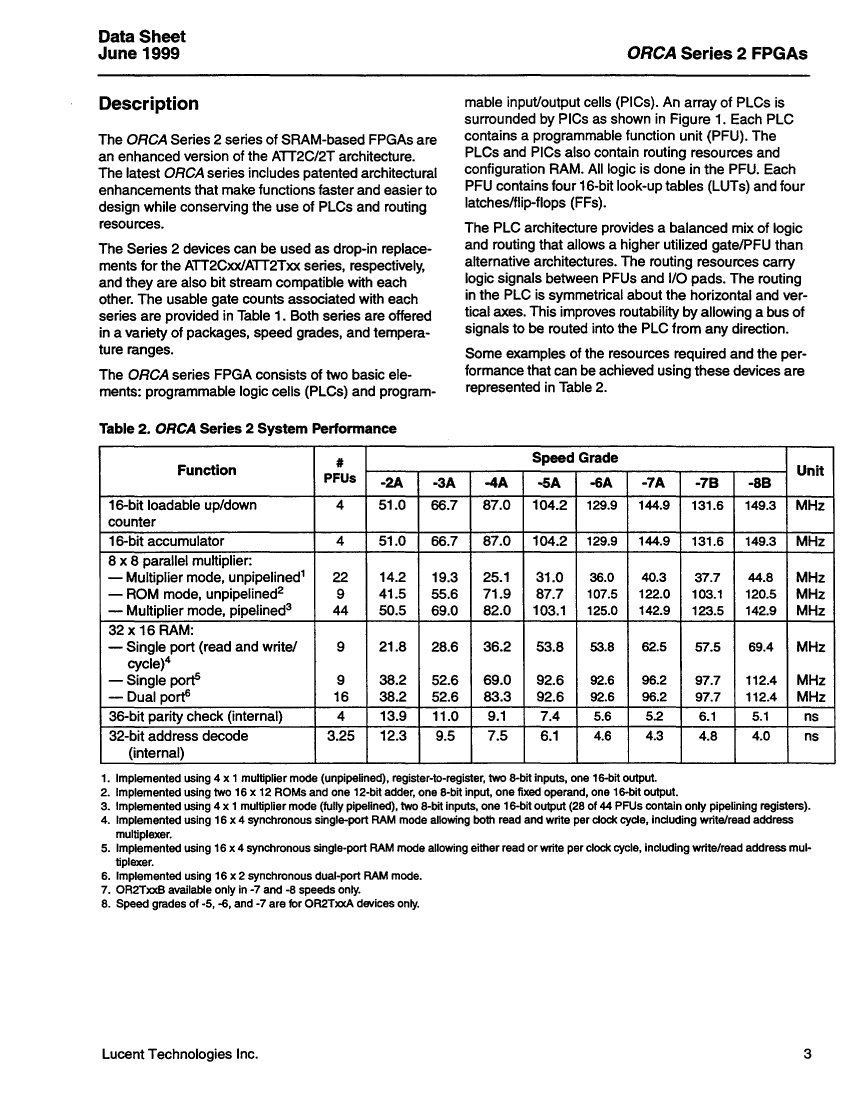

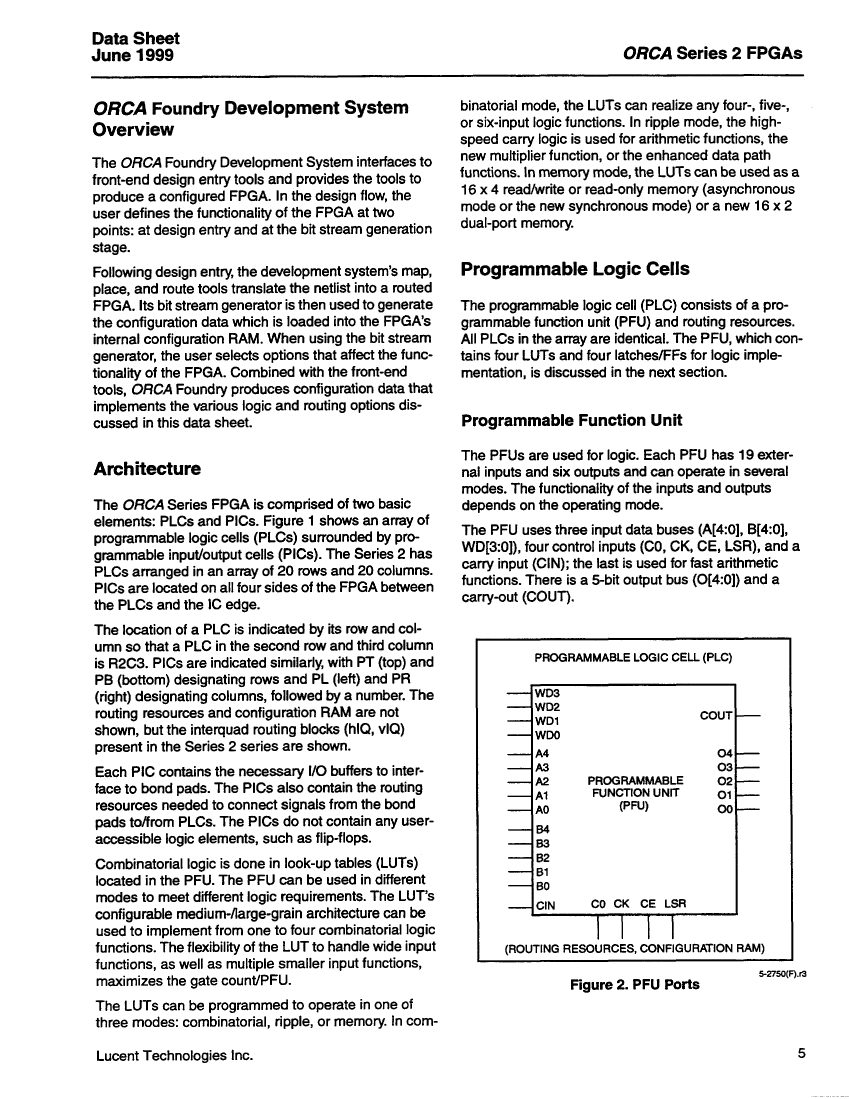

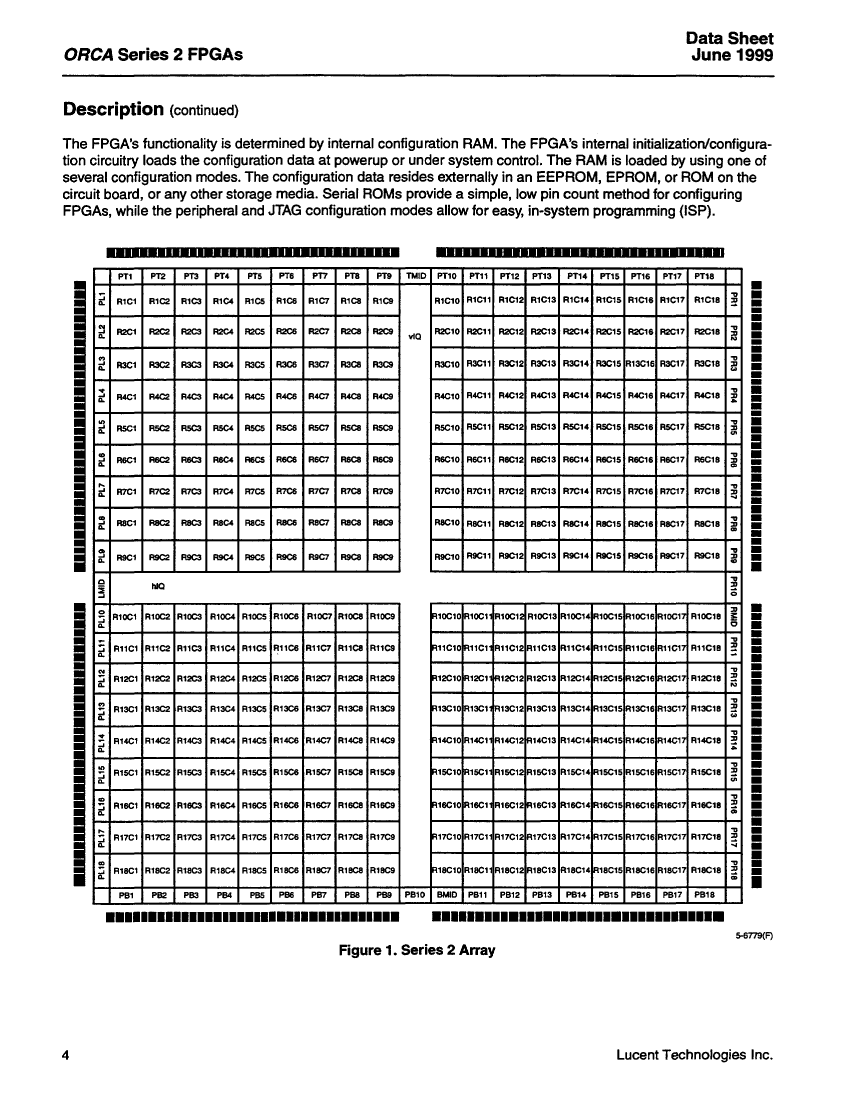

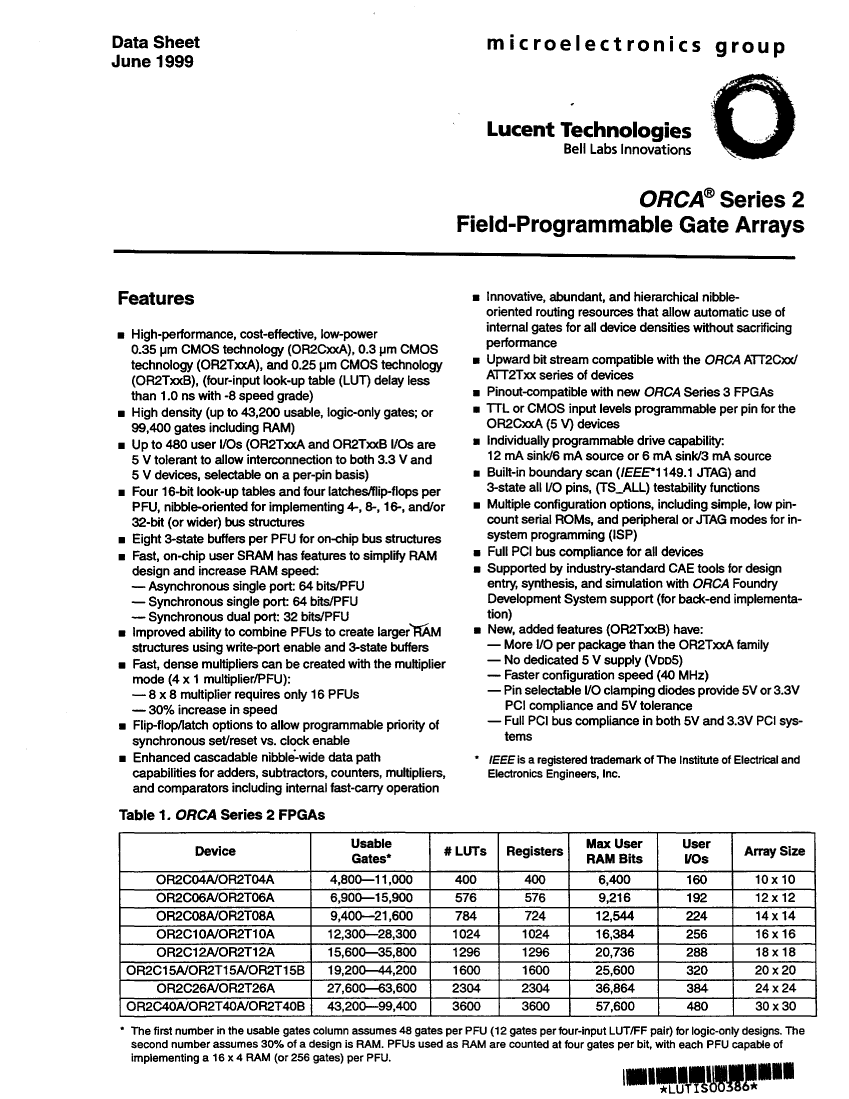

OR2C12A-2ABA256 Overview

Field Programmable Gate Array, 324 CLBs, 15600 Gates, 51MHz, CMOS, PBGA256

Parameter Name	Attribute value
Objectid	1475711518
package instruction	,
Reach Compliance Code	unknown
Other features	MAXIMUM USABLE GATES 35800
maximum clock frequency	51 MHz
Combined latency of CLB-Max	4.1 ns
JESD-30 code	S-PBGA-B256
Configurable number of logic blocks	324
Equivalent number of gates	15600
Number of terminals	256
Maximum operating temperature	70 °C
Minimum operating temperature
organize	324 CLBS, 15600 GATES
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	GRID ARRAY
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	BALL
Terminal location	BOTTOM
