WEDSP32C-100RL{ROM-VER} datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> WEDSP32C-100RL{ROM-VER}

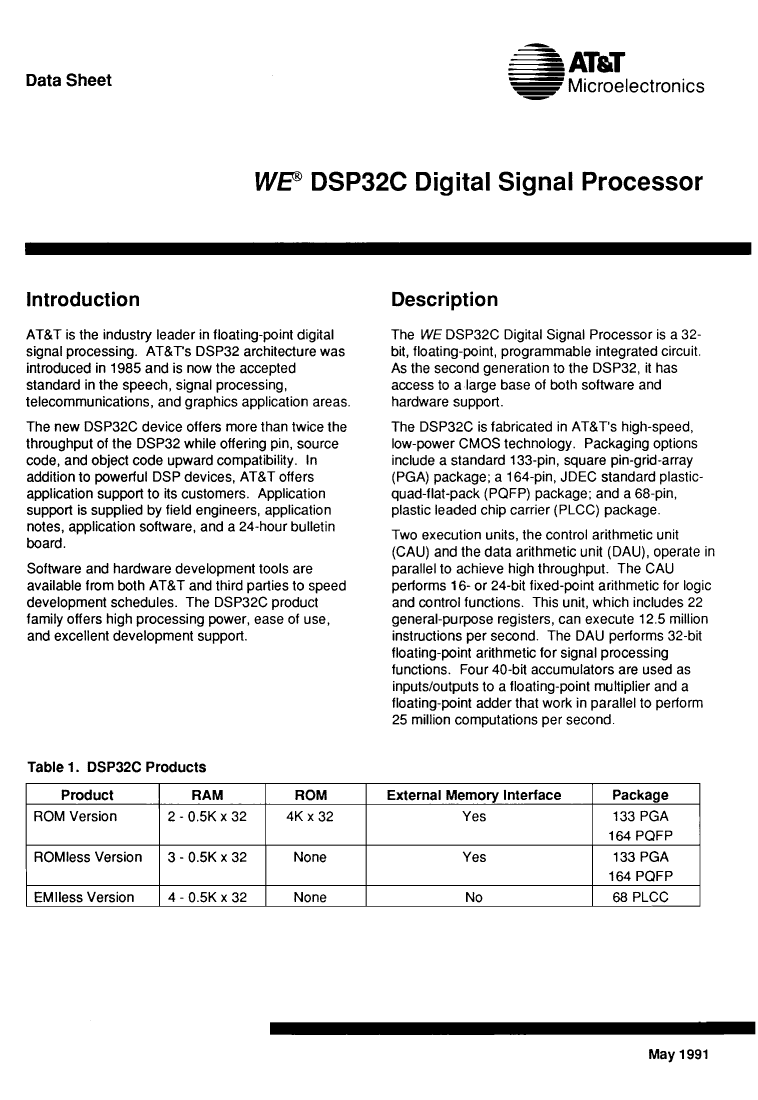

Preview

WEDSP32C-100RL{ROM-VER}: DescriptionDigital Signal Processor, 32-Ext Bit, 40MHz, CMOS, CPGA133; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，80 Pages; ManufacturerLSC/CSI; Websitehttps://lsicsi.com

Download Datasheet Parametric Compare View All

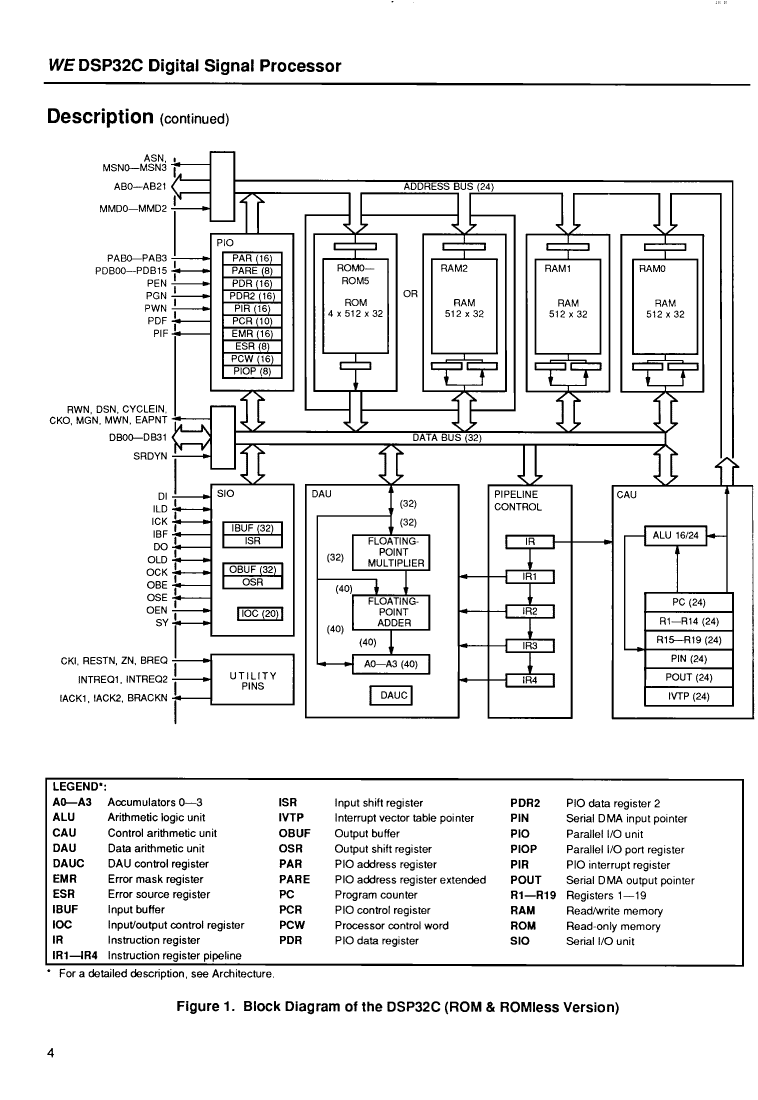

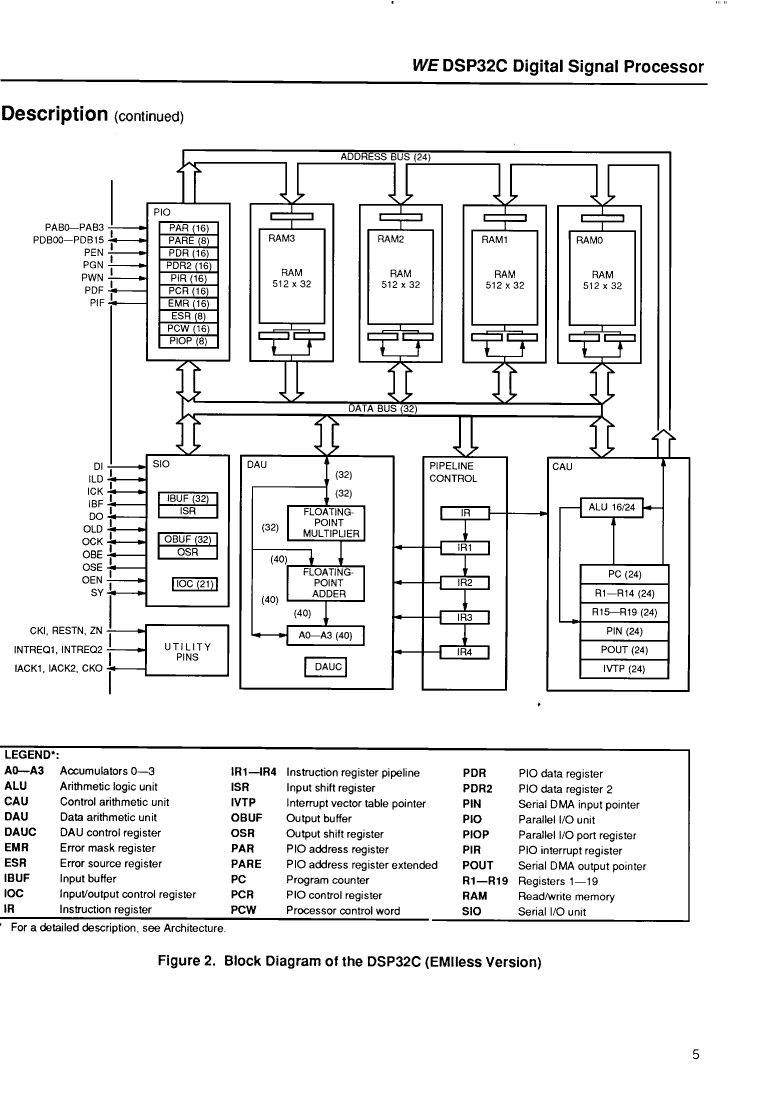

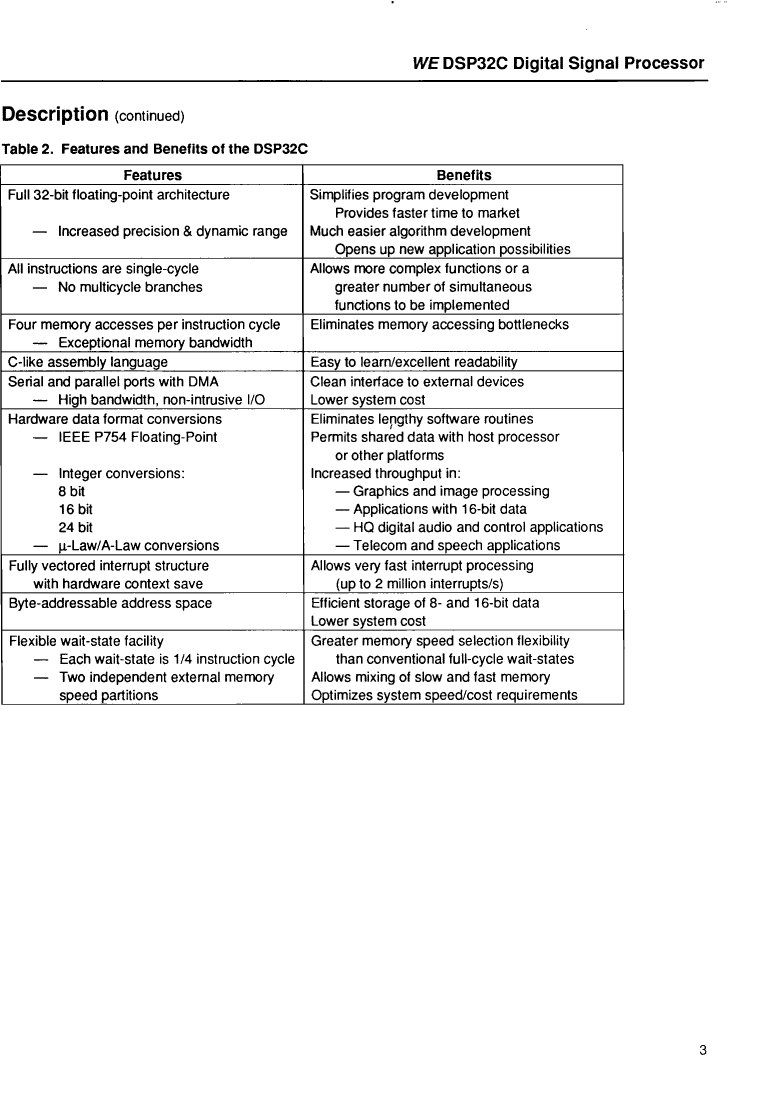

WEDSP32C-100RL{ROM-VER} Overview

Digital Signal Processor, 32-Ext Bit, 40MHz, CMOS, CPGA133

WEDSP32C-100RL{ROM-VER} Parametric

Parameter Name	Attribute value
Objectid	1401462546
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A991.A.2
Other features	2 EXECUTION UNITS; SINGLE CYCLE INSTRUCTION EXECUTION; PIO WITH 16 BIT DATA AND 4 BIT ADDRESS BUS
Address bus width	24
barrel shifter	NO
boundary scan	NO
maximum clock frequency	40 MHz
External data bus width	32
Format	FLOATING POINT
Integrated cache	NO
Internal bus architecture	SINGLE
JESD-30 code	S-CPGA-P133
low power mode	NO
Number of DMA channels
Number of external interrupt devices	2
Number of serial I/Os	1
Number of terminals	133
Number of timers
On-chip data RAM width	32
On-chip program ROM width	32
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	GRID ARRAY
Certification status	Not Qualified
RAM (number of words)	512
ROM programmability	MROM
Maximum slew rate	180 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal location	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	DIGITAL SIGNAL PROCESSOR, OTHER

Preview

Download Datasheet

View All

WEDSP32C-100RL{ROM-VER} Related Products

	WEDSP32C-100RL{ROM-VER}	WEDSP32C-100FL{ROM-VER}	WEDSP32C-100FL(ROMLESS-VER)	WEDSP32C-100RL(ROMLESS-VER)
Description	Digital Signal Processor, 32-Ext Bit, 40MHz, CMOS, CPGA133	Digital Signal Processor, 32-Ext Bit, 40MHz, CMOS, PQFP164	Digital Signal Processor, 32-Ext Bit, 40MHz, CMOS, PQFP164	Digital Signal Processor, 32-Ext Bit, 40MHz, CMOS, CPGA133
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	3A991.A.2	3A991.A.2	3A991.A.2	3A991.A.2
Other features	2 EXECUTION UNITS; SINGLE CYCLE INSTRUCTION EXECUTION; PIO WITH 16 BIT DATA AND 4 BIT ADDRESS BUS	2 EXECUTION UNITS; SINGLE CYCLE INSTRUCTION EXECUTION; PIO WITH 16 BIT DATA AND 4 BIT ADDRESS BUS	2 EXECUTION UNITS; SINGLE CYCLE INSTRUCTION EXECUTION; PIO WITH 16 BIT DATA AND 4 BIT ADDRESS BUS	2 EXECUTION UNITS; SINGLE CYCLE INSTRUCTION EXECUTION; PIO WITH 16 BIT DATA AND 4 BIT ADDRESS BUS
Address bus width	24	24	24	24
barrel shifter	NO	NO	NO	NO
boundary scan	NO	NO	NO	NO
maximum clock frequency	40 MHz	40 MHz	40 MHz	40 MHz
External data bus width	32	32	32	32
Format	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT
Integrated cache	NO	NO	NO	NO
Internal bus architecture	SINGLE	SINGLE	SINGLE	SINGLE
JESD-30 code	S-CPGA-P133	S-PQFP-G164	S-PQFP-G164	S-CPGA-P133
low power mode	NO	NO	NO	NO
Number of external interrupt devices	2	2	2	2
Number of serial I/Os	1	1	1	1
Number of terminals	133	164	164	133
On-chip data RAM width	32	32	32	32
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	FLATPACK	FLATPACK	GRID ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	512	512	768	768
Maximum slew rate	180 mA	180 mA	180 mA	180 mA
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	PIN/PEG	GULL WING	GULL WING	PIN/PEG
Terminal location	PERPENDICULAR	QUAD	QUAD	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	DIGITAL SIGNAL PROCESSOR, OTHER	DIGITAL SIGNAL PROCESSOR, OTHER	DIGITAL SIGNAL PROCESSOR, OTHER	DIGITAL SIGNAL PROCESSOR, OTHER
Objectid	1401462546	-	1401462545	1401462547
