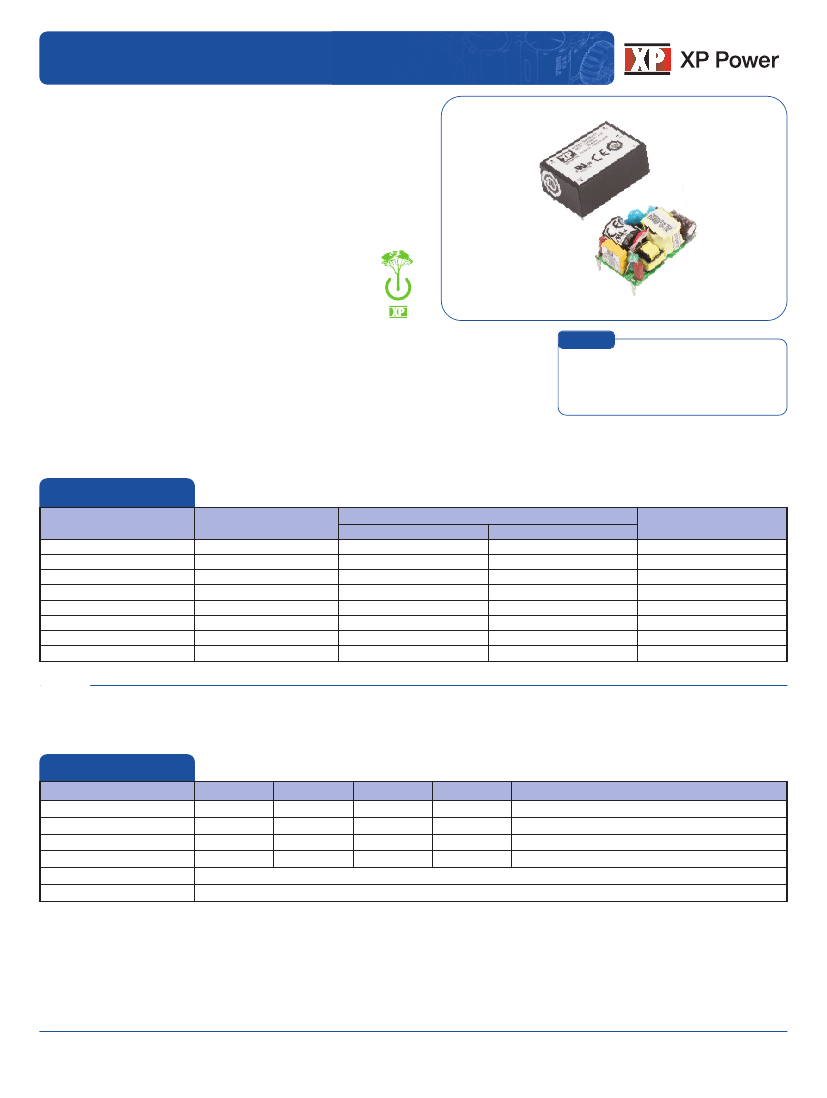

EME05 Series
5 Watts
• Compact Size
• Medical Approvals
• 2 MOPP
• Single Outputs from 3.3 to 48 V
• PCB Mount
• Encapsulated & Open Frame
• Class II
• Peak Load Capability
• 3 Year Warranty
GREEN
AC-DC Power Supplies
POWER
Dimensions:
EME05:
1.50 x 1.00 x 0.60” (36.1 x 25.4 x 15.2 mm)
EME05-P:
1.40 x 0.94 x 0.69” (35.6 x 23.7 x 17.6 mm)
The EME05 is a series of open frame and encapsulated AC-DC single output power supplies
designed for medical applications. The series provides two mechanical options including open
frame and encapsulated PCB mount. With approvals to world-wide medical safety standards,
compliance with class B for both conducted and radiated emissions and a 130%, 30s peak load
capability, these class II isolation parts benefit system designers with easy integration into the latest
healthcare products and applications.
Models & Ratings
Output Power
5W
5W
5W
5W
5W
5W
5W
5W
Output Voltage
3.3 VDC
5.0 VDC
9.0 VDC
12.0 VDC
15.0 VDC
24.0 VDC
36.0 VDC
48.0 VDC
Output Current
Nominal
1510 mA
1000 mA
555 mA
416 mA
333 mA
208 mA
138 mA
104 mA
Peak
(1)
1960 mA
1300 mA
722 mA
541 mA
433 mA
270 mA
180 mA
135 mA
Model Number
(2)
EME05US03
EME05US05
EME05US09
EME05US12
EME05US15
EME05US24
EME05US36
EME05US48
Notes
1. Peak load lasting <30 s with a maximum duty cycle of 10%, average output power not to exceed nominal.
2. For Open Frame version add suffix -P to model number, e.g. EME05US12-P.
Summary
Characteristic
Input Voltage Range
No Load Input Power
Efficiency
Operating Temperature
EMC
Safety Approvals
72
-25
Minimum
85
Typical
Maximum
264
0.3
86
+70
Units
VAC
W
%
°C
Derate linearly from 100% at +50 °C to 50% at +70 °C
Notes & Conditions
Derate from 100% at 90 VAC to 90% at 85 VAC
EN55011 Level B Conducted & Radiated, EN601000-3-2, EN61000-3-3, EN60601-1-2
EN60601-1, ANSI/AAMI ES60601-1. IEC60601-1
1
www.xppower.com
EME05 Series

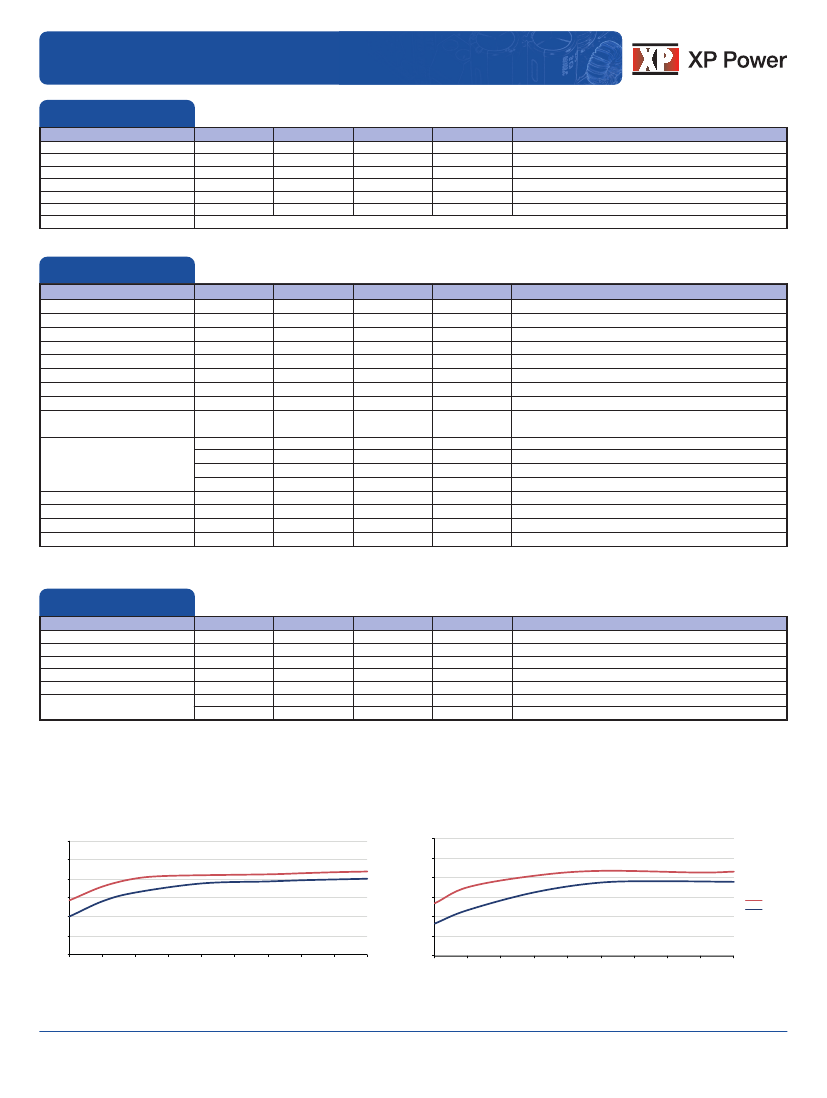

Input
Characteristic
Input Voltage Range
Input Frequency
Input Current - Full Load
No Load Input Power
Inrush Current
Earth Leakage Current
Input Protection
Minimum
85
47
Typical
Maximum
264
63
0.3
40
AC-DC Power Supplies
0.10/0.06
Units
VAC
Hz
A rms
W
A
Notes & Conditions
At 115/230 VAC
At 230 VAC
Class II construction no earth
Internal T1.0 A/250 VAC fuse fitted in line and neutral
Output
Characteristic
Output Voltage
Initial Set Accuracy
Minimum Load
Start Up Delay
Start Up Rise Time
Hold Up Time
Line Regulation
Load Regulation
Transient Response
Minimum
3.3
0
2
14
12
±0.5
±1
4
50
90
120
200
140
200
0.05
Typical
Maximum
48
±1
Units
VDC
%
A
s
ms
ms
%
%
%
mV pk-pk
mV pk-pk
mV pk-pk
mV pk-pk
% Vnom
%
%/˚C
Notes & Conditions
No minimum load required
at full load and 115 VAC
Ripple & Noise
Overvoltage Protection
Overload Protection
Short Circuit Protection
Temperature Coefficient
115
130
Deviation, recovery within 1% in less than 500 µs
for a 25% load change
3.3-5 V versions, 20 MHz bandwidth
9 V versions, 20 MHz bandwidth
12-15 V versions, 20 MHz bandwidth
24-48 V versions, 20 MHz bandwidth
Recycle input to reset
Trip & Restart (hiccup mode)
General
Characteristic
Efficiency
Isolation: Input to Output
Switching Frequency
Power Density
Mean Time Between Failure
Weight
Minimum
4000
130
5.5
>400
0.03 (14)
0.053 (24)
Typical
80
Maximum
Units
%
VAC
kHz
W/in
3
kHrs
lb (g)
lb (g
Notes & Conditions
2 x MOPP
MIL-HDBK-217F, +25 °C GB
Open frame versions (-P)
Encapsulated version
Efficiency Graphs
EME05US12
100%
90%
80%
70%
60%
50%
40%
E
EME05US24
100%
90%
80%
y
70%
60%
50%
40%
115Vac input
230Vac input
Efficiency
10
20
30
40
50
60
70
80
90
100
10
20
30
40
50
60
70
80
90
100
Load (%)
Load (%)
www.xppower.com
2
EME05 Series
Environmental
Characteristic
Operating Temperature
Storage Temperature
Cooling
Humidity
Operating Altitude
Shock
Vibration
95
3048
Minimum
-25
-40
Typical
Maximum
+70
+85
AC-DC Power Supplies
Units
°C
°C
Notes & Conditions
Derate linearly from 100% at +50 °C to 50% at +70 °C
Convection-cooled
%RH
m
Non-condensing
IEC68-2-27, 30 g, 11 ms half sine, 3 times in each of 6 axes
IEC68-2-6, 2 g, 10 Hz to 500 kHz, 10 mins/cycle, 60 mins each cycle
EMC: Emissions
Phenomenon
Conducted
Radiated
Harmonic Current
Voltage Flicker
Standard
EN55011
EN55011
EN61000-3-2
EN61000-3-3
Test Level
Class B
Class B
Class A
Criteria
Notes & Conditions
EMC: Immunity
Phenomenon
Medical Device EMC
ESD
Radiated
EFT
Surge
Conducted
Magnetic Fields
Standard
IEC60601-1-2
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
Test Level
Ed 4.0: 2014
±8kV contact,
±15kV air discharge
10 V/m
3
2
10 Vrms
30 A/m
70% U
T
(70 VAC) for 500 ms
EN60601-1-2 (100 VAC)
Dips and Interruptions
EN60601-1-2 (240 VAC)
40% U
T
(40 VAC) for 100 ms
<5% U
T
(0 VAC) for 10 ms
<5% U
T
(0 VAC) for 5000 ms
70% U
T
(168 VAC) for 500 ms
40% U
T
(96 VAC) for 100 ms
<5% U
T
(0 VAC) for 10 ms
<5% U
T
(0 VAC) for 5000 ms
Criteria
As below
A
A
A
A
A
A
A
A
A
B
A
A
A
B
Load de-rated to 50%
80% mod, 80 MHz - 2.7 GHz plus discrete
communcation proximity field frequencies
Notes & Conditions
Safety Approvals
Safety Agency
CB Report
UL
TUV
Safety Standard
IEC60601-1 Including Risk Management
ANSI/AAMI ES60601-1:2005 & CSA C22.2, No.60601-1:08
EN60601-1
Notes & Conditions
Medical
Medical
Medical
Means of Protection
Primary to Secondary
2 x MOPP (Means of Patient Protection)
Category
IEC60601-1 Ed 3.1
3
www.xppower.com
EME05 Series

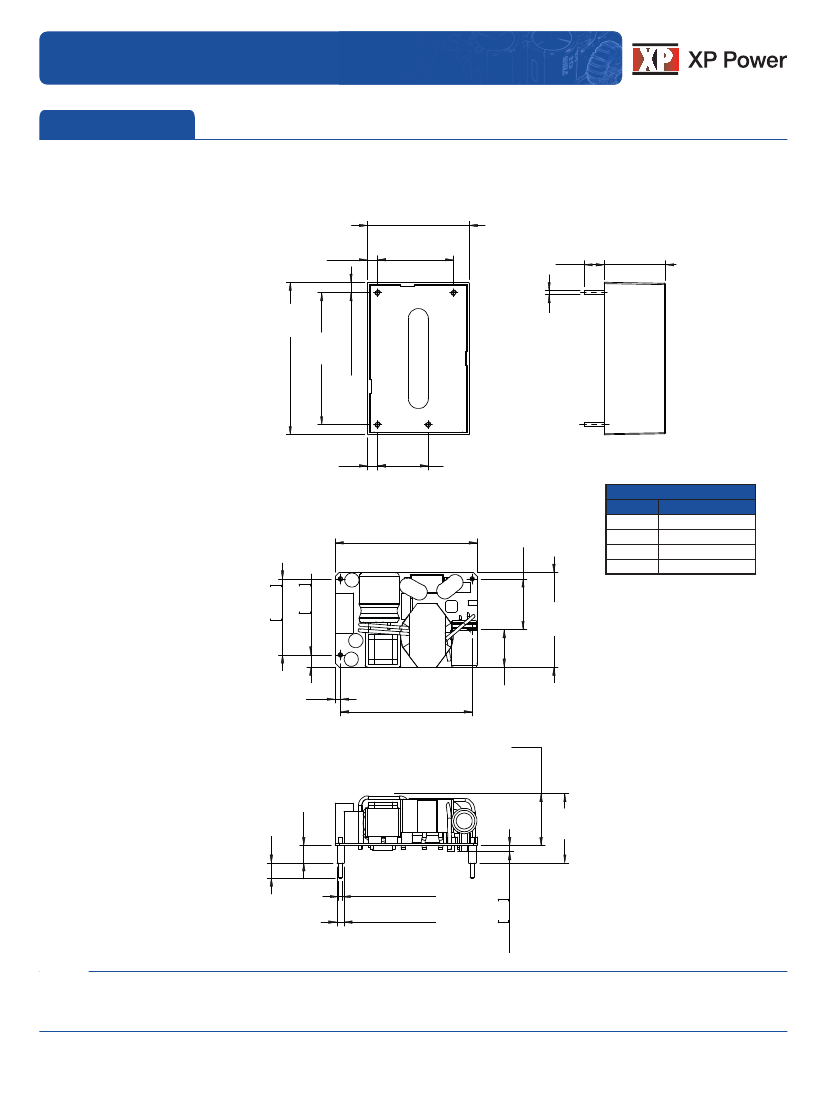

Mechanical Details
AC-DC Power Supplies
Encapsulated
BOTTOM VIEW
1.0 (25.4)
0.10 (2.53)
0.75 (19.05)
0.20
(5.1)
0.60 (15.2)
1.50
(38.1)
2
1
1.30
(33.02)
0.10
(2.54)
4 Ø0.04
(Ø1.02)
3
4
0.10 (2.53)
0.5 (12.7)
Pin Connections
Pin
Single
ACN
ACL
-Vout
+Vout
Open Frame (-P)
1.40 (35.6)
2
0.750 19.05
0.120 3.05
0.50
(12.7)
3
1
2
3
4
4
1
0.94
(23.7)
0.05 (1.28)
1.30 (33.02)
0.37
(9.40)
0.51
(13.0) max
0.15
(3.8)
0.17
(4.4)
0.69
(17.6)
Ø0.039 (Ø1.00)
Ø0.071 (Ø1.80)
Notes
1. Dimensions in inches (mm).
2. Weight: Open frame versions (-P): 0.03 lbs (14 g)
Encapsulated: 0.053 lbs (24 g))
3. Tolerances:
x.xx = ± 0.02 (x.x = ± 0.5)
x.xxx = ± 0.01 (x.xx = ± 0.25)
www.xppower.com
0.08 2.0 max
23 Feb 16
