HYBRID IC
VLA127-02R
IPM INTERFACE MODULE WITH DC-DC CONVERTER

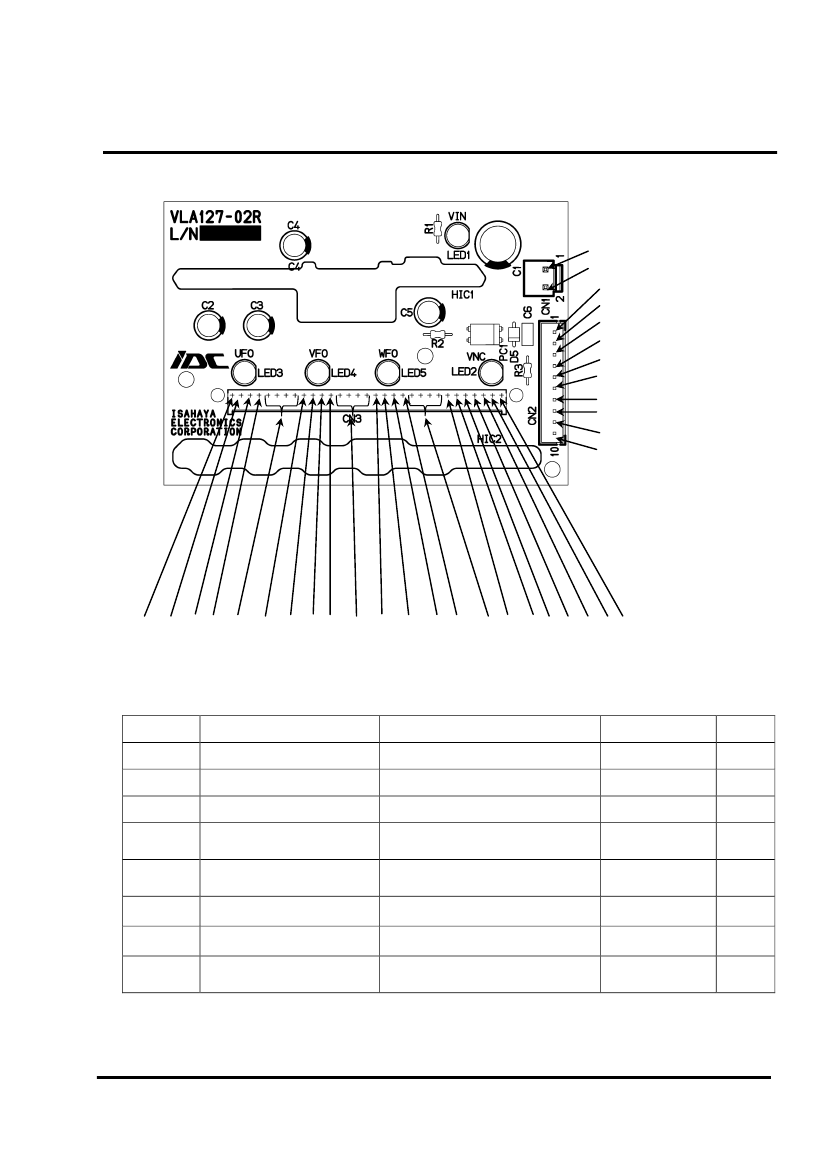

VD+ (+24V)
VD-
VIN+ (+5V)
UP
VP
WP
UN
VN
WN
Br
Fo
GND
CN1：B2P-VH (JST)
CN2：B10B-XH-A
(JST)

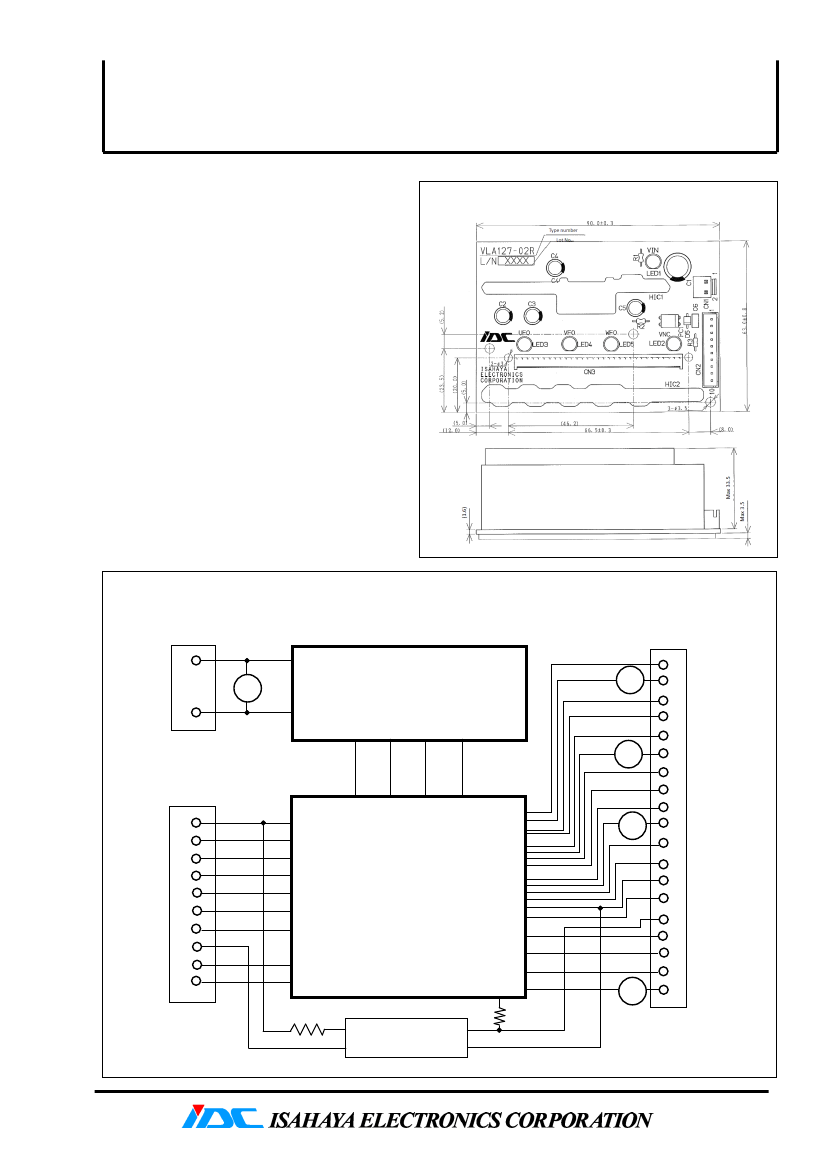

VUPC UFO UP VUP1 NC VVPC VFO VP VVP1 NC VWPC WFO WP VWP1 NC VNC VN1 Br UN VN WN Fo
MAXIMUM RATINGS
(unless otherwise noted, V
IN
=24V,Ta=25°C)
Symbol
VD
VCC
VIN
I
F
V
R
Topr
Tstg
Viso
Parameter
supply voltage
supply voltage
Input voltage
Input current
reverse voltage
Operating temperature
Storage temperature
Isolation voltage between
primary to secondary
Conditions
CN1 Between pins 1 and 2
CN2 Between pins 9 and 10
CN2 Between pins 1 and 10
CN2 Between pins
1-2,1-3,1-4,1-5,1-6,1-7.1-8
CN2 Between pins
1-2,1-3,1-4,1-5,1-6,1-7.1-8
No condensation
No condensation
Sine wave voltage, 60Hz, 1min
Ratings
26
40
6
20
5
-10 ~ +70
-20 ~ +85
2500
Unit
V
V
V
mA
V
°C
°C
Vrms
*Other maximum ratings apply to individual Hic.
