HYBRID IC
VLA202-12051
DC-DC CONVERTER
DESCRIPTION
The VLA202-12051 is a non-isolated type DC-DC converter
.
Its output power is 1.5W and has over-current protective function
So it is an optimal product for power supply on the controller board.

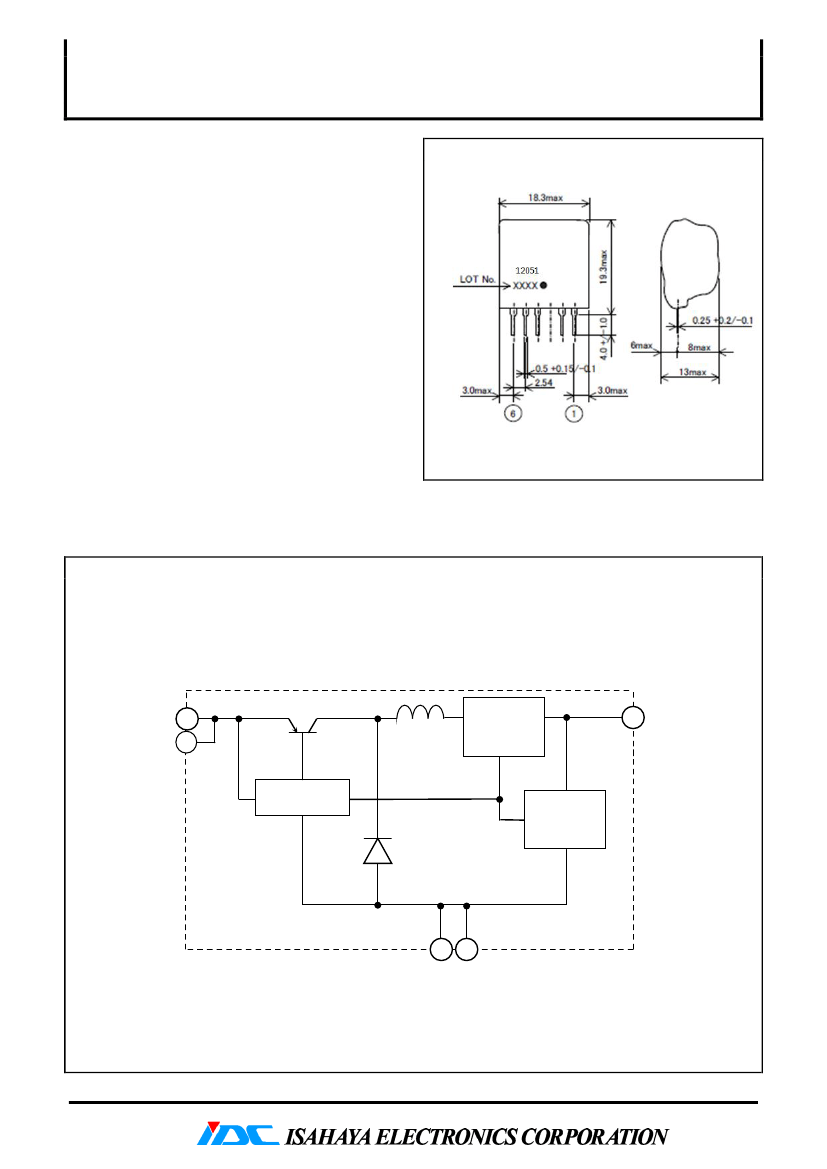

OUTLINE DRAWING
Dimensions: mm
FEATURES
-Input voltage range ··············8V ~ 16VDC
-Output
······························· 5V, 300mA
APPLICATIONS
Power supply to controller devices
BLOCK DIAGRAM
1
VIN
2
Current
detector
6
Vo
Base driver
Voltage
detector
4
5
COMMON
HYBRID IC
VLA202-12051
DC-DC CONVERTER
MAXIMUM RATINGS
(unless otherwise noted, Ta=25°C)
Symbol
VIN
Io
Topr
Tstg
Parameter
Input voltage
Output current
Operating temperature
Storage temperature
No condensation allowable
※1
No condensation allowable
Conditions
Ratings
18.5
300
-10 ~ +80
-25 ~ +85
Unit
V
mA
°C
°C
※1
Please refer the DERATING CHARACTERISTICS.
ELECTRICAL CHARACTERISTICS
(Unless otherwise noted, V
IN
=12V ,Ta=25°C)
Limits
Symbol
VIN
Vo
Reg-I
Reg-L
η
Vp-p
Parameter
Input voltage
Output voltage
Input regulation
Load regulation
Efficiency
Ripple voltage
Conditions
Min
Recommended range
Io = 0 ~ 300mA
Io=300mA, VIN=8 ~ 16V
Io=0 ~ 300mA
Io=300mA
Io=300mA
※2
8
4.7
-
-
72
-
Typ
12
5.0
30
70
80
100
Max
16
5.3
100
150
-
150
V
V
mV
mV
%
mVp-p
Unit
※2
Not contained the spike noise.
MEASUREMENT CIRCUIT
1
6
VLA202-12051
220μF
25V
4
5
Io
A
１
V
IN
100μF
50V
１
+
＋
V
Vo
LOAD
+
2
１
１ １
Please use electrolytic capacitor of output side with high frequency and low impedance.
2
HYBRID IC
VLA202-12051
DC-DC CONVERTER
FOR SAFETY USING
Great detail and careful attention are given to the production activity of Hics, such as the development, the quality of production,
and in it’s reliability. However the reliability of Hics depends not only on their own factors but also in their condition of usage.
When handling Hics, please note the following cautions.
CAUTIONS
Packing
The materials used in packing Hics can only withstand normal external conditions.
When exposed to outside shocks, rain and certain environmental contaminators, the packing
materials will deteriorates. Please take care in handling.
Carrying
1)
2)
3)
4)
5)
Don’t stack boxes too high. Avoid placing heavy materials on boxes.
Boxes must be positioned correctly during transportation to avoid breakage.
Don't throw or drop boxes.
Keep boxes dry.
Avoid rain or snow.
Minimal vibration and shock during transportation is desirable.
Storage
When storing Hics, please observe the following notices or possible deterioration of their electrical
characteristics, risk of solderability, and external damage may occur.
1)
Devices must be stored where fluctuation of temperature and humidity is minimal, and must
not be exposed to direct sunlight. Store at the normal temperature of 5 to 30 degrees Celsius
with humidity at 40 to 60%.
2)
3)
4)
Avoid locations where corrosive gasses are generated or where much dust accumulates.
Storage cases must be static proof.
Avoid putting weight on boxes.
Extended storage
When extended storage is necessary, Hics must be kept non-processed. When using Hics which
have been stored for more than one year or under severe conditions, be sure to check that the
exterior is free from flaw and other damages.
Maximum ratings
To prevent any electrical damages, use Hics within the maximum ratings.
current, voltage, etc. must not exceed these conditions.
The temperaqture,
Polarity
To protect Hics from destruction and deterioration due to wrong insertion, make sure of polarity in
inserting leads into the board holes, conforming to the external view for the terminal arrangement.
3
HYBRID IC
VLA202-12051
DC-DC CONVERTER
Marketing division, Marketing plannning department
6-41 Tsukuba, Isahaya, Nagasaki, 854-0065 Japan
Keep safety first in your circuit designs!
- ISAHAYA Electronics Corporation puts the maximum effort into making semiconductor products better and more reliable,
but there is always the possibility that trouble may occur with them. Trouble with semiconductors may lead to personal
injury, fire or property damage. Remember to give due consideration to safety when making your circuit designs, with
appropriate measures such as (1)placement of substitutive, auxiliary circuits, (2)use of non-flammable material or
(3)prevention against any malfunction or mishap.
Notes regarding these materials
- These materials are intended as a reference to assist our customers in the selection of the ISAHAYA products best suited
to the customer's application; they don't convey any license under any intellectual property rights, or any other rights,
belonging ISAHAYA or a third party.
- ISAHAYA Electronics Corporation assumes no responsibility for any damage, or infringement of any third party's rights,
originating in the use of any product data, diagrams, charts or circuit application examples contained in these materials.
- All information contained in these materials, including product data, diagrams and charts, represent information on products
at the time of publication of these materials, and are subject to change by ISAHAYA Electronics Corporation without notice
due to product improvements or other reasons. It is therefore recommended that customers contact ISAHAYA Electronics
Corporation or an authorized ISAHAYA products distributor for the latest product information before purchasing product listed
herein.
- ISAHAYA Electronics Corporation products are not designed or manufactured for use in a device or system that is used
under circumstances in which human life is potentially at stake. Please contact ISAHAYA electronics corporation or an
authorized ISAHAYA products distributor when considering the use of a product contained herein for any specific purposes,
such as apparatus or systems for transportation, vehicular, medical, aerospace, nuclear, or undersea repeater use.
- The prior written approval of ISAHAYA Electronics Corporation is necessary to reprint or reproduce in whole or in part these
materials.
- If these products or technologies are subject to the Japanese export control restrictions, they must be exported under a
license from the Japanese government and cannot be imported into a country other than the approved destination.
Any diversion or reexport contrary to the export control laws and regulations of Japan and/or the country of destination is
prohibited.
- Please contact ISAHAYA Electronics Corporation or an authorized ISAHAYA products distributor for further details on these
materials or the products contained therein.
