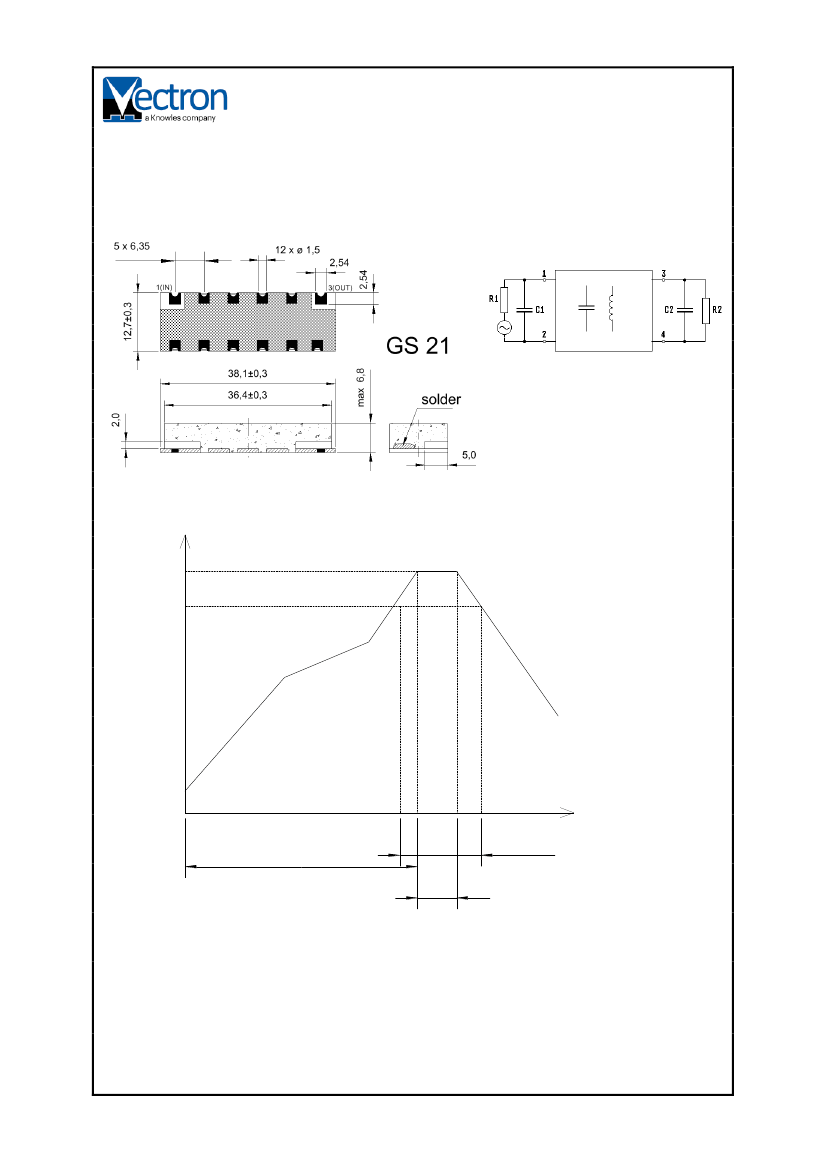

Specification for LC band pass filter:
1. General
1.1. Package:
LC 160.0-50.0/06
temperature (°C)
260°C max.
260
217
0
time (s)
max 300s
30,,,150s
10,,,,,,30s
Reflow soldering: three times max.
1.2.
1.3.
1.4.
1.5.
Type name:
Number of poles:
Operating temperature range ( OTR ):
Storage temperature range:
LC 160.0-50.0/06
10
-20°C to +70°C
-30°C to +80°C
2.
Electric values
160.0 MHz
2.1. Nominal centre frequency fo:
2.2.
Pass band
2.2.1. Bandwidth at 3 dB:
2.2.2. Ripple in pass band:
2.2.3. Insertion loss:
2.2.4. Return loss ( Input / Output )
> fo ± 25.0 MHz
< 2.0 dB ( peak to peak )
< 4.0 dB
> 10 dB within 3-dB bandwidth
2.3.
Stop band
2.3.1. fo ± 42.5 MHz:
2.3.2. fo ± 48.5 MHz:
2.3.3. Alternate attenuation:
at DC..……..97 MHz
at 220 MHz….1.0 GHz
> 40 dB
> 55 dB
> 80 dB
> 80 dB
2.4. Terminating impedance ( input and output ):
50
// 0 pF
2.5. Maximum power level ( working non-damaged ): +10 dBm / +20 dBm
top view
3.
Marking:
OUT
IN
VECTRON YYWW
LC 160.0-50.0/06
4.
Environment conditions:
Vectron MIL - standard
________________________________________________________________________
5.
Packing:
tape & reel, maximum 500 pcs. / reel
_______________________________________________________________________
