SHB103VGGA datasheet, PDF - EEWORLD Datasheet

SHB103VGGA: Description2 DDR3-1066/1333 DIMM support up to 8 GB memory capacity; File Size210KB，1 Pages; ManufacturerAxiomtek; Websitehttp://www.axiomtek.com/

Download Datasheet Compare View All

SHB103VGGA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SHB103VGGA	-	-	View	Buy Now

SHB103VGGA Overview

2 DDR3-1066/1333 DIMM support up to 8 GB memory capacity

Preview

Download Datasheet

View All

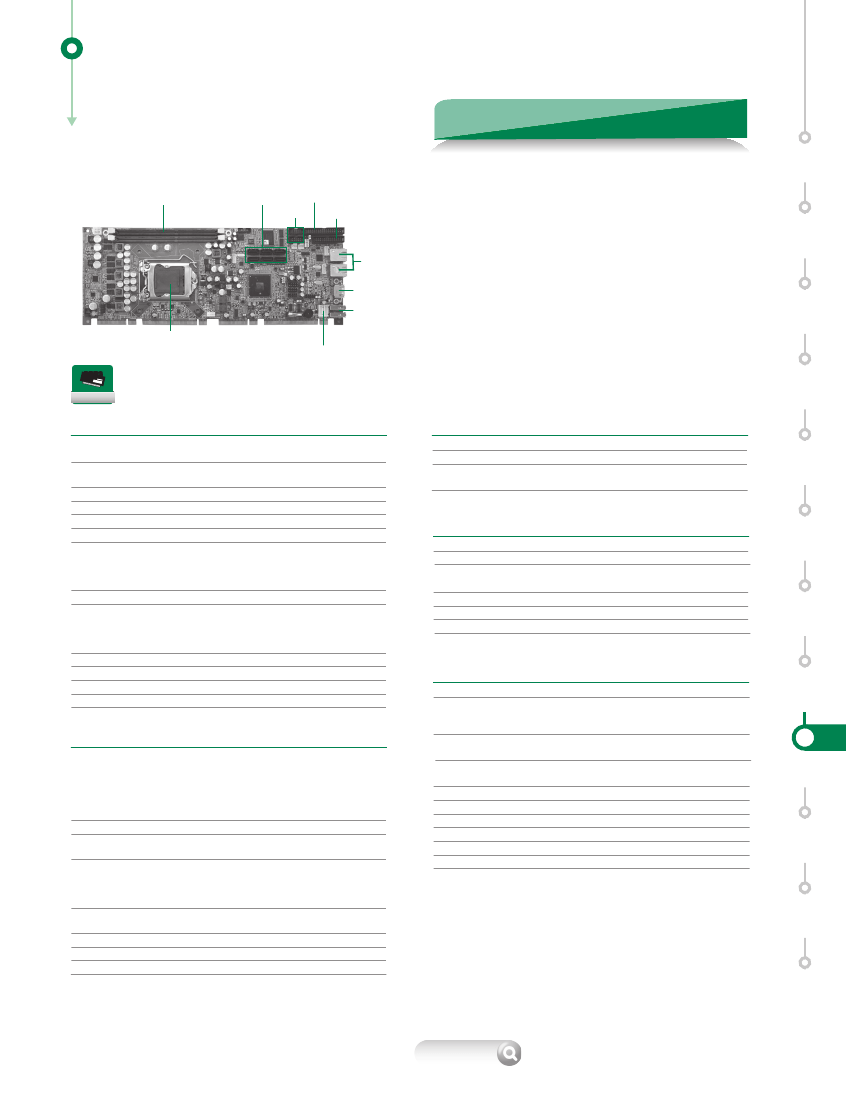

SHB103

LGA1156 Socket Intel® Core™ i7/i5/i3 &

Features

Pentium® Processor PICMG 1.3 Full-size

CPU Card with Intel® Q57 VGA, Dual LANs

●

LGA1156 socket for Intel® Core™ i7/i5/i3 and Pentium®

and Audio

DDR3 DIMM

FDD

SATA-300

LPT

COM1/2

Ethernet

VGA/DisplayPort

USB

LGA1156

Internal K/B+M/S

DDR3

(G6950) processor

●

2 DDR3-1066/1333 DIMM support up to 8 GB memory

capacity

●

6 SATA-300 with RAID 0, 1, 10 and 5

●

Intel® AMT & TPM supported

●

DisplayPort supported (optional)

SBC

Services

and Solutions

Systems

Modules

Embedded

SBCs

>EPIC

DDR3

Embedded

SBCs

>3.5" Capa

System

CPU

System Memory

Chipset

BIOS

SSD

Watchdog Timer

Expansion Interface

LGA1156 socket for Intel® Core™ i7/i5/i3 and Pentium®

processor

2 x 240-pin DIMM support DDR3-1066/1333 max.

up to 8 GB

Intel® Q57

AMI UEFI BIOS

N/A

255 levels, 1~255 sec.

1 x PCIe x16 graphics port supports for SDVO or PCIe x1

devices

4 x PCIe lanes support 1 PCIe x4 or 4 PCIe x1 I/O devices

4 x 32-bit PCI bus masters

Lithium 3V/220 mAH

Intel® Core™ i5-660 @3.33 GHz, 1 GB DDR3

+5V_SBY @ 23mA, +3.3V @ 1.372A, +5V @ 1.548A,

+12V (System) @ 158mA, -12V @ 28mA, +12V (CPU)

@ 1.809A

338 x 126 mm

1.6 mm

0° ~ +60°C (32°F ~ 140°F), operation

10% ~ 95% relative humidity, non-condensing

Display

Chipset

Memory Size

Display Interface

Intel® HD Graphics

Intel® DVMT 5.0 compliant

1 x VGA

1 x DisplayPort (optional)

Embedded

SBCs

>Nano-ITX

Packing List

Standard

Quick installation guide, user's manual/utility CD, cable

Cable

Part Number

59380502000E

593826A0000E

Embedded

SBCs

>Pico-ITX

Battery

Power Requirements

Description

COM + Print cable w/ bracket

SATA signal cable 500mm

Qty

Embedded

SBCs

>PC/104

Size

Board Thickness

Temperature

Relative Humidity

Ordering Information

Standard

SHB103VGGA

(P/N: E38C103101)

SHB103PGGA

(P/N: E38C103100)

LGA1156 socket Intel® Core™ i7/i5/i3 and Pentium®

PICMG 1.3 full-size CPU card with VGA, 2 GbE LAN and

audio

LGA1156 socket Intel® i7/i5/i3 and Pentium® PICMG 1.3

full-size CPU card with DisplayPort and 2 GbE LAN

Industrial

Mother-boards

I/O

MIO

1 x FDD

1 x PS/2 keyboard

1 x PS/2 mouse

1 x LPT; with SPP/EPP/ECP supported

1 x RS-232/422/485 (COM 1)

1 x RS-232 (COM2)

6 x SATA-300 with RAID 0/1/10/5

Detect CPU/system temperature, voltage and support

Smart Fan control

1st port as 10/100/1000Mbps supports iAMT,

Wake-on-LAN, RPL/PXE Boot ROM with Intel® 82578DM

2nd port as 10/100/1000Mbps supports Wake-on-LAN,

RPL/PXE Boot ROM with Intel® 82583V

HD Codec audio as MIC-in/Line-in/Line-out/speaker-out

with Realtek ALC662

12 x USB 2.0

Infineon SLB9635 for trusted platform

System Management Bus for advanced monitoring/control

Slot CPU

Cards

SATA

Hardware Monitoring

Ethernet

Optional

59384500100E

Audio cable w/ bracket, P=2.0 mm, L=450 mm

5938A808010E

2 x USB cable with bracket, P=2.54 mm, L=190 mm

593836A0030E

4-pin power cable to SATA x 2, L=150 mm

59380000290E

PS/2 keyboard and mouse cable with bracket

E9B900C000

LGA1156 cooler 4-pin H=61.4 mm

50761222000E

LGA1156 2U cooler 3-pin H=68.8 mm

* Discrete graphic card is necessary for display if the chosen CPU doesn't have

integrated graphics support.

ARM

Embedded

Boards

Audio

USB

TPM

SMBus

Accessories

Appendix

* All specifications and photos are subject to change without notice.
