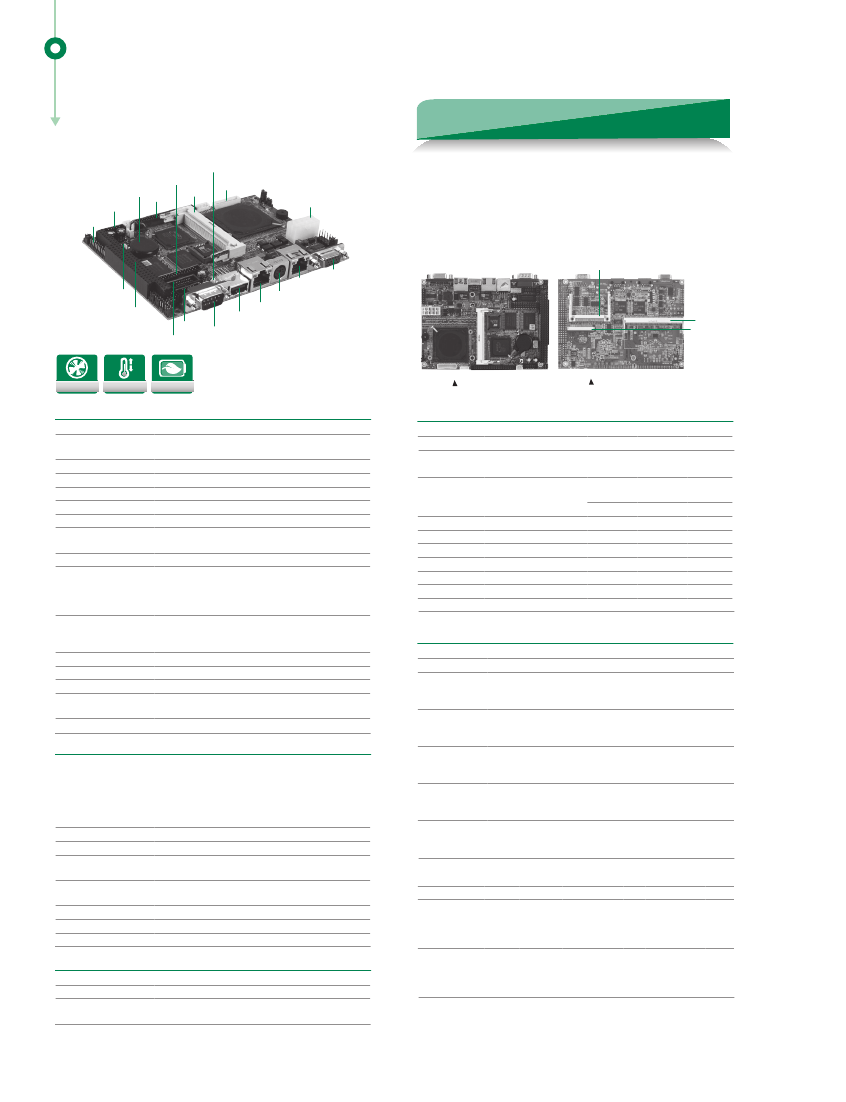

SBC84621
AMD LX800 3.5" Embedded SBC with Dual
LANs, 4 COM, 4 USB 2.0 and VGA/LVDS
(-40°C ~ +85°C)
USB 2.0 3/4
Battery
IDE
Audio
D I/O
LPT
LVDS
MiniPCI
Power conn.
Features
●
Low power fanless AMD LX800 processor
●
Dual 10/100Mbps Ethernet
●
4 COM ports and 4 USB 2.0 ports
●
PC/104 and MiniPCI slots for expansion
●
VGA and LVDS LCD
CF type-II
VGA
Ethernet
SMBus
PS/2 K/B+M/S
Ethernet
PC/104
USB 2.0 1/2
COM 3
COM 1
COM 2/4
DDR SO-DIMM
FDD
Fanless
Ext. Temp
Low Power
Top view
Rear view
System
CPU
System Memory
Chipset
BIOS
SSD
Board Unique ID
Watchdog Timer
Expansion Interface
Battery
Power Input
AMD LX800 processor onboard
1 x 200-pin SO-DIMM supports DDR-333/400 max.
up to 1 GB
AMD CS5536AD
Phoenix-Award
1 x CompactFlash™ type-II
Board unique ID (optional)
255 levels, 1~255 sec.
1 x Mini PCI
1 x PC/104 for 16-bit ISA bus
Lithium 3V/196 mAH
2 x 5-pin connector
+5V DC-in only (+12V is required for +12V powered COM
and LVDS inverter)
AT Auto Power ON function supported
AMD LX800 @ 500 MHz, 512 MB DDR
Max. RMS: +5VSB @ 62.91mA, +3.3V @ 24.31mA,
+5V @ 1.071A, +12V @ 24mA, -12V @ 25mA
146 x 104 mm
1.6 mm
Standard: 0°C ~ +60°C (32°F ~ 140°F)
Optional: -40°C ~ +85°C (-40°F ~ +185°F)
-25°C ~ +70°C (-13°F ~ +158°F)
10% ~ 95% relative humidity, non-condensing
Packing List
Standard
Quick installation guide, user's manual/utility CD, cable
Cable
Part Number
Description
59484500010E
59402010000E
59384500000E
59384500100E
59382631000E
59380000300E
59380010300E
44-44-40 pin IDE cable
ATX power cable 10P
COM + printer cable
Audio cable w/ bracket
2 x USB 2.0 wafer cable
COM port x 2 w/ bracket
COM port x 1 w/ bracket
SBC84621
VEEA-500
Qty
1
1
1
1
1
1
SBC84621
VEA-500
Qty
1
1
1
1
1
1
SBC84621
VEE-500
Qty
1
1
1
1
Power Requirements
Ordering Information
Standard
Models
SBC84621
VEEA-500
(P/N: E384621100)
SBC84621
VEA-500
(P/N: E384621101)
SBC84621
VEE-500
(P/N: E384621102)
SBC84621
VEEA-500
(P/N: E384621106)
SBC84621
VEA-500
(P/N: E384621107)
Optional
Models
SBC84621
VEA-500
(P/N:
E384621109)
SBC84621
VEA-500
(P/N:
E384621123)
CPU
LCD
LAN
LX800
VGA/18-bit 2
500 MHz LVDS
LX800
VGA/18-bit 1
500 MHz LVDS
LX800
VGA/18-bit 2
500 MHz LVDS
LX800
VGA/24-bit 2
500 MHz LVDS
LX800
VGA/24-bit 1
500 MHz LVDS
Audio
Yes
COM
4
PC/104 D I/O
Yes
8-In and
8-Out
Yes
8-In and
8-Out
3-In and
5-Out
8-In and
8-Out
8-In and
8-Out
Size
Board Thickness
Operating
Temperature
Relative Humidity
Yes
4
I/O
MIO
1 x IDE; PATA-100
1 x FDD (optional)
1 x PS/2 keyboard and mouse
1 x RS-232/422/485 (COM 1); with +5V/+12V powered
3 x RS-232 (COM 2/3/4); with +5V/+12V powered
1 x LPT; with SPP/EPP/ECP supported
N/A
Detect CPU/system temperature and voltage
2 ports as 10/100Mbps support Wake-on-LAN, RPL/PXE
Boot ROM with Realtek RTL8139DL
AC'97 Codec audio as MIC-in/Line-in/Line-out/speaker-out
with Realtek ALC203
4 x USB 2.0
System Management Bus for advanced monitoring/control
Refer to Ordering information
N/A
2
N/A
Yes
4
Yes
SATA
Hardware Monitoring
Ethernet
Audio
USB
SMBus
Digital I/O
Yes
4
Yes
CPU
LCD
LAN
LX800 VGA/18-bit 1
500 MHz LVDS
Audio COM PC/104 D I/O W.T.
Yes 4
Yes
8-In and -25°C~
8-Out +70°C
Display
Chipset
Memory Size
Display Interface
AMD LX integrated
Max. up to 254 MB
1 x VGA
1 x LVDS; 18/24-bit single channel
LX800 VGA/24-bit 1
500 MHz LVDS
Yes
4
Yes
8-In and -25°C~
8-Out +70°C
123
* All specifications and photos are subject to change without notice.
