SCSNFF05L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SCSNFF05L

SCSNFF05L: Description150 A, 50 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size68KB，2 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

SCSNFF05L Overview

150 A, 50 V, SILICON, RECTIFIER DIODE

SCSNFF05L Parametric

Parameter Name	Attribute value
Maker	SEMTECH
package instruction	G26, 2 PIN
Contacts	2
Manufacturer packaging code	G26
Reach Compliance Code	unknow
ECCN code	EAR99
application	SUPER FAST RECOVERY
Shell connection	ANODE
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V
JESD-30 code	O-XUFM-D2
Maximum non-repetitive peak forward current	700 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	150 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse current	60 µA
Maximum reverse recovery time	0.03 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

Preview

Download Datasheet

View All

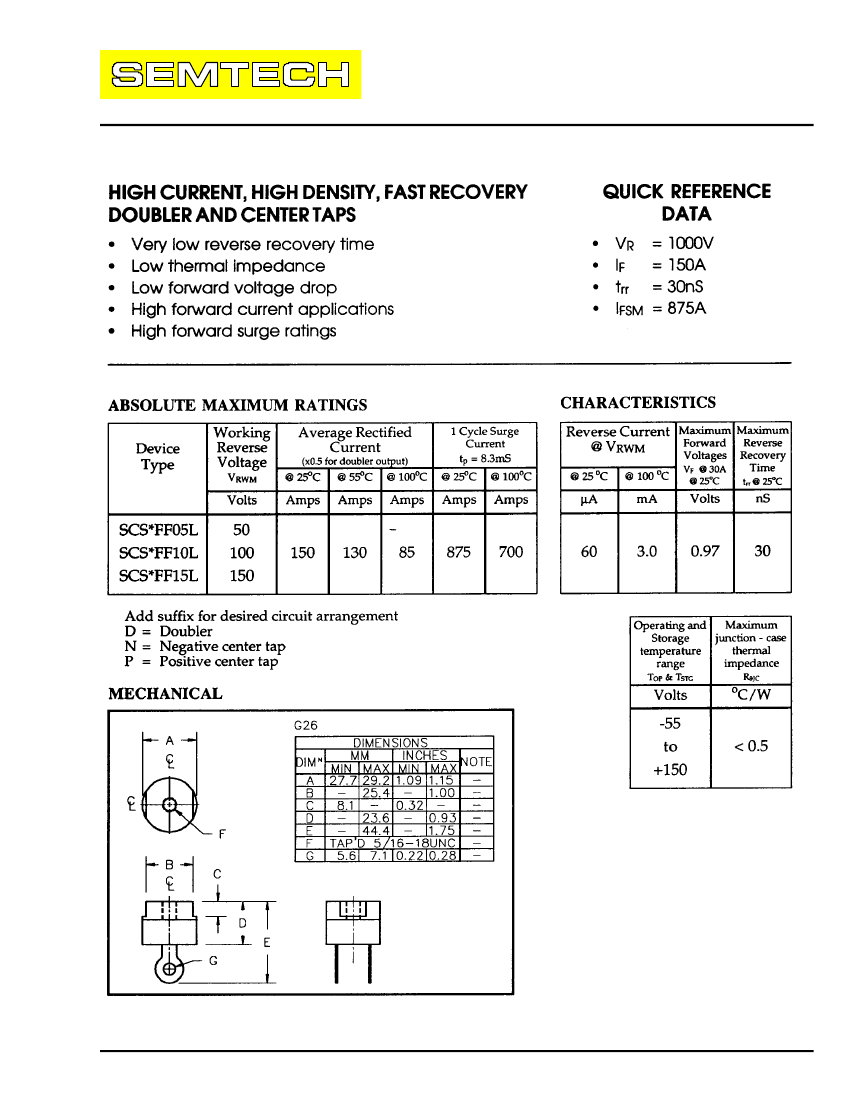

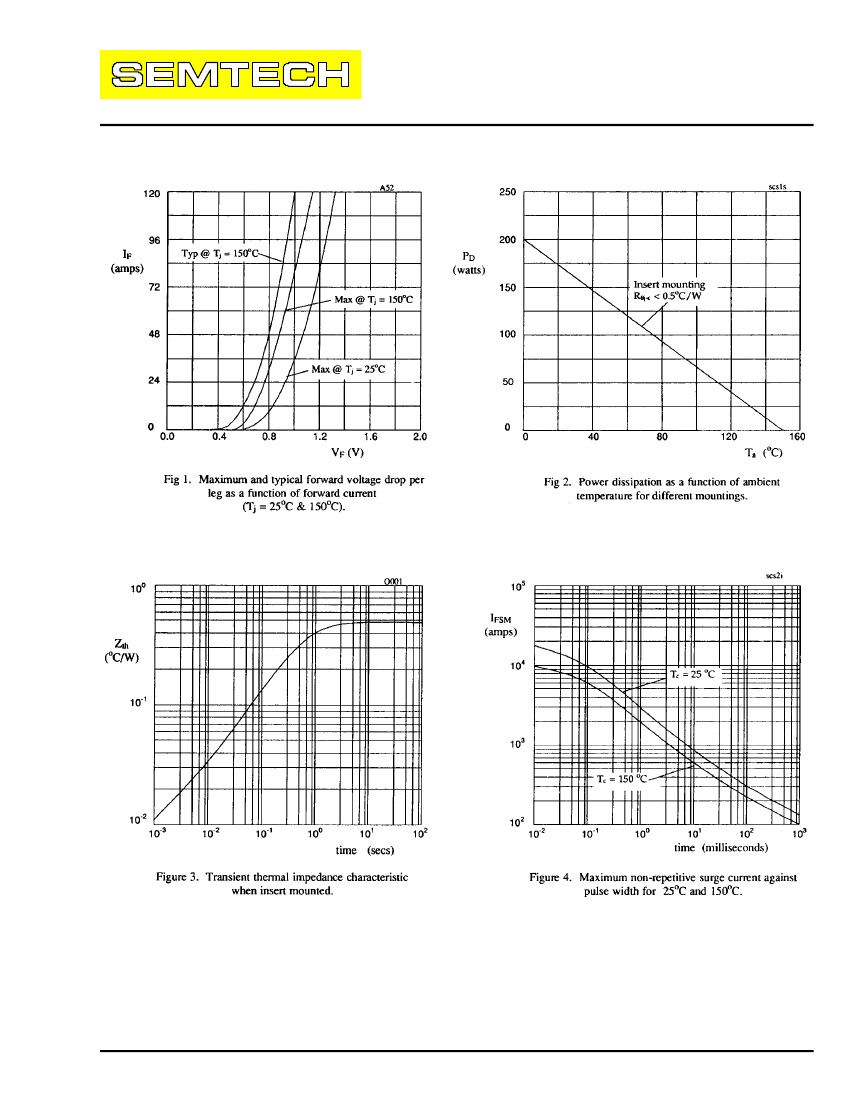

SUPERFAST HIGH CURRENT

DOUBLER AND CENTER TAPS

SCS*FF05L

SCS*FF10L

SCS*FF15L

January 29, 1998

TEL:805-498-2111 FAX:805-498-3804 WEB:http://www.semtech.com

652 MITCHELL ROAD NEWBURY PARK CA 91320

SCSNFF05L Related Products

	SCSNFF05L	SCSDFF05L	SCSDFF10L	SCSDFF15L	SCSNFF10L	SCSNFF15L	SCSPFF05L
Description	150 A, 50 V, SILICON, RECTIFIER DIODE	150 A, 50 V, SILICON, RECTIFIER DIODE	150 A, 100 V, SILICON, RECTIFIER DIODE	150 A, 150 V, SILICON, RECTIFIER DIODE	150 A, 50 V, SILICON, RECTIFIER DIODE	150 A, 150 V, SILICON, RECTIFIER DIODE	150 A, 50 V, SILICON, RECTIFIER DIODE
Maker	SEMTECH	SEMTECH	-	SEMTECH	SEMTECH	-	SEMTECH
package instruction	G26, 2 PIN	G26, 2 PIN	-	G26, 2 PIN	G26, 2 PIN	-	G26, 2 PIN
Contacts	2	2	-	2	2	-	2
Manufacturer packaging code	G26	G26	-	G26	G26	-	G26
Reach Compliance Code	unknow	unknow	-	unknow	unknow	-	unknow
ECCN code	EAR99	EAR99	-	EAR99	EAR99	-	EAR99
application	SUPER FAST RECOVERY	SUPER FAST RECOVERY	-	SUPER FAST RECOVERY	SUPER FAST RECOVERY	-	SUPER FAST RECOVERY
Shell connection	ANODE	ANODE AND CATHODE	-	ANODE AND CATHODE	ANODE	-	CATHODE
Configuration	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	-	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	-	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	-	SILICON	SILICON	-	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V	0.95 V	-	0.95 V	0.95 V	-	0.95 V
JESD-30 code	O-XUFM-D2	O-XUFM-D2	-	O-XUFM-D2	O-XUFM-D2	-	O-XUFM-D2
Maximum non-repetitive peak forward current	700 A	700 A	-	700 A	700 A	-	700 A
Number of components	2	2	-	2	2	-	2
Phase	1	1	-	1	1	-	1
Number of terminals	2	2	-	2	2	-	2
Maximum operating temperature	150 °C	150 °C	-	150 °C	150 °C	-	150 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C	-	-55 °C
Maximum output current	150 A	150 A	-	150 A	150 A	-	150 A
Package body material	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED
Package shape	ROUND	ROUND	-	ROUND	ROUND	-	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT	-	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	-	Not Qualified
Maximum repetitive peak reverse voltage	50 V	50 V	-	150 V	100 V	-	50 V
Maximum reverse current	60 µA	60 µA	-	60 µA	60 µA	-	60 µA
Maximum reverse recovery time	0.03 µs	0.03 µs	-	0.03 µs	0.03 µs	-	0.03 µs
surface mount	NO	NO	-	NO	NO	-	NO
Terminal form	SOLDER LUG	SOLDER LUG	-	SOLDER LUG	SOLDER LUG	-	SOLDER LUG
Terminal location	UPPER	UPPER	-	UPPER	UPPER	-	UPPER
