POSITAPE
®
WB100M
AnalogOutput
P
ositionsensorwithmeasuringtape
•
•
•
•
Measurementrangeupto10000mm
ProtectionclassIP68/IP69K
Stainlesssteelmeasuringtape
A
nalogoutput
Specifications
Outputs
U2
U8
I1
Resolution
Linearity
Sensing device
Material
Protection class
Connection
Shock
Vibration
Temperature range
Voltage 0.5 ... 10 V
Voltage 0.5 ... 4.5 V
Current 4 ... 20 mA, 3 wire
<0.05 mm
±0.10 % f. s. (standard); ±0.05 % (optional)
Magnetic absolute encoder
Stainless steel and plastic;
Tape: stainless steel, 10 mm wide, 0.08 mm thick
IP68/IP69K
Cable output, standard length 2 m
EN 60068-2-27:2010, 100 g/11 ms, 100 shocks
EN 60068-2-6:2008, 20 g 10 Hz-2 kHz, 10 cycles
-20 ... +85 °C
OrdercodeWB100M
Modelname
WB100M
BAB1
Measurementrange(inmm)
2000 / 3500 / 7500 / 10000
Output
U2
= 0.5 ... 10 V signal conditioner
U8
= 0.5 ... 4.5 V signal conditioner
I1
= 4 ... 20 mA signal conditioner
Signalcharacteristics
A
= increasing (eg. 4 ... 20 mA)
D
= decreasing (eg. 20 ... 4 mA)
Linearity
L10
= ±0.10 % (standatd)
L05
= ±0.05 % (optional)
Connection
KAB2M = cable output, standard length 2 m
Dustwiper
BAB1
Orderexample:WB100M-2000-I1-A-L10-KAB2M-BAB1
DB-WB100M-E-2013-11
www.asm-sensor.com
1/16
©
ASM GmbH
POSITAPE
®
WB100M

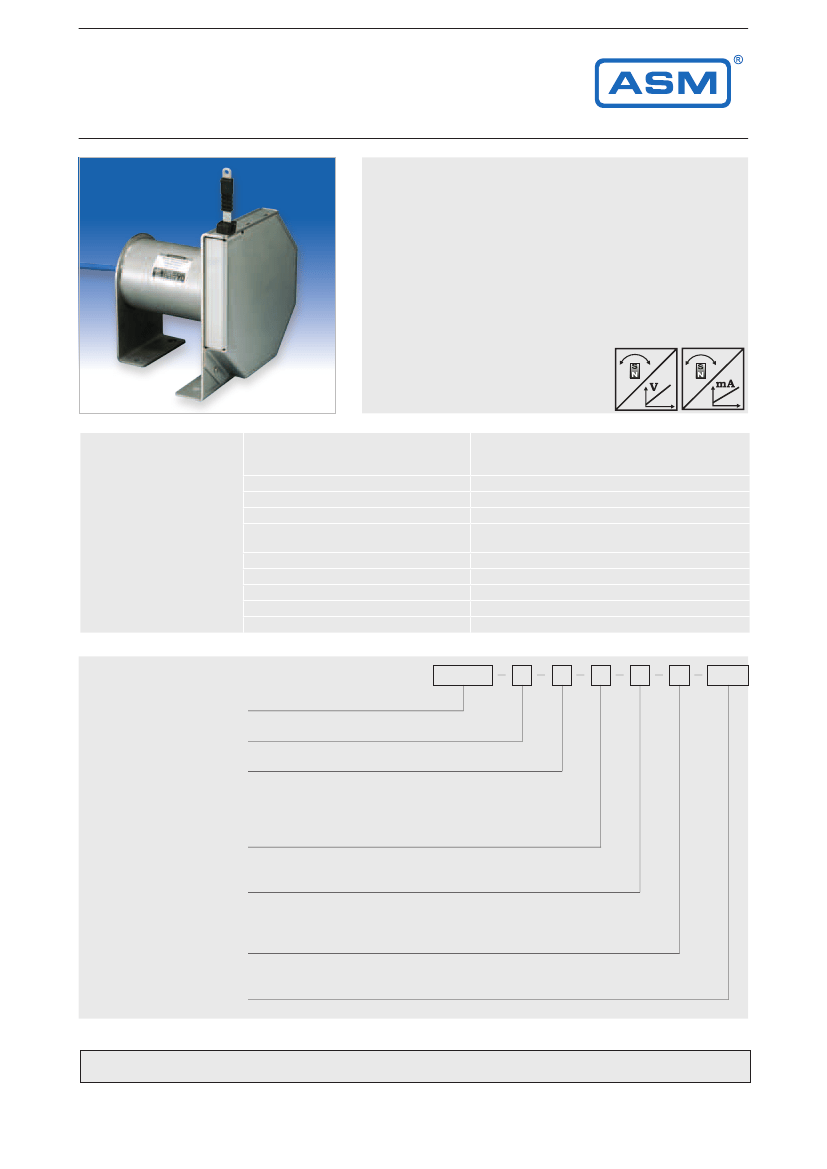

AnalogOutput,programmable
P
ositionsensorwithmeasuringtape
•
•
•
•
Measurementrangeupto10000mm
ProtectionclassIP68/IP69K
Stainlesssteelmeasuringtape
A
nalogoutput,programmable
Specifications
Outputs
U2/PMU
U8/PMU
I1/PMU
Resolution
Linearity
Sensing device
Material
Protection class
Connection
Shock
Vibration
Temperature range
Voltage 0.5 ... 10 V, programmable
Voltage 0.5 ... 4.5 V, programmable
Current 4 ... 20 mA, 3 wire, programmable
<0.05 mm
±0.10 % f. s. (standard); ±0.05 % (optional)
Magnetic absolute encoder
Stainless steel and plastic;
Tape: stainless steel, 10 mm wide, 0.08 mm thick
IP68/IP69K
Cable output, standard length 2 m
EN 60068-2-27:2010, 100 g/11 ms, 100 shocks
EN 60068-2-6:2008, 20 g 10 Hz-2 kHz, 10 cycles
-20 ... +85 °C
OrdercodeWB100M
Modelname
WB100M
BAB1
Measurementrange(inmm)
2000 / 3500 / 7500 / 10000
Output
U2/PMU
= 0.5 ... 10 V signal conditioner, programmable
U8/PMU
= 0.5 ... 4.5 V signal conditioner, programmable
I1/PMU
= 4 ... 20 mA signal conditioner, programmable
Signalcharacteristics
A
= increasing (eg. 4 ... 20 mA)
D
= decreasing (eg. 20 ... 4 mA)
Linearity
L10
= ±0.10 % (standard)
L05
= ±0.05 % (optional)
Connection
KAB2M
= cable output, standard length 2 m
Dustwiper
BAB1
Orderexample:WB100M-2000-U2/PMU-A-L10-KAB2M-BAB1
DB-WB100M-E-2013-11
www.asm-sensor.com
2/16
©
ASM GmbH
POSITAPE
®
WB100M
AnalogOutput,redundant
P
ositionsensorwithmeasuringtape
•
•
•
•
Measurementrangeupto10000mm
ProtectionclassIP68/IP69K
Stainlesssteelmeasuringtape
A
nalogoutput,redundant
Specifications
Outputs
U2R
U8R
I1R
Resolution
Linearity
Sensing device
Material
Protection class
Connection
Shock
Vibration
Temperature range
Voltage 0.5 ... 10 V, redundant
Voltage 0.5 ... 4.5 V, redundant
Current 4 ... 20 mA, 3 wire, redundant
<0.05 mm
±0.10 % f. s. (standard); ±0.05 % (optional)
Magnetic absolute encoder
Stainless steel and plastic;
Tape: stainless steel, 10 mm wide, 0.08 mm thick
IP68/IP69K
Cable output, standard length 2 m
EN 60068-2-27:2010, 100 g/11 ms, 100 shocks
EN 60068-2-6:2008, 20 g 10 Hz-2 kHz, 10 cycles
-20 ... +85 °C
OrdercodeWB100M
Modelname
WB100M
BAB1
Measurementrange(inmm)
2000 / 3500 / 7500 / 10000
Output
U2R
= 0.5 ... 10 V signal conditioner, redundant
U8R
= 0.5 ... 4.5 V signal conditioner, redundant
I1R
= 4 ... 20 mA signal conditioner, redundant
Signalcharacteristics
A/A
= Output 1 increasing, output 2 increasing
A/D
= Output 1 increasing, output 2 decreasing
D/D
= Output 1 decreasing, output 2 decreasing
Linearity
L10
= ±0.10 % (standard)
L05
= ±0.05 % (optional)
Connection
KAB2M = cable output, standard length 2 m
Dustwiper
BAB1
Orderexample:WB100M-2000-I1R-A/D-L10-KAB2M-BAB1
DB-WB100M-E-2013-11
www.asm-sensor.com
3/16
©
ASM GmbH
POSITAPE
®
WB100M
DigitaloutputSSI
Positionsensorwithmeasuringtape
•
•
•
•
Measurementrangeupto10000mm
ProtectionclassIP68/IP69K
Stainlesssteelmeasuringtape
D
igitaloutputSSI
Specifications
Output
Resolution
Linearity
Sensing device
Material
Protection class
Connection
Shock
Vibration
Temperature range
Synchronous serial interface (SSI)
0.05 mm
±0.10 % f. s. (standard); ±0.05 % (optional)
Magnetic absolute encoder
Stainless steel and plastic;
Tape: stainless steel, 10 mm wide, 0.08 mm thick
IP68/IP69K
Cable output, standard length 2 m
EN 60068-2-27:2010, 100 g/11 ms, 100 shocks
EN 60068-2-6:2008, 20 g 10 Hz-2 kHz, 10 cycles
-20 ... +85 °C
OrdercodeWB100M
Modelname
WB100M
BAB1
Measurementrange(inmm)
2000 / 3500 / 7500 / 10000
Resolution(inµm)
50 (other resolutions on demand)
Output
MSSI
= SSI synchronous serial interface
Linearity
L10
= ±0.10% (standard)
L05
= ±0.05% (optional)
Connection
KAB2M = cable output, standard length 2 m
Dustwiper
BAB1
Orderexample:WB100M-2000-50-MSSI-L10-KAB2M-BAB1
DB-WB100M-E-2013-11
www.asm-sensor.com
4/16
©
ASM GmbH
POSITAPE
®
WB100M

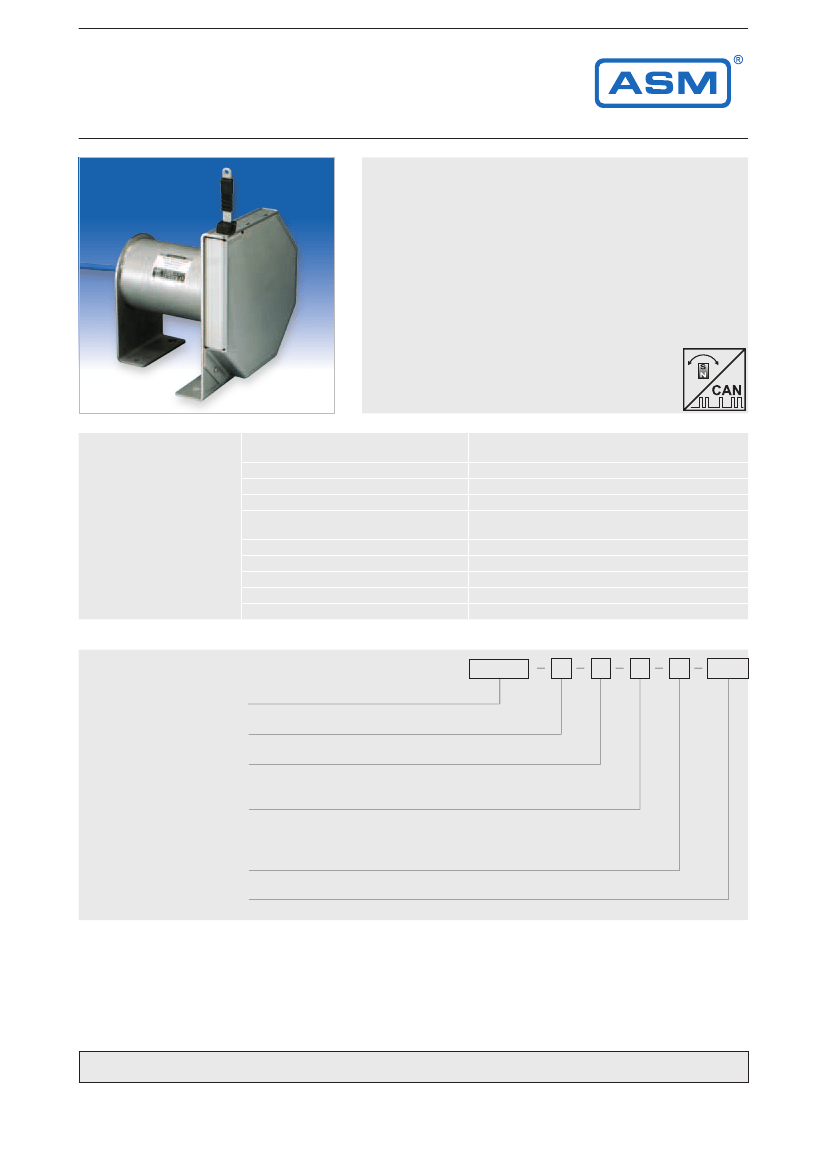

DigitaloutputCANopen
P
ositionsensorwithmeasuringtape
•
•
•
•
Measurementrangeupto10000mm
ProtectionclassIP68/IP69K
Stainlesssteelmeasuringtape
Digitaloutput ANopenor
C
CANSAEJ1939
•
OptionalredundantCANBus(ondemand)
Specifications
Output
Resolution
Linearity
Sensing device
Material
Protection class
Connection
Shock
Vibration
Temperature range
CANopen or
CAN SAE J1939
setting via CAN Bus
±0.10 % f. s. (standard); ±0.05 % (optional)
Magnetic absolute encoder
Stainless steel and plastic;
Tape: stainless steel, 10 mm wide, 0.08 mm thick
IP68/IP69K
Cable output, standard length 2 m
EN 60068-2-27:2010, 100 g/11 ms, 100 shocks
EN 60068-2-6:2008, 20 g 10 Hz-2 kHz, 10 cycles
-20 ... +85 °C
BestellcodeWB100M
Modelname
WB100M
BAB1
Measurementrange(inmm)
2000 / 3500 / 7500 / 10000
Output
MCANOP = CANopen
MCANJ1939 = CAN SAE J1939
Linearity
L10
= 0.10% (standard)
L05
= 0.05% (optional)
Connection
KAB2M
= cable output, standard length 2 m
Dustwiper
BAB1
Orderexample:WB100M-2000-MCANOP-L10-KAB2M-BAB1
DB-WB100M-E-2013-11
www.asm-sensor.com
5/16
©
ASM GmbH
