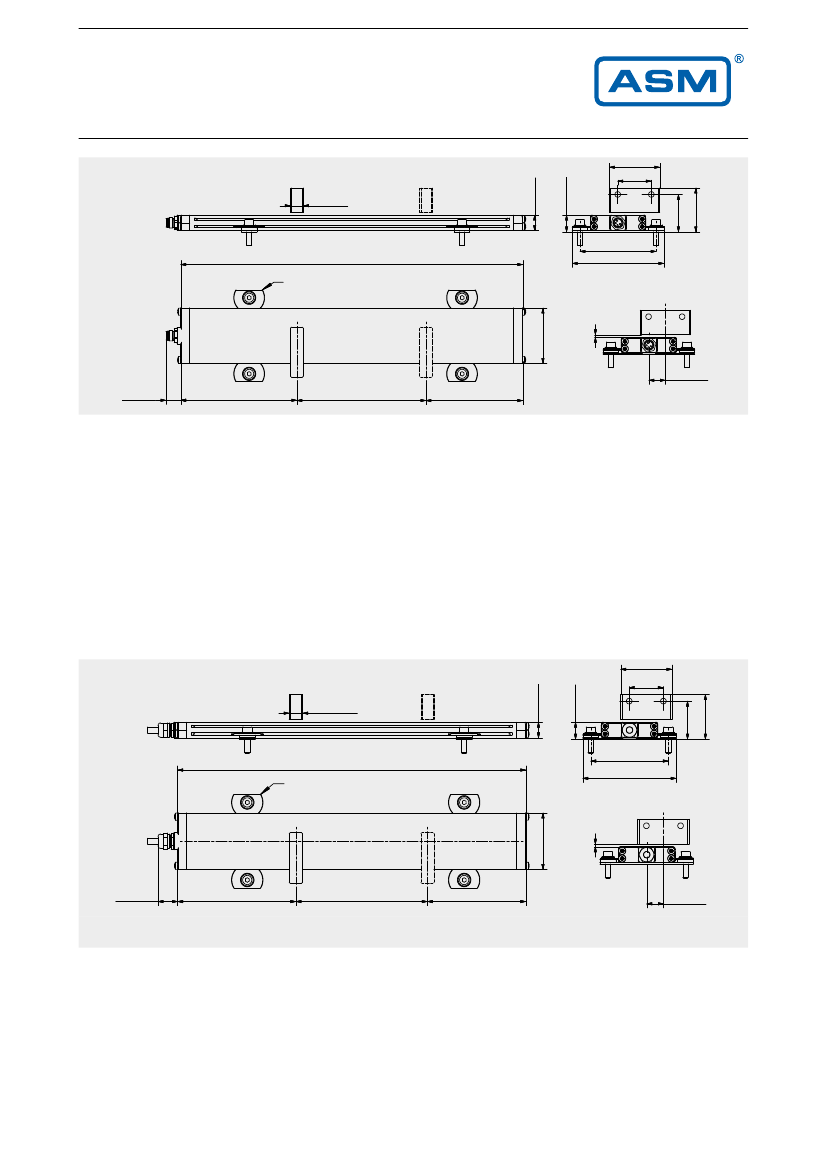

POSICHRON
®
PCFP24

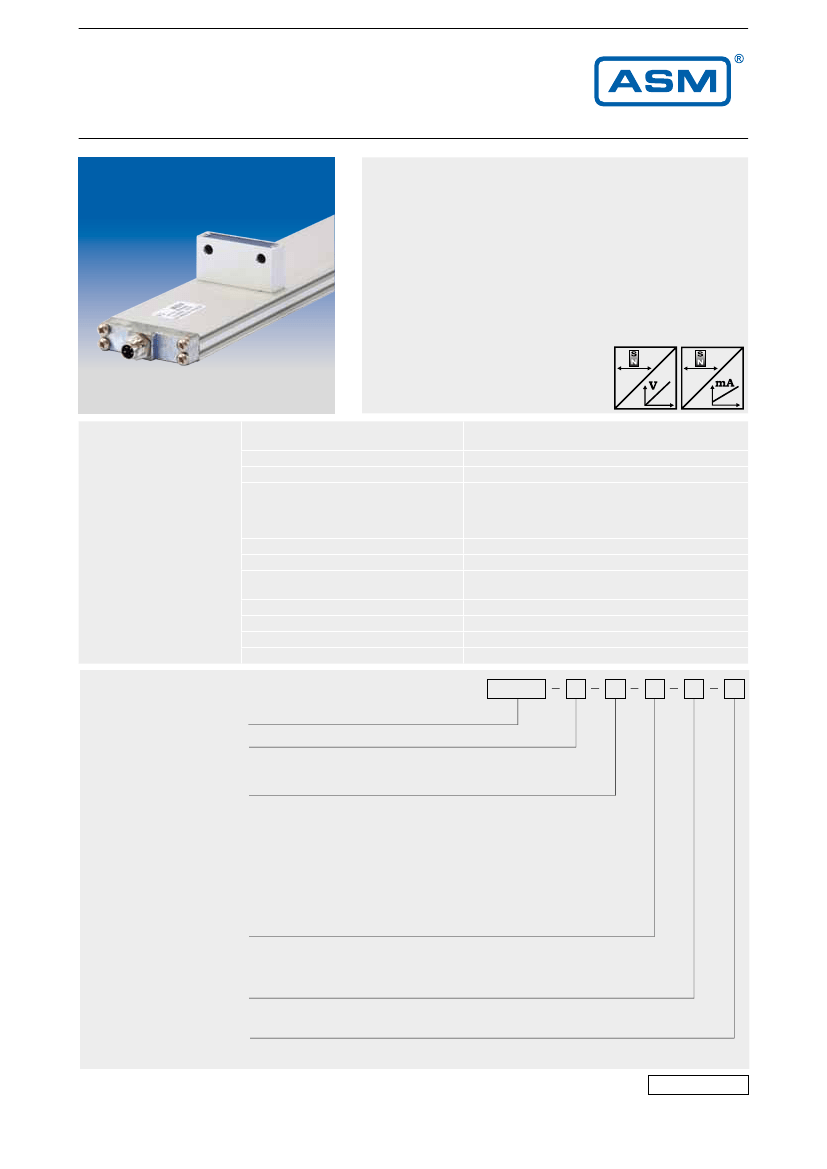

Flat Profile Housing with Analog Output
POSICHRON
®
position sensor
Only 12 mm height and 43 mm width
•
•
•
•
•
•
•
•
Protection class up to IP67/IP69K
Measurement range ... 100 to 0 ... 5750 mm
0
Absolute position measurement
Ultra flat profile housing: only 12 mm high
Easy installation with mounting brackets
Contactless
Absolutely wear free and maintenance-free
Analog output
Specifications
Output
Resolution
Sampling rate
Linearity
Repeatability
Housing material
Protection class
Shock
Vibration
Connection
EMC, temperature
Voltage
Current
Refer to output specification
Up to 1 kHz, depending on the measurement range
Ranges >500 mm: L10 = ±0.10 % f.s.
L02 = ±0.02 % f.s.
Ranges ≤500 mm: L10 = ±0.5 mm
L02MM = ±0.2 mm
±3 µm
AlMgSi1 / Zn / V4A
IP67 (optional IP67/IP69K; connector version: with
mating connector only)
EN 60068-2-27:2010, 50 g 11 ms, 100 shocks
EN 60068-2-6:2008, 20 g 10 Hz-2 kHz, 10 cycles
4 pin socket M8 / cable 2 m
Refer to output specification
Order code PCFP24
1 channel
Model name
PCFP24
Measurement range (in mm)
100 ... 5750 (in 10 mm increments)
other lengths upon request
Output
U1
U1/H
U2
U2/U; U2/H
U8
U8/U; U8/H
I1
I1/U; I1/H
= 0 ... 10 V signal conditioner
= U1 with Alarm_HOLD (see page 10)
= 0.5 ... 10 V signal conditioner
= U2 with Alarm_LOW; U2 with Alarm_HOLD (see page 10)
= 0.5 ... 4.5 V signal conditioner
= U8 with Alarm_LOW; U8 with Alarm_HOLD (see page 10)
= 4 ... 20 mA signal conditioner (3 wire)
= I1 with Alarm_LOW; I1 with Alarm_HOLD (see page 10)
Function and characteristics output
P1A
= Position Magnet 1, increasing
P1D
= Position Magnet 1, decreasing
PMU
= Start value, direction & end value adjustable by the customer
Linearity
L02 / L02MM / L10 (for definition see "Specifications" above)
Connection
M8
= Connector M8, 4 pin
KAB2M
= Cable, standard length 2 m, other lengths upon request
Order code mounting set (see
page 7)
DB-PCFP24-E-2013
www.asm-sensor.com
1/14
PCFP24-BFS1
© ASM GmbH
info@asm-sensor.com
POSICHRON
®
PCFP24
Flat Profile Housing with Analog Output
Order Code PCFP24
2 channel,
configurable
PCFP24
Model name
Measurement range (in mm)
100 ... 5750 (in 10 mm increments)
other lengths upon request
Output
U1
= 0 ... 10 V signal conditioner
U1/H
= U1 with Alarm_HOLD (see page 10)
U2
= 0.5 ... 10 V signal conditioner
U2/U; U2/H = U2 with Alarm_LOW; U2 with Alarm_HOLD (see page 10)
U8
= 0.5 ... 4.5 V signal conditioner
U8/U; U8/H = U8 with Alarm_LOW; U8 with Alarm_HOLD (see page 10)
I1
= 4 ... 20 mA signal conditioner (3 wire)
I1/U; I1/H
= I1 with Alarm_LOW; I1 with Alarm_HOLD (see page 10)
Function and characteristics output 1
P1A
= Position magnet 1, increasing
P1D
= Position magnet 1, decreasing
= Difference magnet 1/2, increasing (2 magnets required)
DA
DD
= Difference magnet 1/2, decreasing (2 magnets required)
Function and characteristics output 2
P2A
= Position magnet 2, increasing
P2D
= Position magnet 2, decreasing
DA
= Difference magnet 1/2, increasing
DD
= Difference magnet 1/2, decreasing
VZx.x
2 magnets required
= Velocity with direction detection (with 1 magnet only)
VZx.x = Velocity in steps of 0.1 m/s
Example: VZ1.5 towards start position
towards end position
-1.5 m/s
0
+1.5 m/s
Output U2:
0.5 V
5.25 V
10 V
Output I1:
4 mA
12 mA
20 mA
= Velocity without direction detection (with 1 magnet only)
VAx.x = Velocity in steps of 0.1 m/s
Example: VA1.5 towards start position
towards end position
-1.5 m/s
0
+1.5 m/s
Output U2:
10 V
0.5 V
10 V
Output I1:
20 mA
4 mA
20 mA
VAx.x
Linearity
L02 / L02MM / L10 (for definition see "Specifications" above)
Connection
KAB2M = Cable, standard length 2 m, other lengths upon request
Flat profile, measurement range 1000 mm, 2 current outputs 4 ... 20 mA (I1)
Output 1: Position magnet 1, increasing signal (P1A)
Output 2: Position magnet 2, decreasing signal (P2D)
1. Order example: PCFP24 - 1000 - I1 - P1A - P2D - L10 - KAB2M
2. Order example: PCFP24 - 1000 - U2 - P1A - VZ1.0 - L10 - KAB2M
Flat profile, measurement range 1000 mm, 2 voltage outputs 0.5 ... 10 V (U2)
Output 1: Position magnet 1, increasing signal (P1A)
Output 2: Velocity magnet 1, -1 m/s ... 1 m/s for range 0.5 ... 10 V (VZ1.0)
Order code position magnet (see
page 7)
Order code mating connecting cable
(see page 14)
DB-PCFP24-E-2013
www.asm-sensor.com
2/14
PCMAG5
KAB-...M-M8/4F/G-LITZE
© ASM GmbH
info@asm-sensor.com
POSICHRON
®
PCFP24

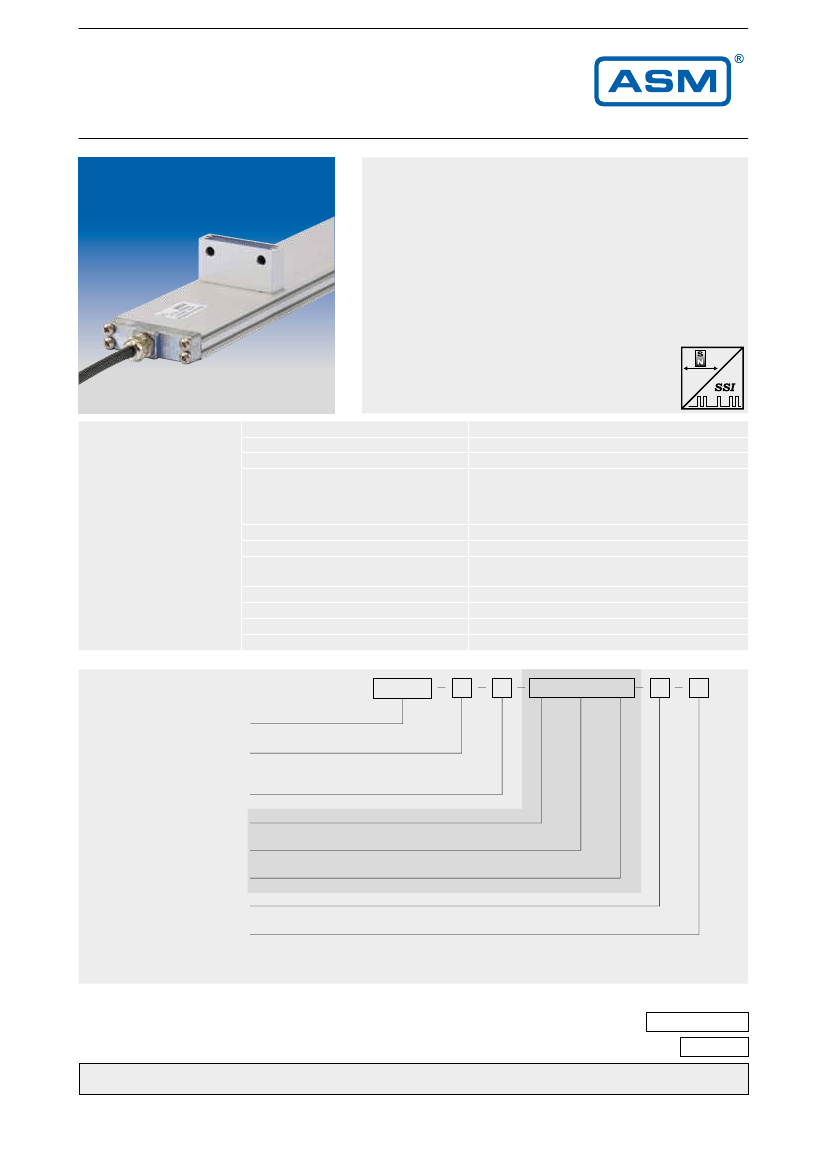

Flat Profile Housing with SSI Output
POSICHRON
®
position sensor
Only 12 mm height and 43 mm width
•
•
•
•
•
•
•
•
Protection class up to IP67/IP69K
Measurement range ... 100 to 0 ... 5750 mm
0
Absolute position measurement
Ultra flat profile housing: only 12 mm high
Easy installation with mounting brackets
Contactless
Absolutely wear free and maintenance-free
Synchronous serial interface (SSI)
Specifications
Output
Resolution
Sampling rate
Linearity
Repeatability
Housing material
Protection class
Shock
Vibration
Connection
EMC, temperature
Synchronous serial (SSI)
5, 10, 20, 50, 100 µm
Up to 1 kHz, depending on the measurement range
Ranges >500 mm: L10 = ±0.10 % f.s.
L02 = ±0.02 % f.s.
Ranges ≤500 mm: L10 = ±0.5 mm
L02MM = ±0.2 mm
±3 µm
AlMgSi1 / Zn / V4A
IP67 (optional IP67/IP69K; connector version: with
mating connector only)
EN 60068-2-27:2010, 50 g 11 ms, 100 shocks
EN 60068-2-6:2008, 20 g 10 Hz-2 kHz, 10 cycles
Cable 2 m
Refer to output specification
Order Code PCFP24
Model name
PCFP24
/ /
Measurement range (in mm)
100 ... 5750 (in 10 mm increments)
other lengths upon request
Resolution (in µm)
5 / 10 / 20 / 50 / 100
Output
SSI
= Synchronous serial interface
Code
G/D
= Gray / Dual
Number of data bits
24 / 25
Linearity
L02 / L02MM / L10 (for definition see "Specifications" above)
Connection
KAB2M = Cable, standard length 2 m, other lengths upon request
Order code mounting set (see
page 7)
Order code position magnet (see
page 7)
Order example: PCFP24 - 2000 - 5 - SSI/G/24 - L02 - KAB2M
DB-PCFP24-E-2013
www.asm-sensor.com
3/14
PCFP24-BFS1
PCMAG5
© ASM GmbH
info@asm-sensor.com
POSICHRON
®
PCFP24

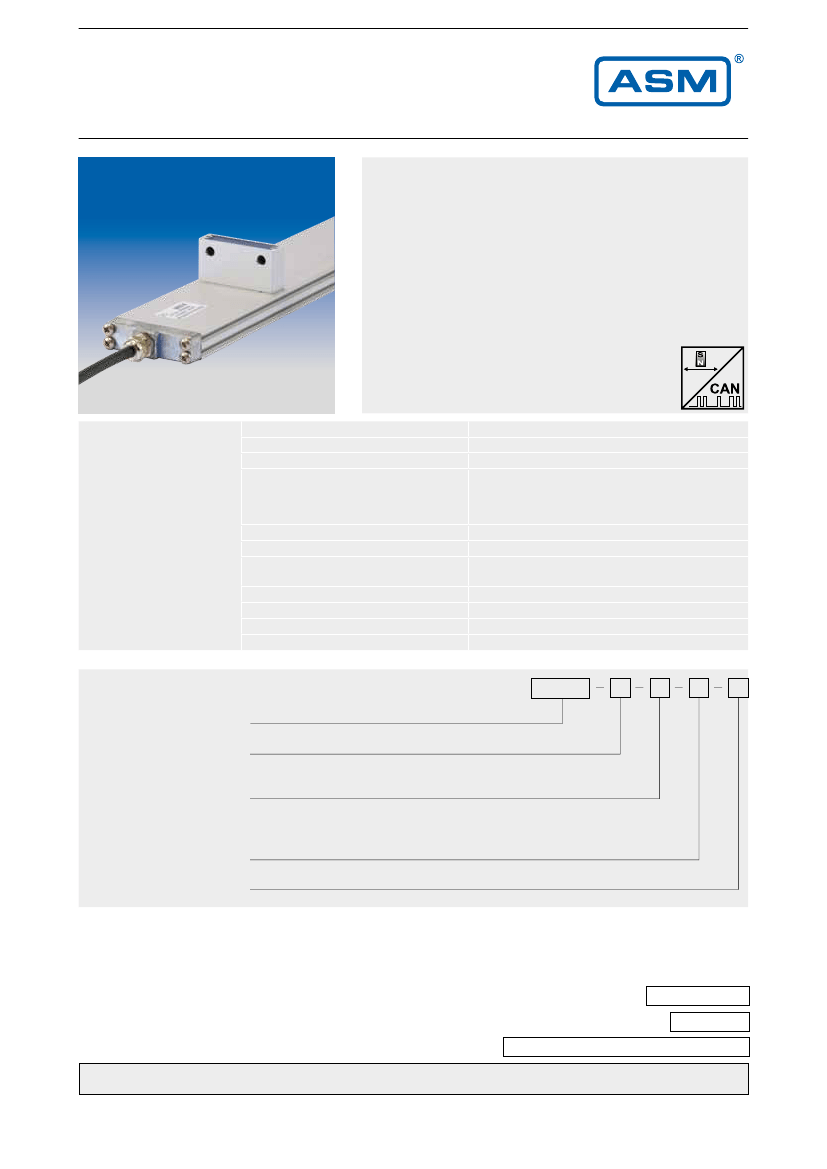

Flat Profile Housing with CAN Output
POSICHRON
®
position sensor with only
12 mm height and 43 mm width
•
•
•
•
•
•
•
•
Protection class up to IP67/IP69K
Measurement range ... 100 to 0 ... 5750 mm
0
Absolute position measurement
Ultra flat profile housing: only 12 mm high
Easy installation with mounting brackets
Contactless
Absolutely wear free and maintenance-free
C
ANopen bus or
CAN SAE J1939 output
• edundant version:
R
combination of 2 sensors side by side
Output
Resolution
Sampling rate
Linearity
CANopen bus; CAN SAE J1939
50 µm
Up to 1 kHz, depending on the measurement range
Ranges >500 mm: L10 = ±0.10 % f.s.
L02 = ±0.02 % f.s.
Ranges ≤500 mm: L10 = ±0.5 mm
L02MM = ±0.2 mm
±3 µm
AlMgSi1 / Zn / V4A
IP67 (optional IP67/IP69K; connector version: with
mating connector only)
EN 60068-2-27:2010, 50 g 11 ms, 100 shocks
EN 60068-2-6:2008, 20 g 10 Hz-2 kHz, 10 cycles
Cable 0,3 m with 5-pin connector M12
Refer to output specification
Specifications
Repeatability
Housing material
Protection class
Shock
Vibration
Connection
EMC, temperature
Order Code PCFP24
Model name
PCFP24
Measurement range (in mm)
100 ... 5750 (in 10 mm increments)
other lengths upon request
Output
= CANopen bus
CANOP
CANOP/R = CANopen-Bus with integrated terminating resistance
CANJ1939 = CAN SAE J1939
Linearity
L02 / L02MM / L10 (for definition see "Specifications" above)
Connection
KAB0,3M-M12/CAN = Cable (length 0.3 m) with 5-pin M12 connector
Order code mounting set (see
page 7)
Order code position magnet (see
page 7)
Order code bus cable (see
page 14)
PCFP24-BFS1
PCMAG5
KAB-...M-M12/5F/G-M12/5M/G - CAN
Order example: PCFP24 - 1000 - CANOP - L10 - KAB0,3M-M12/CAN
DB-PCFP24-E-2013
www.asm-sensor.com
4/14
© ASM GmbH
info@asm-sensor.com
POSICHRON
®
PCFP24
Flat Profile Housing
Connector M8
Anfangsposition
PCMAG5
PCMAG5
10,2 [0.402]
Start position
12 [0.472]
13 [0.512]
End position
Endposition
PCMAG5
PCMAG5
39 [1.535]
26 [1.024]
29 [1.142]
34 [1.339]
59 [2.323]
Total
Gesamtlänge A = Messlänge +165
+ 165 [6.496]
265 [10.433]
length A = measurement length
[6.496] (z.B. )
(e.g. 265 [10.433])
Mounting set PCFP24-BFS1
Befestigungssatz PCFP24-BFS1
2 ± 1 [0.079 ± 0.039]
71 [2.795]
± 12 [0.472]
43 [1.693]
11,5 [0.453]
90 [3.543]
Measurement length
(e.g. 100 [3.937])
Messlänge (z.B. 100 [3.937]
)
12,8 [0.50]
75 [2.953]
Dimensions in mm [inch]
Dimensions informative only. For guaranteed dimensions consult factory.
Cable output
12 [0.472]
13 [0.512]
Start position
Anfangsposition
PCMAG5
PCMAG5
10,2 [0.402]
End position
Endposition
PCMAG5
PCMAG5
39 [1.535]
26 [1.024]
34 [1.339]
Total length A = measurement length
165 [6.496] (z.B.
(e.g.
[10.433])
Gesamtlänge A = Messlänge +
+ 165 [6.496]
265
265 [10.433])
Mounting set PCFP24-BFS1
Befestigungssatz PCFP24-BFS1
59 [2.323]
71 [2.795]
14,9 [0.587]
90 [3.543]
(e.g.
(z.B. 100 [3.937])
Messlänge
100 [3.937])
Measurement length
75 [2.953]
2 ± 1 [0.079 ± 0.039]
12 [ 0.472]
43 [1.693]
12,8 [0.50]
Cable: outer diameter 5.2 mm ±0.2 mm, wire: cross sectional area 0.25 mm²
Dimensions in mm [inch]
Dimensions informative only. For guaranteed dimensions consult factory.
DB-PCFP24-E-2013
www.asm-sensor.com
5/14
© ASM GmbH
info@asm-sensor.com
29 [1.142]
