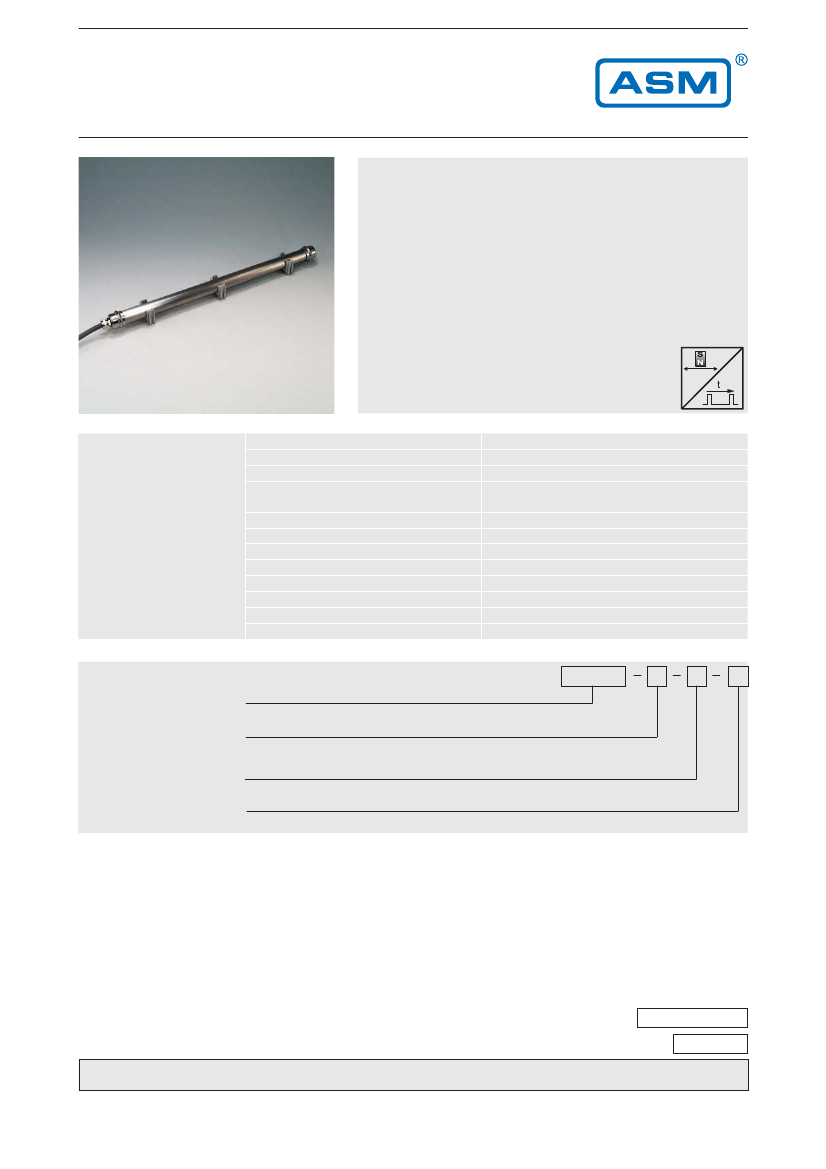

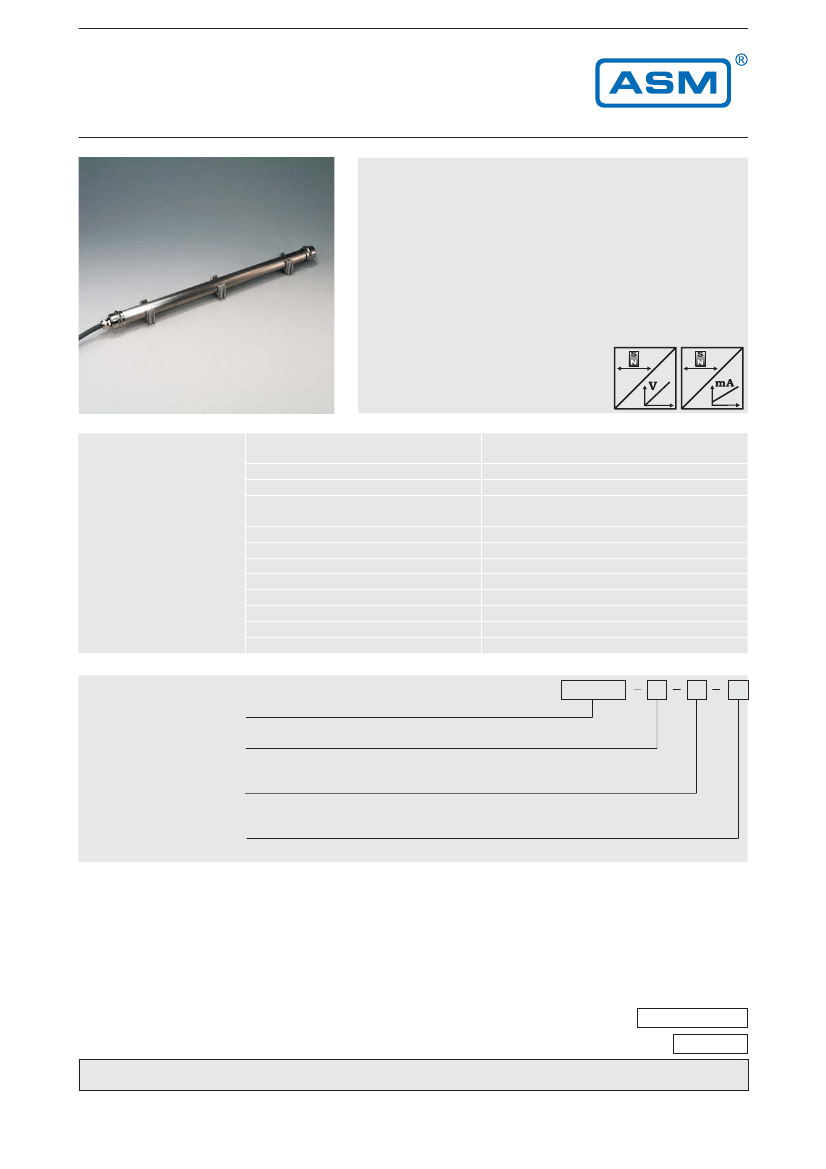

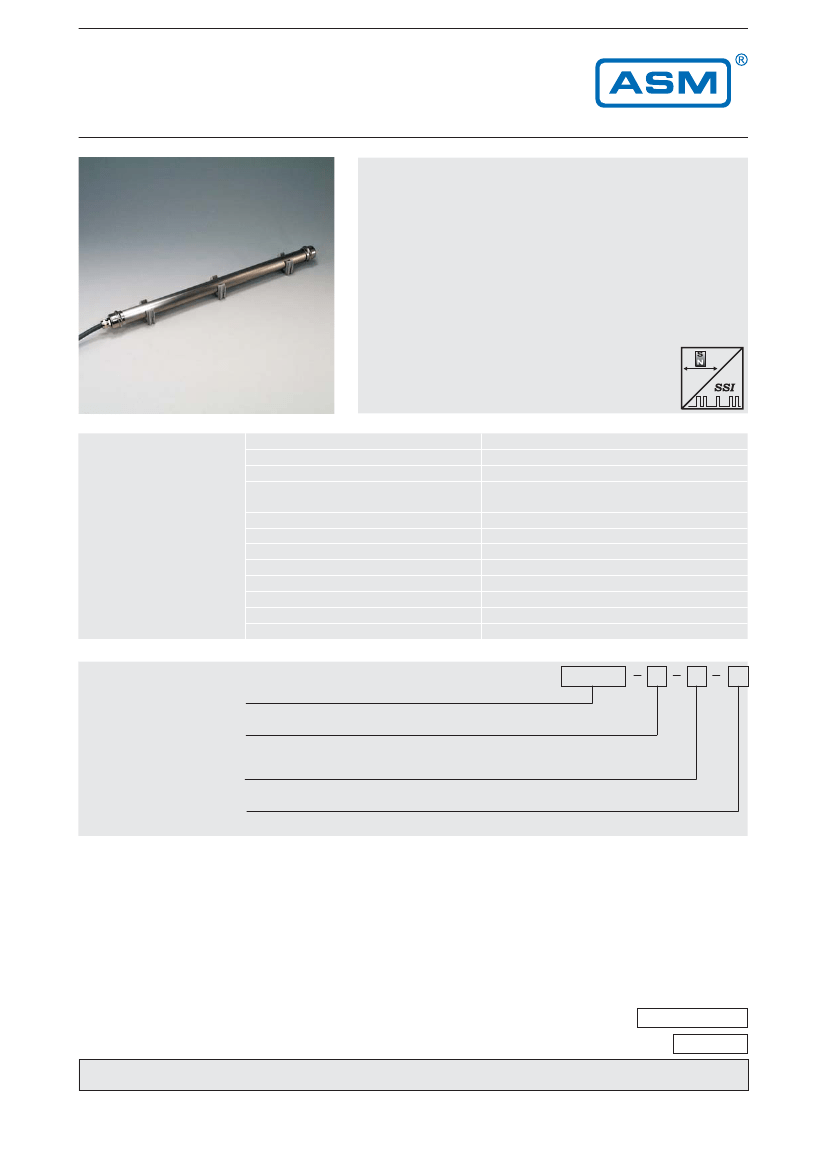

PCRP31 POSICHRON
®
Position Sensor
Rod Profile with Analog Output
POSICHRON
®
position sensor in a stainless
steel pressure case
·
·
·
·
·
·
·
·
·
Protection class IP68
Compression-proof up to 15 bar
Measurement range 0 ... 100 to 0 ... 5750 mm
Absolute position measurement
No power for the position magnet
Wear- and maintenance-free
Cable output
0 … 10 V output
4 … 20 mA output
Outputs
Specifications
Resolution
Sampling rate
Linearity
Housing material
Protection class
Operating temperature
EMC, immunity to interference
EMC, radio frequency emission
Shock
Vibration
Connection
Voltage: 0 ... 10 V, 3 wire
Current: 4 ... 20 mA, 3 wire
Essentially infinite
0.5 ... 2 kHz depending on measurement range
±0.1 mm for ranges
£500
mm
±0.02 % f.s. for ranges >500 mm
Stainless steel 1.4401
IP68, compression-proof up to 15 bar
-40 ... +85 °C
EN61326: 1998, Table A1
EN55011 group 1 class A
100 g/s ms according to EN60068-2-27
15 g, 10 … 2000 Hz according to EN60068-2-6
Cable output, standard length 3 m
Order Code PCRP31
Model Name
PCRP31
Measurement Range (in mm)
100 / 500 / 1000 / 1500 / 2000 / 2500 / 3000 / 4000 / 5000 / 5750
Other ranges on request
Outputs
10V
= with 0 ... 10 V signal conditioner (3 wire)
420T
= with 4 ... 20 mA signal conditioner (3 wire)
Connection
KAB3M = Cable output, length 3 m (standard)
Order Code Mounting Set
(see accessories page 62)
Order Code Position Magnet
(see accessories page 58)
Order Example: PCRP31 - 2000 - 10V - KAB3M
42
CAT-PC-E-04
Tel.: +49-8123-986-0 Fax: +49-8123-986-500 www.asm-sensor.com
PCRP31-BFS...
PCMAG...
ASM GmbH
PCRP31 POSICHRON
®
Position Sensor
Rod Profile with Pulse Output
POSICHRON
®
position sensor in a stainless
steel pressure case
·
·
·
·
·
·
·
·
Protection class IP68
Compression-proof up to 15 bar
Measurement range 0 ... 100 to 0 ... 5750 mm
Absolute position measurement
No power for the position magnet
Wear- and maintenance-free
Cable output
Pulse output (start/stop)
Specifications
Output
Resolution
Sampling rate
Linearity
Housing material
Protection class
Operating temperature
EMC, immunity to interference
EMC, radio frequency emission
Shock
Vibration
Connection
Pulse output (start/stop)
Essentially infinite
0.5 ... 2 kHz depending on measurement range
±0.1 mm for ranges
£500
mm
±0.02 % f.s. for ranges >500 mm
Stainless steel 1.4401
IP68, compression-proof up to 15 bar
-40 ... +85 °C
EN61326: 1998, Table A1
EN55011 group 1 class A
100 g/s ms according to EN60068-2-27
15 g, 10 … 2000 Hz according to EN60068-2-6
Cable output, standard length 3 m
Order Code PCRP31
Model Name
PCRP31
Measurement Range (in mm)
100 / 500 / 1000 / 1500 / 2000 / 2500 / 3000 / 4000 / 5000 / 5750
Other ranges on request
Output
STSP
= with pulse output (start/stop)
Connection
KAB3M = Cable output, length 3 m (standard)
Order Code Mounting Set
(see accessories page 62)
Order Code Position Magnet
(see accessories page 58)
Order Example: PCRP31 - 1500 - STSP - KAB3M
ASM GmbH
Tel.: +49-8123-986-0 Fax: +49-8123-986-500 www.asm-sensor.com
PCRP31-BFS...
PCMAG...
CAT-PC-E-04
43
PCRP31 POSICHRON
®
Position Sensor
Rod Profile with SSI Output
POSICHRON
®
position sensor in a stainless
steel pressure case
·
·
·
·
·
·
·
·
Protection class IP68
Compression-proof up to 15 bar
Measurement range 0 ... 100 to 0 ... 5750 mm
Absolute position measurement
No power for the position magnet
Wear- and maintenance-free
Cable output
Synchronous serial output (SSI)
Specifications
Output
Resolution
Sampling rate
Linearity
Housing material
Protection class
Operating temperature
EMC, immunity to interference
EMC, radio frequency emission
Shock
Vibration
Connection
Synchronous serial (SSI)
Typ. 2 µm
0.5 ... 2 kHz depending on measurement range
±0.1 mm for ranges
£500
mm
±0.02 % f.s. for ranges >500 mm
Stainless steel 1.4401
IP68, compression-proof up to 15 bar
-40 ... +85 °C
EN61326: 1998, Table A1
EN55011 group 1 class A
100 g/6 ms according to EN60068-2-27
15 g, 10 … 2000 Hz according to EN60068-2-6
Cable output, standard length 3 m
Order Code PCFP23
Model Name
PCFP23
Measurement Range (in mm)
100 / 500 / 1000 / 1500 / 2000 / 2500 / 3000 / 4000 / 5000 / 5750
Other ranges on request
Output
SSI
= with synchronous serial output (SSI)
Connection
KAB3M = Cable output, length 3 m (standard)
Order Code Mounting Set
(see accessories page 62)
Order Code Position Magnet
(see accessories page 58)
Order Example: PCRP31 - 1500 - SSI - KAB3M
44
CAT-PC-E-04
Tel.: +49-8123-986-0 Fax: +49-8123-986-500 www.asm-sensor.com
PCRP31-BFS...
PCMAG...
ASM GmbH
PCRP31 POSICHRON
®
Position Sensor
Rod profile with pressure case
ASM GmbH

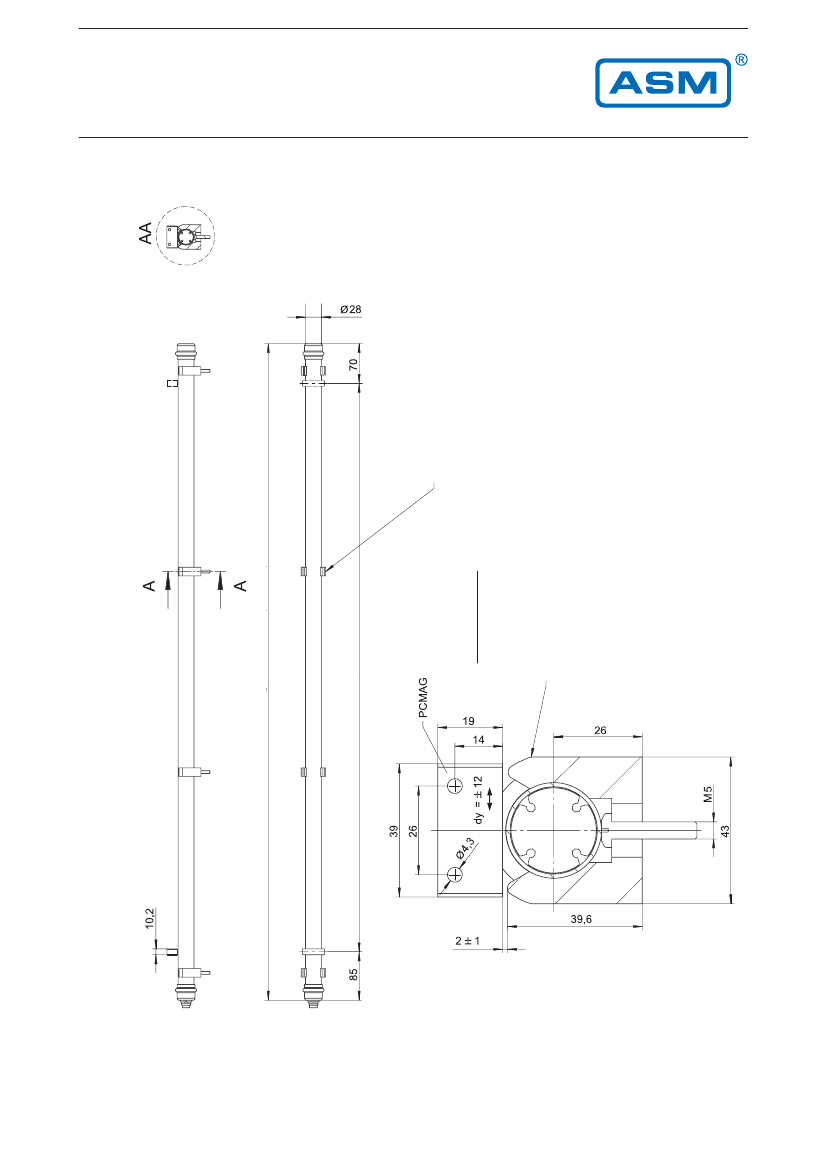

Outline drawing
Start position
PCMAG
End position
PCMAG
Overall length A = MR+155 (e.g. 1155)
Effective measurement range MR (e.g. 1000)
Foot zone
Head zone
View AA
(2 + n) x mounting set PCRP31-BFS2
distance approx. 300 … 500 mm
PCMAG
Guiding tolerance:
dy = ±12
Gap
Dimensions informative only
For guaranteed dimensions consult factory!
Mounting set PCRP31-BFS2
Tel.: +49-8123-986-0 Fax: +49-8123-986-500 www.asm-sensor.com
CAT-PC-E-04
45
POSICHRON
®
Output Specification 420T and 10V
Excitation voltage
Excitation current
Load resistor
Output current
Stability (temperature)
Protection
Output noise
Operating temperature
Immunity to interference (EMC)
+18...+27 V DC, residual ripple 10 mV
ss
80 mA max.
350
W
max.
4 ... 20 mA equivalent to 0 ... 100% range
±50 x 10
-6
/ °C full scale
Reverse polarity, permanent short circuit
0.5 mV
RMS
-40 ... +85 °C
According to EN 61326: 1998
Signal Conditioner
420T
Current output (3 wire)
Excitation +
Signal +
420T
Signal GND
Signal conditioner
10V
Voltage output (3 wire)
Excitation voltage
Excitation current
Output voltage
Output current
Output load
Stability (temperature)
Protection
Output noise
Operating temperature
Immunity to interference (EMC)
+18 ... +27 V DC, residual ripple 10 mV
ss
80 mA max.
0 ... +10 V DC equivalent to 0 … 100% range
2 mA max.
> 5 kW
±50 x 10
-6
/ °C full scale
Reverse polarity, permanent short circuit
0,5 mV
RMS
-40 ... +85 °C
According to EN 61326: 1998
Excitation +
Excitation GND
10V
Signal +
Signal GND
Signal Wiring
Output signals
420T
Excitation +
Excitation GND
Signal +
10V
Excitation +
Excitation GND
Signal +
Signal GND
Connector
pin no.
1
2
3
4
Cable colour
white
brown
green
yellow
Connection
Mating Connector
View to sensor
connector
54
CAT-PC-E-04
Tel.: +49-8123-986-0 Fax: +49-8123-986-500 www.asm-sensor.com
ASM GmbH
