REVISION AG
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: .003[.08] MAX.
3. PARTS TO BE MOLDED TO POSITION.
FEP CABLE OPTION
4. MINIMUM PIN PULLOUT FORCE: 5.000LB[22.24N].
-T: FEP
5. CONTACT MUST BE INSERTED UNTIL RETENTION FEATURE LOCKS INTO PLACE.
(LEAVE BLANK FOR STANDARD
6. ALL FINISHED GOODS ARE TO BE LAYER PACKAGED IN SHIPPING.
PVC INSULATION)
7. ONLY AVAILABLE IN TIN PLATING.
C
8. ALL PARTS TO PASS ELECTRICAL TEST UPON ASSEMBLY
No OF POSITIONS
(INCLUDING HI-POT TEST AT 1000 VOLTS DC). AFTER FINAL ELECTRICAL TEST,
-02 THRU -15
LABEL EACH ASSEMBLY WITH (1) ET STAMP ON THE BODY.
(PER ROW)
9. APPLICATIONS INVOLVING SEVERE BENDING REQUIRE 6" MINIMUM CABLE LENGTH.
10. DELETED.
WIRE GAUGE (AWG)
11. DELETED.
PVC: -16, -18, -206, -203, -22, -24
12. -203 USES 20 GAGE 300 VOLT CABLE.
13. AVAILABLE ONLY AS AN ASO.
FEP: -18, -24
14. -206 USES 20 GAGE 600 VOLT CABLE.
COLOR CODE
15. MINIMUM METAL LATCH RETENTION FORCE: 1.000LB[4.45N].
LEAVE BLANK FOR ALL BLACK WIRE
16. REFER TO CRIMP SPECIFICATIONS PRINT FOR CRIMP AND STRIP DIMENSIONS,
TOLERANCES, TOOLING AND ITS REQUIREMENTS
C: COLOR CODED WIRE, SEE COLOR
17. FOR LENGTHS LESS THAN 12 IN, TOLERANCE SHALL
SEQUENCE TABLE, SHEET 3
BE ±.125[3.18]. FOR OTHER LENGTHS, TOLERANCES SHALL BE ±2%.
(NOT AVAILABLE WITH FEP OPTION)
18. AVAILABLE TO EXISTING CUSTOMERS ONLY, DO NOT DESIGN AS OF REVISION P.
19. AVAILABLE TO EXISTING CUSTOMERS ONLY, DO NOT DESIGN AS OF REVISION Z.
LEAD STYLE
PMSDX-XX-XXXX-X-XX.XX-X-XXX
OPTION
SINGLE
-M: METAL LATCH (USE IPBD-XX-D-M)
(LEAVE BLANK FOR PLASTIC)
DOUBLE
-LUS: PLASTIC LATCH UP, STRAIGHT
-LDS: PLASTIC LATCH DOWN, STRAIGHT
-LUX: PLASTIC LATCH UP, CROSSED
-LDX: PLASTIC LATCH DOWN, CROSSED
-MUS: METAL LATCH UP, STRAIGHT
-MDS: METAL LATCH DOWN, STRAIGHT
-MUX: METAL LATCH UP, CROSSED
-MDX: METAL LATCH DOWN, CROSSED
02 01
(No OF POS x .165[4.19])
+ .040[1.02]) REF
.378 9.60 REF
DO NOT
SCALE FROM
THIS PRINT
.478 12.14
REF
N
(SEE TABLE 2)
06
-SP: STANDARD POWER (C-169-XX-SP-T)
*(SEE NOTE 19)
-HP: HIGH POWER (C-169-XX-HP-T)
*(SEE NOTE 18)
-K: KEYED POLARIZATION (C-169-XX-SP-T)
(USE IPBD-XX-D-K) (SEE FIG 4, SHT 3)
*AVAILABLE TO EXISTING CUSTOMERS ONLY
ASSEMBLED LENGTH
SPECIFY IN INCHES
3.00 INCHES MINIMUM FOR SINGLE ENDED
3.50 INCHES MINIMUM FOR DOUBLE ENDED
[USE DWCX-XX-XX-XXX]
END OPTION
-S: SINGLE END
-D: DOUBLE END
(MUST CHOOSE LUS, LDS, LUX, LDX,
MUS, MDS, MUX, OR MDX)
DWCX-XX-XX-XXX
"A"
IPBD-XX-D
.773 19.63
REF
.485 12.32
REF
XX.XX
(SEE NOTE 17)
C
XX.XX
(SEE NOTE 17)
C
DWCX-XX-XX-XXX
"A"
(PMSDX-05-XXXX-X-XX.XX-S SHOWN)

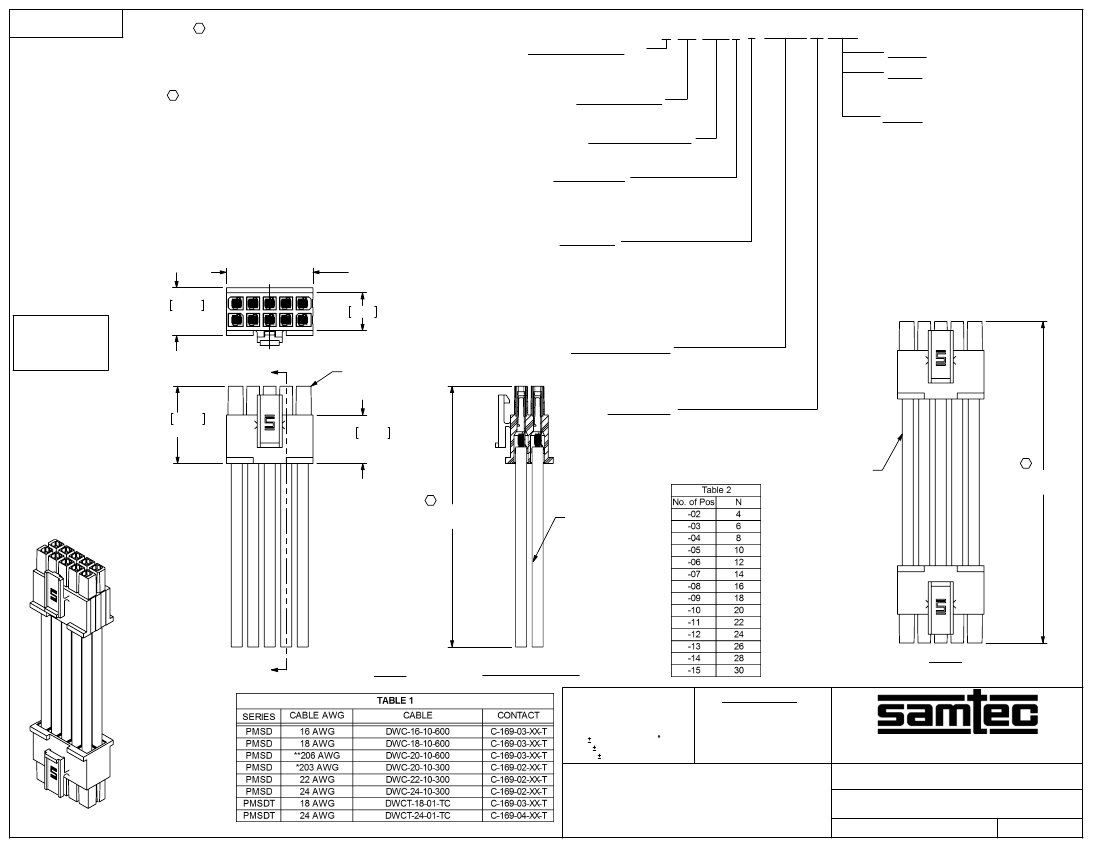

FIG 1
SECTION "A"-"A"
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
(PMSDX-05-XXXX-X-XX.XX-D-LUS SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 2
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
* SEE NOTES 12 & 13
** SEE NOTE 14
F:\DWG\MISC\MKTG\PMSDX-XX-XXXX-X-XX.XX-X-XXX-MKT.SLDDRW
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
HOUSING: PBT UL 94V-0/5VA, COLOR: NATURAL
CONTACT: PHOS BRONZE
CABLE; INSULATION: SEE CALLOUT
WIRE: SEE CALE PRINT (NOT LEAD FREE)
METAL LATCH: NICKEL-PLATED BeCu
.165[4.19] SOCKET DISCREET CABLE ASSEMBLY
PMSDX-XX-XXXX-X-XX.XX-X-XXX
07/28/2004
SHEET
1
OF
3
BY:
DEAN P
REVISION AG
01
02
02
02
N
LATCH-
END 2
LATCH-
END 1
01
01
02
01
LATCH-
END 1
N
N
N

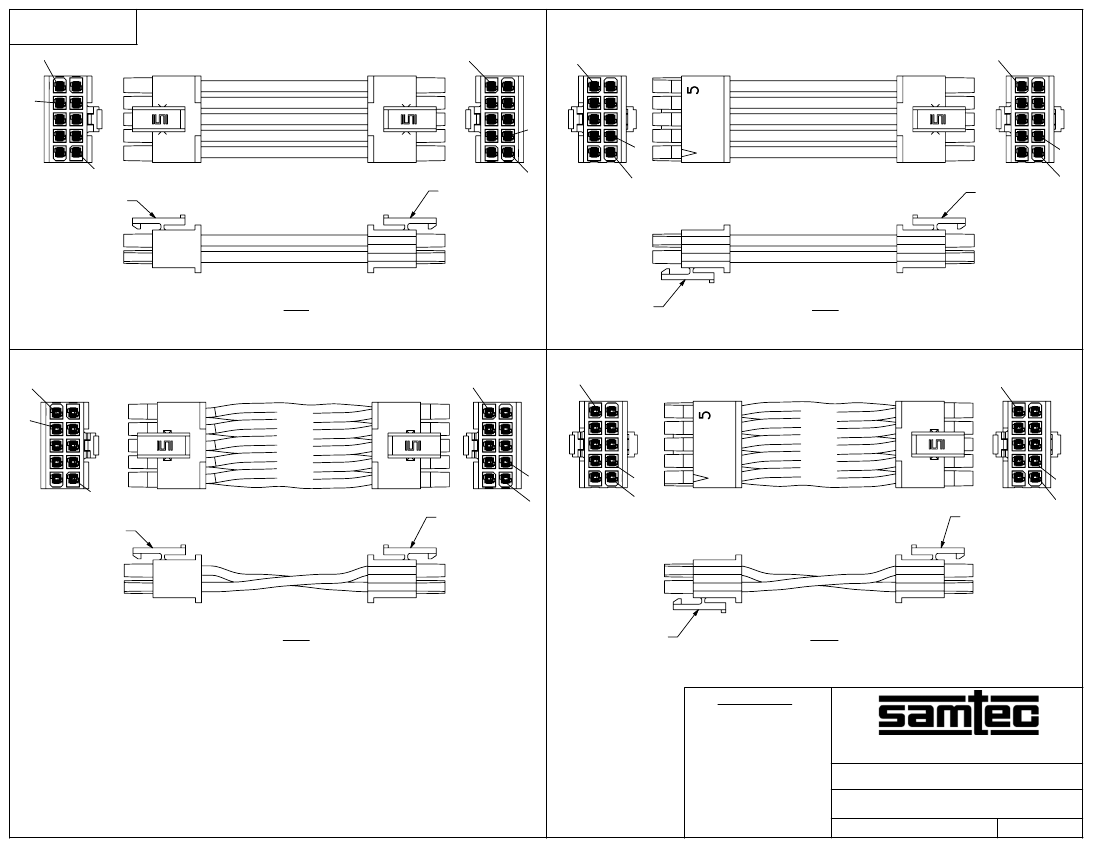

[LATCH UP- CABLE STRAIGHT]
(PIN 1 TO PIN N/2)
-LUS
LATCH-
END 2
[LATCH DOWN- CABLE STRAIGHT]
(PIN 1 TO PIN N/2 +1)
-LDS
01
02
N
N
N
02
N
LATCH-
END 2
LATCH-
END 1
01
02
01
LATCH-
END 1
02
01
[LATCH UP- CABLE CROSSED]
(PIN 1 TO PIN N)
-LUX
LATCH-
END 2
[LATCH DOWN- CABLE CROSSED]
(PIN 1 TO PIN 1)
-LDX
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
.165[4.19] SOCKET DISCREET CABLE ASSEMBLY
PMSDX-XX-XXXX-X-XX.XX-X-XXX
BY:
DEAN P
F:\DWG\MISC\MKTG\PMSDX-XX-XXXX-X-XX.XX-X-XXX-MKT.SLDDRW
07/28/2004
SHEET
2
OF
3
REVISION AG
(PMSDX-05-XXXX-X-XX.XX-S-M SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
.388 9.86
C
FIG 3

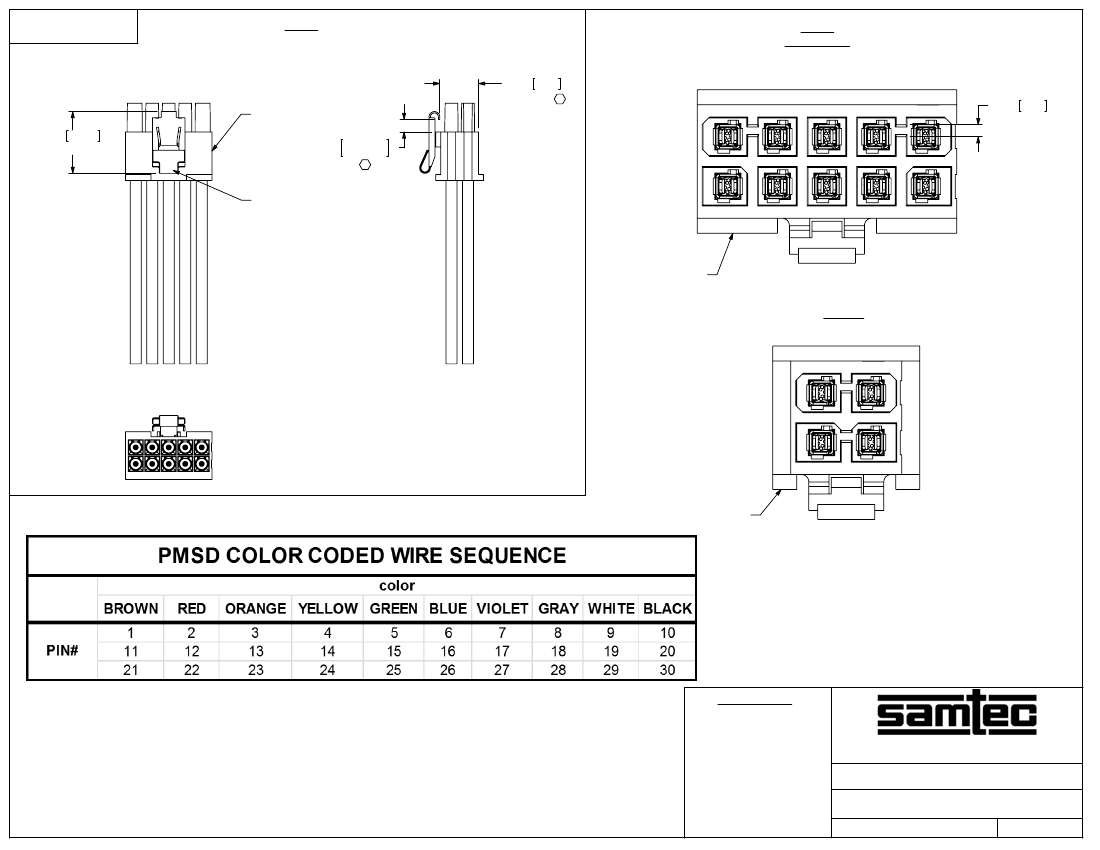

-K: KEYED POLARIZATION
(PMSDX-05-XXXX-X-XX.XX-S-K SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
.040 1.02 REF
FIG 4
SCALE 3:1
IPBD-XX-D-R
.618 15.70
REF
.125
- .002
3.18
- 0.05
C
+.003
+0.08
LTC-14-01-N
IPBD-XX-D-K
-02 POS
(DIFFERENT AS SHOWN)
IPBD-02-D-K
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
.165[4.19] SOCKET DISCREET CABLE ASSEMBLY
F:\DWG\MISC\MKTG\PMSDX-XX-XXXX-X-XX.XX-X-XXX-MKT.SLDDRW
BY:
DEAN P
PMSDX-XX-XXXX-X-XX.XX-X-XXX
07/28/2004
SHEET
3
OF
3
