PRAS27-345-U6-CW-KAB2M datasheet, PDF

Datasheet> All Categories > PRAS27-345-U6-CW-KAB2M

Preview

PRAS27-345-U6-CW-KAB2M: DescriptionMagnetic Angle Sensor with Analog Output; File Size516KB，10 Pages; ManufacturerASM

Download Datasheet View All

PRAS27-345-U6-CW-KAB2M Overview

Magnetic Angle Sensor with Analog Output

Preview

Download Datasheet

View All

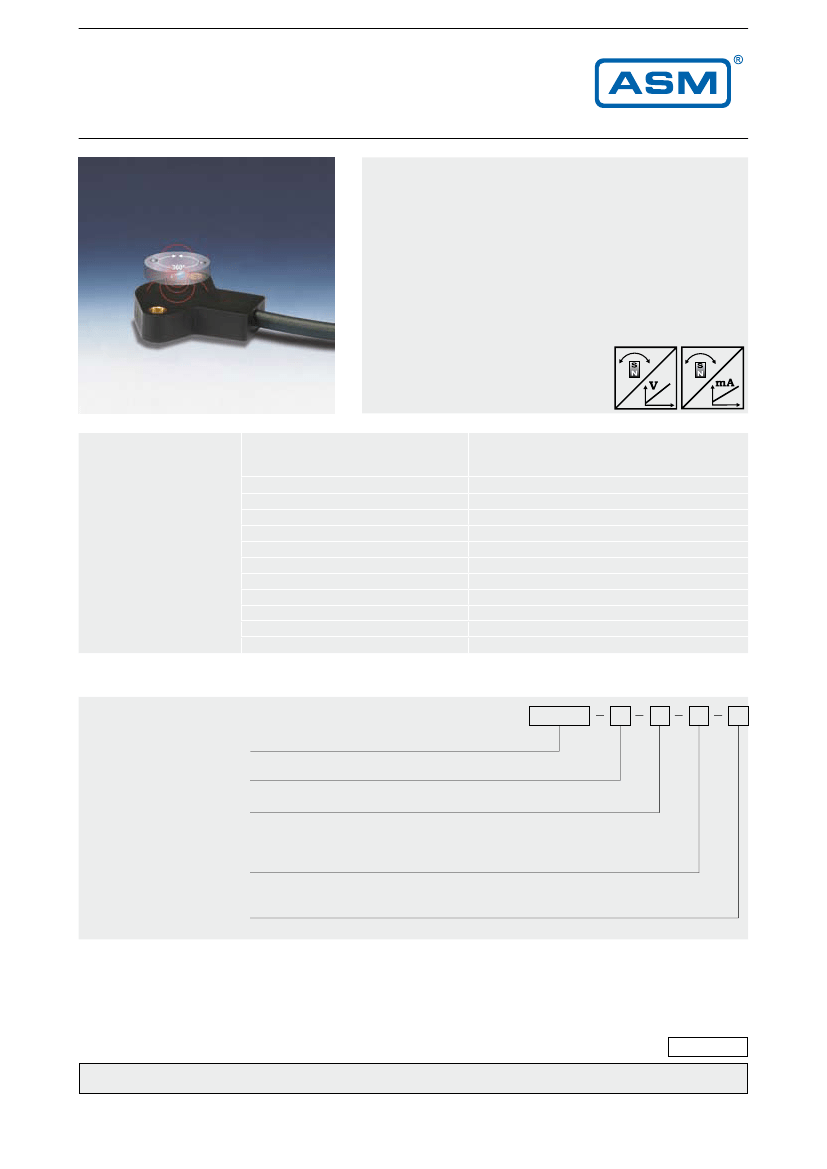

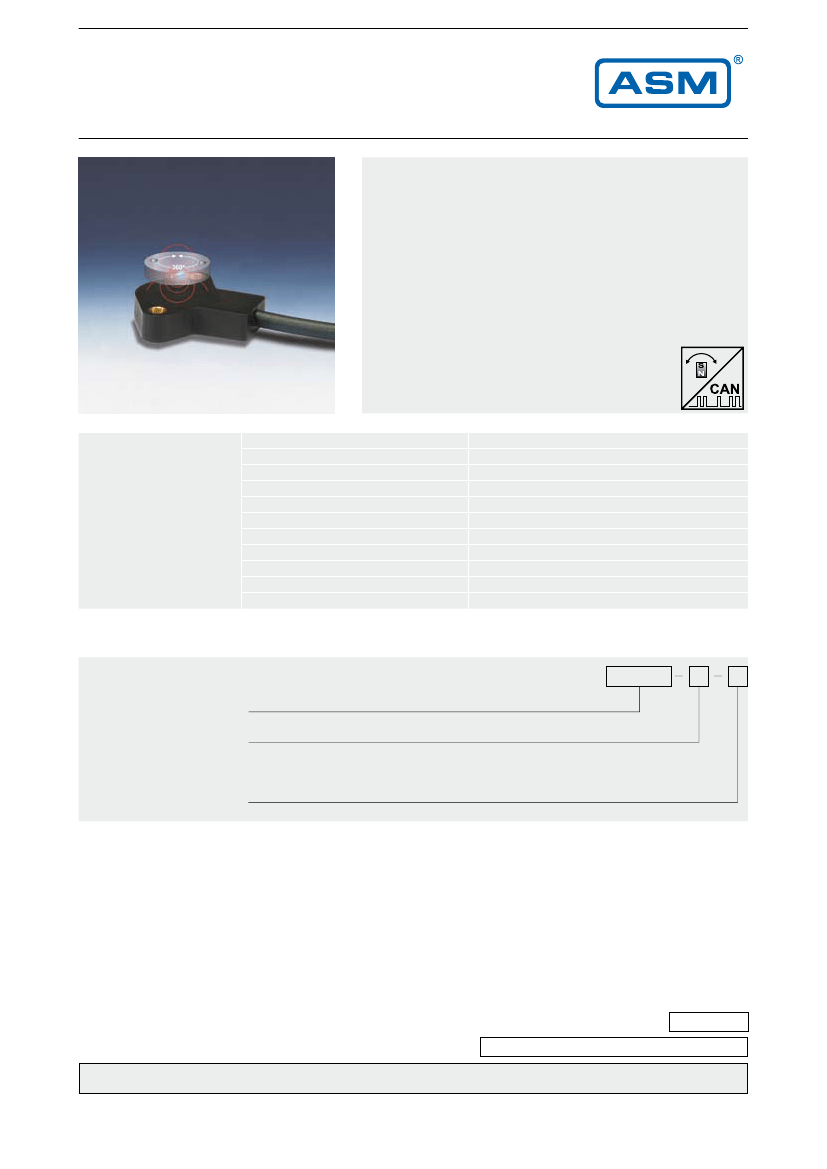

POSIROT

PRAS27

Magnetic Angle Sensor with Analog Output

Magnetic angle sensor 0 - 360°

●

Measurement range 0 to 360°

●

Protection class IP67

● Analog output

● Material plastic

● Non-contact with external position magnet

● No wear

● High shock resistance

● Redundant second channel as option

Specifications

Outputs

U2/U2B

I1/I1B

Tension 0.5 ... 10 V

Tension 0.5 ... 4.5 V ratiometr.

Current 4 ... 20 mA (3 wire)

0 ... 15° to 0 ... 360° in 15° increments

0.03 % (60 ... 360°); 0.1 % (15 ... 45°)

±0.03 % (60 ... 360°); ±0.1 % (15 ... 45°)

±0.5 % f.s. (typ.)

Depending on the position magnet

IP67

CW, CCW

Plastic

Cable 5 x 0.25 mm

EN60068-2-27:1993, 100 g/11 ms, 100 shocks

EN60068-2-6:1995, 20 g 10 Hz-2 kHz, 10 cycles

Measurement range

Resolution

Repeatability

Linearity

Rated distance sensor / magnet

Protection class

Signal characteristics

Material

Connection

Shock

Vibration

Order Code PRAS27

Model name

Measurement range 15 ... 360° in 15° increments

15 / 30 / 45 / ... / 345 / 360

Output

(see page 46)

U2/U2B = 0.5 ... 10 V

= 0.5 ... 4.5 V ratiometr.

I1/I1B = 4 ... 20 mA, 3 wire

Signal characteristics

= Signal increasing CW

CCW

= Signal increasing CCW

Connection

KAB2M = Cable, standard length 2 m

PRAS27

Order code position magnet

(see accessories page 53/54)

Order example: PRAS27 - 360 - U2 - CW - KAB2M

CAT-PR/PT-E-11

www.asm-sensor.com

PRMAG ...

ASM
