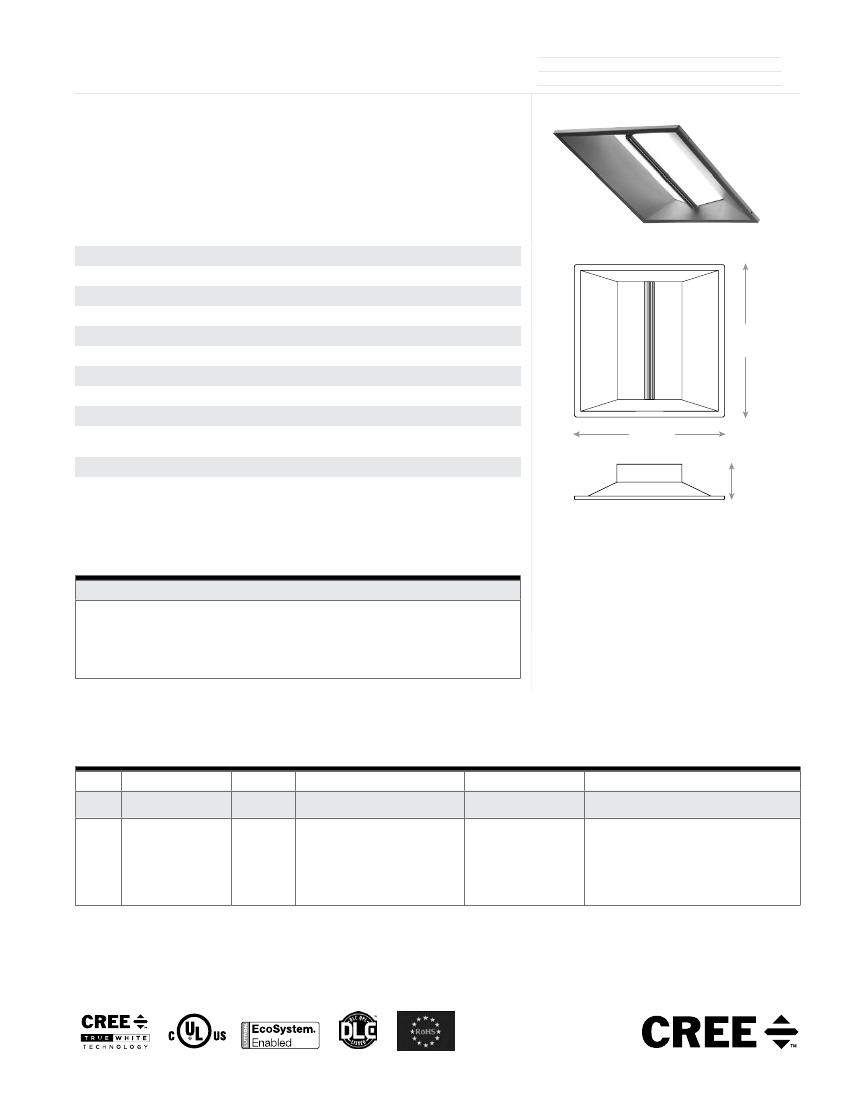

The CR22™ Architectural LED troffer delivers up to 100 lumens per watt of exceptional 90 CRI light at
both 2000 and 3200 lumen levels. This breakthrough performance is achieved by combining the high
efficacy and high-quality light of Cree TrueWhite
®
Technology with a unique thermal management
design. The CR22™ product family is available in warm, neutral, cool, or daylight color temperatures
and has step, 0-10V, or Lutron EcoSystem
®
Enabled dimming options. Its unique indirect illumination
design lightweight design makes the CR22™ perfect for use in commercial new construction or
renovated spaces.
Performance Summary
Utilizes Cree TrueWhite
®
Technology (90 CRI)
Room-Side Heat Sink
Efficacy:
90-100 LPW
Initial Delivered Lumens:
2,000, 3,200 lumens
Input Power:
22-35 watts
CRI:
90 CRI (Cree TrueWhite
®
Technology), 80+ CRI (HD)
CCT:
3000K, 3500K, 4000K, 5000K
Input Voltage:
120-277 VAC or 347 VAC
Limited Warranty
†
:
10 years
Lifetime:
Designed to last from 50,000 hours (HD), 75,000 hours (Standard TW), and
100,000 hours (HE TW)
Controls:
Step Level to 50%, 0-10V Dimming or Lutron EcoSystem Enabled to 5%*
Mounting:
Recessed**
†
See www.cree.com/lighting/products/warranty for warranty terms
* Reference www.cree.com/lighting for recommended dimming control options
** Acceptable for use with standard 9/16 T-Bar or larger when installed per installation instructions. Consult factory for non-standard grid applications
23.7"
(602mm)
23.7"
(602mm)
4.75"
(121mm)
NOTE:
Use of Expanded Junction Box will expand the depth to 6.67" and Emergency
Backup will expand the depth to 6.30". Use of 347V will increase fixture height by 1.4"
Accessories
Field-Installed
Adjustable Cable
AC5 72 PD8 JB
AC5 18/4 72 PD8 JB
Chicago Plenum Field Kit
CPLCR
Chicago Plenum Field Kit-Emergency
CPLCR EM
Junction Box
EJBCR 5PK
- Expanded size junction box for through wiring (5 pack)
Power Whip
PW 18/4 06 9T/SS CR
347 Volt
CR 347V
Step Dimming to 50%
CR 347V SD
Surface Mount Kit
SMK CR22
Ordering Information
Example: CR22-20L-35K-S
CR22
Product
CR22
Initial Delivered Lumens
20L
1
22W 2000 lumens – 90 LPW
32L
32W 3200 lumens – 100 LPW
CCT
30K
3000K
35K
3500K
40K
4000K
50K
5000K
Voltage
Blank
120-277 Volt
34
347 Volt
- Integrated option available on 32L only. Other
types require addition of a 347 accessory kit (see
table above)
Control
S
Step Dimming to 50%
10V
0-10V Dimming to 5%
LES
2
Lutron EcoSystem
®
Enabled to 5%
Options
HD
EB14
3
CRI 80+ (44W 4000 lumens - 90 LPW)
- Available only with 40L
Emergency Backup - 1400 lumens
- Not for use with SMK Kits . Use EB14 SMK
EB14SMK
3
Emergency Backup with surface mount kit - 1400 lumens
- Includes surface mount kit accessory (SMK-CR22)
1. Not available with HD
2. Not available in 20L
3. Not available in LES types
NOTE: Price adder may apply depending on configuration
Rev. Date: V5 10/28/2015
US: www.cree.com/lighting
T
(800) 236-6800
F
(262) 504-5415
Canada: www.cree.com/canada
T
(800) 473-1234
F
(800) 890-7507
CR22™ 2' x 2' Architectural LED Troffer
Product Specifications
CREE TRUEWHITE
®
TECHNOLOGY
A revolutionary way to generate high-quality white light, Cree TrueWhite
®
Technology is a patented
approach that delivers an exclusive combination of 90+ CRI, beautiful light characteristics, and
lifelong color consistency, all while maintaining high luminous efficacy – a true no compromise
solution.
CREE LED TECHNOLOGY
Cree’s total systems approach to product development is a comprehensive engineering philosophy
that combines the most advanced LED sources, driver technologies, optics and forms. The result
is highly-reliable luminaire solutions for both indoor and outdoor applications that reduce energy
use, extend lifetimes, and maximize illumination performance and quality.
ROOM-SIDE HEAT SINK
An innovative thermal management system designed to maximize cooling effectiveness
by integrating a unique room-side heat sink into the diffusing lens. This breakthrough
design creates a pleasing architectural aesthetic while conducting heat away from LEDs in
a temperature-controlled environment. This enables the LEDs to consistently run cooler,
providing significant boosts to lifetime, efficacy, and color consistency.
CONSTRUCTION & MATERIALS
• Durable 22-gauge steel housing with standard troffer access plate for electrical
installation
• One-piece lower reflector finished with a textured high reflectance white polyester
powder coating creates a comfortable visual transition from the lens to the ceiling
plane
• Includes t-bar clips and holes for mounting support wires enable recessed or
suspended installation
• Individual luminaires may be mounted end to end for a continuous row of illumination
OPTICAL SYSTEM
• Unique combination of reflective and refractive optical components achieves a
uniform, comfortable appearance while eliminating pixelation and color fringing
• Components work together to optimize distribution, balancing the delivery of high
illuminance levels on horizontal surfaces with an ideal amount of light on walls and
vertical surfaces. This increases the perception of spaciousness
• Diffusing lens integrated with upward-facing LED strip eliminates direct view of LEDs
while lower reflector balances brightness of lens with the ceiling to create a low-glare
high angle appearance
ELECTRICAL SYSTEM
• Integral, high-efficiency driver
• Power Factor:
= 0.9 nominal
• Input Power:
Stays constant over life.
• Input Voltage:
120-277V or 347V, 50/60Hz
• Operating Temperature Range:
0˚C - + 35˚C (32˚F - + 95˚F)
• Total Harmonic Distortion:
< 20%
CONTROLS
• Step dimming to 50%*
• Optional continuous dimming to 5% with 0-10V DC control protocol*
• Optional Lutron EcoSystem
®
Enabled option allows seamless integration with Lutron
EcoSystem controls*
REGULATORY & VOLUNTARY QUALIFICATIONS
• cULus Listed
• Suitable for damp locations
• Designed for indoor use
• UL924 (EB14 option)
• DLC qualified. Please refer to www.designlights.org/QPL for most current information
• RoHS compliant. Consult factory for additional details
• Meets FCC Part 15 standards for conducted and radiated emissions
* Reference www.cree.com/lighting for recommended dimming controls and wiring diagrams
1
2
Recommended CR Series Lumen Maintenance Factors (LMF)
1
Ambient
0˚C (41˚F)
5˚C (41˚F)
10˚C (50˚F)
15˚C (59˚F)
20˚C (68˚F)
25˚C (77˚F)
30˚C (86˚F)
35˚C (95˚F)
40˚C (104˚F)
Initial Delivered
Lumens
20L and 32L
20L and 32L
20L and 32L
20L and 32L
20L and 32L
20L and 32L
20L and 32L
20L and 32L
20L and 32L
Initial
LMF
1.05
1.04
1.03
1.02
1.01
1.00
0.99
0.98
0.97
25K hr
Projected
2
LMF
1.04
1.03
1.02
1.01
1.00
0.99
0.98
0.97
0.96
50K hr
Projected
2
LMF
1.04
1.03
1.02
1.01
1.00
0.99
0.98
0.97
0.96
75K hr
Calculated
3
LMF
1.04
1.03
1.02
1.01
1.00
0.99
0.98
0.97
0.96
100K hr
Calculated
3
LMF
1.04
1.03
1.02
1.01
1.00
0.99
0.98
0.97
0.96
Lumen maintenance values at 25˚C (77˚F) are calculated per TM-21 based on LM-80 data and in-situ luminaire testing
In accordance with IESNA TM-21-11, Projected Values represent interpolated value based on time durations that are within six times
(6X) the IESNA LM-80-08 total test duration (in hours) for the device under testing ((DUT) i.e. the packaged LED chip)
3
In accordance with IESNA TM-21-11, Calculated Values represent time durations that exceed six times (6X) the IESNA LM-80-08 total
test duration (in hours) for the device under testing ((DUT) i.e. the packaged LED chip)
US: www.cree.com/lighting
T
(800) 236-6800
F
(262) 504-5415
Canada: www.cree.com/canada
T
(800) 473-1234
F
(800) 890-7507
CR22™ 2' x 2' Architectural LED Troffer
Photometry
CR22-32L-30K BASED ON LTL REPORT TEST #:
24292
Luminaire photometry has been conducted by a NVLAP accredited testing laboratory in accordance with IESNA LM-79-08. IESNA LM-79-08 specifies the entire luminaire as the source
resulting in a luminaire efficiency of 100%..
90
250
Coefficients Of Utilization – Zonal Cavity
Method
RC %:
RW %:
80
70
119
110
100
91
84
77
71
66
61
57
53
50
119
105
92
81
72
64
58
52
48
44
40
30
119
101
85
73
63
55
49
44
39
36
32
10
119
Average Luminance Table (cd/m
2
)
Horizontal Angle
0°
45°
55°
3,575
3,164
2,498
1,620
366
45°
3,864
3,656
3,133
2,348
252
90°
3,972
3,758
3,347
2,051
168
Zonal Lumen Summary
Zone
0-30
0-40
0-60
0-90
0-180
75
Lumens
923
1,527
2,704
3,280
3,959
% Lamp
N/A
N/A
N/A
N/A
N/A
Luminaire
28.1%
46.5%
82.5%
100%
100%
500
60
750
RCR: 0
1
Vertical Angle
98
80
67
57
49
43
38
33
30
27
1000
45
2
3
65°
75°
85°
1250
4
5
6
0
0°
15
30
90°
1500
7
8
9
10
Effective Floor Cavity Reflectance: 20%
Reference www.cree.com/Lighting/Products/Indoor/Troffers/CR-Series for detailed photometric data
Application Reference
Open Space
Spacing
8x8
8 x 10
10 x 10
10 x 12
Lumens
2000L
3200L
2000L
3200L
2000L
3200L
2000L
3200L
Based on CR22-32L-30K Luminaire
Wattage
22W
32W
22W
32W
22W
32W
22W
32W
LPW
90
100
90
100
190
100
90
100
w/ft
2
0.35
0.55
0.28
0.44
0.22
0.35
0.19
0.29
Average fc
28
44
23
37
20
31
16
25
9' ceiling: 80/50/20 reflectances; 2.5' workplane, open room. LLF: 1.0 Initial Open Space: 50' x 40' x 10'
