Z0402NE datasheet, PDF - EEWORLD Datasheet

Z0402NE: DescriptionTRIAC,800V V(DRM),4A I(T)RMS,TO-202; CategoryAnalog mixed-signal IC Trigger device; File Size376KB，6 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

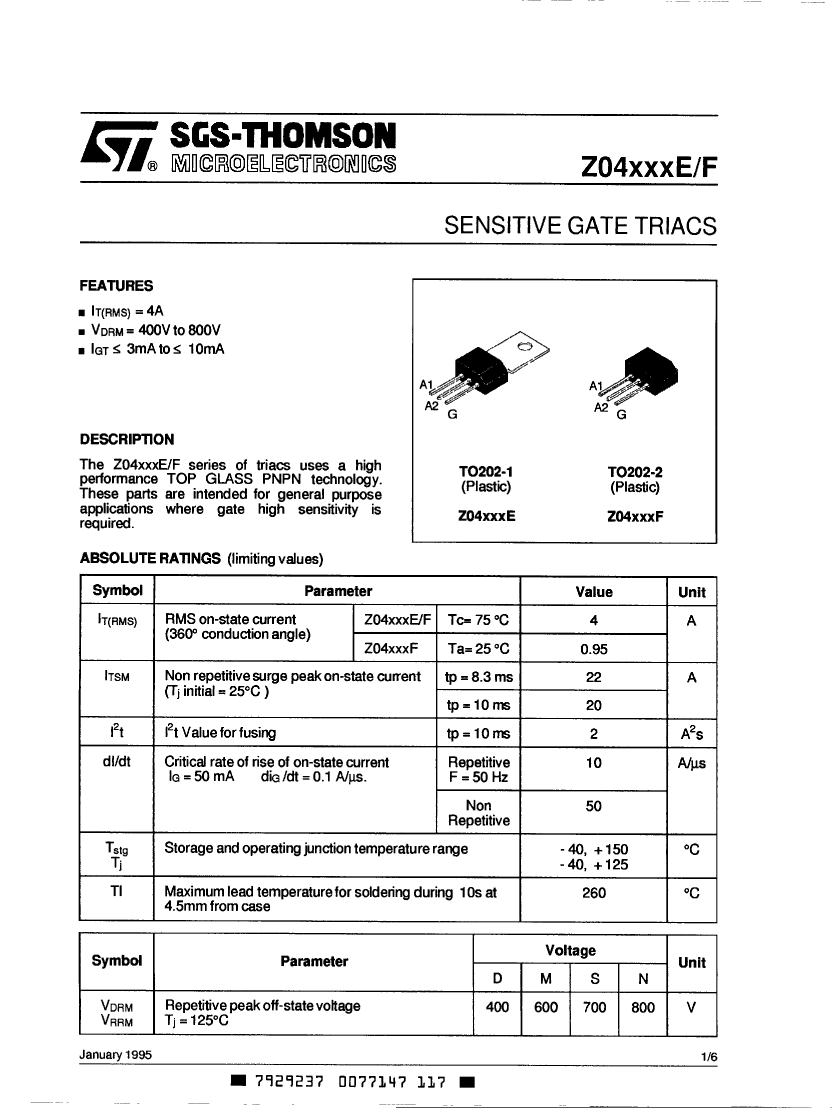

Z0402NE Overview

TRIAC,800V V(DRM),4A I(T)RMS,TO-202

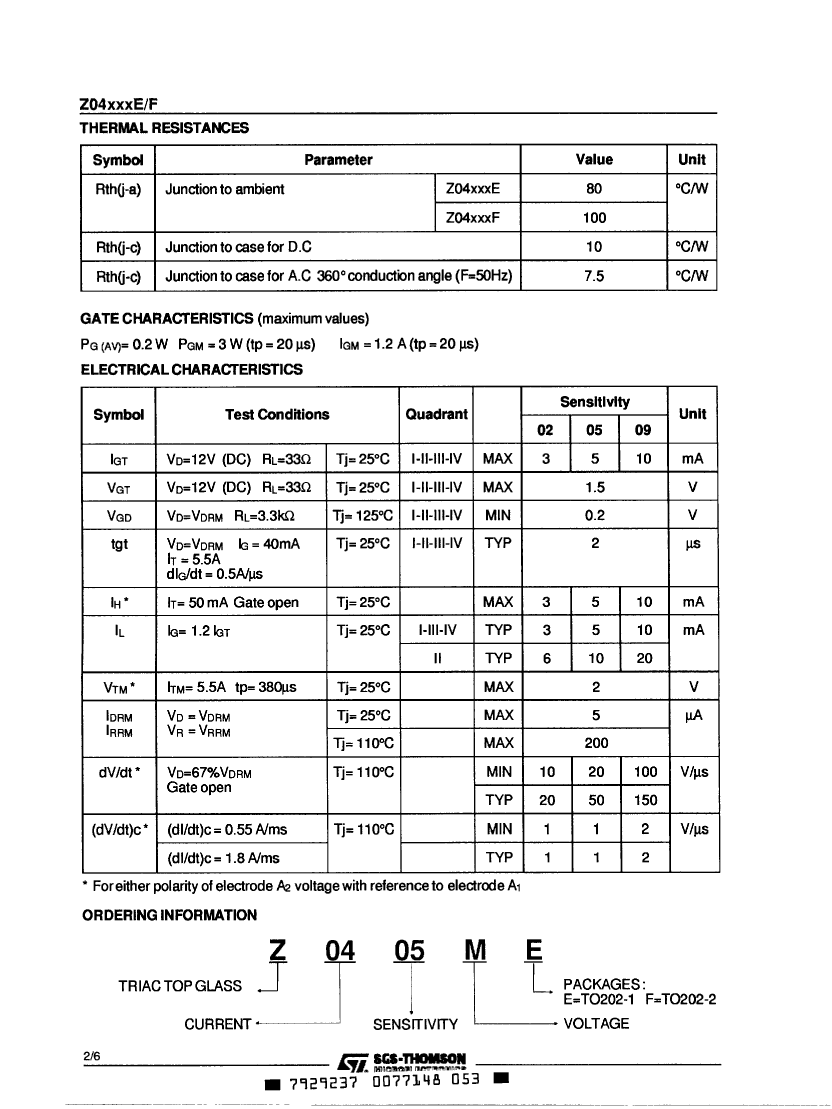

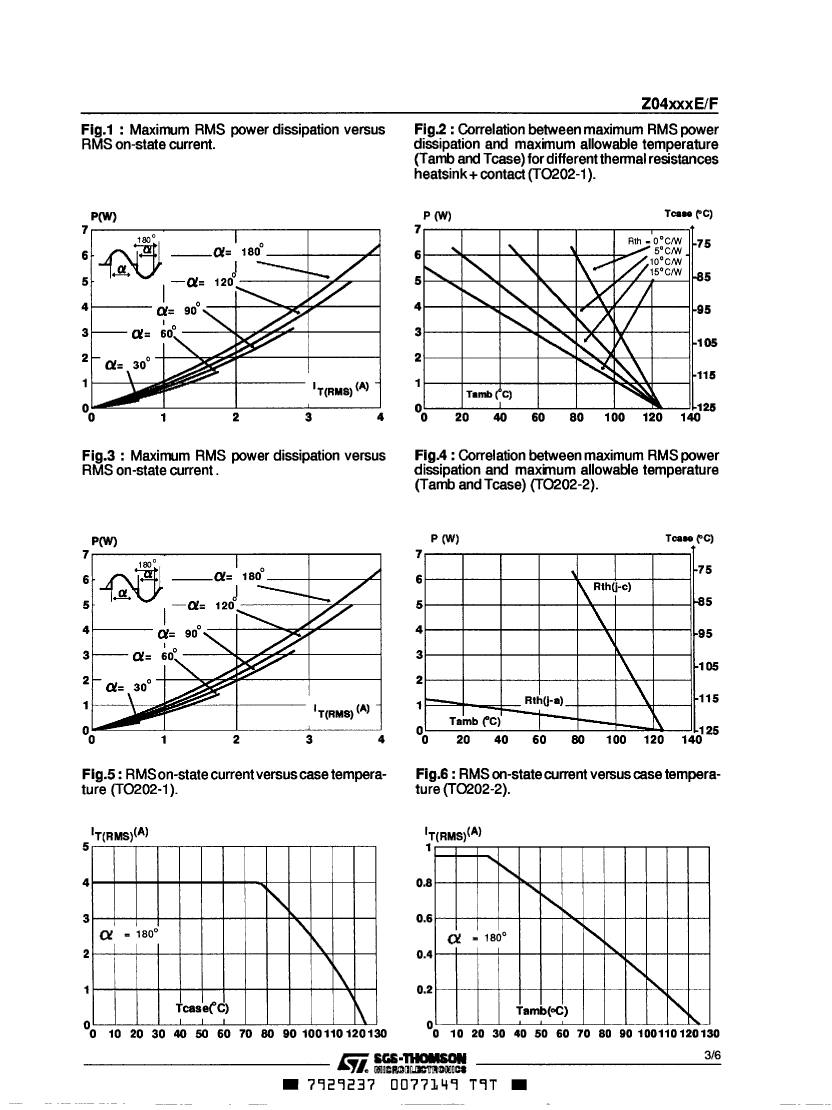

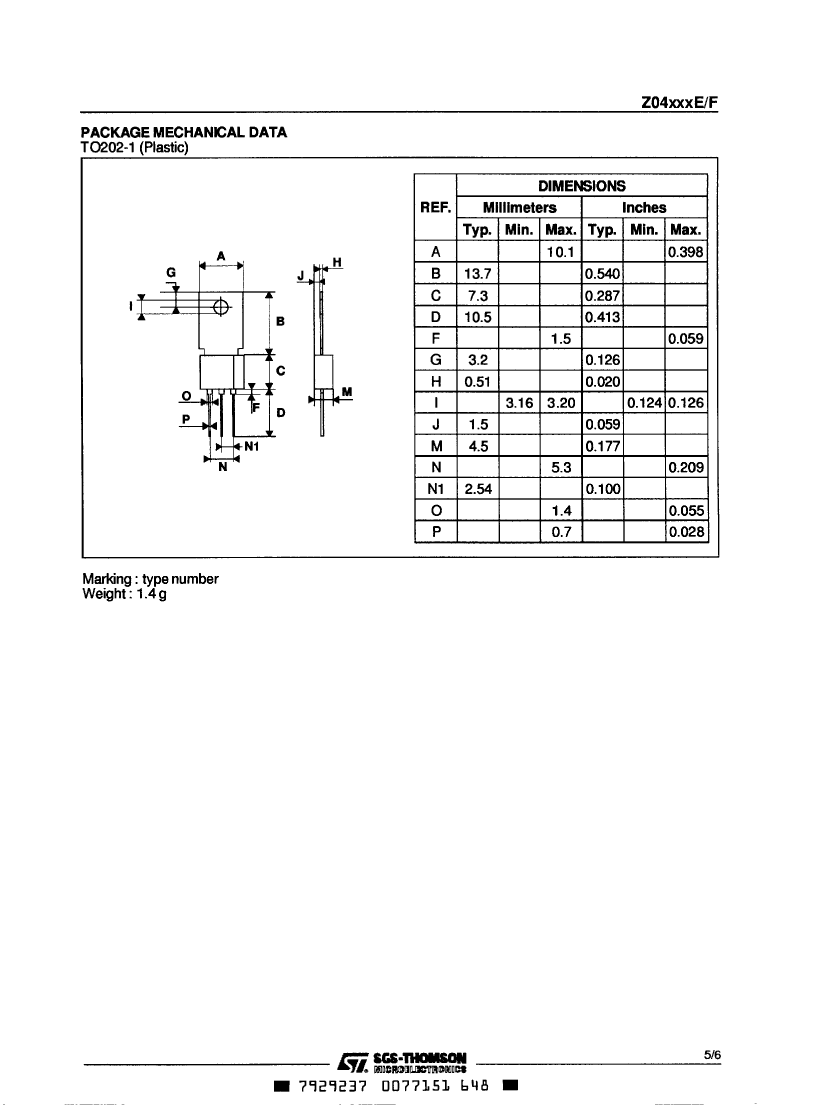

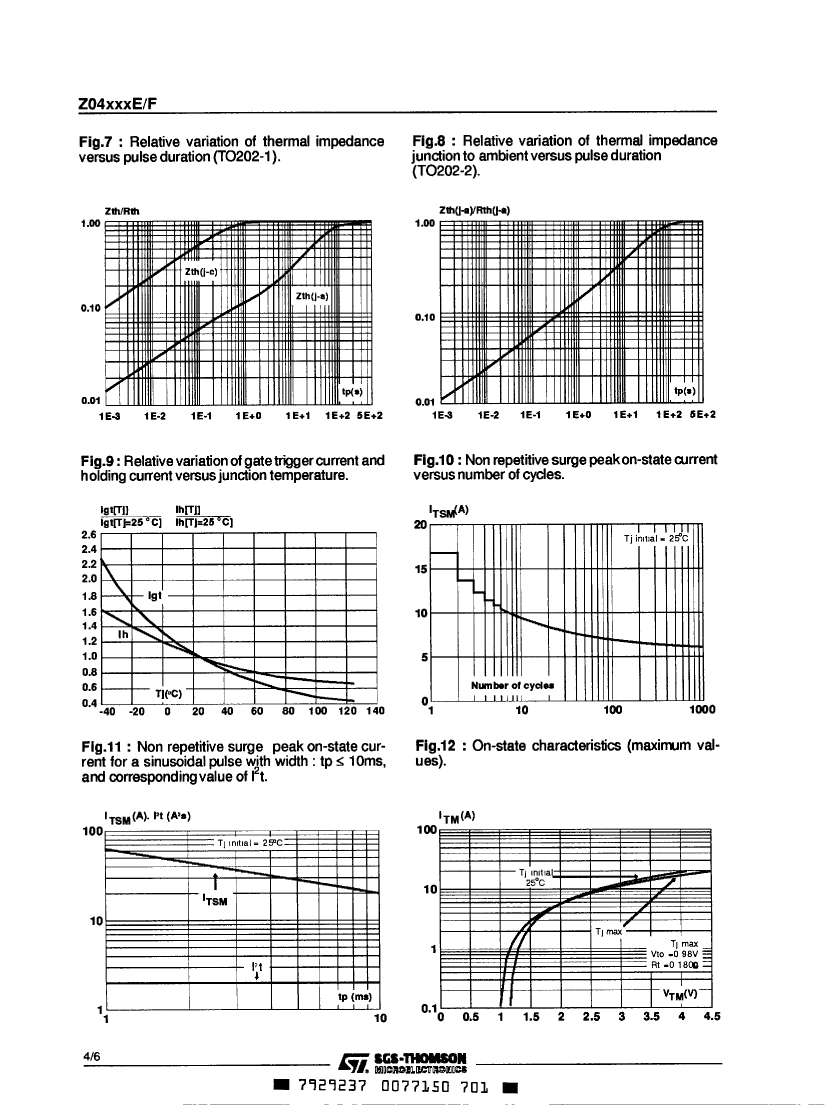

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1164043482
package instruction	,
Reach Compliance Code	not_compliant
ECCN code	EAR99
Critical rise rate of minimum off-state voltage	30 V/us
Maximum DC gate trigger current	3 mA
Maximum DC gate trigger voltage	2 V
Maximum holding current	10 mA
JESD-609 code	e3
Maximum leakage current	0.2 mA
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum rms on-state current	4 A
Off-state repetitive peak voltage	800 V
surface mount	NO
Terminal surface	Matte Tin (Sn)
Trigger device type	TRIAC

	Z0402NE	Z0402DE	Z0402ME	Z0405NE	Z0409DE	Z0409NE	Z0409SE
Description	TRIAC,800V V(DRM),4A I(T)RMS,TO-202	TRIAC,400V V(DRM),4A I(T)RMS,TO-202	TRIAC,600V V(DRM),4A I(T)RMS,TO-202	TRIAC,800V V(DRM),4A I(T)RMS,TO-202	TRIAC,400V V(DRM),4A I(T)RMS,TO-202	TRIAC,800V V(DRM),4A I(T)RMS,TO-202	TRIAC,700V V(DRM),4A I(T)RMS,TO-202
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Objectid	1164043482	1164043480	1164043481	1164043489	1164043492	1164043494	1164043495
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum DC gate trigger current	3 mA	3 mA	3 mA	5 mA	10 mA	10 mA	10 mA
Maximum DC gate trigger voltage	2 V	2 V	2 V	2 V	2 V	2 V	1.5 V
Maximum holding current	10 mA	10 mA	10 mA	10 mA	20 mA	20 mA	10 mA
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Maximum leakage current	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.005 mA
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-45 °C	-40 °C	-40 °C	-45 °C	-40 °C	-40 °C
Maximum rms on-state current	4 A	4 A	4 A	4 A	4 A	4 A	4 A
Off-state repetitive peak voltage	800 V	400 V	600 V	800 V	400 V	800 V	700 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC
Critical rise rate of minimum off-state voltage	30 V/us	30 V/us	30 V/us	30 V/us	30 V/us	30 V/us	-
