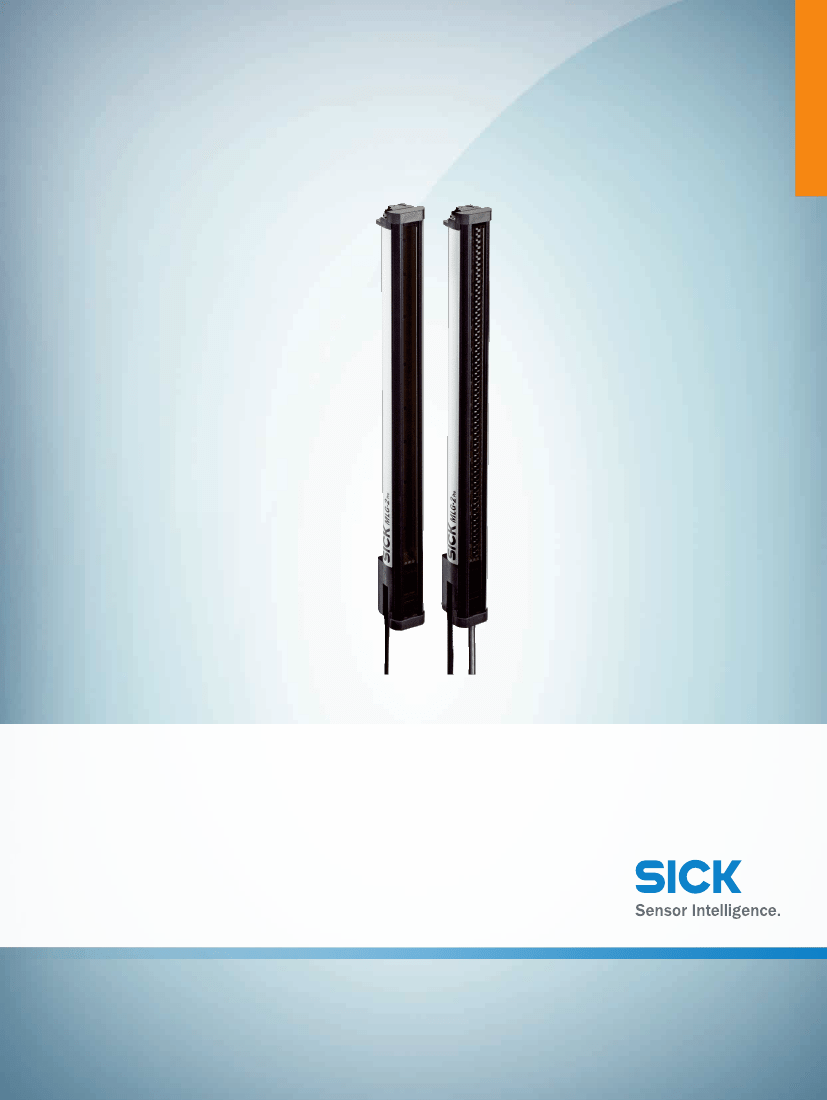

MLG25A-0575R10501
MLG-2 Pro
MEASURING AUTOMATION LIGHT GRIDS
Online data sheet
MLG25A-0575R10501 | MLG-2 Pro
MEASURING AUTOMATION LIGHT GRIDS
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
Detailed technical data
Features
Version
Technology
Ordering information
Type
MLG25A-0575R10501
Other models and accessories
www.sick.de/MLG-2_Pro
Part no.
1213537
Pro
Sender/receiver
25 mm, 29 mm
1)
2)
3)
25 mm
≥ 24
575 mm
Q1: presence detection
Q2 / IN: Teach-in
Q3: presence detection
Q4 / IN2: presence detection
Teach: Standard mode
Minimum detectable object (MDO)
Beam separation
Number of beams
Detection height
Software features
1)
2)
3)
MDO min. detectable object at high measurement accuracy.
MDO min. detectable object for standard measurement accuracy.
Depending on beam separation without cross beam setting.
Performance
Maximum range
Minimum range
Working range
Response time
1)
2)
3)
7 m
1)
≥ 0 mm
5 m
≥ 3.6 ms
2)
3)
No reserve for environmental issue and deterioration of the diode.
Without high speed.
With resistive load.
Interfaces
Connection type
Male connector M12, 8-pin
2
AUTOMATION LIGHT GRIDS | SICK
Online data sheet | 2016-01-29 09:44:08
Subject to change without notice
MLG25A-0575R10501 | MLG-2 Pro
MEASURING AUTOMATION LIGHT GRIDS
IO-Link
Data interface
Fieldbus, industrial network
Type of fieldbus integration
✔
4 x Q (IO-Link)
IO-Link
Integrated in the device
Mechanics/electronics
Wave length
Supply voltage V
s
Power consumption sender
Power consumption receiver
Ripple
Output current I
max.
Output load capacitive
Output load inductive
Initialization time
Dimensions (W x H x D)
Housing material
Indication
Enclosure rating
Circuit protection
Weight
Front screen
Option
1)
2)
850 nm
DC 18 V ... 30 V
1)
≥ 56.2 mA
2)
≥ 124.8 mA
2)
< 5 V
pp
≤ 100 mA
100 nF
1 H
< 1 s
34 mm x 673.3 mm x 30.6 mm
Aluminum
LED
IP 65, IP 67
U
V
connections, reverse polarity protected, Output Q short-circuit protected, Interference pulse
suppression
≥ 1.447 kg
PMMA
Nonexistent
Without load.
Without load with 24 V.
Ambient data
Protection class
EMC
Ambient temperature
Ambient light immunity
Vibration resistance
Shock load
1)
2)
III
EN 60947-5-2
Operation: –30 °C ... +55 °C
Storage: –40 °C ... +70 °C
Direct: 150,000 lx
1)
Indirect: 150,000 lx
2)
Sinusoidal oscillation 10-150 Hz 5 g
Continuous shocks 10 g, 16 ms, 1000 shocks
Single shocks 15 g, 11 ms 3 per axle
Outdoor mode.
Light resistance indirect.
2016-01-29 09:44:08 | Online data sheet
Subject to change without notice
AUTOMATION LIGHT GRIDS | SICK
3
MLG25A-0575R10501 | MLG-2 Pro
MEASURING AUTOMATION LIGHT GRIDS
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
Dimensional drawing
(Dimensions in mm (inch))
Receiver
34
(1.34)
15
(.59)
B
Receiver
Sender
Sender
30.6
(1.20)
30.6
(1.20)
34
(1.34)
15
(.59)
1
2
3
A
3
174.9
(6.89)
256.2
(10.09)
M12; 4pol
216.2
(8.51)
M12; 5pol
M12; 8pol
A
1)
Beam separation 2.5 mm
Beam separation 5 mm
Beam separation 10 mm
Beam separation 25 mm
Beam separation 50 mm
1)
2)
B
1)
17.25
(2.45)
16.1
(0.63)
16.1
(0.63)
16.1
(0.63)
16.1
(0.63)
62.25
(2.45)
63.3
(2.49)
68.3
(2.69)
83.3
(3.28)
108.3
(4.26)
Distance: MLG-2 edge - first beam
Distance: MLG-2 edge - last beam
① Detection
height (see optical performance)
② Beam
separation (RM)
③ Status
indicator: green, yellow, red LEDs
4
AUTOMATION LIGHT GRIDS | SICK
Online data sheet | 2016-01-29 09:44:08
Subject to change without notice
MLG25A-0575R10501 | MLG-2 Pro
MEASURING AUTOMATION LIGHT GRIDS
Adjustments
24
(0.94)
red
yel
grn
1
link / data
35.5
(1.4)
① Status
indicator: green, yellow, red LEDs
Connection type and diagram
Connector M12, 5/8-pin, switching outputs Q
4
5
3
6
5
8
4
1
1
Sender
brn
(1.68)
17.3
2
3
2
7
1
Receiver
3
2
4
Receiver Ethernet
L+
wht/ora
wht/grn
ora
grn
1
L+
brn
1
1 Tx+
2 Rx+
3 Tx–
4 Rx–
wht
2
Sync A
3
blu
M
blk
4
TEST
gra
5
Sync B
wht
2
Sync A
3
blu
M
blk
4
Q
1
/C
gra
5
Sync B
pnk
6
Q
2
/In
1
7
vio
Q
3
8
red
Q
4
/In
2
2016-01-29 09:44:08 | Online data sheet
Subject to change without notice
59
(2.32)
AUTOMATION LIGHT GRIDS | SICK
5
