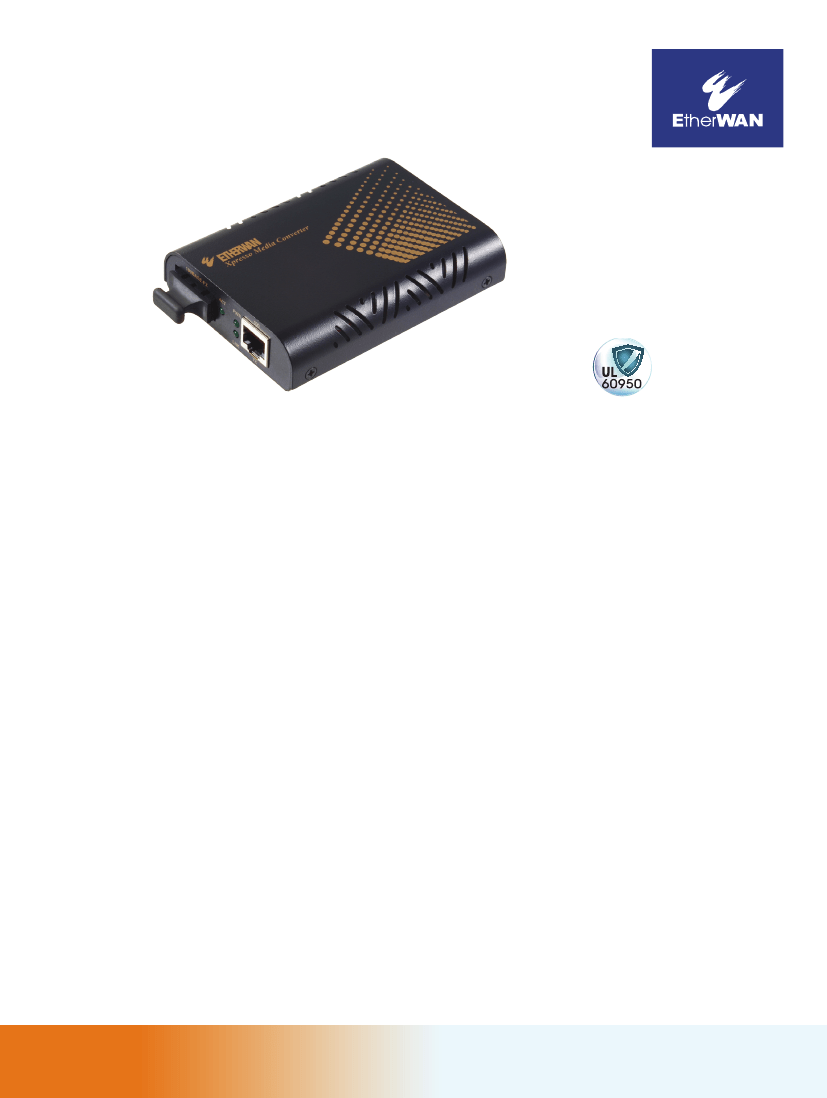

EL100 / EL110 Series
10/100BASE-TX to 100BASE-FX Media Converter
Overview
The EL100 / EL110 Series provide media conversion between 10/100BASE-T(X) and 100BASE-FX Fiber. Easy plug-and-play design
facilitates network infrastructure construction. Through DIP switch selection, Link-Fault-Pass-Through (LFPT) function can be active
or disabled. The EL100 / EL110 series is designed for SC or ST fiber connection applications. The commercial grade media converter
supports EtherWAN EMC1600 chassis system for easy group installation. The EL100 / EL110 is the ideal media converter for
enterprise environments.
EtherWAN – “When Connectivity is Crucial”.
Spotlight
• SC and ST Media Converter
◦
Supports multi-mode and single mode fiber line with SC and ST fiber port
• DIP Switch Configurable
◦
Link-fault-pass-through enable or disable
◦
Full-duplex or half-duplex of Ethernet port enable or disable
◦
Full-duplex or half-duplex of fiber port enable or disable
• Link-Fault-Pass-Through (LFPT)
◦
LFPT function let network operators be aware of network connection status
◦
When fiber link is down, LFPT function will turn down Ethernet port to inform connected device that the link is down and vice
versa
EL100 / EL110 Series
1
www.EtherWAN.com
rev. A1.2
Hardware Specifications
Technology
Standards
• IEEE802.3
10BASE-T
• IEEE802.3u
100BASE-TX/FX
• IEEE802.3x
full duplex and flow control
• 14,880pps
for 10Mbps
• 148,810pps
for 100Mbps
• 128K
bits
Interface
Ethernet Port
• 10/100BASE-TX:
1 port
• 100BASE-FX:
1 port
• Per
Unit: Power Status (Power)
• Per
Port: 10/100TX: Link/Activity, Full-duplex/Collision,
Speed
• Per
port 100FX: Link/Activity, Full-duplex/Collision
Forward and Filtering Rate
Packet Buffer Memory
Processing Type
• Store-and-forward
• Half-duplex
back-pressure and IEEE802.3x full-duplex
flow control
LED Indicators
Environment
Operating Temperature
Storage Temperature
• 0°C
to 45°C (32°F to 113°F)
• -10°C
to 70°C (14°F to 158°F)
• 5%
to 95% (non-condensing)
Power
Input Voltage
• Input:
12VDC
• 1.92W
Max. 0.16A @ 12VDC
Ambient Relative Humidity
Power Consumption
Regulatory Approvals
ISO
• Manufactured
in an ISO9001 facility
Mechanical
Casing
• Aluminum
Case
• 80.3mm
(W) x 109.2mm (D) x 23.8mm (H)
(3.16" (W) x 4.30" (D) x 0.94" (H))
• 150g
(0.33lb.)
• Wall
mounting or use with EMC1600 media converter
chassis system
Safety
UL60950-1
Emission Compliance
CE Mark Class A
FCC Part 15B Class A
VCCI Class A
Dimensions
Weight
Installation
Dimensions
23.8mm
(0.94”)
100BASE-FX
100BASE-BX
EL100 / EL110 Series
80.3mm (3.16”)
109.2mm (4.3”)
Front (EL100)
Front (EL110)
Top
Back (EL110)
Back (EL100)
Side
2
www.EtherWAN.com
rev. A1.2
DC12V
DC12V

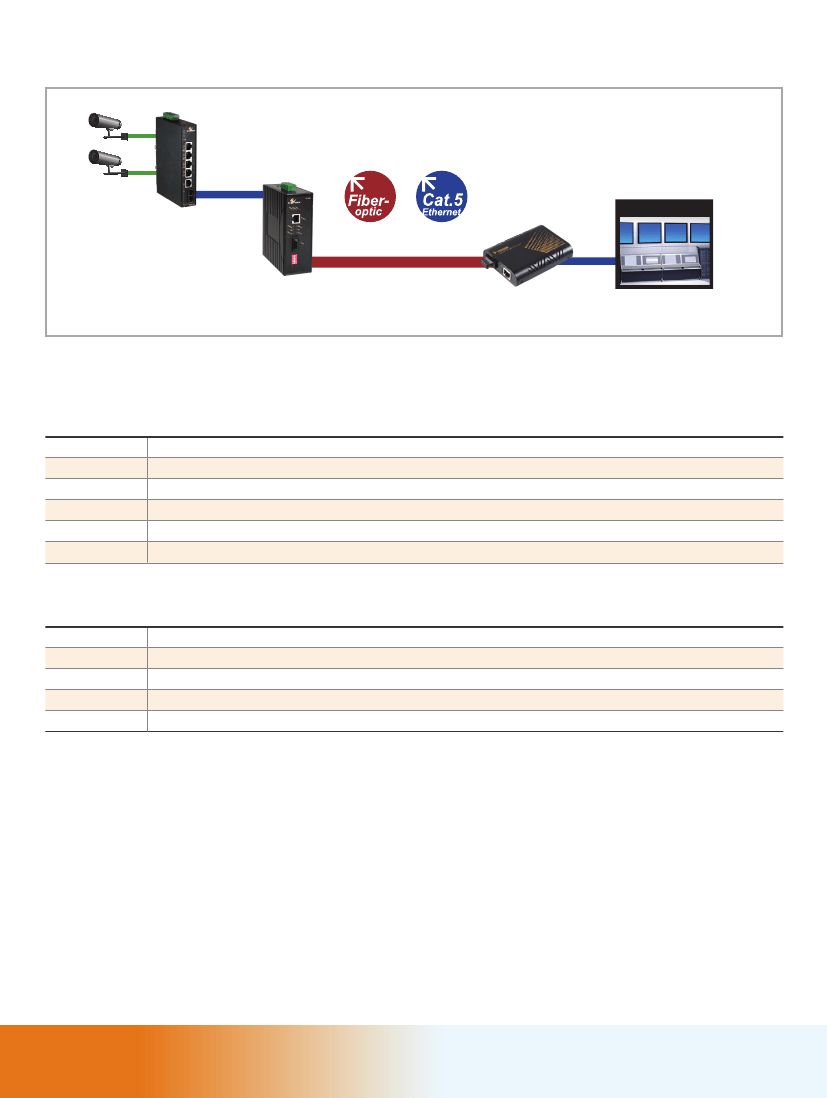

Application Diagram
RJ45
EX42300 Series
Fiber Uplink
RJ45
Control Room
Hardened Media Converter
EL100
Commercial Media Converter
Ordering Information
EL100 Series
EL100C
EL100T
EL100C-20
EL100T-20
EL100L-20
EL100C-40
10/100BASE-TX to 100BASE-FX Multi Mode (SC) 2Km Media Converter (1310nm)
10/100BASE-TX to 100BASE-FX Multi Mode (ST) 2Km Media Converter (1310nm)
10/100BASE-TX to 100BASE-FX Single Mode (SC) -20Km Media Converter (1310nm)
10/100BASE-TX to 100BASE-FX Single Mode (ST) -20Km Media Converter (1310nm)
10/100BASE-TX to 100BASE-FX Single Mode (SFF Dual LC) -20Km Media Converter (1310nm)
10/100BASE-TX to 100BASE-FX Single Mode (SC) -40Km Media Converter (1310nm)
EL110 Series
EL110C
EL110T
EL110C-20
EL110T-20
EL110C-40
NOTES :
*EMC1600, proprietary 19" chassis system, can house up to 16 x EL100/EL110 Series Converters
*EMC1600 Chassis System is available separately
*More 100FX fiber options are also available upon request
100BASE-TX to 100BASE-FX Multi Mode (SC) Media Converter
100BASE-TX to 100BASE-FX Multi Mode (ST) Media Converter
100BASE-TX to 100BASE-FX Single Mode (SC) -20Km Media Converter (1310nm)
100BASE-TX to 100BASE-FX Single Mode (ST) -20Km Media Converter (1310nm)
100BASE-TX to 100BASE-FX Single Mode (SC) -40Km Media Converter (1310nm)
EL100 / EL110 Series
3
www.EtherWAN.com
rev. A1.2
