EX45000 Series
Hardened Unmanaged 8-port 10/100BASE PoE (4 x PoE)
Ethernet Switch
NEMA
TS2
PoE
15W
Overview

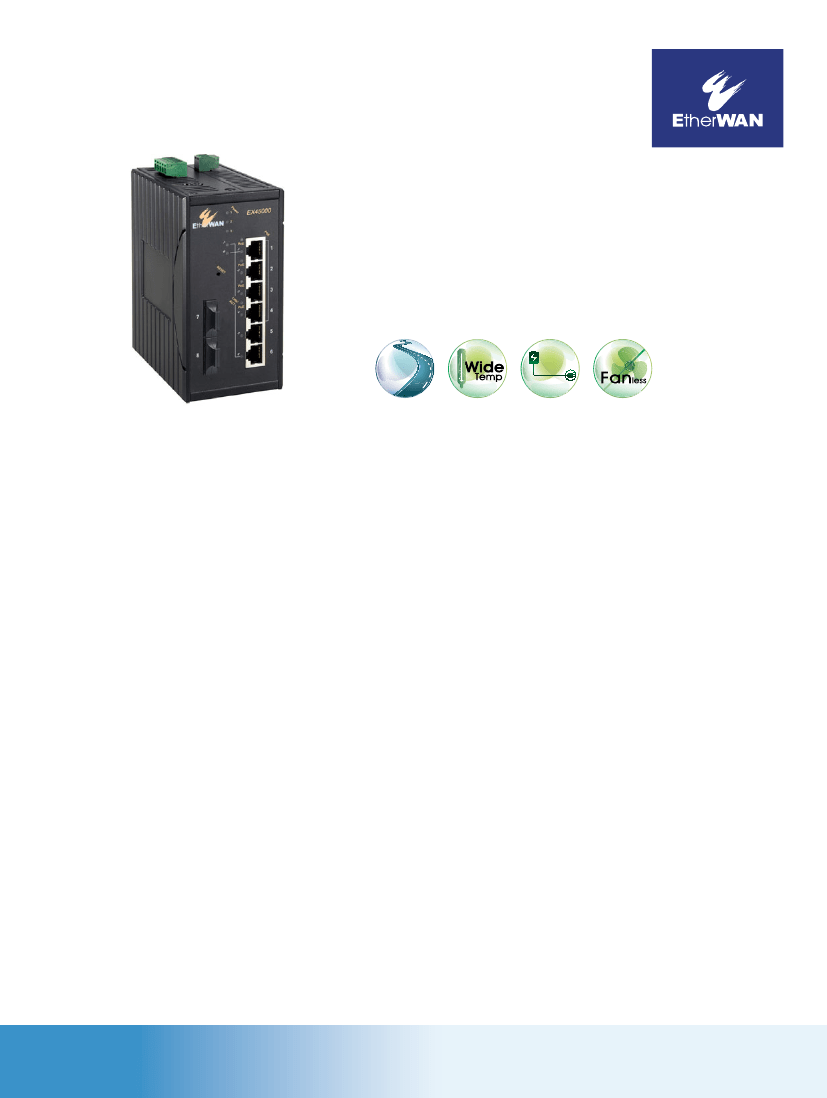

EtherWAN's EX45000 Series provides a hardened 8-port switching platform supporting IEEE802.3af Power over Ethernet, high
performance switching with robust features required for mission-critical and harsh environments where sustained connectivity is
crucial.
The EX45000 Series is equipped with 4 10/100BASE-TX PoE ports, in combination with two 100FX Fiber options.
The IEEE802.3af PoE ports provide up to 15.4W/port with a total power budget of 61.6W, making the switch truly versatile for
connecting with PoE Powered Devices (PD) with different bandwidth and power consumption requirements.
The EX45000 Series is designed to operate at -40°C to 75°C in harsh environments, where high ESD, shock, and vibration may be
present.
EtherWAN — "When Connectivity is Crucial."
Spotlight
• Hardened Grade
◦ Supports -40°C to 75°C (-40°F to 167°F) operating temperature
• PoE Connectivity
◦ Port 1 to 4 supports IEEE802.3af Power over Ethernet
• Fiber Connectivity
◦ Up to two 100BASE-FX ports with SC and ST options
EX45000 Series
1
www.EtherWAN.com
rev. A2
Hardware Specifications
Technology
Standards
• IEEE802.3 10BASE-T
• IEEE802.3u 100BASE-TX/100BASE-FX
• IEEE802.3x Full duplex and flow control
• IEEE802.3af Power over Ethernet
• 14,880pps for 10Mbps
• 148,810pps for 100Mbps
• 1M bits
Interface
Ethernet Ports
LED Indicators
• 10/100BASE-TX: 8, 7 or 6 ports
• 100BASE-FX: 0, 1 or 2 ports
• Per Unit: Power 1 (Green)
Power 2 (Green)
Power 3 (Green)
• Per Port: Link/Activity (Green)
• One relay output with current 1A @ 24VDC
Forward and Filtering Rate
Packet Buffer Memory
Processing Type
• Store-and-Forward
• Auto Negotiation
• Half-duplex back-pressure and IEEE802.3x full-duplex flow
control
• Auto MDI/MDIX
• 1024 MAC addresses
Alarm Contact
Environment
Operating Temperature
Storage Temperature
• -40°C to 75°C (-40°F to 167°F)
Tested @ -40°C to 85°C (-40°F to 185°F)
• -40°C to 85°C (-40°F to 185°F)
• 5% to 95% (non-condensing)
Address Table Size
Ambient Relative Humidity
Power
Input
• Redundant power inputs:
Terminal Block: 47 - 55VDC
DC Jack: 47 - 55VDC
• Device: Max. 10W (without PoE)
• PoE power budget (depends on power input):
61.6W Max.
• Port 1 to 4
• IEEE802.3af: up to 15.4W/port, 47 - 55VDC, 350mA Max.
• Reverse polarity protection
Regulatory Approvals
ISO
• Manufactured in an ISO9001 facility
Power Consumption
PoE Power Output
Protection
EMI
FCC Part 15B, Class A
VCCI Class A
EN61000-6-4
EN55022 Class A
EMS
EN61000-6-2
Mechanical
Casing
• Aluminum case
• IP30
• 68mm (W) x 110mm (D) x 135mm (H)
(2.68" (W) x 4.33" (D) x 5.31" (H))
• 1Kg (2.2lbs.)
• DIN-Rail (Top hat type 35mm), Panel, or Rack mounting
Dimensions
Weight
• EN61000-4-2 (ESD Standards)
• EN61000-4-3 (Radiated RFI Standards)
• EN61000-4-4 (Burst Standards)
• EN61000-4-5 (Surge Standards)
• EN61000-4-6 (Induced RFI Standards)
• EN61000-4-8 (Magnetic Field Standards)
Installation
Environmental Test Compliances
IEC60068-2-6 Fc (Vibration)
IEC60068-2-27 Ea (Shock)
FED STD 101C Method 5007.1 (Free fall w/ package)
Industrial Compliances
NEMA TS2
EX45000 Series
2
www.EtherWAN.com
rev. A2
Dimensions
68mm (2.68”)
110mm (4.33”)
1
Top
135mm (5.31”)
Back
Side
Front
Ordering Information
Model
EX45080-00B
EX45071-X0B
EX45062-X0B
8-port 10/100BASE-TX Hardened Unmanaged PoE Ethernet Switch
7-port 10/100BASE-TX + 1-port 100BASE-FX Hardened Unmanaged PoE Ethernet Switch
6-port 10/100BASE-TX + 2-port 100BASE-FX Hardened Unmanaged PoE Ethernet Switch
* DIN-Rail mounting kit included
100FX Fiber Options (X)
1
2
6
7
8
9
A
B
H
P
Q
R
S
Multi Mode (SC) - 2Km
Multi Mode (ST) - 2Km
Multi Mode (SC) WDM-TX:1310nm/RX:1550nm - 2Km
Multi Mode (SC) WDM-TX:1550nm/RX:1310nm - 2Km
Multi Mode (SC) WDM-TX:1310nm/RX:1550nm - 5Km
Multi Mode (SC) WDM-TX:1550nm/RX:1310nm - 5Km
Single Mode (SC) - 20Km
Single Mode (SC) - 40Km
Single Mode (ST) - 20Km
Single Mode (SC) WDM-TX:1310nm/RX:1550nm - 20Km
Single Mode (SC) WDM-TX:1550nm/RX:1310nm - 20Km
Single Mode (SC) WDM-TX:1310nm/RX:1550nm - 40Km
Single Mode (SC) WDM-TX:1550nm/RX:1310nm - 40Km
*More 100FX Fiber options also available upon request.
EX45000 Series
3
www.EtherWAN.com
rev. A2
