EX47000 Series
IEC61850-3/IEEE1613 Hardened Unmanaged 8-port
10/100BASE Ethernet Switch
NEMA
TS2
IEC
61850-3
Overview

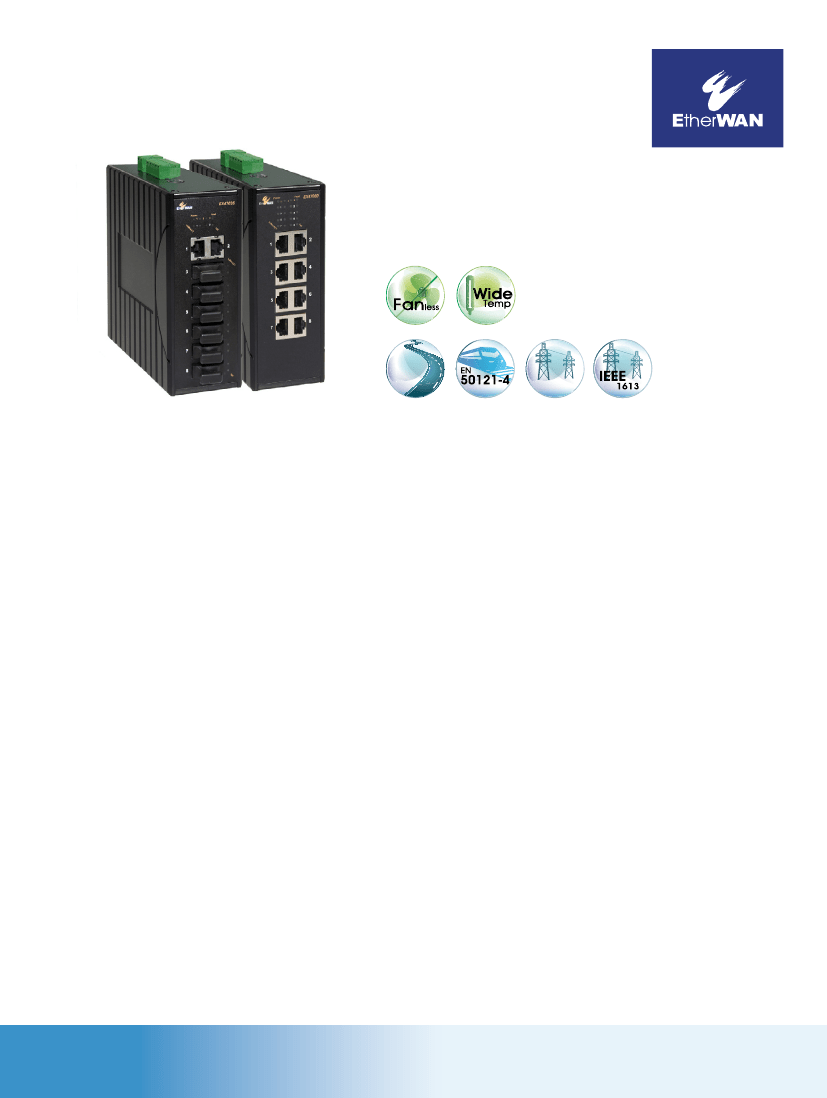

EtherWAN’s EX47000 Series is a hardened unmanaged Fast Ethernet switching platform, designed for easy deployment in harsh
environments.
The EX47000 Series is equipped with 8 Fast Ethernet ports, with a combination of Fast Ethernet copper ports and 100FX ports for
long distance connectivity. Although unmanaged, the EX47000 is feature-rich with full wire speed Fast Ethernet throughput, making
the EX47000 Series a powerful network switch.
With its hardened-grade specifications and IEC61850 & IEEE1613 certifications,
the EX47000 Series is capable of operating under high EMI environments at the temperatures ranging from -40°C to 75°C,
making it an ideal choice for harsh applications.
EtherWAN – "When Connectivity is Crucial."
Spotlight
• Hardened Grade
◦
Supports -40°C to 75°C (-40°F to 167°F) operating temperature
• Versatile mounting Options
◦
DIN-Rail or panel mounting
• Fiber Connectivity
◦
Up to two 100BASE-FX ports with SC, ST and WDM options
EX47000 Series
1
www.EtherWAN.com
rev. A1.1
Hardware Specifications
Technology
Standards
• IEEE802.3,
10BASE-T
• IEEE802.3u
100BASE-TX/100BASE-FX
• IEEE802.3x
Full duplex and flow control
• 14,880pps
for 10Mbps
• 148,810pps
for 100Mbps
• 448K
bits
Environment
Operating Temperature
Storage Temperature
• -40°C
to 75°C (-40°F to 167°F)
Tested @ -40°C to 85°C (-40°F to 185°F)
• -40°C
to 85°C (-40°F to 185°F)
• 5%
to 95% (non-condensing)
Forward and Filtering Rate
Packet Buffer Memory
Processing Type
• Store-and-Forward
• Auto
Negotiation
• Half-duplex
back-pressure and IEEE802.3x full-duplex flow
control
• Auto
MDI/MDIX
• 2048
MAC addresses
Ambient Relative Humidity
Regulatory Approvals
ISO
• Manufactured
in an ISO9001 facility
EMI
FCC Part 15B, Class A
EN61000-6-4
EMS
EN61000-6-2
Address Table Size
Power
Input
• Redundant
power inputs:
12 to 48VDC (Terminal Block)
12VDC (DC Jack)
• 6W
Max. 12VDC @ 0.5A
24VDC @ 0.25A
48VDC @ 0.125A
• Reverse
polarity protection
Power Consumption
• EN61000-4-2
(ESD Standards)
• EN61000-4-3
(Radiated FRI Standards)
• EN61000-4-4
(Burst Standards)
• EN61000-4-5
(Surge Standards)
• EN61000-4-6
(Induced RFI Standards)
• EN61000-4-8
(Magnetic Field Standards)
Protection
Mechanical
Casing
• Aluminum
Case
• IP30
• 60mm
(W) x 125mm (D) x 145mm (H)
(2.36" (W) x 4.92" (D) x 5.7" (H))
• 1Kg
(2.2lbs.)
• DIN-Rail
(Top hat type 35mm) or Panel mounting
Dimensions
Weight
Environmental Test Compliance
IEC60068-2-6 Fc (Vibration)
IEC60068-2-27 Ea (Shock)
FED STD 101C Method 5007.1 (Free fall w/ package)
Industrial Compliance
IEC61850 / IEEE1613
EN50121-4
NEMA TS2
Installation
Interface
Ethernet Ports
LED Indicators
• 10/100BASE-TX:
16, 15 or 14 ports
• 100BASE-FX:
0, 1 or 2 ports
• Per
Unit: Power 1 (Green)
Power 2 (Green)
Power 3 (Green)
Fault (Red)
• Per
Port: Link/Act (Green)
100M (Green)
• One
relay output with current 1A @ 24VDC
Alarm Contact
EX47000 Series
2
www.EtherWAN.com
rev. A1.1
Dimensions
Top
125mm (4.92”)
60mm
(2.36”)
Back
Side
Front
Bottom
Ordering Information
Model
EX47080-00B
EX47062-X0B
EX47061-X0B
EX47042-X0B
EX47041-X0B
EX47026-X0B
8-port 10/100BASE-TX Hardened Unmanaged Ethernet Switch
6-port 10/100BASE-TX + 2-port 100BASE-FX Hardened Unmanaged Ethernet Switch
6-port 10/100BASE-TX + 1-port 100BASE-FX Hardened Unmanaged Ethernet Switch
4-port 10/100BASE-TX + 2-port 100BASE-FX Hardened Unmanaged Ethernet Switch
4-port 10/100BASE-TX + 1-port 100BASE-FX Hardened Unmanaged Ethernet Switch
2-port 10/100BASE-TX + 6-port 100BASE-FX Hardened Unmanaged Ethernet Switch
* DIN-Rail mounting kit included
EX47000 Series
3
www.EtherWAN.com
rev. A1.1
Ordering Information - continued
100FX Fiber Options (X)
1
2
6
7
8
9
A
B
H
P
Q
R
S
Multi Mode (SC) - 2Km
Multi Mode (ST) - 2Km
Multi Mode (SC) WDM-TX:1310nm/RX:1550nm - 2Km
Multi Mode (SC) WDM-TX:1550nm/RX:1310nm - 2Km
Multi Mode (SC) WDM-TX:1310nm/RX:1550nm - 5Km
Multi Mode (SC) WDM-TX:1550nm/RX:1310nm - 5Km
Single Mode (SC) - 20Km
Single Mode (SC) - 40Km
Single Mode (ST) - 20Km
Single Mode (SC) WDM-TX:1310nm/RX:1550nm - 20Km
Single Mode (SC) WDM-TX:1550nm/RX:1310nm - 20Km
Single Mode (SC) WDM-TX:1310nm/RX:1550nm - 40Km
Single Mode (SC) WDM-TX:1550nm/RX:1310nm - 40Km
*More 100FX Fiber options also available upon request.
Optional Accessories
KP-AA96-480
DR-30-24
DR-60-24
DR-75-24
DR-120-24
41-136046-X
41-136044-X
Panel mounting kit
30W/1.5A DIN-Rail 24VDC Industrial Power Supply (for Terminal Block)
60W/2.5A DIN-Rail 24VDC Industrial Power Supply (for Terminal Block)
75W/3.2A DIN-Rail 24VDC Industrial Power Supply (for Terminal Block)
120W/5A DIN-Rail 24VDC Industrial Power Supply (for Terminal Block)
36W/3A 12VDC hardened power adapter with open wire in aluminum housing (for Terminal Block)
(X) = 1: US, 2: EU, 3: UK, 4: AU, 5: JP, 6: SA
36W/3A 12VDC hardened power adapter with latched DC Jack in aluminum housing (for DC Jack)
(X) = 1: US, 2: EU, 3: UK, 4: AU, 5: JP, 6: SA
EX47000 Series
4
www.EtherWAN.com
rev. A1.1
