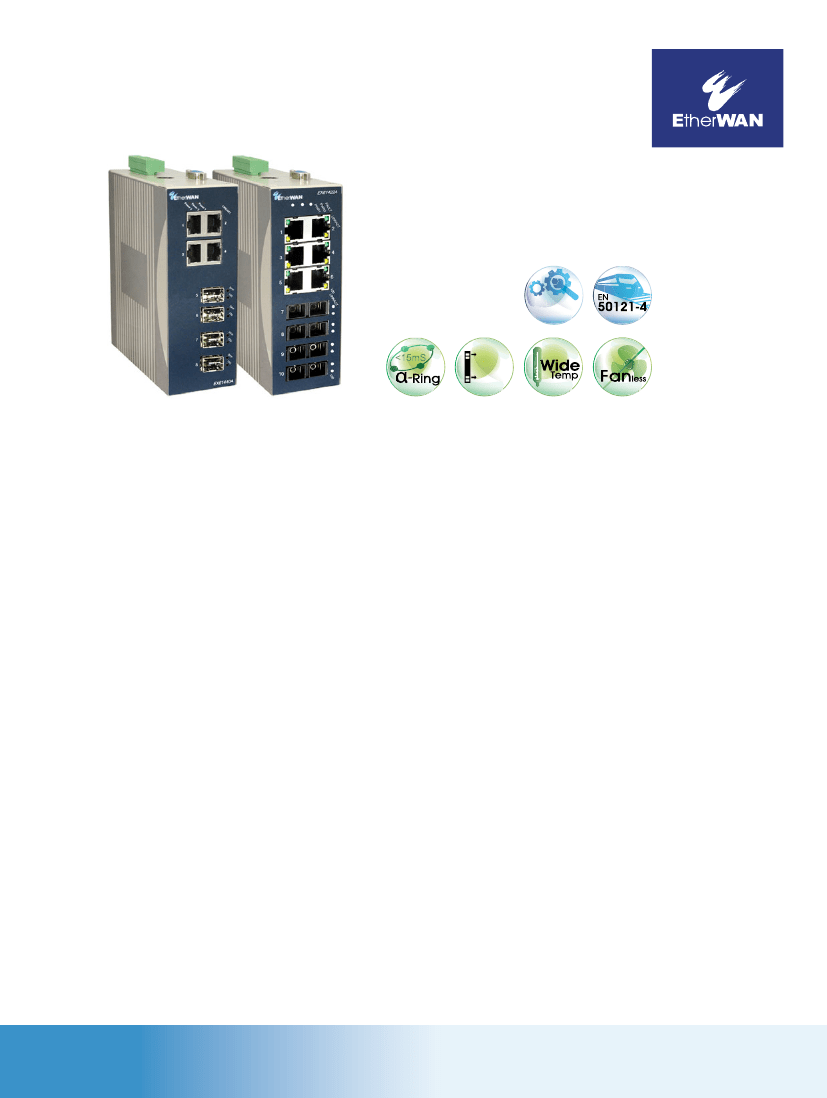

EX61000A Series
Industrial Managed 8-port 10/100BASE and 2-port Gigabit
Ethernet Switch with SFP options
UL
508
SFP
Option
Overview
EtherWAN’s EX61000A Series provides an industrial Fully Managed 10-port switching platform combining high performance
switching backbone with robust and secure management features required for mission critical and harsh environments where
sustained connectivity is crucial.
The EX61000A Series is equipped with ten 10/100BASE Fast Ethernet ports, or a combination with up to two Gigabit, Fixed Fiber, or
SFP port options. Mountable on a DIN-rail, the EX61000A Series is equipped with EtherWAN’s Alpha-Ring self-healing technology,
providing less than 15ms fault recovery time making it ideal for applications intolerant to interruption.
Users are able to access management features such as; port security, IGMP snooping, VLANs, GARP protocols, LACP, and via web
browser, Telnet, SNMP, RMON, TFTP, and RS-232 console interfaces.
EtherWAN — "When Connectivity is Crucial."
Spotlight
• Versatile Connectivity
◦
Provides 8-port 10/100BASE-TX/FX/BX/SFP plus 2-port Gigabit-SX/LX/BX/SFP
• Industrial Grade
◦
Operating temperature range from -10°C to 60°C (-14°F to 140°F) for industrial environments
◦
Fanless and ruggedized housing
• Secure Remote Access
◦
IEEE802.1x and RADIUS support
EX61000A Series
1
www.EtherWAN.com
rev. A5
Software Features
Management
•
Interface
◦
CLI, Telnet and Web Browser
◦
SNMP v1/v2c/v3
•
Firmware and configuration upgrade and backup via TFTP
•
Supports DHCP Server/Client
•
RMON (Remote monitoring): group 1, 2, 3, 9
•
Port mirroring: TX/RX and both
•
NTP (Network Time Protocol) time synchronization
•
IEEE802.1ab LLDP (Link Layer Discovery Protocol)
Security
•
•
•
•
•
•
•
•
•
MAC address filtering
Enable/disable port
Storm control (broadcast and multicast types)
IEEE802.1x LAN access control
Remote authentication through RADIUS
SSH for CLI and Telnet security
SSL for web security
Multi-level user account/password against unauthorized configuration
System log (remote/local)
Quality of Service (QoS)
•
Priority Queues: 4 queues per port
•
Traffic classification based on IEEE802.1p CoS, DSCP, WRR (Weighted round robin) and strict mode
•
Rate Limiting (Ingress/Egress)
Layer 2 Features
•
Auto-negotiation for port speed and duplex mode
•
Flow Control
◦
IEEE802.3x full duplex mode
◦
Back-Pressure half duplex mode
•
Redundant Protocol
◦
IEEE802.1D Spanning Tree Protocol (STP)
◦
IEEE802.1w Rapid Spanning Tree Protocol (RSTP)
◦
IEEE802.1s Multiple Spanning Tree Protocol (MSTP)
◦
EtherWAN’s Alpha-Ring network fault recovery (<15ms)
•
VLANs
◦
Port-based VLANs
◦
IEEE802.1Q Tag VLANs (128 groups, 4096 VID)
◦
GVRP (GARP VLAN Registration Protocol)
◦
GMRP (GARP Multicast Registration Protocol)
•
Link Aggregation
◦
Static Trunk (2 groups, support MAC base)
◦
IEEE802.3ad Link Aggregation Control Protocol
•
IGMP Snooping
◦
IGMP snooping v1/v2/v3
Performance
•
Switching Capability: 5.6Gbps
•
Packet Buffer Size: 2M bits
•
MAC Address Table: 8192
EX61000A Series
2
www.EtherWAN.com
rev. A5
Hardware Specifications
Technology
Standards
• IEEE802.3
10BASE-T
• IEEE802.3u
100BASE-TX/100BASE-FX
• IEEE802.3ab
1000BASE-T
• IEEE802.3z
1000BASE-SX/1000BASE-LX
• IEEE802.3x
Full duplex and flow control
• IEEE802.1p
QoS
• IEEE802.1Q
Tag VLANs
• IEEE802.1w
RSTP
• IEEE802.1x
Port-based Network Access Control
• 14,880pps
for 10Mbps
• 148,810pps
for 100Mbps
• 1,488,100pps
for 1000Mbps
• 2M
bits
Interface
Ethernet Port
• 10/100BASE-TX:
8, 6 or 4 port
• 100BASE-FX:
0 to 4 ports
• Gigabit:
0, 1 or 2 ports
• Port:
One DB9 RS-232 port
• Per
Unit: Power 1, Power 2, Power 3
• Per
Port: Link/Activity, Speed
• One
relay output with current 1A @ 24VDC
Console Port
LED Indicators
Forward and Filtering Rate
Alarm Contact
Environment
Operating Temperature
Storage Temperature
• -10°C
to 60°C (14°F to 140°F)
Tested @ -20°C to 70°C( -4°F to 158°F)
• -40°C
to 85°C (-40°F to 185°F)
• 5%
to 95% (non-condensing)
Packet Buffer Memory
Processing Type
• Store-and-Forward
• Auto
Negotiation
• Half-duplex
back-pressure and IEEE802.3x full-duplex flow
control
• Auto
MDI/MDIX
• 8192
MAC addresses
Ambient Relative Humidity
Regulatory Approvals
ISO
• Manufactured
in an ISO9001 facility
Address Table Size
Power
Input
• Redundant
power inputs:
12 - 48VDC (Terminal Block)
12VDC (DC Jack)
• 11W
Max. 0.92A @ 12VDC, 0.46A @ 24VDC
• Reverse
polarity protection
Power Consumption
Protection
Mechanical
Casing
• Aluminum
Case
• IP30
• 60mm
(W) x 125mm (D) x 145mm (H)
(2.36" (W) x 4.92" (D) x 5.7" (H))
• 1.1Kg
(2.42lbs.)
• DIN-Rail
(Top hat type35mm), Rack, or Wall mounting
Safety
UL508
EMI
FCC Part 15B, Class A
EN61000-6-4
EN55022
EN61000-3-2
EN61000-3-3
EMS
EN61000-6-2
Dimensions
Weight
• EN61000-4-2
(ESD Standards)
• EN61000-4-3
(Radiated RFI Standards)
• EN61000-4-4
(Burst Standards)
• EN61000-4-5
(Surge Standards)
• EN61000-4-6
(Induced RFI Standards)
• EN61000-4-8
(Magnetic Field Standards)
Installation
Environmental Test Compliance
IEC60068-2-6 Fc (Vibration Resistance)
IEC60068-2-27 Ea (Shock)
FED STD 101C Method 5007.1 (Free fall w/ package)
Industrial Compliance
EN50121-4
EX61000A Series
3
www.EtherWAN.com
rev. A5

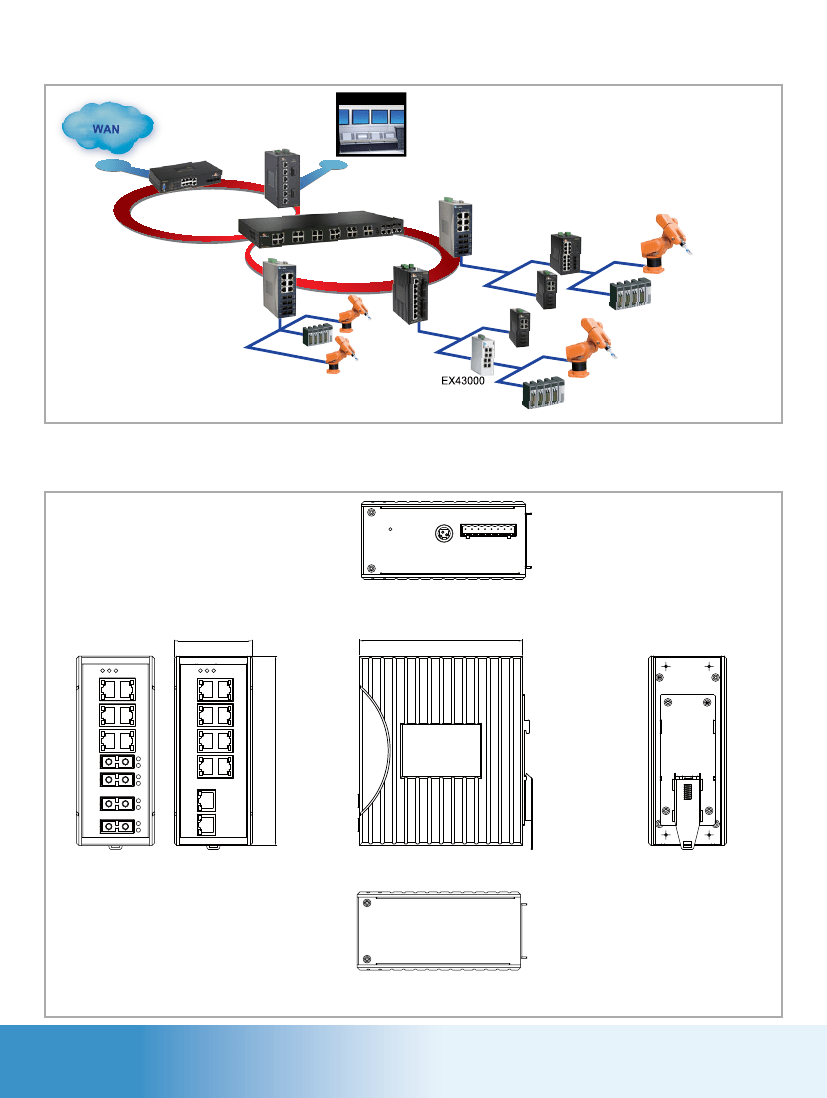

Application Diagram
Control Room
EX70900
EX72000
100Mbps
The EX61000A deployed in a factory automation system
EX61000A
1000Mbps
Fiber-optic Ring
EX77000
EX95000
1000Mbps
Fiber-optic Ring
100Mbps
Robot
EX61000A
PLC
Robot
Robot
100Mbp
s
EX73000
EX94000
EX94000
Robot
PLC
PLC
Dimensions
Top
60mm (2.36”)
125mm (4.92”)
Front
145mm (5.7”)
Side
Back
Bottom
EX61000A Series
4
www.EtherWAN.com
rev. A5
Ordering Information
Model
EX61800A-00B
EX61801A-0YB
EX61802A-0YB
EX61620A-X0B
EX61621A-XYB
EX61622A-XYB
EX61420A-X0B
EX61422A-XYB
EX61440A-X0B
8-port 10/100BASE-TX Industrial Managed Ethernet Switch
8-port 10/100BASE-TX + 1-port Gigabit Industrial Managed Ethernet Switch
8-port 10/100BASE-TX + 2-port Gigabit Industrial Managed Ethernet Switch
6-port 10/100BASE-TX + 2-port 100BASE-FX Industrial Managed Ethernet Switch
6-port 10/100BASE-TX + 2-port 100BASE-FX + 1-port Gigabit Industrial Managed Ethernet Switch
6-port 10/100BASE-TX + 2-port 100BASE-FX + 2-port Gigabit Industrial Managed Ethernet Switch
4-port 10/100BASE-TX + 2-port 100BASE-FX Industrial Managed Ethernet Switch
4-port 10/100BASE-TX + 2-port 100BASE-FX + 2-port Gigabit Industrial Managed Ethernet Switch
4-port 10/100BASE-TX + 4-port 100BASE-FX Industrial Managed Ethernet Switch
* DIN-Rail mounting kit included
100FX Fiber Options (X)
1
2
6
7
8
9
A
B
H
P
Q
R
S
V
Multi Mode (SC) - 2Km
Multi Mode (ST) - 2Km
Multi Mode (SC) WDM-TX:1310nm/RX:1550nm - 2Km
Multi Mode (SC) WDM-TX:1550nm/RX:1310nm - 2Km
Multi Mode (SC) WDM-TX:1310nm/RX:1550nm - 5Km
Multi Mode (SC) WDM-TX:1550nm/RX:1310nm - 5Km
Single Mode (SC) - 20Km
Single Mode (SC) - 40Km
Single Mode (ST) - 20Km
Single Mode (SC) WDM-TX:1310nm/RX:1550nm - 20Km
Single Mode (SC) WDM-TX:1550nm/RX:1310nm - 20Km
Single Mode (SC) WDM-TX:1310nm/RX:1550nm - 40Km
Single Mode (SC) WDM-TX:1550nm/RX:1310nm - 40Km
100BASE SFP
Gigabit Port Options (Y)
1
3
4
5
A
B
R
S
V
10/100/1000BASE-TX
1000BASE-SX(SC) - 550m
1000BASE-SX (SC) - 2Km
1000BASE-SX (ST) - 550m
1000BASE-LX (SC) - 10Km
1000BASE-LX (SC) - 20Km
1000BASE-BX (SC) WDM-TX:1310nm/RX:1550nm - 20Km
1000BASE-BX (SC) WDM-TX: 1550nm/RX: 1310nm - 20Km
1000BASE SFP
EX61000A Series
5
www.EtherWAN.com
rev. A5
