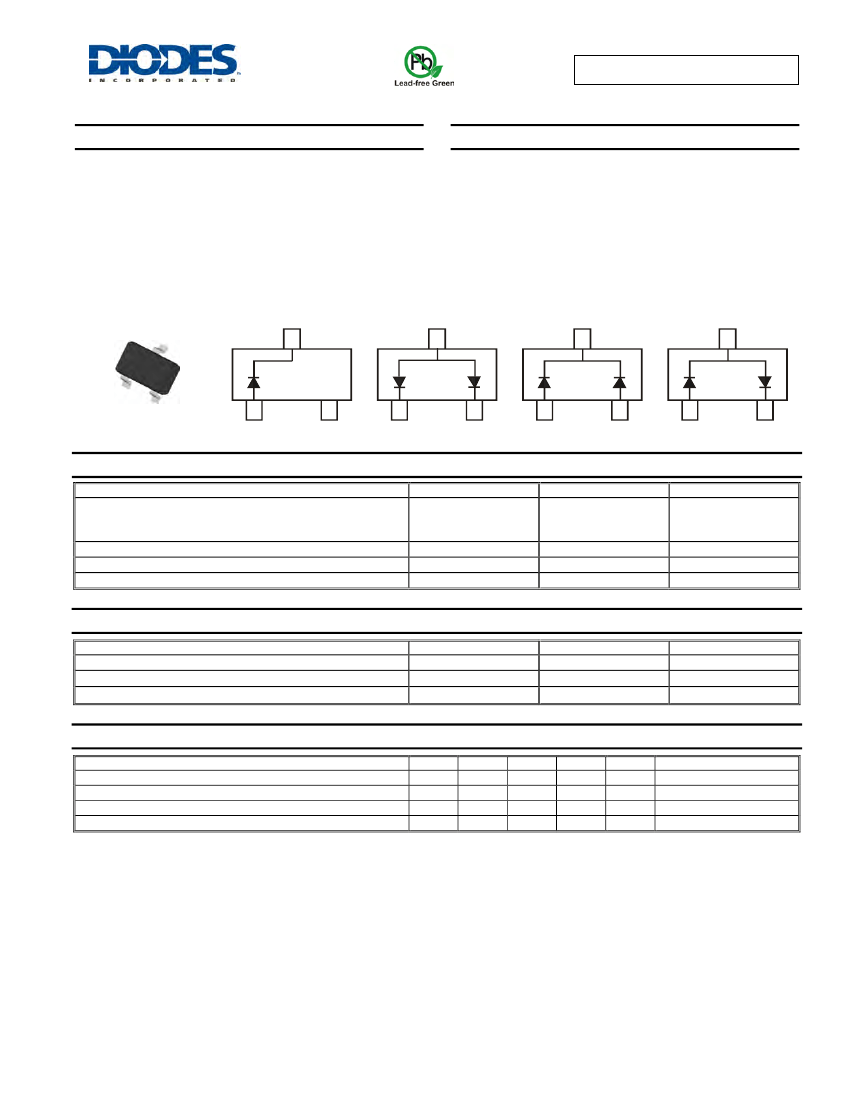

SDMG0340L /LA /LC /LS
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Please click here to visit our online spice models database.
Features
•
•
•
•
•
•
Low Forward Voltage Drop
Fast Switching
Ultra-Small Surface Mount Package
PN Junction Guard Ring for Transient and ESD Protection
Lead Free/RoHS Compliant (Note 3)
"Green" Device (Note 4 and 5)
Mechanical Data
•
•
•
•
•
•
•
•
•
Case: SOT-323
Case Material: Molded Plastic, "Green" Molding Compound,
Note 5. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Solderable Per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over
Alloy 42 leadframe)
Terminal Connections: See Diagram
Marking Information: See Page 3
Ordering Information: See Page 3
Weight: 0.006 grams (approximate)
Top View
SDMG0340L
SDMG0340LA
SDMG0340LC
SDMG0340LS
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
FSM
Value
40
28
30
200
Unit
V
V
mA
mA
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 1)
Non-Repetitive Peak Forward Surge Current
@ t = 8.3ms
Thermal Characteristics
Characteristic
Power Dissipation (Note 1)
Thermal Resistance Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J,
T
STG
Value
200
625
-40 to +125
Unit
mW
°C/W
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 2)
Forward Voltage
Leakage Current (Note 2)
Total Capacitance
Notes:
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)R
V
F
I
R
C
T
Min
40
⎯
⎯
⎯
Typ
⎯
295
150
2.0
Max
⎯
370
1000
⎯
Unit
V
mV
nA
pF
Test Condition
I
R
= 10μA
I
F
= 1.0mA
V
R
= 10V
V
R
= 1V, f = 1.0MHz
1. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001,
which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
2. Short duration pulse test used to minimize self-heating effect.
3. No purposefully added lead.
4. Diodes Inc.'s "Green" Policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
5. Product manufactured with date code 0627 (week 27, 2006) and newer are built with Green Molding Compound. Product manufactured prior to date
code 0627 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
SDMG0340L /LA /LC /LS
Document number: DS30248 Rev. 12 - 2
1 of 4
www.diodes.com
July 2008
© Diodes Incorporated
SDMG0340L /LA /LC /LS
1
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
100m
10m
1m
I
R
, INSTANTANEOUS REVERSE CURRENT (A)
0.8
1.0
1.2
1.4
100n
10n
0
0.2
0.4
0.6
1n
0
5
10
15
20
25
30
35
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)

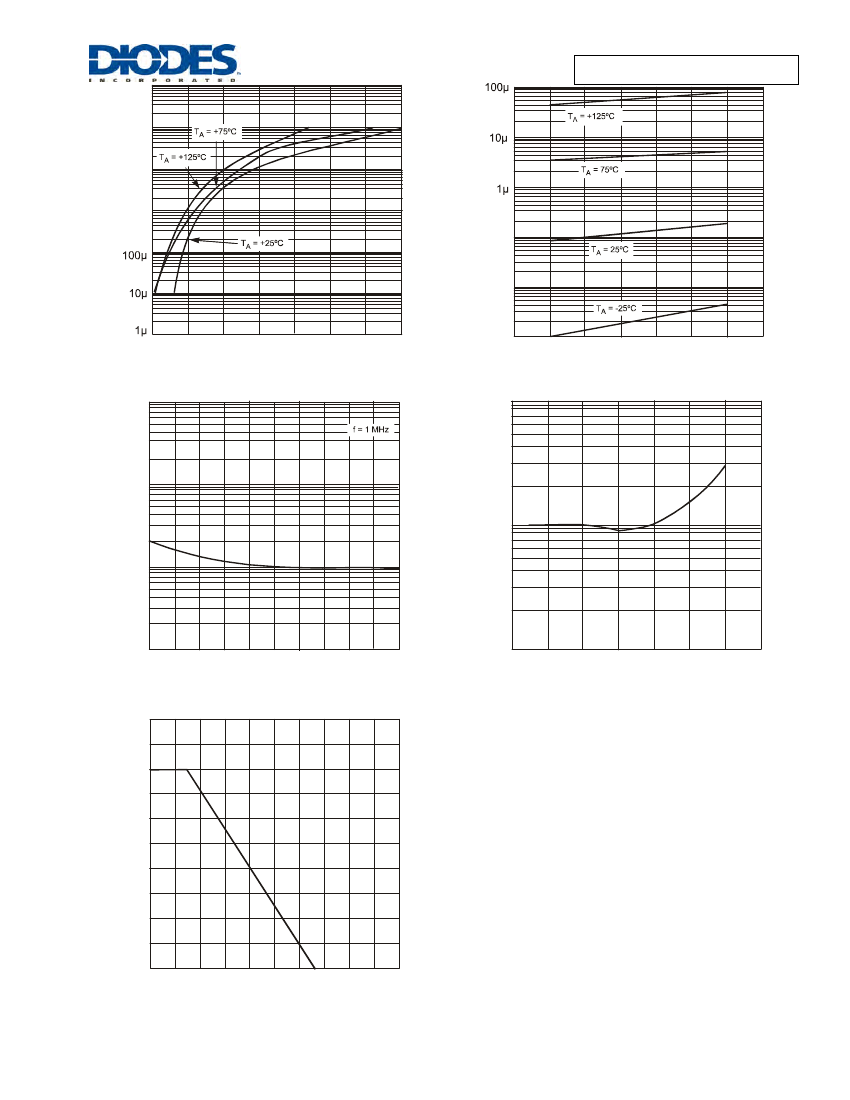

Fig. 2 Typical Reverse Characteristics
10
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 1 Typical Forward Characteristics
100
t
rr
, REVERSE RECOVERY TIME (ns)
5
C
T
, TOTAL CAPACITANCE (pF)
10
2
1
0.5
1
0.2
0.1
0.1
0
5
10
15
20
25
V
R
, REVERSE VOLTAGE (V)
Fig. 3 Typical Total Capacitance, per Element
0
4
8
12
16
20
24
28
I
F
, FORWARD CURRENT (mA)
Fig. 4 Typical Reverse Recovery Time Characteristics
250
P
D
, POWER DISSIPATION (mW)
200
150
100
50
0
0
40
80
120
160
200
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 5 Power Derating Curve, Total Package
SDMG0340L /LA /LC /LS
Document number: DS30248 Rev. 12 - 2
2 of 4
www.diodes.com
July 2008
© Diodes Incorporated
