EX71000 Series
Hardened Managed 8-port 10/100BASE and 2-port Gigabit
Ethernet Switch with SFP options
UL
508
NEMA
TS2
SFP
Option
Overview
EtherWAN’s EX71000 Series provides a Hardened Fully Managed 10-port switching platform combining high performance switching
backbone with robust and secure management features required for mission critical and harsh environments where sustained
connectivity is crucial.
The EX71000 Series is equipped with Ten 10/100BASE Fast Ethernet ports, in combination with up to Two Gigabit, Fixed Fiber, or
SFP port options. Mountable on a DIN-rail. The EX71000 Series is equipped with EtherWAN’s Alpha-Ring self-healing technology,
providing less than 15ms fault recovery time making it ideal for applications intolerant to interruption.
Users are able to access management features such as; port security, IGMP snooping, VLANs, GARP protocols, LACP, via web
browser, Telnet, SNMP, RMON, TFTP, and RS-232 console interfaces.
EtherWAN — "When Connectivity is Crucial."
Spotlight
• Versatile Connectivity
◦ Provides 8-port 10/100BASE-TX/FX/BX/SFP plus 2-port Gigabit-SX/LX/BX/SFP
• Hardened Grade
◦ Wide operating temperature range from -40°C to 75°C (-40°F to 167°F) for extreme environments
◦ Fanless and ruggedized housing
• Secure Remote Access
◦ IEEE802.1x, ACL (Access Control List), and RADIUS support
EX71000 Series
1
www.EtherWAN.com
rev. A2
Software Features
Management
• Interface
◦ CLI, Telnet and Web Browser
◦ SNMP v1/v2c/v3
• Firmware and configuration upgrade and backup via TFTP
• Supports DHCP Server/Client
• RMON (Remote monitoring): group 1, 2, 3, 9
• Port mirroring: TX/RX and both
• NTP (Network Time Protocol) time synchronization
• IEEE802.1ab LLDP (Link Layer Discovery Protocol)
Security
•
•
•
•
•
•
•
•
•
•
•
•
•
MAC address filtering
Enable/disable port
Storm control (broadcast and multicast types)
IEEE802.1x LAN access control
Remote authentication through RADIUS
SSH for CLI and Telnet security
SSL for web security
Multi-level user account/password against unauthorized configuration
System log (remote/local)
Priority Queues: 4 queues per port
Traffic classification based on IEEE802.1p CoS, DSCP, WRR
(Weighted round robin) and strict mode
Rate Limiting (Ingress/Egress)
Quality of Service (QoS)
Layer 2 Features
• Auto-negotiation for port speed and duplex mode
• Flow Control
◦ IEEE802.3x full duplex mode
◦ Back-Pressure half duplex mode
• Redundant Protocol
◦ IEEE802.1D Spanning Tree Protocol (STP)
◦ IEEE802.1w Rapid Spanning Tree Protocol (RSTP)
◦ IEEE802.1s Multiple Spanning Tree Protocol (MSTP)
◦ EtherWAN’s Alpha-Ring network fault recovery (<15ms)
• VLANs
◦ Port-based VLANs
◦ IEEE802.1Q Tag VLANs (128 groups, 4096 VID)
◦ GVRP (GARP VLAN Registration Protocol)
◦ GMRP (GARP Multicast Registration Protocol)
• Link Aggregation
◦ Static Trunk (2 groups, support MAC base)
◦ IEEE802.3ad Link Aggregation Control Protocol
• IGMP Snooping
◦ IGMP snooping v1/v2/v3
Performance
• Switching Capability: 6.8Gbps
• Packet Buffer Size: 2M bits
• MAC Address Table: 8192
EX71000 Series
2
www.EtherWAN.com
rev. A2
Hardware Specifications
Technology
Standards
• IEEE802.3 10BASE-T
• IEEE802.3u 100BASE-TX/100BASE-FX
• IEEE802.3ab 1000BASE-T
• IEEE802.3z 1000BASE-SX/1000BASE-LX
• IEEE802.3x Full duplex and flow control
• IEEE802.1p QoS
• IEEE802.1Q Tag VLANs
• IEEE802.1w RSTP
• IEEE802.1x Port-based Network Access Control
• 14,880pps for 10Mbps
• 148,810pps for 100Mbps
• 1,488,100pps for 1000Mbps
• 2M bits
Interface
Ethernet Port
• 10/100BASE-TX: 8, 6 or 4 port
• 100BASE-FX: 0 to 4 ports
• Gigabit: 0, 1 or 2 ports
• Port: One DB9 RS-232 port
• Per Unit: Power 1, Power 2, Power 3
• Per Port: Link/Activity, Speed
• One relay output with current 1A @ 24VDC
Console Port
LED Indicators
Forward and Filtering Rate
Alarm Contact
Environment
Operating Temperature
Storage Temperature
• -40°C to 75°C (-40°F to 167°F)
Tested @ -40°C to 85°C (-40°F to 185°F)
• -40°C to 85°C (-40°F to 185°F)
• 5% to 95% (non-condensing)
Packet Buffer Memory
Processing Type
• Store-and-Forward
• Auto Negotiation
• Half-duplex back-pressure and IEEE802.3x full-duplex
flow control
• Auto MDI/MDIX
• 8192 MAC addresses
Ambient Relative Humidity
Regulatory Approvals
ISO
• Manufactured in an ISO9001 facility
Address Table Size
Power
Input
• Redundant power inputs:
12 - 48VDC (Terminal Block)
12VDC (DC Jack)
• 11W Max. 0.92A @ 12VDC, 0.46A @ 24VDC
• Reverse polarity protection
Power Consumption
Protection
Mechanical
Casing
• Aluminum Case
• IP30
• 60mm (W) x 125mm (D) x 145mm (H)
(2.36" (W) x 4.92" (D) x 5.7" (H))
• 1.1Kg (2.42lbs.)
• DIN-Rail (Top hat type35mm), Rack or Wall mounting
Safety
UL508
EMI
FCC Part 15B, Class A
EN61000-6-4
EN55022
EN61000-3-2
EN61000-3-3
EMS
EN61000-6-2
Dimensions
Weight
• EN61000-4-2 (ESD Standards)
• EN61000-4-3 (Radiated RFI Standards)
• EN61000-4-4 (Burst Standards)
• EN61000-4-5 (Surge Standards)
• EN61000-4-6 (Induced RFI Standards)
• EN61000-4-8 (Magnetic Field Standards)
Installation
Environmental Test Compliance
IEC60068-2-6 Fc (Vibration Resistance)
IEC60068-2-27 Ea (Shock)
FED STD 101C Method 5007.1 (Free fall w/ package)
Industrial Compliance
NEMA TS2
EN50121-4
EX71000 Series
3
www.EtherWAN.com
rev. A2

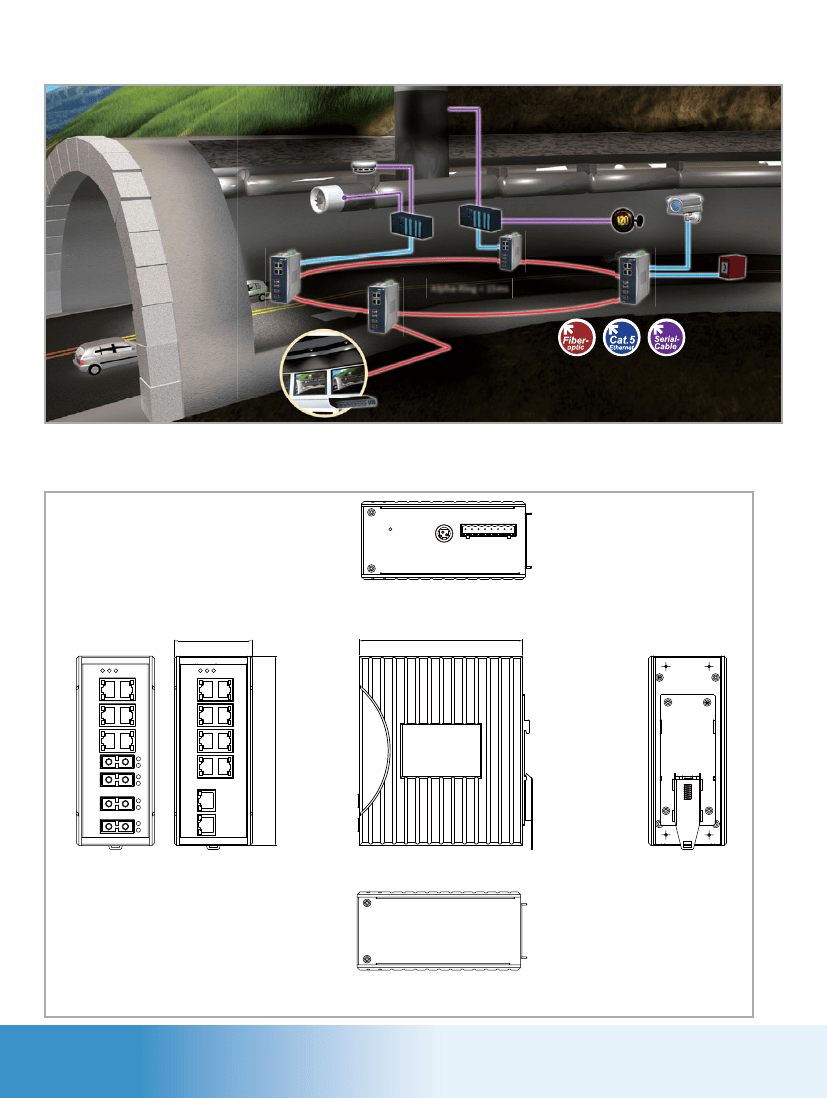

Application Diagram
Exhaust Control System
Fire Detec on System
IP Camera System
PLC
Exhaust Control System
PLC
EX61000A
EX71000
Emergency Phone
Speed Display
EX71000
EX61000A
Alpha-Ring < 15ms
EX71000
EX61000A
EX71000
EX61000A
The EX71000 utilized in an intelligent tunnel solution
Dimensions
Top
60mm (2.36”)
125mm (4.92”)
Front
145mm (5.7”)
Side
Back
Bottom
EX71000 Series
4
www.EtherWAN.com
rev. A2
Ordering Information
Model
EX71800-00B
EX71801-0YB
EX71802-0YB
EX71802-02B
EX71610-X0B
EX71620-X0B
EX71621-XYB
EX71622-XYB
EX71420-X0B
EX71422-XYB
EX71440-X0B
8-port 10/100BASE-TX Hardened Managed Ethernet Switch
8-port 10/100BASE-TX + 1-port Gigabit Hardened Managed Ethernet Switch
8-port 10/100BASE-TX + 2-port Gigabit Hardened Managed Ethernet Switch
8-port 10/100BASE-TX + 2-port 10/100/1000BASE-TX LAN Bypass
6-port 10/100BASE-TX + 1-port 100BASE-FX Hardened Managed Ethernet Switch
6-port 10/100BASE-TX + 2-port 100BASE-FX Hardened Managed Ethernet Switch
6-port 10/100BASE-TX + 2-port 100BASE-FX + 1-port Gigabit Hardened Managed Ethernet Switch
6-port 10/100BASE-TX + 2-port 100BASE-FX + 2-port Gigabit Hardened Managed Ethernet Switch
4-port 10/100BASE-TX + 2-port 100BASE-FX Hardened Managed Ethernet Switch
4-port 10/100BASE-TX + 2-port 100BASE-FX + 2-port Gigabit Hardened Managed Ethernet Switch
4-port 10/100BASE-TX + 4-port 100BASE-FX Hardened Managed Ethernet Switch
* DIN-Rail mounting kit included
100FX Fiber Options (X)
1
2
6
7
8
9
A
B
H
P
Q
R
S
V
Multi Mode (SC) - 2Km
Multi Mode (ST) - 2Km
Multi Mode (SC) WDM-TX:1310nm/RX:1550nm - 2Km
Multi Mode (SC) WDM-TX:1550nm/RX:1310nm - 2Km
Multi Mode (SC) WDM-TX:1310nm/RX:1550nm - 5Km
Multi Mode (SC) WDM-TX:1550nm/RX:1310nm - 5Km
Single Mode (SC) - 20Km
Single Mode (SC) - 40Km
Single Mode (ST) - 20Km
Single Mode (SC) WDM-TX:1310nm/RX:1550nm - 20Km
Single Mode (SC) WDM-TX:1550nm/RX:1310nm - 20Km
Single Mode (SC) WDM-TX:1310nm/RX:1550nm - 40Km
Single Mode (SC) WDM-TX:1550nm/RX:1310nm - 40Km
100BASE SFP
EX71000 Series
5
www.EtherWAN.com
rev. A2
