DG301AAL datasheet, PDF - EEWORLD Datasheet

DG301AAL: DescriptionSPDT, 1 Func, CMOS, CDFP14; CategoryAnalog mixed-signal IC The signal circuit; File Size949KB，12 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

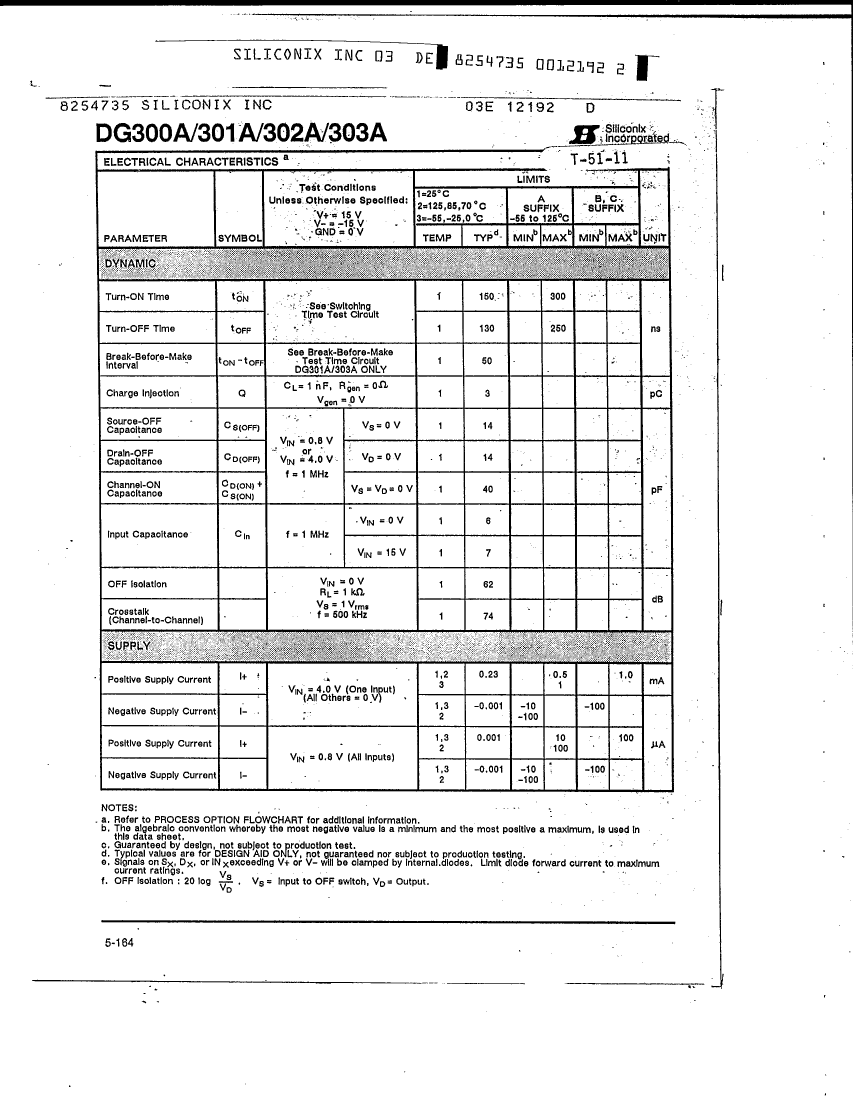

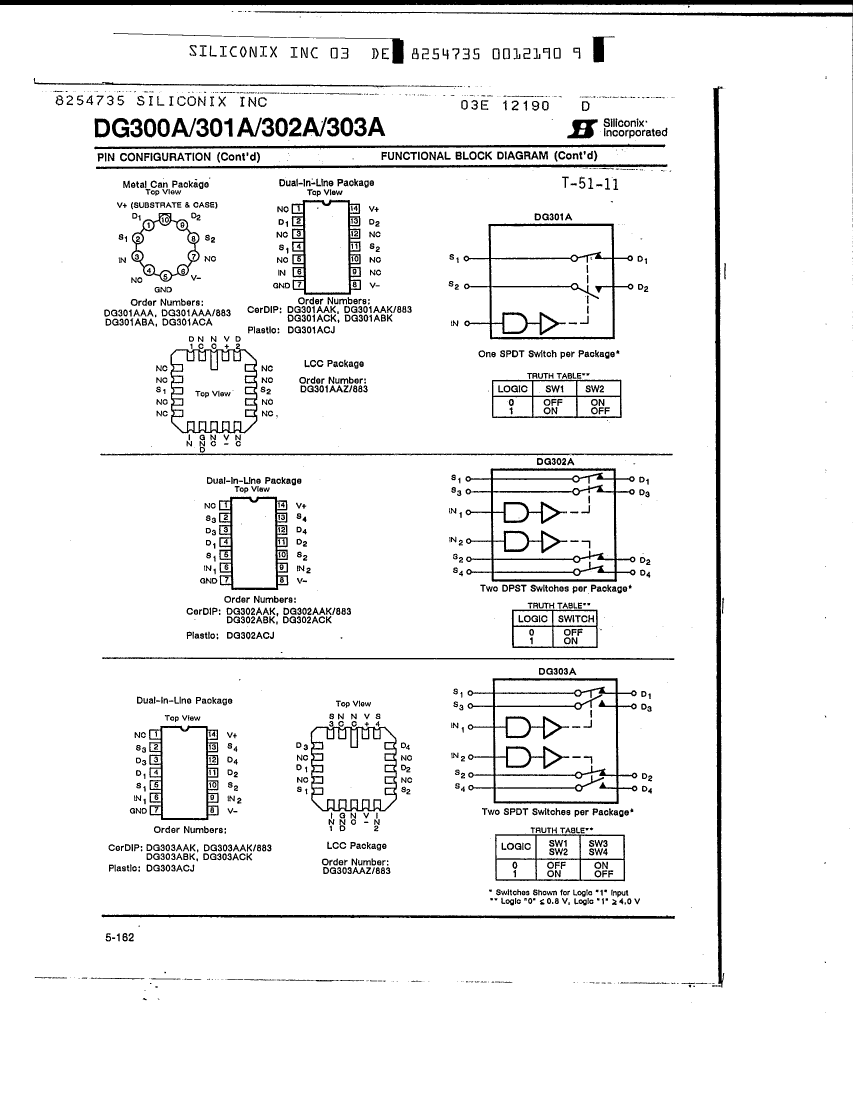

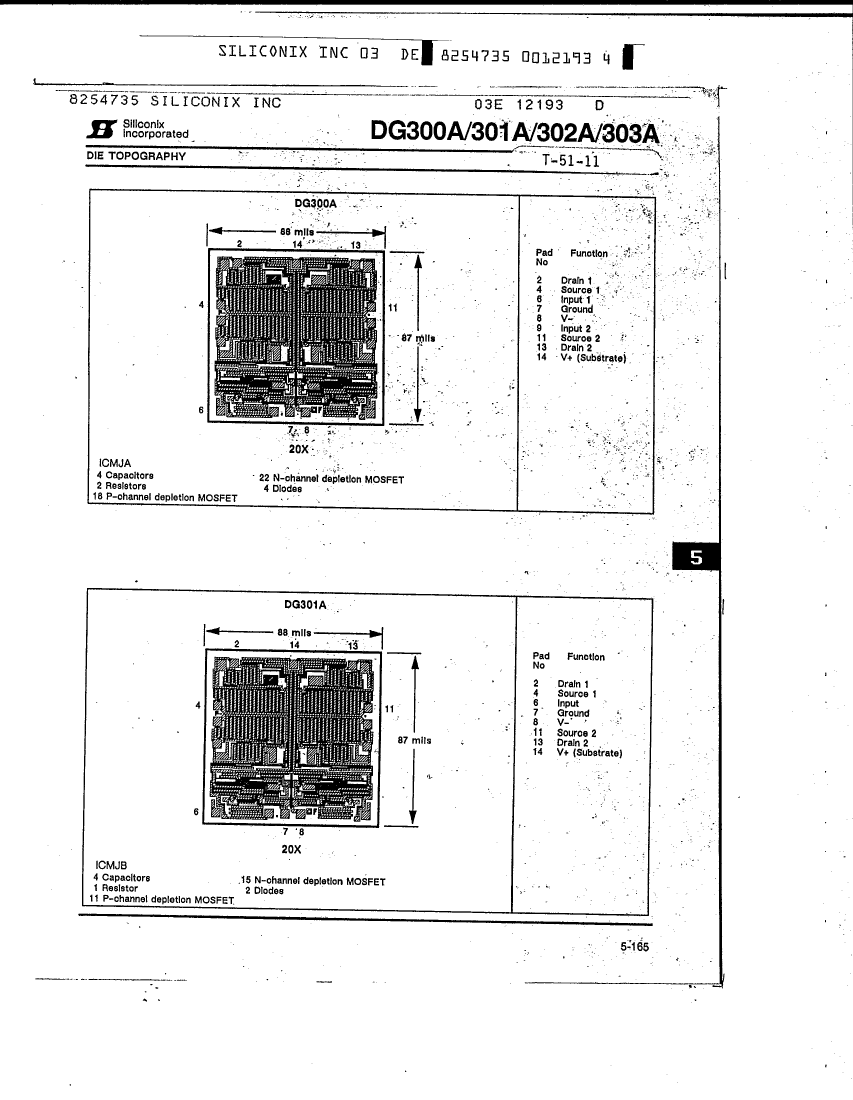

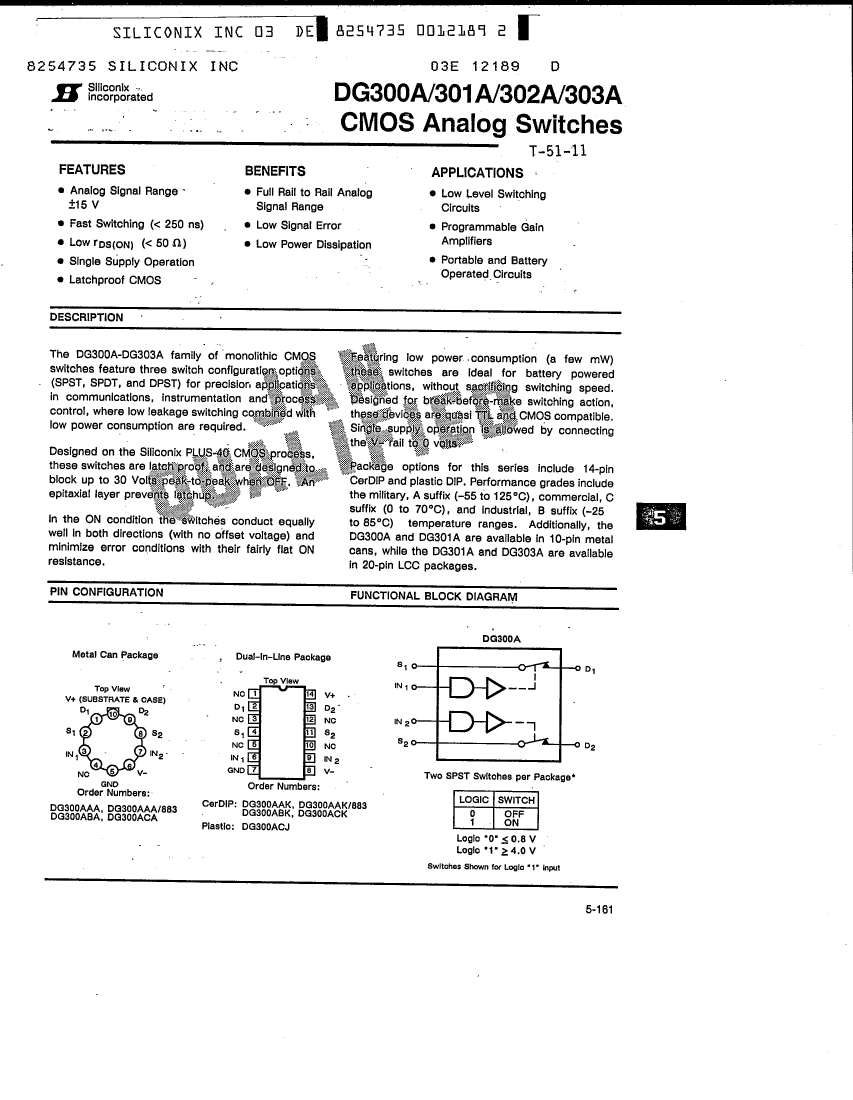

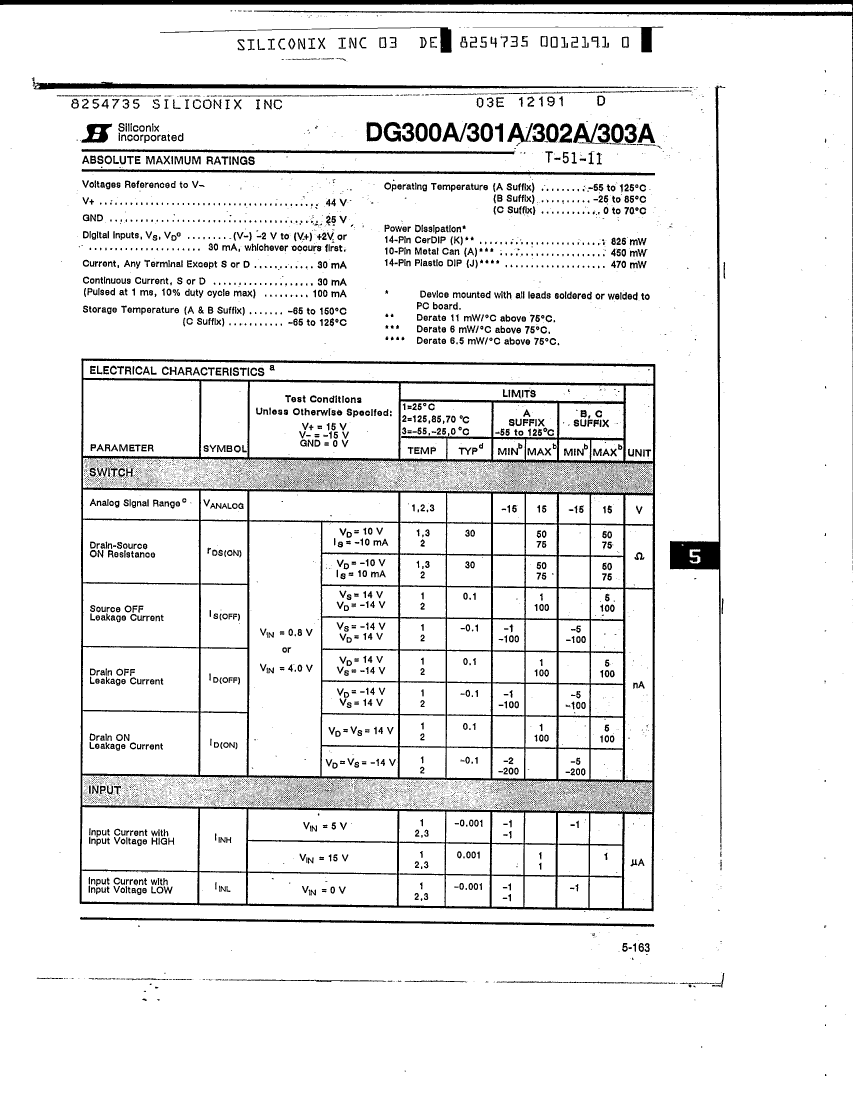

DG301AAL Overview

SPDT, 1 Func, CMOS, CDFP14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	100589463
package instruction	DFP, FL14,.3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPDT
JESD-30 code	R-XDFP-F14
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	14
Maximum on-state resistance (Ron)	75 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	+-15 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum connection time	300 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
