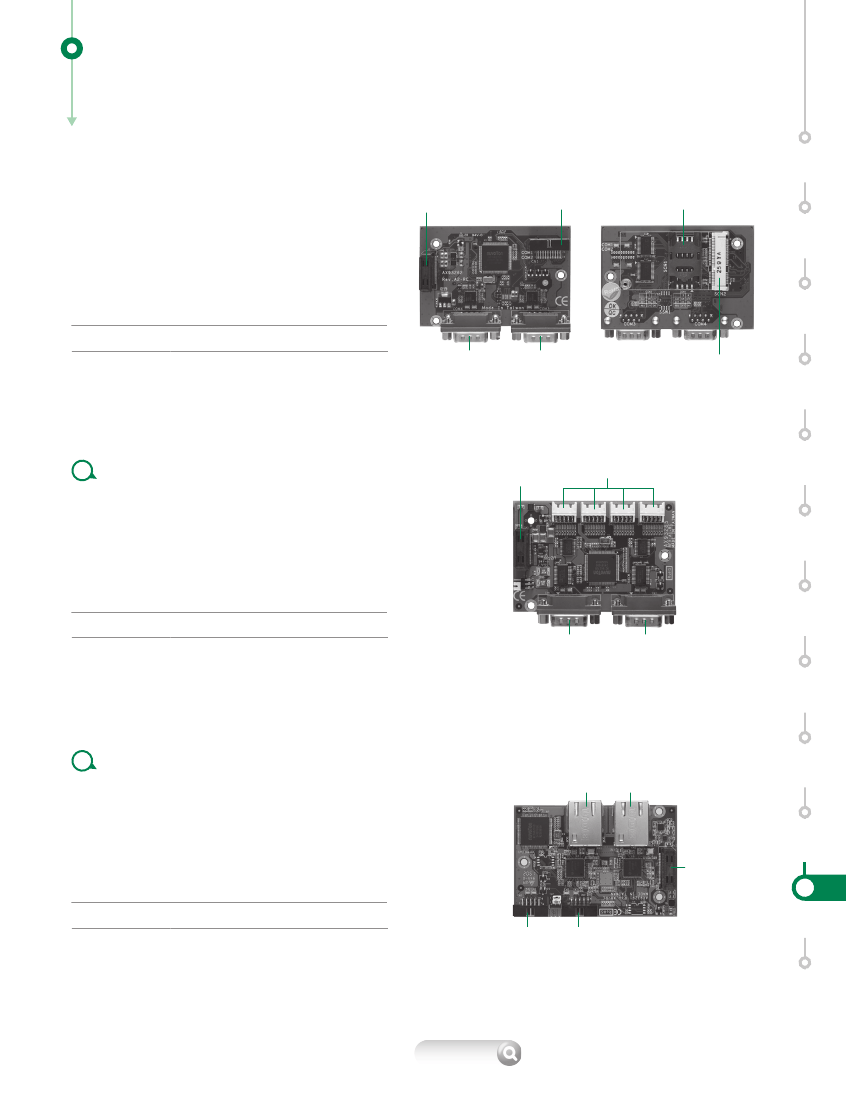

AX93262
ZIO module with four COM ports and one PCI Express Mini Card
●
Specification: 2 x RS-232/422/485, 2 x RS-232, 1 x PCI Express Mini Card
●
Dimension: 80 x 55 mm
●
Compliant Product: CAPA830, CAPA840, CAPA843
ZIO Connector
COM 1/2
SIM Slot
Systems
on
Modules
Ordering Information
AX93262
(P/N: E393262100)
ZIO module with 4 COM ports and 1 PCI Express Mini Card
COM 4
COM 3
Full-size PCI
Express Mini
Embedded
SBCs
>EPIC
Embedded
SBCs
>3.5" Capa
NE
W
ZIO Connector
32 bit programmable DIO
Embedded
SBCs
>Nano-ITX
AX93285
ZIO module with two COM ports and 32 bit programbale DIO
●
Specification: 2 x RS-232, 32-bit programmable DIO
●
Dimension: 80 x 55 mm
●
Compliant Product: CAPA830, CAPA840, CAPA843
Embedded
SBCs
>Pico-ITX
Ordering Information
AX93285
ZIO module with 2 COM ports and 32 bit programmable DIO
(P/N: E393285100)
COM 1
COM 2
Embedded
SBCs
>PC/104
Industrial
Mother-boards
NE
W
Slot CPU
Cards
AX93291
ZIO module with two Gigabit Ethernet and two COM ports
●
Specification: 2 x Gigabit Ethernet, 2 x RS-232
●
Dimension: 80 x 55 mm
●
Controller: Intel® i211AT
●
Compliant Product: CAPA830, CAPA840, CAPA843
Ethernet 1
Ethernet 2
ARM
Embedded
Boards
ZIO connector
Ordering Information
AX93291
(P/N: E393291100)
ZIO module with two Gigabit Ethernet and two COM ports
COM 2
COM 1
7
Accessories
Appendix
* All specifications and photos are subject to change without notice.
