CEB94000_15

Description
Standard ATX form factor for development purpose
File Size307KB,1 Pages
ManufacturerAxiomtek
Websitehttp://www.axiomtek.com/
Download Datasheet Compare View All

CEB94000_15 Overview

Standard ATX form factor for development purpose

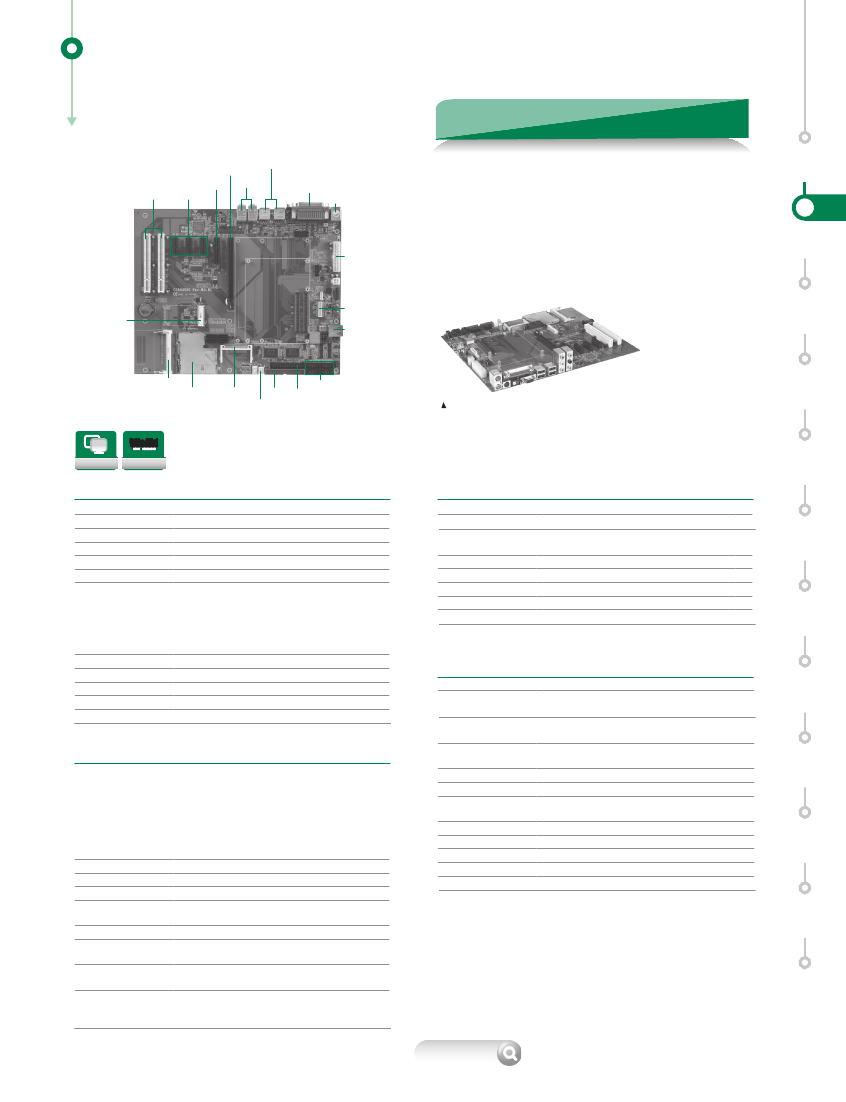

CEB94000
COM Express™ Type 2 Development
Baseboard
USB+Ethernet
PCle x16
LPT+VGA+
PCle x4 HD audio
SPDIF+S-Video
PCle x1
PS/2 K/B+M/S
Features
Standard ATX form factor for development purpose
1 PCIe x16, 1 PCIe x4, 3 PCIe x 1 and 2 PCI slots
1 ExpressCard, 1 PCI Express Mini Card and 1 MiniPCI
SBC
Services
and Solutions
PCI
2
Systems
on
Modules
ATX power conn.
LVDS LCD
PCI Express
Mini card
Ethernet
Embedded
SBCs
>EPIC
MiniPCI type-III
ExpressCard
CF socket
IDE FDD
SMBus+PC Bus
COM
Side view
Embedded
SBCs
>3.5" Capa
PCIe Mini
DualView
PCIe Mini
System
CPU
System Memory
Chipset
BIOS
SSD
Watchdog Timer
Expansion Interface
COM Express™ type 2 basic or extended module
On the module
SoC integrated
On the module; optional socket on the baseboard
N/A
255 levels, 1~255 sec.
1 x PCIe x16 slot for graphics and SDVO ADD2+ card
1 x PCIe x4 or 3 x PCIe x1 slot
2 x 32-bit/33MHz PCI slot
1 x ExpressCard slot
1 x PCI Express Mini Card socket
1 x MiniPCI type-III socket
Lithium 3V/196 mAH
305 x 244 mm
1.6 mm
0° ~ +60°C (32°F ~ 140°F), operation
10% ~ 95% relative humidity, non-condensing
Packing List
Standard
Quick installation guide, user's manual/utility CD, cable
Cable
Part Number
59382601000E
593826A0000E
59381400000E
59380703000E
Embedded
SBCs
>Nano-ITX
Description
Ultra DMA66 IDE cable 40-pin 455mm
SATA signal cable 500mm
FDD cable, P=2.54, L=300mm
COM port x 2 w/ bracket
Qty
1
2
1
1
Embedded
SBCs
>Pico-ITX
Embedded
SBCs
>PC/104
Battery
Size
Board Thickness
Temperature
Relative Humidity
Ordering Information
Standard
CEB94000VEA
(P/N: E394000100)
COM Express™ baseboard with ExpressCard, PCI Express
Mini Card, MiniPCI, 1 x RJ-45 and multiple I/O features
Industrial
Mother-boards
I/O
MIO
1 x IDE; PATA-100
1 x FDD
1 x PS/2 keyboard
1 x PS/2 mouse
1 x RS-232 (COM 2)
1 x RS-232 (COM 1)
1 x LPT; with SPP/EPP/ECP supported
1 x IrDA
4 x SATA
Supported by CPU module
1 x RJ-45 for 10/100/1000Mbps
HD Audio with rear surround/side surround/sub woofer,
Line-in/line-out/MIC-in and SPIF
6 x USB 2.0
System Management Bus for advanced monitoring/
control interface
Dual 7 segments Port 80 display for convenient
debugging purpose through LPC interface
1 x S-Video (depending on CPU module)
1 x LVDS LCD interface
1 x CRT D-Sub connector
SATA
Hardware Monitoring
Ethernet
Audio
USB
SMBus
Port 80 Display
Display
Compliant Modules and Accessories
CEM850VG
COM Express™ baseboard with socket P and
10/100/1000Mbps
CEM830VG
COM Express™ SoM with socket M and 10/100/1000Mbps
CEM820VG
COM Express™ SoM with socket 478 and 10/100/1000Mbps
CEM831VG
COM Express™ SoM with Intel® Atom™ processor N270
and 10/100/1000Mbps
PK95300
LVDS-to-TTL 18-bit LCD converter for Hirose DF9-31P-1V
PK95301
LVDS-to-TTL 18-bit LCD converter for Hirose DF9-41P-1V
AX93221
LVDS-to-DVI converter
AX93218L
ADD2+ card for LVDS LCD
AX93218D
ADD2+ card for DVI-D
Slot CPU
Cards
ARM
Embedded
Boards
Accessories
Appendix
* All specifications and photos are subject to change without notice.
ax io m tek .c om
© 2015 Axiomtek Co., Ltd. All rights reserved.
