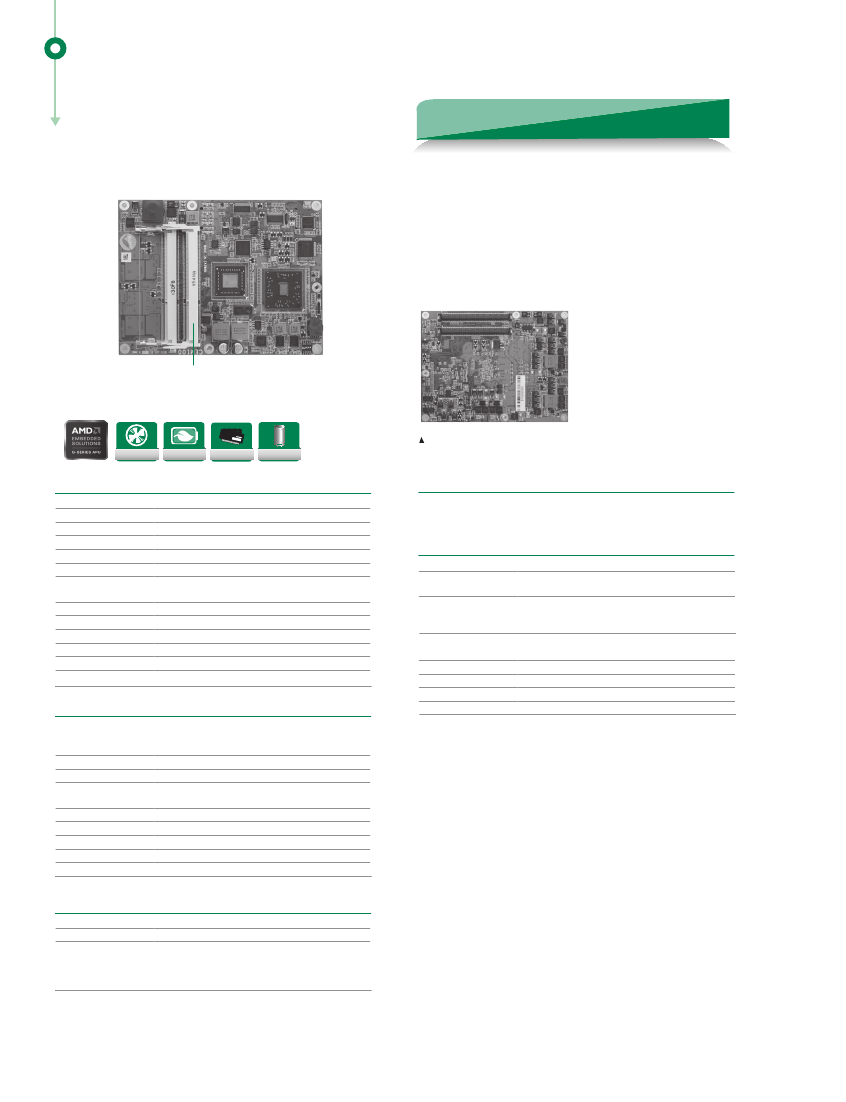

CEM100
AMD G-Series APU COM Express™ Type 2
Basic Module with AMD A55E
Features
●
AMD G-Series APU T56N 1.65 GHz/ T40R 1.0 GHz
●
AMD A55E
●
2 DDR3-1066 SO-DIMMs max. up to 8 GB
●
8 lanes of PCIe Gen 2 at 5GT/s
●
4 SATA-600 with RAID 0, 1, 5, 10
●
DirectX11, OpenGL 4.0, and OpenCL 1.0 supported
●
TPM 1.2 supported
Double deck DDR3 SO-DIMM
DDR3
Rear view
Full Solid
Cap Design
Fanless
Low Power
DDR3
System
CPU
System Memory
Chipset
BIOS
SSD
Watchdog Timer
Expansion Interface
Battery
Power Requirements
Size
Board Thickness
Temperature
Operation Humidity
AMD G-Series APU T56N 1.65 GHz/ T40R 1.0 GHz onboard
2 x 204-pin SO-DIMMs support DDR3-1066 max. up to 8 GB
AMD A55E
AMI UEFI BIOS
N/A
255 levels, 1~255 sec.
8 x PCIe x1 devices
4 x 32-bit PCI bus masters
N/A
TBD
125 x 95 mm
2.0 mm
0° ~ +60°C (32°F ~ 140°F), operation
10% ~ 95% relative humidity, non-condensing
Packing List
Quick installation guide, user's manual/utility CD
Ordering Information
Standard
CEM100VG-T56N
(P/N: E38D100100)
CEM100VG-T40R
(Fanless)
(P/N: E38D100101)
Optional
CEB94000
5078D100000E
5078D100100E
5078D100200E
COM Express type 2 module with T56N 1.6 GHz APU,
VGA/LVDS, 10/100/1000Mbps Ethernet, USB and TPM
COM Express type 2 module with T40R 1 GHz APU,
VGA/LVDS, 10/100/1000Mbps Ethernet, USB and TPM
I/O
MIO
1 x LPC interface
1 x SPI interface
1 x IDE; PATA-100
4 x SATA-600 with RAID 0/1/5/10
N/A
1 port as 10/100/1000Mbps supports Wake-on-LAN,
RPL/PXE Boot ROM with Broadcom BCM50610 PHY
HD link interface to baseboard for external Codec
8 x USB 2.0
Infineon SLB9635 for trusted platform
Yes
4 channels IN & 4 channels OUT
ATX form factor type 2 baseboard
CEM100 heatspreader module
COM Express SoM cooling kit with fan
COM Express SoM cooling kit without fan
SATA
Hardware Monitoring
Ethernet
Audio
USB
TPM 1.2
SMBus
Digital I/O
Display
Chipset
Memory Size
Display Interface
AMD
Depending on integrated GPU
1 x VGA
1 x LVDS; 18/24-bit single/dual channel
2 x Digital output ports (DP, HDMI, DVI;
DPO port is available if LVDS not used)
85
* All specifications and photos are subject to change without notice.
