YENYO
1.
封裝
Package
FS1000FL THRU FS1006FL
1.0A Super Fast Recovery Rectifier
封裝方式
Method: SOD‐123S
封裝尺寸

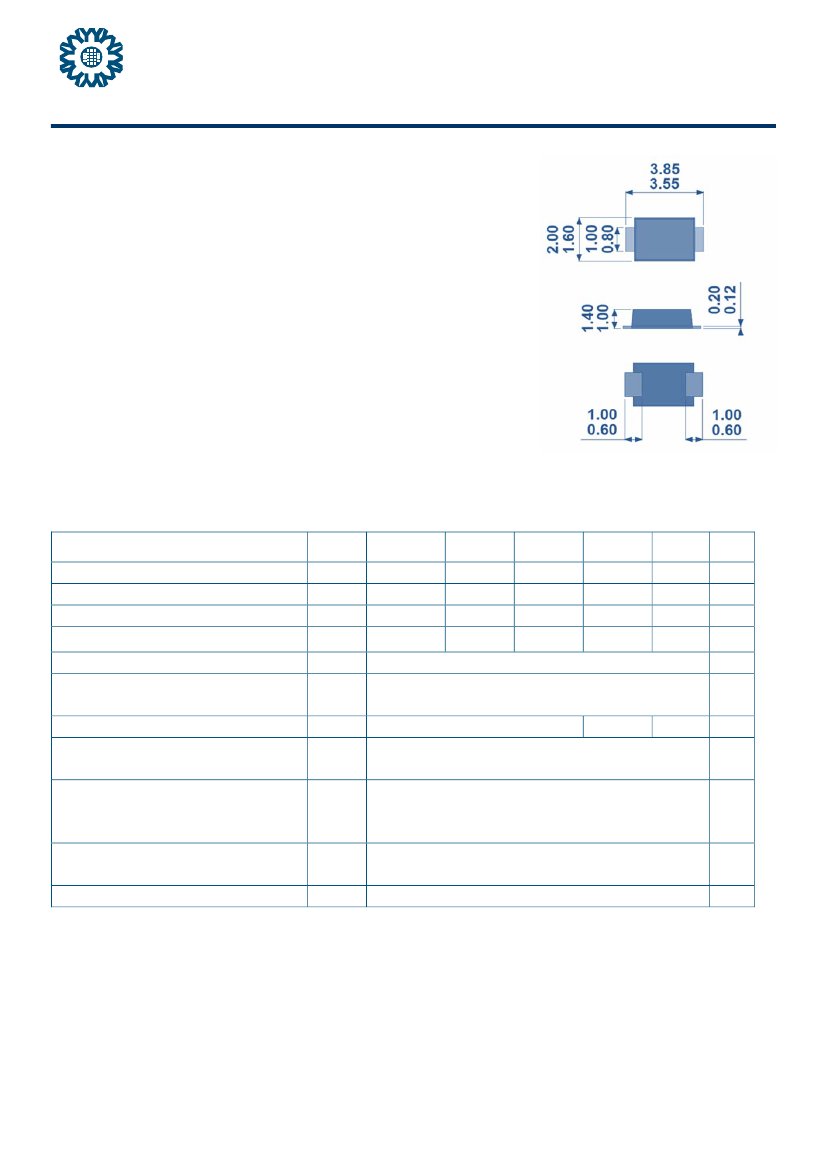

Dimension:
如圖示
For surface mounted applications in order to optimize board space
Ideal for automated placement
Glass Passivated Chip Junction
High temperature soldering : 260℃/10 seconds at terminals
Lead‐free & halogen‐free parts, RoHS compliant
Case: Molded plastic over passivated junction
Terminals: Solder plated solderable per MIL‐STD‐750 Method 2026
Polarity: Color band denotes cathode end
Weight: approx.. 0.0173 grams
2.
產品特色
Features
3.
機械數據
Mechanical Data
單½
Unit: millimeters
4.
極限值與電參數
Maximum Ratings & Electrical Characteristic
PARAMETER
Symbol
FS1000FL
E1A
50
35
50
FS1001FL
E1B
100
70
100
FS1002FL
E1D
200
140
200
1.0
30
0.95
3
10
1.25
1.7
FS1004FL
E1G
400
280
400
FS1006FL
E1J
600
420
600
UNITS
‐
Volts
Volts
Volts
Amps
Amps
Volts
uA
Marking Code
Repetitive Peak Reverse Voltage
RMS Voltage
DC Blocking Voltage
Average Forward Current
T
L
=120 C
Peak Forward Surge Current: 8.3ms single half
sine‐wave
T
L
=25 C
Max. Instantaneous Forward Voltage at 1.0A
DC Reverse Current at Rated
T
J
=25
O
C
DC Blocking Voltage
T
J
=100 C
Reverse Recovery Time
I
F
=0.5A
I
R
=1A
I
RR
=0.25A
Typical Thermal Resistance (NOTE1.2)
Operating Junction and Storage Temperature Range
O
O
O
‐
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
T
rr
R
ÈJA
R
ÈJC
T
J
,T
STG
35
ns
200
30
‐55 to +150
℃/W
℃
Notes:
(1) Mounted on an FR4 PCB, single‐sided copper, mini pad.
(2) Mounted on an FR4 PCB, single‐sided copper, with 10cm x 10cm copper pad area.
1/2
R02,JUL-15
YENYO
FS1000FL THRU FS1006FL
1.0A Super Fast Recovery Rectifier
5.
特性曲線
Rating & Characteristic Curves

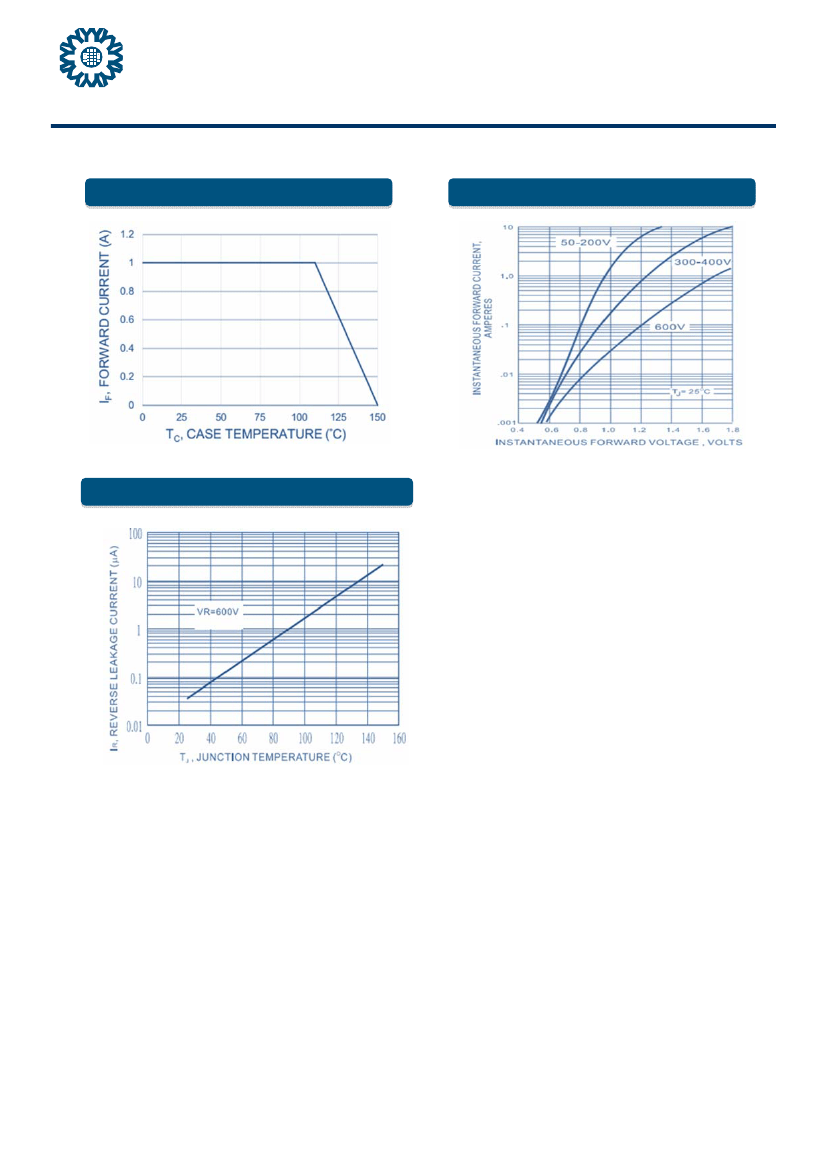

Fig. 1 Forward Current Derating Curve
Fig. 2 Typical Forward Characteristics
Fig. 3 Typical Leakage Current vs. Junction
2/2
R02,JUL-15
