Photoelectric sensors
W250-2, Through-beam photoelectric sensor
Type
Part No.
> WSE250-2P1131
> 6044703
At a glance
• Very high sensing range in compact housing
• Versions for 10 - 30 V DC or 24 - 240 V DC/ 24 – 240 V AC voltage supply in
compact design
• Mounting bracket included in delivery
• Potentiometer with an easy-to-read positioning indicator for adjusting the sensing
range
• Operating mode (light/dark) selectable via control wire
• Cable or rotatable M12 connector
Your benefits
• Universal AC/DC voltage variants provide high performance and increased
flexibility in environments with limited space
• High performance reserve in harsh environmental conditions
• Mounting kit reduces installation time
• Operating mode (light/dark) is selectable via a control cable to reduce the number
of device variants
• Mounting compatibility - DC devices and AC/DC devices available in same design
Illustration may differ
Features
Sensor/detection principle:

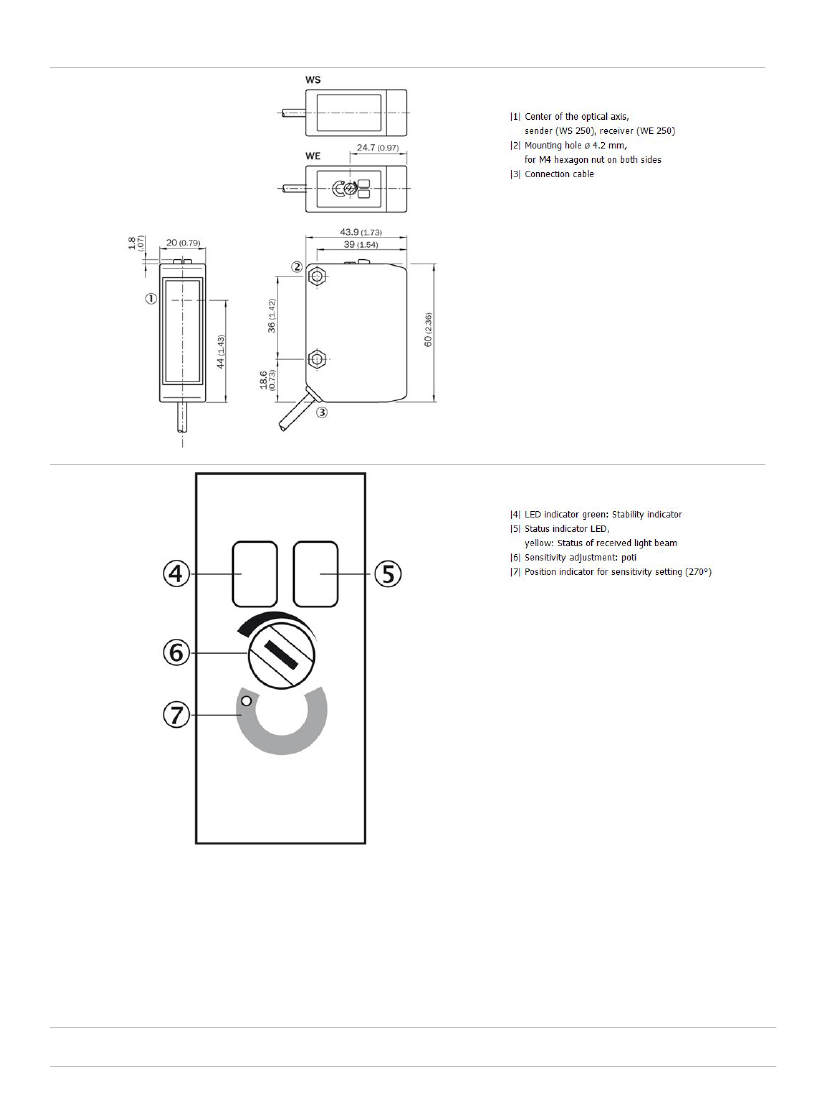

Dimensions (W x H x D):
Housing design (light emission):
Sensing range max.:
Sensing range:
Type of light:
Light source:
Angle of dispersion:
Adjustment:
Light spot size (distance):
1)
Average service life of 100,000 h at T = +25 °C
A
2)
Through-beam photoelectric sensor
20 mm x 65 mm x 43.9 mm
Rectangular
0 m ... 50 m
0 m ... 40 m
Visible red light
1)
BrightLight LED
Ca. 2 °
Potentiometer, 2 turns
2)
Ø 0.6 m (20 m)
With position indicator
Mechanics/electronics
Supply voltage:
Ripple:
Power consumption, sender:
10 V DC ... 30 V DC
2)
≤ 5 Vpp
3)
20 mA
1)
Photoelectric sensorsAAAAAAAAAAAAA© SICK AG. Subject to change without notice.AAAAAAAAAAAAA3/15/2016 1:46:14 AM
Power consumption, receiver:
Output type:
Switching mode:
Switching mode selector:
Output current Imax.:
Response time:
Switching frequency:
Angle of reception:

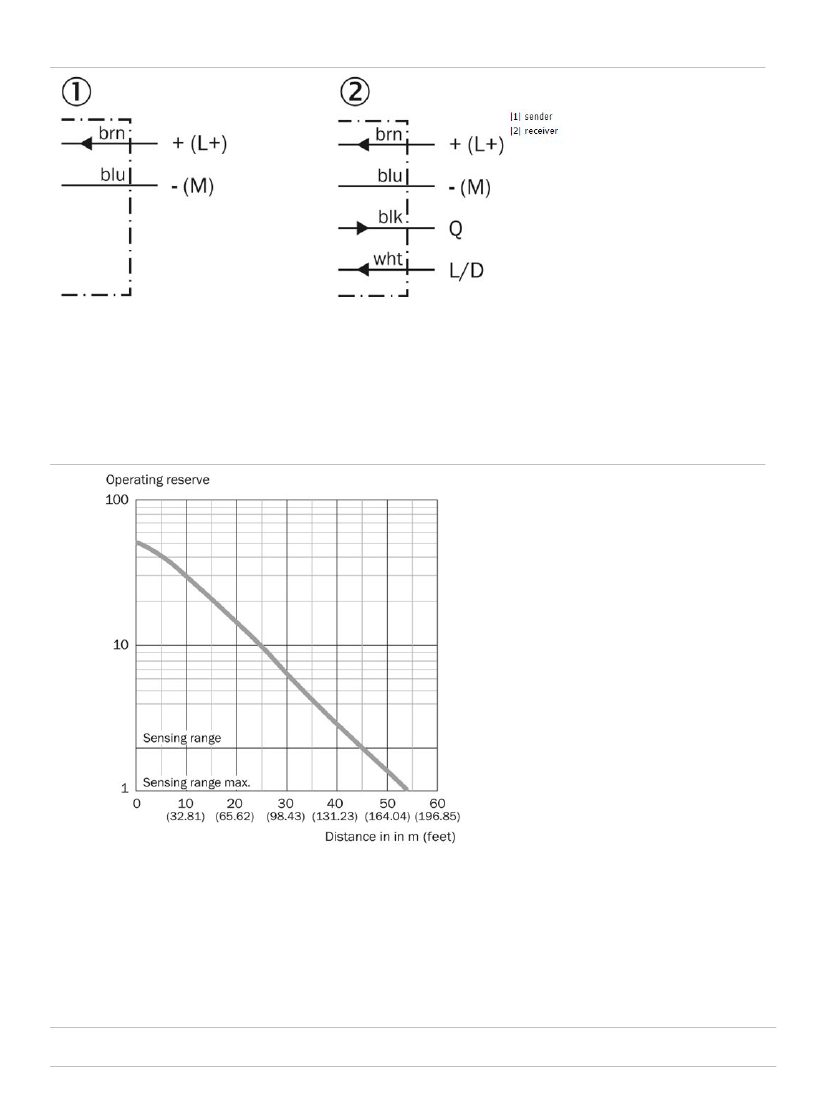

Connection type:
Cable material:
Conductor cross-section:
Cable diameter:
Circuit protection::::
Protection class:
Weight:
Special device:
Optics material:
Enclosure rating:
Items supplied:
EMC:
Ambient operating temperature:
Ambient storage temperature:
UL File No.:
Housing material:
1)
20 mA
PNP, open collector
Light/dark switching
Selectable via L/D control wire
≤ 100 mA
5)
≤ 0.5 ms
6)
1,000 Hz
20 °
7)
Cable, 4-wire, 2 m
PVC
0.18 mm²
Ø 3.8 mm
8) 9) 10) 11)
A, B, C, D
III
300 g
-
PMMA
IP 67
BEF-W250 mounting bracket
12)
EN 60947-5-2
-25 °C ... +55 °C
-40 °C ... +70 °C
NRKH2.E300503 & NRKH8.E300503
ABS, Plastic
4)
2)
3) 4)
5)
Limit values, operation in short-circuit protected network max. 8 A
May not exceed or fall short of V tolerances
Without load
Signal transit time with
S
6)
7)
8)
9)
resistive load
With light/dark ratio 1:1
Do not bend below 0 °C
A = V connections reverse-polarity protected
B = inputs and output reverse-polarity
S
10)
11)
12)
protected
C = interference suppression
D = outputs overcurrent and short-circuit protected
The AC/DC devices meet the interference suppression
requirements for industrial use (interference suppression class A). When used in residential areas it can cause interference.
