CEM501PG-i5-6300U Overview

1-OUTPUT DC-DC REG PWR SUPPLY MODULE

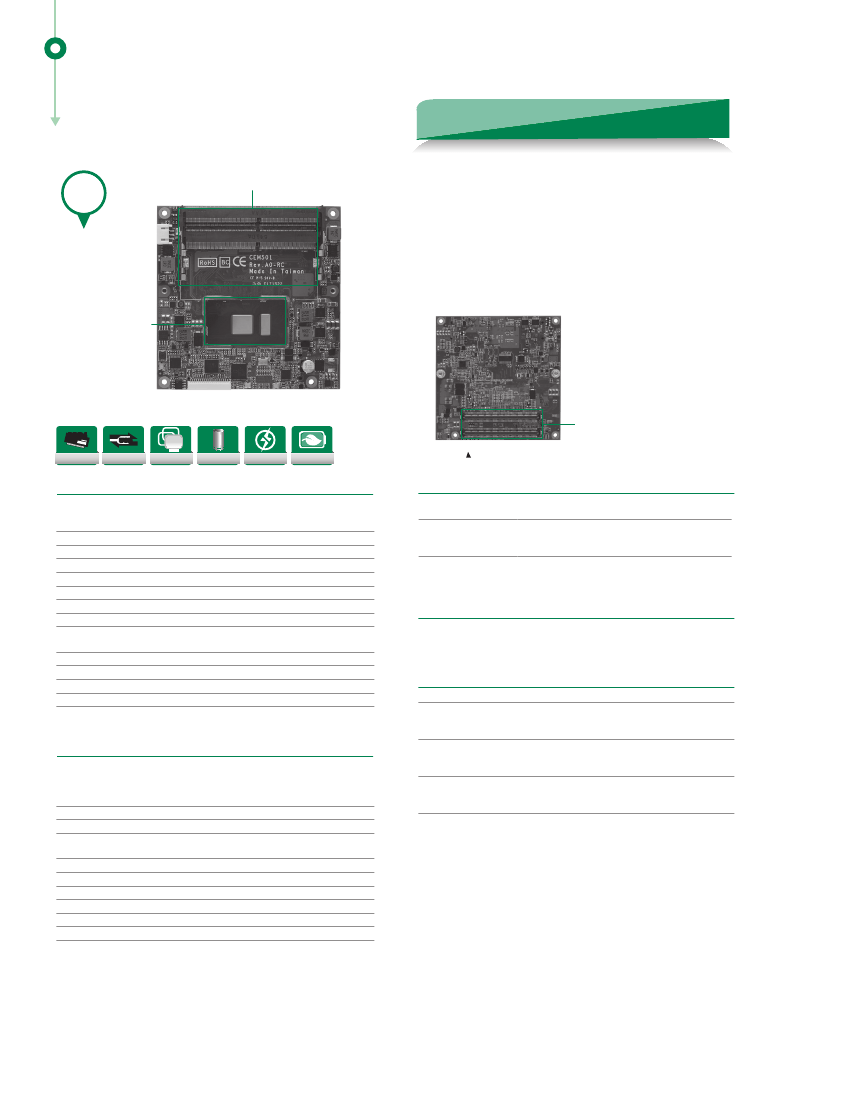

CEM501
6th Generation Intel® Core™ i7/i5/i3
Processor COM Express Type 6 Module
2 x DDR4 SO-DIMM
Features
6th generation Intel® Core™ i7/i5/i3 processor (Skylake-U)
2 DDR4-2133 SO-DIMM max. up to 32 GB memory
Max. up to 6 lanes of PCI Express
3 SATA-600
4 USB 3.0 and 8 USB 2.0
NEW
6
th
Generation
Intel® Core™
processor
DDR4
USB
COM Express Interface
Connector
TripleView
Full Solid
Cap Design
DDR4
USB 3.0
AiRD
Low Power
Rear view
System
CPU
6th generation Intel® Core™ processor with i7-6600U
2.6 GHz, i5-6300U 2.4 GHz, i3-6100U 2.3 GHz (Skylake-U)
onboard
2 x 260pin DDR4-2133 SO-DIMM max. up to 32 GB
SoC integrated
AMI uEFI
N/A
255 levels, 1~255 sec. or min.
6 lanes of PCI Express Gen. 3.0
N/A
ATX: +12V, +5VSB
AT: +12V
95 x 95 mm
2.0 mm
-20ºC ~ +70ºC (-4°F ~ 158°F), operation
10% ~ 95% relative humidity, non-condensing
Display
Chipset
Display Interface
Intel® Gen 9 Graphics Engine
support Gfx - DX12.0, OCL2.0, OGL4.3
2 x DDI (DP/HDMI/DVI). The 2nd DDI could be configured to
VGA (optional).
1 x LVDS; 18/24-bit dual channel (eDP optional)
System Memory
Chipset
BIOS
SSD
Watchdog Timer
Expansion Interface
Battery Lithium
Power Input
Size
Board Thickness
Temperature
Operation Humidity
Packing List
Quick installation guide
Ordering Information
Standard
CEM501PG-i7-6600U
COM Express type 6 module with 6th generation Intel®
Core™ i7-6600U (2.6 GHz), DP/LVDS, 10/100/1000 Mbps
Ethernet, USB 3.0 and TPM
COM Express type 6 module with 6th generation Intel®
Core™ i5-6300U (2.4 GHz), DP/LVDS, 10/100/1000 Mbps
Ethernet, USB 3.0 and TPM
COM Express type 6 module with 6th generation Intel®
Core™ i3-6100U (2.3 GHz), DP/LVDS, 10/100/1000 Mbps
Ethernet, USB 3.0 and TPM
I/O
MIO
1 x LPC interface
1 x SPI interface
2 x Serial TX/RX
1 x I
2
C
3 x SATA-600
Yes
1 port as 10/100/1000Mbps supports Wake-on-LAN,
PXE Boot ROM with Intel® i219LM
HD link interface to baseboard for Codec
4 x USB 3.0 and 8 x USB 2.0
Yes
Yes
4 channels IN & 4 channels OUT (SDIO optional)
Yes
CEM501PG-i5-6300U
CEM501PG-i3-6100U
SATA
Hardware Monitoring
Ethernet
Audio
USB
TPM
SMBus
Digital I/O
Battery Support
75
* All specifications and photos are subject to change without notice.
