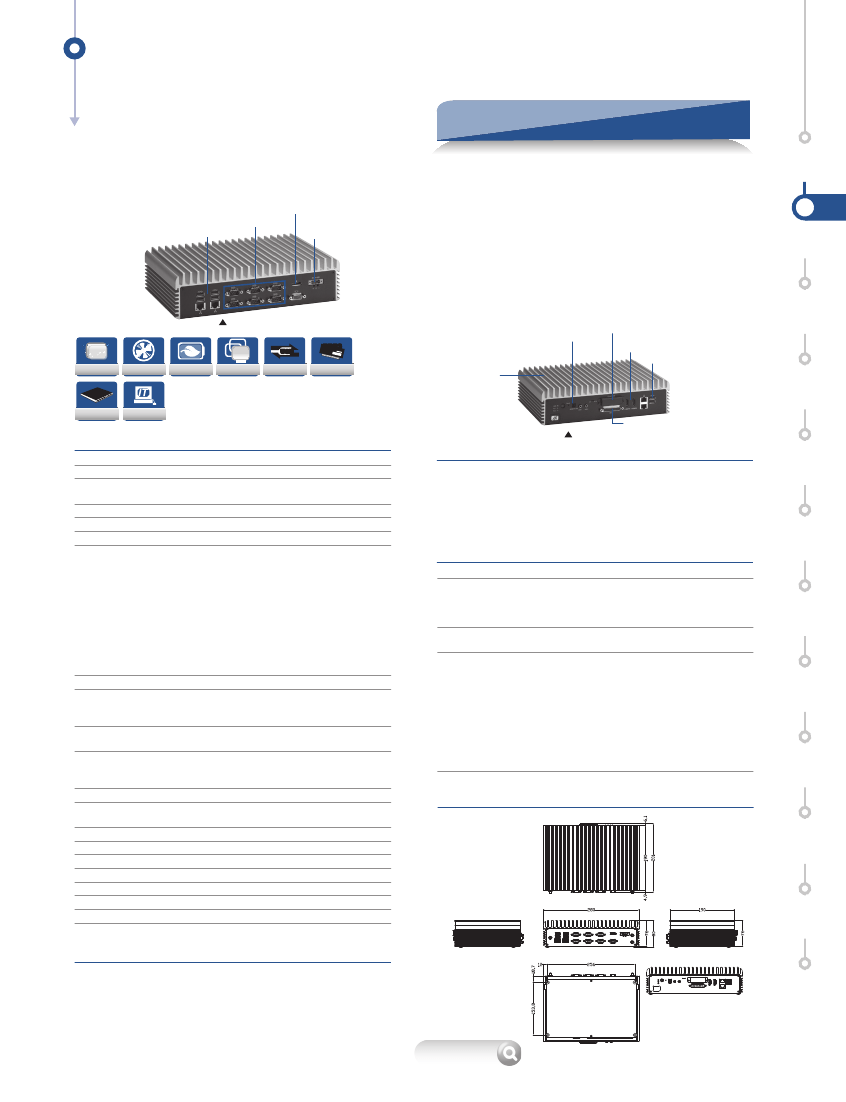

eBOX670-883-FL
Fanless Embedded System with LGA1150
Socket Intel® Core™ i7/i5/i3 & Celeron®
processor, Intel® Q87 HDMIx2/VGA/
,
DisplayPort, 4 GbE LAN, 6 USB 3.0,
Wide Range DC-in and PCIe Mini Card
DisplayPort & VGA
6 RS-232/422/485
4 USB 3.0
Wide range DC-in
Features
●
LGA1150 socket 4th generation Intel® Core™ i7/i5/i3 &
Celeron® processor (Haswell) with Intel® Q87
●
Fanless operation design with full feature I/O
●
204-pin DDR3-1333/1600 SO-DIMM max. up to 16 GB
●
Two 2.5” SATA drive bay, 1 CFast™ slot and mSATA
●
Two internal PCI Express Mini Card slots, 1 SIM slot
●
Supports 2 HDMI, VGA and DisplayPort for triple independent
display
●
Supports Jumbo Frame (9.5k), WoL, PXE Remote Boot, Teaming
●
Supports wide range 9-36VDC
Easy access CFast slot
Remote power switch
Dual HDMI
2 USB 3.0
Overview
1
Embedded
Systems
Front view
USB
Embedded
Systems for
Transportation
DDR3
IP40
Fanless
Low Power
TripleView
USB 3.0
DDR3
CFast
TM
EN60950
LGA1150 Socket
Intel® Core™
I7/i5/i3 &
Celeron®
processor
Embedded
Field
Controllers
CF
ast
Specifications
Standard Color
Construction
CPU
System Memory
Chipset
BIOS
System I/O Outlet
Silver-Black
Aluminum extrusion and heavy-duty steel, IP40
LGA1150 socket 4th generation Intel® Core™ i7/i5/i3 &
Celeron® processor (CPU TDP max. up to 45W)
2 x 204-pin DDR3-1333/1600MHz SO-DIMM max. up to 16 GB
Intel® Q87
AMI
6 x RS-232/422/485 (COM1 ~ 6)
2 x HDMI
1 x VGA
1 x DisplayPort
1 x Audio (Mic-in/Line-out)
4 x 10/100/1000Mbps Ethernet (Intel® i210-IT, I217LM)
6 x USB 3.0
32 channel programmable DI/DO
3 x SMA type connector opening for antenna
1 x VDC 9~36V power input connector
1 x ATX power switch with status indicator
255 levels, 1~255 sec.
2 x 2.5” SATA HDD drive bay (Supports RAID 0 & 1)
1 x CFast™ slot
1 x mSATA
2 x Full-size PCI Express Mini Card slots (USB+PCI Express signal)
1 x SIM slot
1 x orange LED for HDD active
2 x green LED for programmable
1 x orange/blue LED for system status (in ATX switch)
DC input 9~36V
-40°C ~ +55°C (-40°F~131°F) (with W.T. SSD, CPU TDP 35W)
-40°C ~ +50°C (-40°F~122°F) (with W.T. SSD, CPU TDP 45W)
-45°C ~ +80°C (-49°F ~ +176°F)
10% ~ 90% , non-condensing
3 Grms with CFast™ (5 - 500Hz, X, Y, Z directions)
280 mm (11.02”) (W) x 190 mm (7.48”) (D) x 70 mm (2.75”) (H)
3.8 kg (8.37 lb)/ 4.6 kg (10.14 lb)
CE, EN60950 Compliance
WE8S, WES7, Linux
Power Protection
DC Version
OVP (over voltage protection)
UVP (under voltage protection)
OCP (over current protection)
SCP
Reverse protection
Rear view
32 channel
programmable DI/DO
Industrial
Firewall
Ordering Information
Standard
eBOX670-883-FL-DC
Fanless embedded system with LGA1150 socket 4th
generation Intel® Core™ i7/i5/i3 & Celeron® processor,
Intel® Q87, HDMI x 2/VGA/Display, 4 GbE LAN, 6 USB 3.0,
CFast™, PCIe Mini Card and 9~36VDC
Digital Signage
Solutions
Embedded
MicroBoxes
Watchdog Timer
Storage
Expansion Interface
System Indicator
Optional
2.5” SATA HDD
80 GB or above
2.5” SATA SSD
40 GB or above
DDR3 SO-DIMM
1 GB ~ 16 GB
CFast™
512 MB or above
Wi-Fi module
3G module
GPS module
Wall mount kit
AC power kit
Power Cord
*Specifications and certifications are based on options and may vary.
Industrial
Barebone
Systems
Industrial
Chassis
Power Supply
Operating Temperature
Storage Temperature
Humidity
Vibration Endurance
Dimensions
Weight (net/gross)
Certificate
EOS Support
Dimensions
Backplanes
Power
Supplies
Packing List
1 x quick manual
1 x driver cd
1 x screw pack
4 x foot pad
Peripherals &
Accessories
* All specifications and photos are subject to change without notice.
