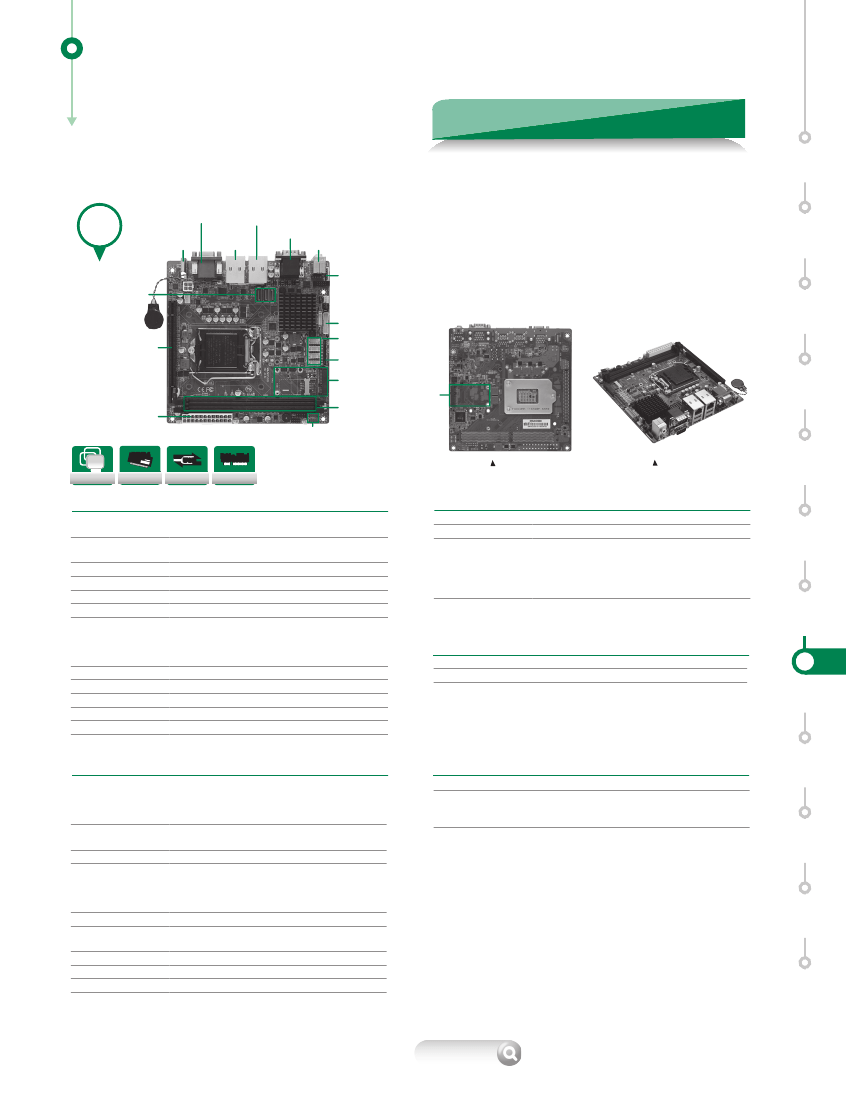

MANO500

LGA1151 Socket 6th Generation Intel®

Core™ i7/i5/i3, Pentium® & Celeron®

Mini-ITX SBC with Intel® H110, HDMI/DP/

VGA/LVDS/eDP Dual LAN and USB 3.0

NEW

VGA + DP

HDMI

LAN 1 +

USB 3.0 1-2

LAN 2 +

COM 1 -2

USB 3.0 3-4

Audio

PS/2

KB&MS

LVDS

PCIe x16

COM 3-6

eDP

miniPCIe

+SIM

ATX PWR

Conn.

DDR4

USB

Features

●

LGA1151 socket 6th generation Intel® Core™ i7/i5/i3,

Pentium® & Celeron® processor (Skylake)

●

2 DDR4-2133 MHz max. up to 32 GB

●

1 PCIe x16 slot

●

1 miniPCIe and SIM card slots

●

3 SATA-600 & 1 mSATA

●

4 USB 3.0 and 4 USB 2.0

SBC

Services

and Solutions

Systems

Modules

SATA-600

1-3

Embedded

SBCs

>EPIC

DDR4

USB 2.0 1-4

PCIe Mini

mSATA

Embedded

SBCs

>3.5" Capa

Rear view

Side view

TripleView

DDR4

USB 3.0

PCIe Mini

Embedded

SBCs

>Nano-ITX

System

CPU

System Memory

Chipset

BIOS

SSD

Watchdog Timer

Expansion Interface

LGA1151 socket 6th generation Intel® Core™ i7/i5/i3,

Pentium® & Celeron® processor

2 x 288-pin LONG-DIMM dual channel DDR4-2133,

max. up 32 GB

Intel® H110

AMI

N/A

255 level, 1 ~ 255 sec

1 x PCIe x16

1 x mSATA

1 x miniPCIe

1 x SIM card slot

Lithium 3V/220 mAH

TBD

170 x 170 mm

0°C ~ +60°C (32°F ~ 140°F), Operation

10% ~ 95% relative humidity, non-condensing

Display

Chipset

Memory Size

Display Interface

Intel® HD Graphics 530/510

Shared Memory

1 x HDMI

1 x VGA

1 x DP

1 x LVDS

1 x eDP (co-lay with LVDS)

Embedded

SBCs

>Pico-ITX

Embedded

SBCs

>PC/104

Packing List

Standard

I/O Bracket

Battery

Power Requirements

Size/Weight

Temperature

Operation Humidity

Industrial

Mother-boards

I/O

MIO

1 x PS/2 KB & MS

2 x RS-232/422/485(COM1~2)

4 x RS-232(COM3~6);

COM1 with 5V/12V power select

3 x SATA-600

1 x mSATA

Detect CPU/System temperature, voltage and fan speed

1st port as 10/100/1000 Mbps supports WOL, PXE with

Intel® i219LM (LAN1)

2nd port as 10/100/1000 Mbps supports WOL, PXE with

Intel® i211AT (LAN2)

HD Audio as Mic-in/Line-out with Realtek ALC662

4 x USB 3.0 (rear I/O)

4 x USB 2.0

N/A

8 Channels programmable

N/A

Ordering Information

Standard

MANO500

LGA1151 Socket 6th generation Intel® Core™ i7/i5/i3,

Pentium®, Celeron® Mini-ITX SBC with Intel® H110,

HDMI/DisplayPort/VGA/ LVDS/eDP, Dual LAN and USB 3.0

Slot CPU

Cards

SATA

Hardware Monitoring

Ethernet

ARM

Embedded

Boards

Audio

USB

TPM

Digital I/O

SM BUS

Accessories

Appendix

* All specifications and photos are subject to change without notice.
