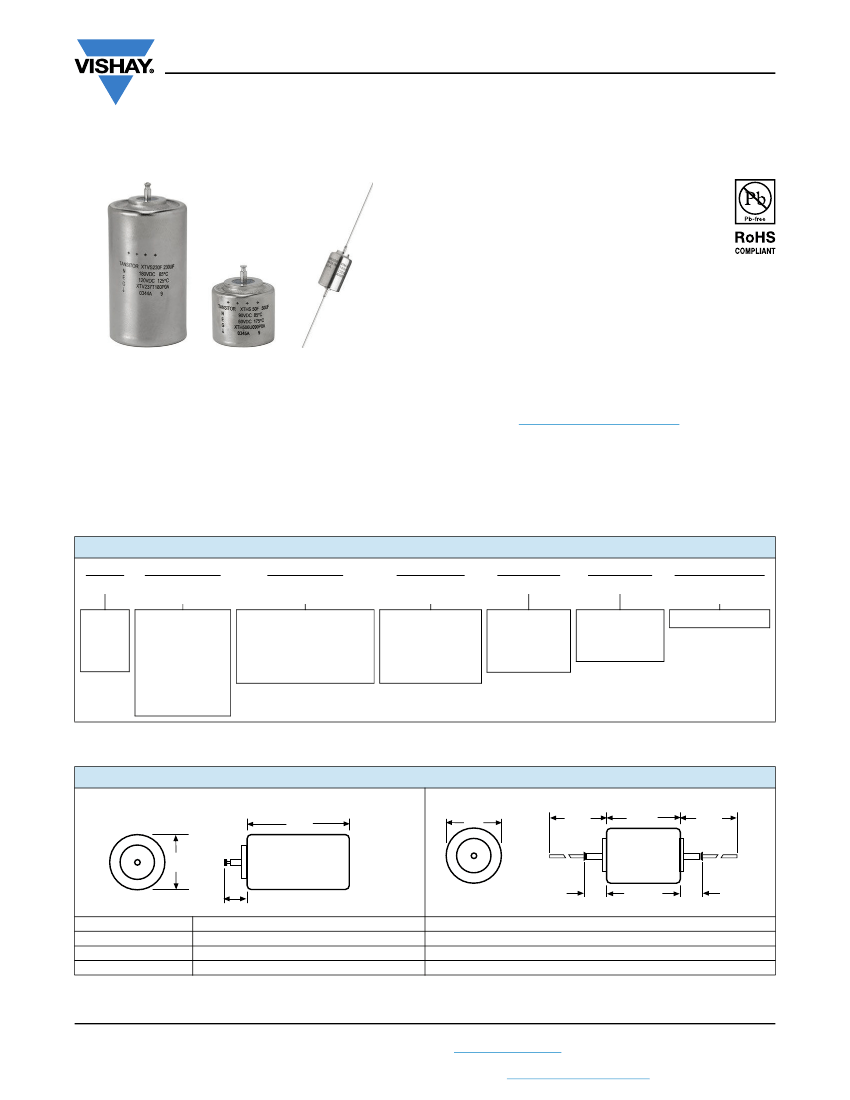

XTH, XTK, XTL, XTM, XTV
www.vishay.com
Vishay
Wet Tantalum Capacitors
Cylindrical Body, Hermetically Sealed
FEATURES
• High temperature
• High voltage
• High capacitance
• Withstands high frequency vibration to 2000 Hz
• Hermetically sealed
• Long shelf life
• DLA drawings 04022 and 04033
• Terminations: standard 100 % nickel (RoHS compliant)
PERFORMANCE CHARACTERISTICS
Operating Temperature:
-55 °C to +175 °C with proper
derating
Voltage Range:
8 V
DC
to 630 V
DC
at 85 °C
Reverse Voltage:
none
Capacitance Range:
2 μF to 2200 μF
Tolerance Range:
-15 % to +50 % (standard for XTK, XTM, XTV)
-15 % to +75 % (standard for XTH, XTL)
± 20 % (special order)
• Mounting: arrays and assemblies
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
ORDERING INFORMATION
XTV
MODEL
XTH
XTK
XTL
XTM
XTV
126
CAPACITANCE
CODE
This is expressed
in picofarads.
The first two
digits are the
significant
figures. The
third is the
number of
zeros to follow.
T
CAPACITANCE
TOLERANCE
T = -15 % to +50 %
(XTK, XTM, XTV standard)
U = -15 % to +75 %
(XTH, XTL standard)
M = ± 20 %
(special order)
630
DC VOLTAGE
RATING
This is expressed
in volts. To
complete the
three-digit block,
zeros precede
the voltage rating.
P
CASE CODE
P = polar
(case negative)
R = reverse
polarity
(case positive)
0
INSULATION
0 = uninsulated
(standard)
4 = teflon
(+175 °C limit)
A
TERMINAL
CONFIGURATION
See Styles
Note
• For styles, terminal configurations, mounting methods and hardware, please see pages following Standard Ratings table
DIMENSIONS
in inches [millimeters]
XTH-XTL-XTV
H
(+)
D
Case
negative
5/16 ± 1/16
XTK-XTM
D
2.250
± 0.250
(+)
H
2.250
± 0.250
(-)
0.281
± 0.062
0.281
± 0.062
TYPE
XTK - XTM
XTL - XTH
XTV
D
0.656
0.875
1.125
H
0.438 to 1.781
0.540 to 4.062
0.600 to 2.810
Note
• For insulated parts, add 0.015" [0.38] to the diameter. The insulation shall lap over the ends of the capacitor body
Revision: 03-Apr-18
Document Number: 42077
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
XTH, XTK, XTL, XTM, XTV
www.vishay.com
Vishay
SIZE
MAX.
RIPPLE
120 Hz
APPROX.
RMS
D
H
WEIGHT
-55 °C +0.031 +0.062
TO
-0.015 -0.062
+175 °C
(g)
14
15
14
15
48
50
60
82
14
15
26
32
48
50
68
82
14
15
26
32
14
15
26
32
48
50
68
82
14
15
26
(mA)
137
213
137
213
550
550
694
694
137
213
328
390
550
550
694
694
137
213
328
390
137
213
333
375
427
550
694
694
137
213
333
0.656 0.438 XTK706(1)008P0A
0.656 0.562 XTM147(1)008P0A
0.656 0.438 XTK506(1)010P0A
0.656 0.562 XTM107(1)010P0A
1.125 0.600 XTV587(1)012P0A
1.125 0.600 XTV857(1)012P0A
1.125 1.100 XTV118(1)012P0A
1.125 1.100 XTV228(1)012P0A
0.656 0.438 XTK356(1)018P0A
0.656 0.562 XTM706(1)018P0A
0.875 0.540 XTL127(1)018P0A
0.875 0.732 XTH247(1)018P0A
1.125 0.600 XTV397(1)018P0A
1.125 0.600 XTV567(1)018P0A
1.125 1.100 XTV907(1)018P0A
1.125 1.100 XTV188(1)018P0A
0.656 0.438 XTK286(1)020P0A
0.656 0.562 XTM566(1)020P0A
0.875 0.540 XTL107(1)020P0A
0.875 0.732 XTH207(1)020P0A
0.656 0.438 XTK206(1)030P0A
0.656 0.562 XTM406(1)030P0A
0.875 0.540 XTL756(1)030P0A
0.875 0.732 XTH157(1)030P0A
1.125 0.600 XTV257(1)030P0A
1.125 0.600 XTV377(1)030P0A
1.125 1.100 XTV657(1)030P0A
1.125 1.100 XTV138(1)030P0A
0.656 0.438 XTK206(1)035P0A
0.656 0.562 XTM406(1)035P0A
0.875 0.540 XTL606(1)035P0A
STANDARD RATINGS AND DIMENSIONS
MAX.
WORKING
VOLTAGE
MAX. DCL AT
MAX. V
DC
(μA)
MAX.
Z
-55 °C
MAX. % CAP.
CHANGE FROM
ROOM TEMP.
CAPACITANCE
TYP.
ESR
PART
NUMBER
(μF)
70
140
50
100
580
850
1100
2200
35
70
120
240
390
560
900
1800
28
56
100
200
20
40
75
150
250
370
650
1300
20
40
60
+125 °C +175 °C () +85 °C +125 °C +175 °C
7
7
8.5
8.5
10
10
10
10
15
15
15
15
15
15
15
15
17.5
17.5
17.5
17.5
25
25
25
25
25
25
25
25
30
30
30
5
5
7
7
8
8
8
8
12
12
12
12
12
12
12
12
13
13
13
13
20
20
20
20
20
20
20
20
23
23
23
10.0
5.0
10.0
5.0
1.5
1.5
1.5
1.5
10.0
5.0
2.8
2.5
1.5
1.5
1.5
1.5
10.0
5.0
2.8
2.5
10.0
5.0
2.7
2.7
2.5
1.5
1.5
1.5
10.0
5.0
2.7
30
50
25
45
135
135
135
135
30
50
50
80
165
165
165
165
30
50
50
80
35
60
55
90
195
125
145
190
35
60
55
45
75
37
67
197
197
197
197
45
75
75
120
227
227
227
227
45
75
75
120
52
90
82
135
287
170
202
282
52
90
82
60
100
50
90
270
270
270
270
60
100
100
160
330
330
330
330
60
100
100
160
70
120
110
180
390
215
250
375
72
120
110
()
60
30
75
40
20
20
20
20
85
45
30
20
20
20
20
20
85
45
30
20
125
75
45
30
20
15
15
10
125
75
45
-55 °C +85 °C +175 °C
-60
-60
-60
-60
-90
-90
-90
-90
-60
-60
-60
-60
-85
-85
-85
-85
-60
-60
-60
-60
-40
-40
-45
-45
-65
-65
-85
-85
-40
-40
-45
+30
+30
+30
+30
+20
+20
+20
+20
+30
+30
+15
+15
+20
+20
+20
+20
+30
+30
+15
+15
+20
+20
+15
+15
+20
+20
+20
+20
+20
+20
+10
+30
+30
+30
+30
+35
+35
+35
+35
+30
+30
+40
+40
+35
+35
+35
+35
+30
+30
+40
+40
+20
+20
+30
+30
+35
+35
+35
+35
+20
+20
+30
8 V
DC
AT +85 °C
10 V
DC
AT +85 °C
12 V
DC
AT +85 °C
18 V
DC
AT +85 °C
20 V
DC
AT +85 °C
30 V
DC
AT +85 °C
35 V
DC
AT +85 °C
Note
• Part number definitions:
(1) Tolerance code:
T = -15 % to +50 % (standard for XTK, XTM, XTV)
U = -15 % to +75 % (standard for XTH, XTL)
M = ± 20 % (available by special order)
Revision: 03-Apr-18
Document Number: 42077
2
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
XTH, XTK, XTL, XTM, XTV
www.vishay.com
Vishay
SIZE
MAX.
RIPPLE
120 Hz
APPROX.
RMS
D
H
WEIGHT
-55 °C +0.031 +0.062
TO
-0.015 -0.062
+175 °C
(g)
48
50
68
82
82
14
15
26
32
32
48
50
68
82
82
14
15
26
32
48
50
68
82
21
21
23
44
56
74
78
114
142
(mA)
427
427
694
694
694
137
213
333
375
375
427
550
694
694
694
137
213
333
375
427
550
694
694
108
117
186
282
341
363
363
631
631
1.125 0.600 XTV197(1)040P0A
1.125 0.600 XTV297(1)040P0A
1.125 1.100 XTV507(1)040P0A
1.125 1.100 XTV108(1)040P0A
1.125 1.100 XTV907(1)050P0A
0.656 0.438 XTK126(1)060P0A
0.656 0.562 XTM256(1)060P0A
0.875 0.540 XTL406(1)060P0A
0.875 0.732 XTH706(1)060P0A
0.875 0.732 XTH806(1)060P0A
1.125 0.600 XTV137(1)060P0A
1.125 0.600 XTV207(1)060P0A
1.125 1.100 XTV357(1)060P0A
1.125 1.100 XTV707(1)060P0A
1.125 1.100 XTV757(1)060P0A
0.656 0.438 XTK805(1)090P0A
0.656 0.562 XTM166(1)090P0A
0.875 0.540 XTL256(1)090P0A
0.875 0.732 XTH506(1)090P0A
1.125 0.600 XTV846(1)090P0A
1.125 0.600 XTV127(1)090P0A
1.125 1.100 XTV227(1)090P0A
1.125 1.100 XTV457(1)090P0A
0.656 0.719 XTK205(1)180P0A
0.656 0.719 XTK405(1)180P0A
0.656 0.938 XTM805(1)180P0A
0.875 0.920 XTL126(1)180P0A
0.875 1.300 XTH256(1)180P0A
1.125 0.976 XTV426(1)180P0A
1.125 0.976 XTV606(1)180P0A
1.125 1.938 XTV117(1)180P0A
1.125 1.938 XTV237(1)180P0A
STANDARD RATINGS AND DIMENSIONS
MAX.
WORKING
VOLTAGE
MAX. DCL AT
MAX. V
DC
(μA)
MAX.
Z
-55 °C
MAX. % CAP.
CHANGE FROM
ROOM TEMP.
CAPACITANCE
TYP.
ESR
PART
NUMBER
(μF)
190
290
500
1000
900
12
25
40
70
80
130
200
350
700
750
8.0
16
25
50
84
120
220
450
2.0
4.0
8.0
12
25
42
60
110
230
+125 °C +175 °C () +85 °C +125 °C +175 °C
34
34
34
34
44
50
50
50
50
50
50
50
50
50
50
80
80
80
80
80
80
80
80
160
160
160
160
160
160
160
160
160
27
27
27
27
32
40
40
40
40
40
40
40
40
40
40
60
60
60
60
60
60
60
60
120
120
120
120
120
120
120
120
120
2.5
2.5
1.5
1.5
1.5
10.0
5.0
2.7
2.7
2.7
2.5
1.5
1.5
1.5
1.5
10.0
5.0
2.7
2.7
2.5
1.5
1.5
1.5
20.0
20.0
10.0
5.6
5.3
5.0
3.0
3.0
3.0
195
200
200
195
195
35
60
60
90
95
210
135
155
200
200
35
60
55
90
195
135
145
195
75
35
60
55
90
120
135
145
200
297
300
300
297
297
52
90
90
135
142
315
182
210
275
275
52
90
82
135
287
182
202
215
112
52
90
82
135
162
182
202
275
400
400
400
400
400
70
120
120
180
190
420
230
265
350
350
70
120
110
180
390
230
250
235
150
70
120
110
180
205
230
250
350
()
20
20
20
20
25
180
90
65
40
35
30
30
25
15
29
250
125
90
45
40
40
30
25
850
500
250
180
90
75
60
60
50
-55 °C +85 °C +175 °C
-55
-55
-75
-75
-85
-30
-30
-35
-35
-35
-50
-50
-70
-70
-70
-30
-30
-35
-35
-40
-40
-60
-60
-30
-30
-30
-35
-35
-40
-40
-60
-60
+20
+20
+20
+20
+20
+20
+20
+10
+10
+10
+20
+20
+20
+20
+20
+20
+20
+10
+10
+20
+20
+20
+20
+20
+20
+20
+10
+10
+20
+20
+20
+20
+35
+35
+35
+35
+35
+20
+20
+20
+20
+20
+35
+35
+35
+35
+35
+20
+20
+20
+20
+35
+35
+35
+35
+20
+20
+20
+20
+20
+35
+35
+35
+35
40 V
DC
AT +85 °C
50 V
DC
AT +85 °C
60 V
DC
AT +85 °C
90 V
DC
AT +85 °C
180 V
DC
AT +85 °C
Note
• Part number definitions:
(1) Tolerance code:
T = -15 % to +50 % (standard for XTK, XTM, XTV)
U = -15 % to +75 % (standard for XTH, XTL)
M = ± 20 % (available by special order)
Revision: 03-Apr-18
Document Number: 42077
3
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
XTH, XTK, XTL, XTM, XTV
www.vishay.com
Vishay
SIZE
MAX.
RIPPLE
120 Hz
APPROX.
RMS
D
H
WEIGHT
-55 °C +0.031 +0.062
TO
-0.015 -0.062
+175 °C
(g)
28
31
62
81
100
104
160
202
37
41
80
105
126
133
98
130
152
164
114
154
178
196
133
179
204
225
(mA)
112
179
266
320
339
339
608
608
108
175
258
314
323
323
262
318
315
315
250
306
309
309
249
308
306
306
0.656 1.031 XTK255(1)270P0A
0.656 1.375 XTM505(1)270P0A
0.875 1.270 XTL805(1)270P0A
0.875 1.865 XTH166(1)270P0A
1.125 1.350 XTV286(1)270P0A
1.125 1.350 XTV406(1)270P0A
1.125 2.812 XTV756(1)270P0A
1.125 2.812 XTV157(1)270P0A
0.656 1.312 XTK205(1)360P0A
0.656 1.781 XTM405(1)360P0A
0.875 1.635 XTL605(1)360P0A
0.875 2.420 XTH126(1)360P0A
1.125 1.705 XTV226(1)360P0A
1.125 1.705 XTV306(1)360P0A
0.875 2.000 XTL505(1)450P0A
0.875 2.980 XTH106(1)450P0A
1.125 2.080 XTV176(1)450P0A
1.125 2.080 XTV256(1)450P0A
0.875 2.365 XTL405(1)540P0A
0.875 3.532 XTH805(1)540P0A
1.125 2.435 XTV146(1)540P0A
1.125 2.435 XTV206(1)540P0A
0.875 2.720 XTL355(1)630P0A
0.875 4.062 XTH705(1)630P0A
1.125 2.810 XTV126T630P0A
1.125 2.810 XTV186(1)630P0A
STANDARD RATINGS AND DIMENSIONS
MAX.
WORKING
VOLTAGE
MAX. DCL AT
MAX. V
DC
(μA)
MAX.
Z
-55 °C
MAX. % CAP.
CHANGE FROM
ROOM TEMP.
CAPACITANCE
TYP.
ESR
PART
NUMBER
(μF)
2.5
5.0
8.0
16
28
40
75
150
2.0
4.0
6.0
12
22
30
5.0
10
17
25
4.0
8.0
14
20
3.5
7.0
12
18
+125 °C +175 °C () +85 °C +125 °C +175 °C
240
240
240
240
240
240
240
240
320
320
320
320
320
320
400
400
400
400
480
480
480
480
560
560
560
560
180
180
180
180
180
180
180
180
240
240
240
240
240
240
300
300
300
300
360
360
300
300
420
420
420
420
30.0
15.0
8.3
8.3
7.5
7.5
4.5
4.5
40.0
20.0
11.0
11.0
10.0
10.0
13.0
13.0
12.5
12.5
16.6
16.6
15.0
15.0
18.9
18.9
17.5
17.5
35
55
55
90
120
135
145
195
35
60
55
90
125
135
55
90
125
135
55
90
120
135
55
90
120
135
52
82
82
135
162
182
202
215
52
90
82
135
170
182
82
135
170
182
82
135
162
182
82
135
162
182
70
110
110
180
205
230
250
235
70
120
110
180
215
230
110
180
215
230
110
180
205
230
110
180
205
230
()
750
375
270
135
80
100
90
75
1000
500
360
180
100
120
450
225
130
150
540
270
160
170
630
315
180
200
-55 °C +85 °C +175 °C
-30
-30
-35
-35
-40
-40
-60
-60
-30
-30
-35
-35
-40
-40
-35
-35
-40
-40
-35
-35
-40
-40
-35
-35
-40
-40
+20
+20
+10
+10
+20
+20
+20
+20
+20
+20
+10
+10
+20
+20
+10
+10
+20
+20
+10
+10
+20
+20
+10
+10
+20
+20
+20
+20
+20
+20
+35
+35
+35
+35
+20
+20
+20
+20
+35
+35
+20
+20
+35
+35
+20
+20
+35
+35
+20
+20
+35
+35
270 V
DC
AT +85 °C
360 V
DC
AT +85 °C
450 V
DC
AT +85 °C
540 V
DC
AT +85 °C
630 V
DC
AT +85 °C
Note
• Part number definitions:
(1) Tolerance code:
T = -15 % to +50 % (standard for XTK, XTM, XTV)
U = -15 % to +75 % (standard for XTH, XTL)
M = ± 20 % (available by special order)
Revision: 03-Apr-18
Document Number: 42077
4
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
XTH, XTK, XTL, XTM, XTV
www.vishay.com
Vishay
STYLE B
STYLE C
0.3125 ± 0.0625
(+)
0.025 (+)
± 0.005
0.3125
± 0.0625
0.375
± 0.0625
Wire hole
0.094 ± 0.010

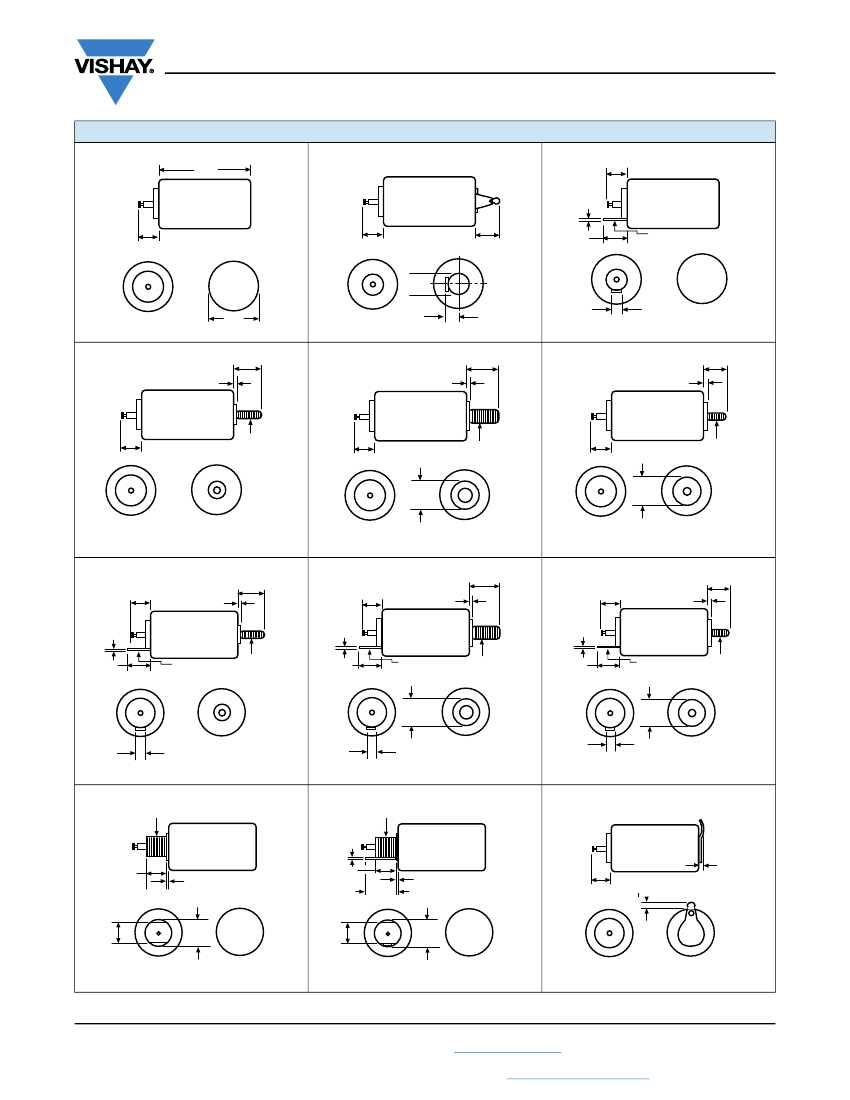

XTH-L-V STYLES
STYLE A
H
(+)
0.3125 ± 0.0625
0.4063
± 0.0625
Top
Top
Bottom
Top
0.4375
DIA.
Bottom
0.250
NOM.
Bottom
0.183
± 0.010
D
STYLE D
0.500 ± 0.0625
0.047
(+)
8-32UNC-2A
thread
STYLE E
0.5625 ± 0.0625
0.065 MAX.
(+)
STYLE F
0.385 MAX.
0.075 MAX.
(+)
0.3125 ± 0.0625
0.3125 ± 0.0625 1/4-20UNC-3A
thread
0.500
± 0.0625
DIA.
0.3125 ± 0.0625
8-32UNC-2A
thread
Top
Bottom
Top
Bottom
Top
0.500
DIA.
MAX.
Bottom
Negative screw lug is for indexing and
negative connection only
See Detail C in Mounting Methods table
for suggested mounting methods
See Detail D in Mounting Methods table
for suggested mounting method
STYLE G
0.500 ± 0.0625
0.3125 ± 0.0625
0.025 (+)
± 0.005
0.4063
± 0.0625
Top
Wire hole
0.094 ± 0.010
8-32UNC-2A
thread
0.047
STYLE H
0.3125 0.5625 ± 0.0625
± 0.0625
0.075 MAX.
0.025 (+)
± 0.005
Wire hole
1/4-20UNC-3A
0.094 ± 0.010 thread
0.500
± 0.0625
DIA.
STYLE J
0.3125
± 0.0625
0.025 (+)
± 0.005
Wire hole
0.094 ± 0.010
0.500
DIA.
MAX.
8-32UNC-2A
thread
0.385 MAX.
0.075 MAX.
0.4063
± 0.0625
0.4063
± 0.0625
Bottom
Negative screw lug is for
index and negative
connection only
Top
Bottom
Top
Bottom
0.183
± 0.010
0.183
± 0.010
See Detail C in Mounting
Methods table for suggested
mounting methods
0.183
± 0.010
See Detail D in Mounting
Methods table for suggested
mounting methods
STYLE K
1/2-20UNF-2A THREAD
(+)
STYLE L
1/2-20UNF-2A THREAD
0.025 (+)
± 0.015
0.375
± 0.015
0.590
± 0.015
Top
0.500
± 0.010
Bottom
0.375
+0.007
-0.005
See Detail B and E in Mounting Methods table
for suggested mounting methods
0.500
± 0.010
Bottom
STYLE M
(+)
0.060
MAX.
0.375
± 0.015
Top
0.030 ± 0.020 XTH-XTL
0.060 ± 0.020 XTV
0.030 ± 0.020 XTH-XTL
0.060 ± 0.020 XTV
0.3125 ± 0.0625
0.125 MAX.
Top
Bottom
0.375
+0.007
-0.005
See Details B and E in Mounting Methods table
for suggested mounting methods
* Extends 0.125 on 0.875 DIA. units only
Revision: 03-Apr-18
Document Number: 42077
5
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
