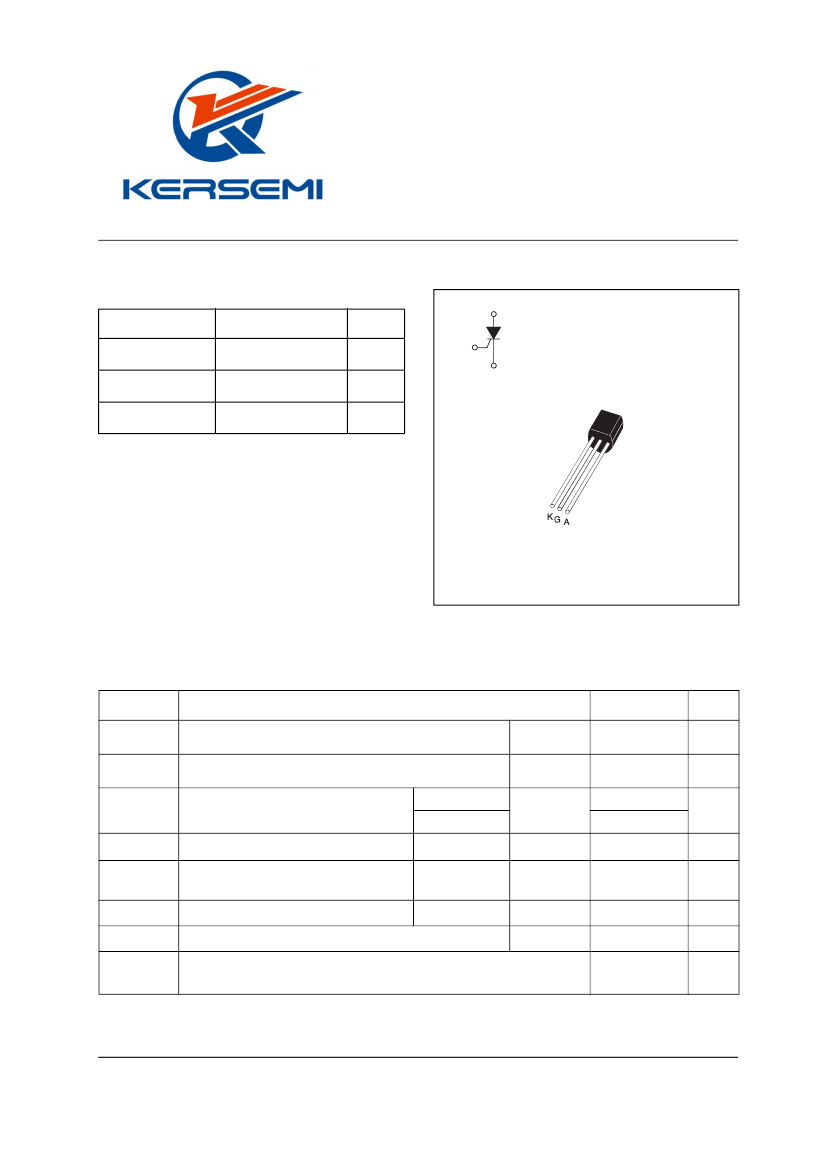

P0130AA
0.8A SCRs
MAIN FEATURES:
A
Symbol
I
T(RMS)
V
DRM
/V
RRM
I
GT
Value
0.8
100
1
Unit
A
V
µA
G
K
DESCRIPTION
The P0130AA is a gate sensitive SCR, packaged
in TO-92, used in conjunction of a TN22 A.S.D™
and of a resistor in electronic starter for fluores-
cent tubelamps.
TO-92
ABSOLUTE RATINGS
(limiting values)
Symbol
I
T(RMS)
IT
(AV)
I
TSM
Parameter
RMS on-state current (180° conduction angle)
Average on-state current (180° conduction angle)
Non repetitive surge peak on-state current
tp = 8.3 ms
Tj = 25°C
tp = 10 ms
I
²
t
dI/dt
I
GM
P
G(AV)
T
stg
Tj
I
²
t Value for fusing
Critical rate of rise of on-state current
I
G
= 2 x I
GT
, tr
≤
100 ns
Peak gate current
Average gate power dissipation
Storage junction temperature range
Operating junction temperature range
tp = 10ms
F = 60 Hz
tp = 20 µs
Tj = 25°C
Tj = 125°C
Tj = 125°C
Tj = 125°C
7
0.24
50
1
0.1
- 40 to + 150
- 40 to + 125
A
2
S
A/µs
A
W
°C
Tl = 55°C
Tl = 55°C
Value
0.8
0.5
8
A
Unit
A
A
资料提供：可控硅在线 ½½½½：／／½½½．½½½．½½½．½½
1/5
www.kersemi.com
P0130AA
ELECTRICAL CHARACTERISTICS
(Tj = 25°C, unless otherwise specified)
Symbol
I
GT
V
D
= 12 V
V
GT
V
GD
V
RG
I
H
I
L
dV/dt
V
TM
V
t0
R
d
I
DRM
I
RRM
V
D
= V
DRM
R
L
= 3.3 kΩ R
GK
= 1 kΩ
I
RG
= 10 µA
I
T
= 50 mA
I
G
= 1 mA
I
TM
= 1.6 A
R
GK
= 1 kΩ
R
GK
= 1 kΩ
R
GK
= 1 kΩ
Tj = 125°C
Tj = 25°C
Tj = 125°C
Tj = 125°C
Tj = 25°C
Tj = 125°C
tp = 380 µs
Tj = 125°C
R
L
= 140
Ω
Test Conditions
MIN.
MAX.
MAX.
MIN.
MIN.
MAX.
MAX.
MIN.
MAX.
MAX.
MAX.
MAX.
MAX.
P0130AA
0.1
1
0.8
0.1
8
5
6
25
1.95
0.95
600
1
100
µA
V
V
V
mA
mA
V/µs
V
V
mΩ
µA
Unit
V
D
= 67 % V
DRM
Threshold voltage
Dynamic resistance
V
DRM
= V
RRM
R
GK
= 1 kΩ
THERMAL RESISTANCES
Symbol
R
th(j-i)
R
th(j-a)
Junction to case (DC)
Junction to ambient (DC)
Parameter
Value
80
150
Unit
°C/W
°C/W
PRODUCT SELECTOR
Part Number
P0130AA
Voltage
100V
Sensitivity
1 µA
Package
TO-92
2/5
资料提供：可控硅在线 ½½½½：／／½½½．½½½．½½½．½½
www.kersemi.com
P0130AA
ORDERING INFORMATION
P 01 30
SENSITIVE
SCR
SERIES
CURRENT: 0.8A
A A
VOLTAGE:
A: 100V
Blank
1EA3
PACKING MODE:
1EA3: TO-92 bulk
2AL3: TO-92 ammopack
PACKAGE:
A: TO-92
SENSITIVITY:
30: 1µA
OTHER INFORMATION
Part Number
P0130AA 1EA3
P0130AA 2AL3
Marking
P0130AA
P0130AA
Weight
0.2 g
0.2 g
Base Quantity
2500
2000
Packing mode
Bulk
Ammopack
Note:
xx = sensitivity, y = voltage
Fig. 1:
Maximum average power dissipation
versus average on-state current.
P(W)
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0.0
Fig. 2-1:
Average and D.C. on-state current
versus lead temperature.
IT(av)(A)
0.1
0.2
0.3
0.4
0.5
0.6
1.1
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
Tlead or Ttab (°C)
0
25
50
75
100
125
Fig. 2-2:
Average and D.C. on-state current
versus ambient temperature.
1.2
1.1
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
Fig. 3:
Relative variation of thermal impedance
junction to ambient versus pulse duration.
K = [Zth(j-a)/Rth(j-a)]
1.00
IT(av)(A)
0.10
Tamb(°C)
0
25
50
75
100
125
0.01
1E-2
1E-1
tp(s)
1E+0
1E+1
1E+2
5E+2
资料提供：可控硅在线 ½½½½：／／½½½．½½½．½½½．½½
3/5
www.kersemi.com
P0130AA

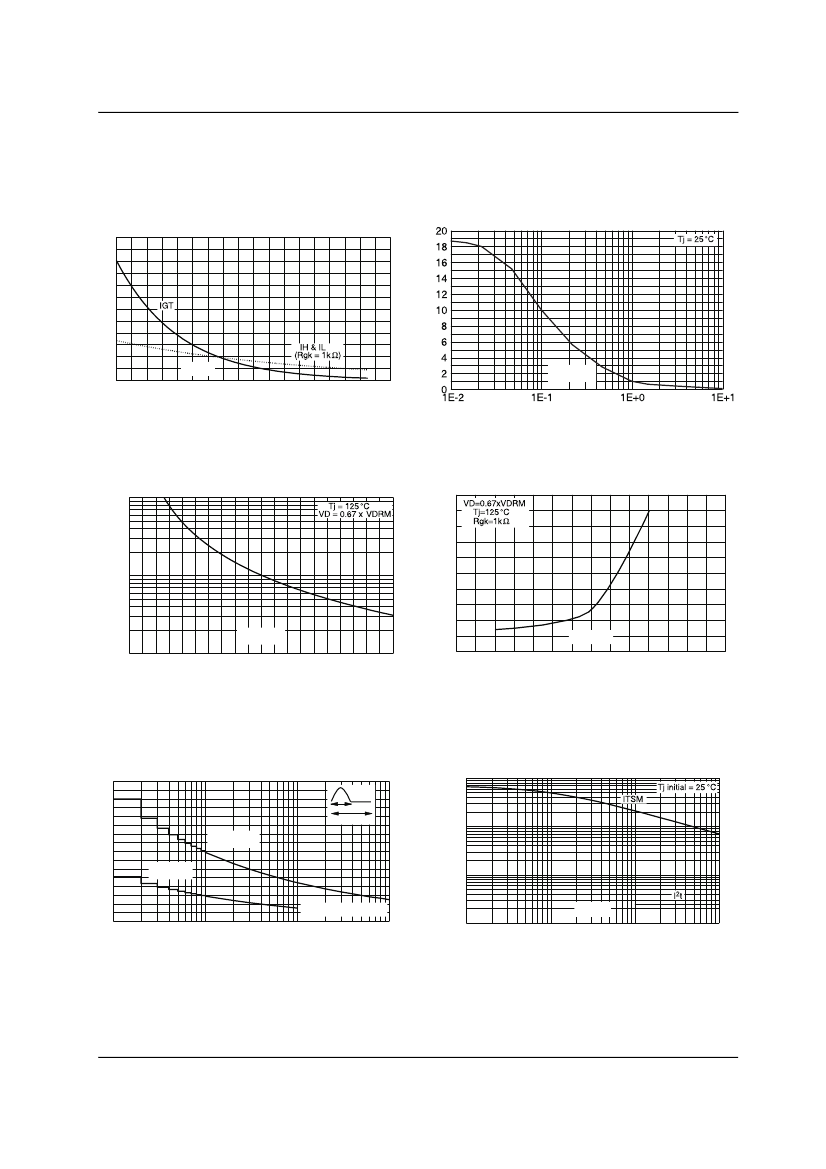

Fig. 4:
Relative variation of gate trigger current,
holding current and latching current versus
junction temperature (typical values).
IGT, IH, IL[Tj] / IGT, IH, IL[T] = 25°C
Fig. 5:Relative
variation of holding current versus
gate-cathode resistance (typical values).
IH[Rgk]/IH[Rgk=1k
Ω
]
6
5
4
3
2
1
Tj(°C)
0
-40
Rgk(kΩ)
-20
0
20
40
60
80
100
120
140
Fig. 6:
Relative variation of dV/dt immunity
versus gate-cathode resistance (typical values).
dV/dt[Rgk] / dV/dt[Rgk=1k
Ω
]
Fig. 7:
Relative variation of dV/dt immunity
versus gate-cathode capacitance (typical values).
dV/dt[Cgk] / dV/dt[Rgk=1k
Ω
]
10.0
10
8
6
1.0
4
2
Rgk(kΩ)
Cgk(nF)
0.1
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
0
0
1
2
3
4
5
6
7
Fig. 8:
Surge peak on-state current versus
number of cycles.
Fig. 9:
Non-repetitive surge peak on-state
current for a sinusoidal pulse with width
tp < 10 ms, and corresponding value of I²t.
ITSM(A), I
2
t(A
2
s)
ITSM(A)
8
7
tp=10ms
100.0
6
5
4
3
2
1
0
1
10
Repetitive
Tamb=25°C
Non repetitive
Tj initial=25°C
Onecycle
10.0
1.0
Numberofcycles
100
1000
0.1
0.01
0.10
tp(ms)
1.00
10.00
4/5
资料提供：可控硅在线 ½½½½：／／½½½．½½½．½½½．½½
www.kersemi.com
P0130AA
Fig. 10:
On-state characteristics (maximum
values).
ITM(A)
1E+1
Ω
1E+0
1E-1
VTM(V)
1E-2
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
