MUR840 THRU MUR8100 SPECIFICATIONS
Rev. A
8 Amp Ultra Fast Glass Passivated Rectifier 400 to 1000 Volts
PRODUCT FEATURES
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
FLAMMABILITY CLASSIFICATION: 94V-0
GLASS PASSIVATED CHIP JUNCTION
LOW LEAKAGE
HIGH SURGE CURRENT CAPABILITY
ULTRA FAST SWITCHING

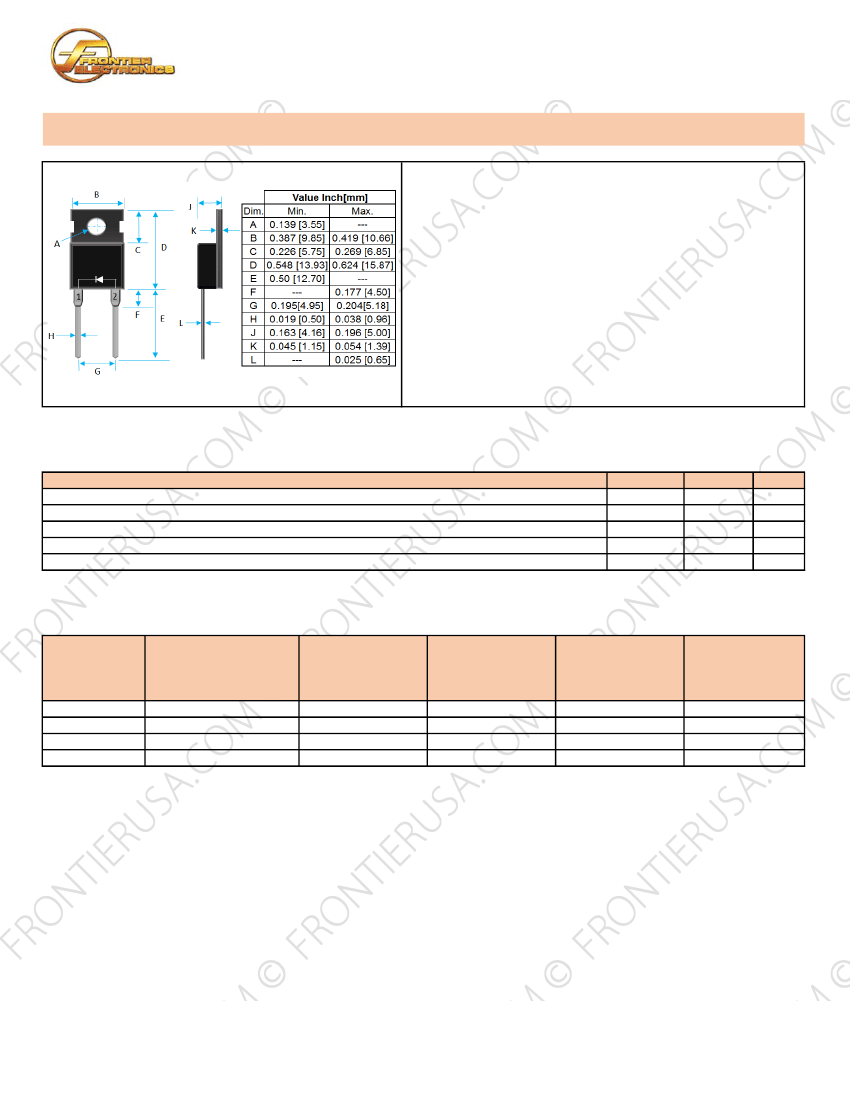

CASE: TRANSFER MOLDED, TO-220AC
POLARITY: AS MARKED
WEIGHT: 2.05 GRAMS
LEADS: SOLDERABILITY PER MIL-STD-202 METHOD 208
RoHS/HALOGEN FREE
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE
SPECIFIED STORAGE AND OPERATING TEMPERATURE RANGE -55°C TO +150°C. SINGLE PHASE, HALF WAVE, 60 HZ,
RESISTIVE OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD, DERATE CURRENT BY 20%.
RATINGS
MAXIMUM AVERAGE FORWARD RECTIFIED CURRENT SEE FIG.1
PEAK FORWARD SURGE CURRENT, 8.3ms SINGLE HALF SINE-WAVE SUPERIMPOSED ON RATED LOAD P
TYPICAL THERMAL RESISTANCE JUNCTION TO CASE PER LEG
MAXIMUM REVERSE CURRENT @ 25℃ (NOTE 1)
MAXIMUM REVERSE CURRENT @ 125
℃
(NOTE 1)
SYMBOL
I
O
I
FSM
R
θjc
I
R
I
R
VALUE
8.0
125
2.2
10
500
UNITS
A
A
℃/W
uA
uA
1. PULSE TEST: 300μS PULSE WIDTH, 1% DUTY CYCLE.
3. MAXIMUM FORWARD VOLTAGE @ I
o
DC
2. REVERSE RECOVERY TEST CONDITIONS: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
MAX REVERSE
MAX RECURRENT PEAK MAX RMS VOLTAGE MAX DC BLOCKING MAX FWD VOLTAGE
RECOVERY TIME
PART NUMBER
REV VOLTAGE V
RRM
(V)
V
RMS
(V)
VOLTAGE V
DC
(V)
V
F
(V)
T
RR
(nS)
MUR840
MUR860
MUR880
MUR8100
400
600
800
1000
280
420
560
700
400
600
800
1000
1.3
1.5
1.7
1.7
50
75
75
75
Frontier Electronics Corp.®
http://frontierusa.com/
1
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
MUR840 THRU MUR8100 SPECIFICATIONS
Rev. A

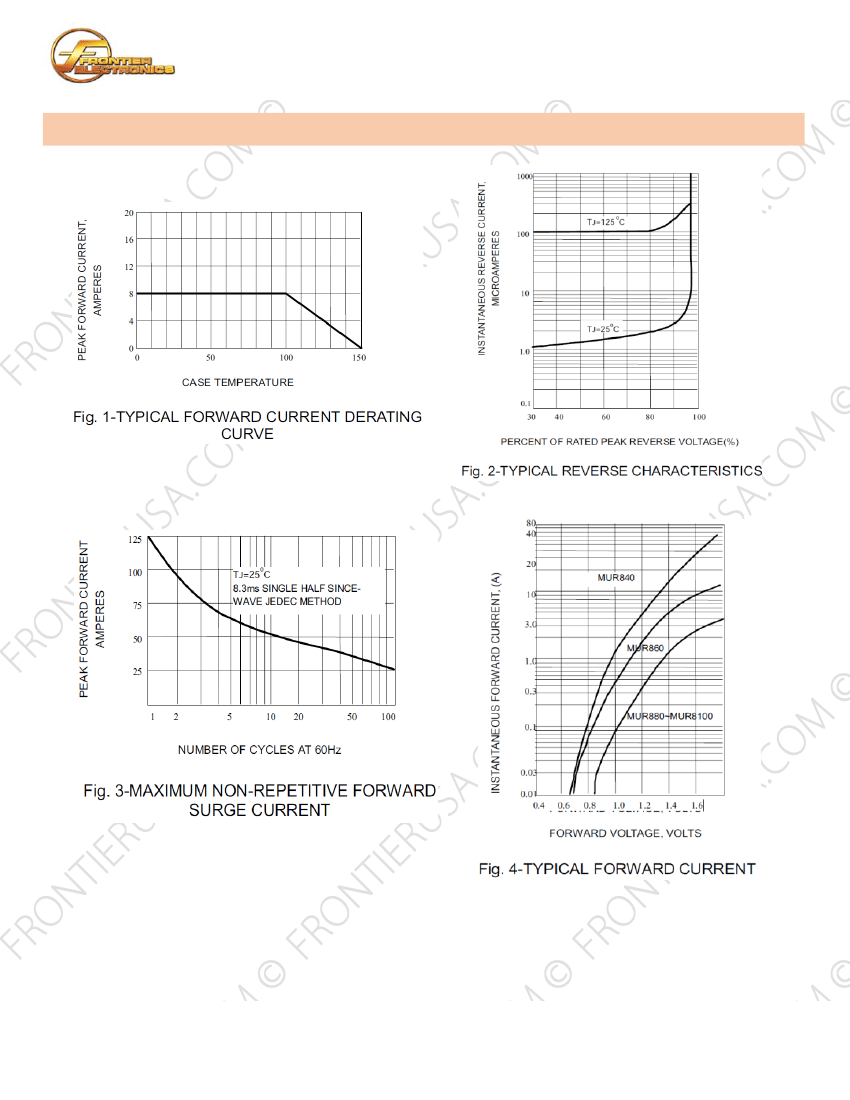

RATING AND CHARACTERISTIC CURVES
Frontier Electronics Corp.®
http://frontierusa.com/
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
