POE100US56 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > POE100US56

Preview

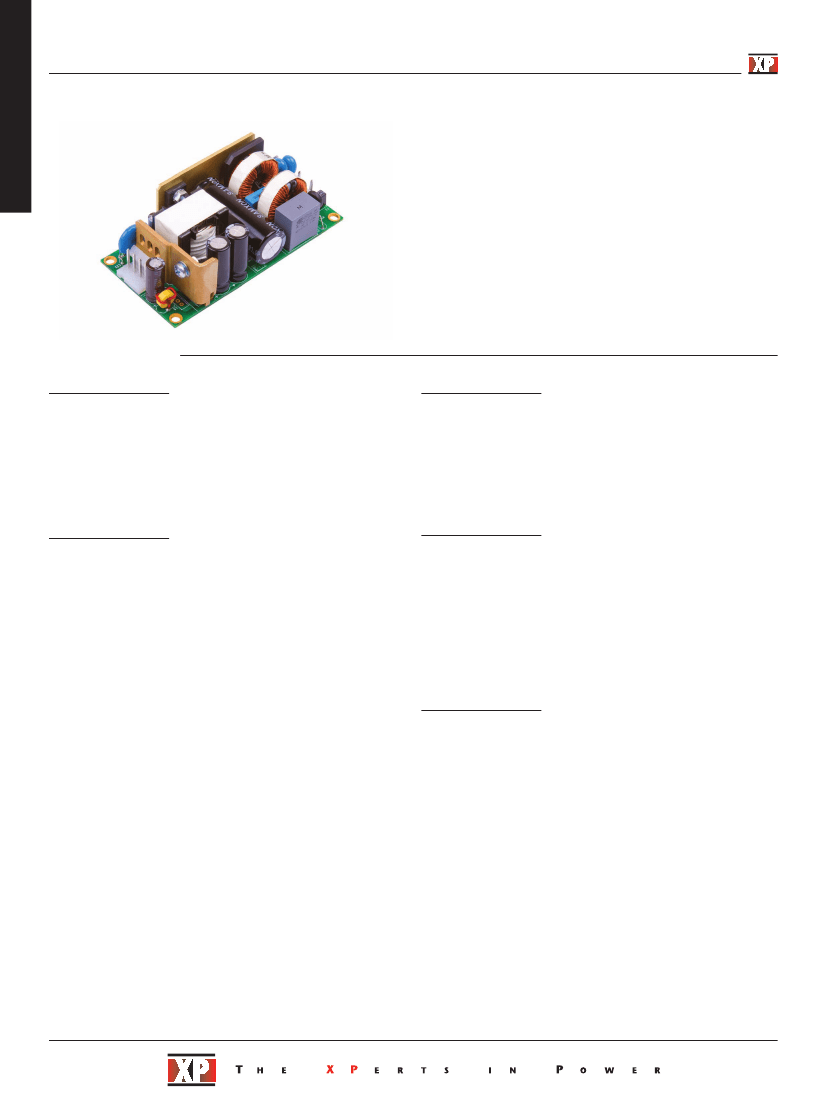

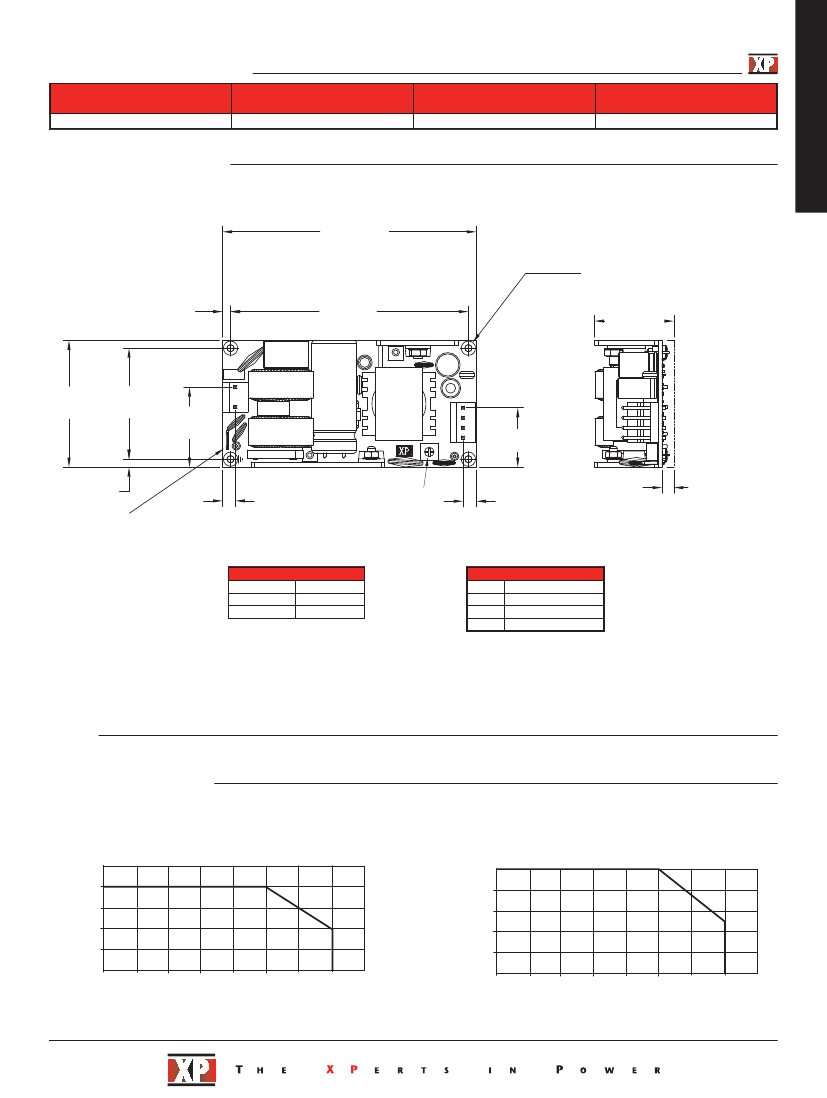

POE100US56: DescriptionPower Over Ethernet Compatible; File Size156KB，2 Pages; ManufacturerXP Power; Websitehttps://www.xppower.com/

Download Datasheet Compare View All

POE100US56 Overview

Power Over Ethernet Compatible

Preview

Download Datasheet

View All

AC DC

100 Watts

POE Series

•

Compact 2” x 4” x 1.2” Size

xppower.com

Power Over Ethernet Compatible

High Power Density

10.4 W/in

Level B Conducted Emissions

EN61000 3 2, 3 Compliant

Fits 1U Applications

Convection cooled & Fan cooled Ratings

Specification

Input

• 90-264 VAC (120-370 VDC)

• 47-63 Hz; 440 Hz

• 1.8 A max at 115 VAC

1.1 A max at 230 VAC

Inrush

Current

• 40 A max at 230 VAC

Earth Leakage Current

• <1 mA at 264 VAC/60 Hz

Input Protection

• Internal 3.15 A fuse in line and neutral

Input Voltage

Input Frequency

Input Current

General

Efficiency

Isolation

• Typically 85%

• 4000 VAC Input to Output

1500 VAC Input to Ground

1500 VAC Output to Ground

• 55 kHz typical

• 10.4 W/In

• 250 kHrs per MIL-HDBK-217F

Switching Frequency

Power Density

MTBF

Output

Output Voltage

Output Voltage Trim

Initial Set Accuracy

Minimum Load

Start Up Delay

Start Up Rise Time

Hold Up Time

Line Regulation

Load Regulation

Over/Undershoot

Transient Response

•

See table

±5%

±1.0%

No minimum load required

2 s max

50 ms

16/75 ms min at 115/230 VAC

±0.5%

±1%

None at turn on/off

4% max. deviation, recovery to

within 1% in 500 µs for a 50-75-50%

load change

1% pk-pk, 20 MHz bandwidth

115-135% Vnom, recycle input to reset

110-150% on primary power limit,

auto recovery

Trip and restart (Hiccup mode)

0.05%/°C

Environmental

Operating Temperature

• 0 °C to +70 °C. Refer to derating curves

for specific operating limitations.

Cooling

• Convection & fan-cooled ratings

(see derating curves)

Operating Humidity

• 95% RH, non-condensing

Storage Temperature

• -40 °C to +85 °C

Operating Altitude

• 3000 m

Shock

• 30 g pk, half sine, 6 axes

Vibration

• 2 g rms, 5 Hz to 500 kHz, 3 axes

EMC & Safety

Emissions

Harmonic Currents

Voltage Flicker

ESD Immunity

Radiated Immunity

EFT/Burst

Surge

Conducted Immunity

Dips & Interruptions

EN55022 & EN55011, level B conducted

EN61000-3-2

EN61000-3-3

EN61000-4-2, level 2 Perf Criteria A

EN61000-4-3, level 3 Perf Criteria A

EN61000-4-4, level 3 Perf Criteria A

EN61000-4-5, installation class 3

Perf Criteria A

• EN61000-4-6, level 3 Perf Criteria A

• EN61000-4-11, 30% 10 ms,

60% 100 ms, 100% 5000 ms

Perf Criteria A, B, B

• UL60950-1

•

Ripple & Noise

•

Overvoltage Protection

•

Overload Protection

•

Short Circuit Protection

•

Temperature

•

Coefficient

Safety Approvals

POE100US56 Related Products

	POE100US56	POE
