Photoelectric sensors

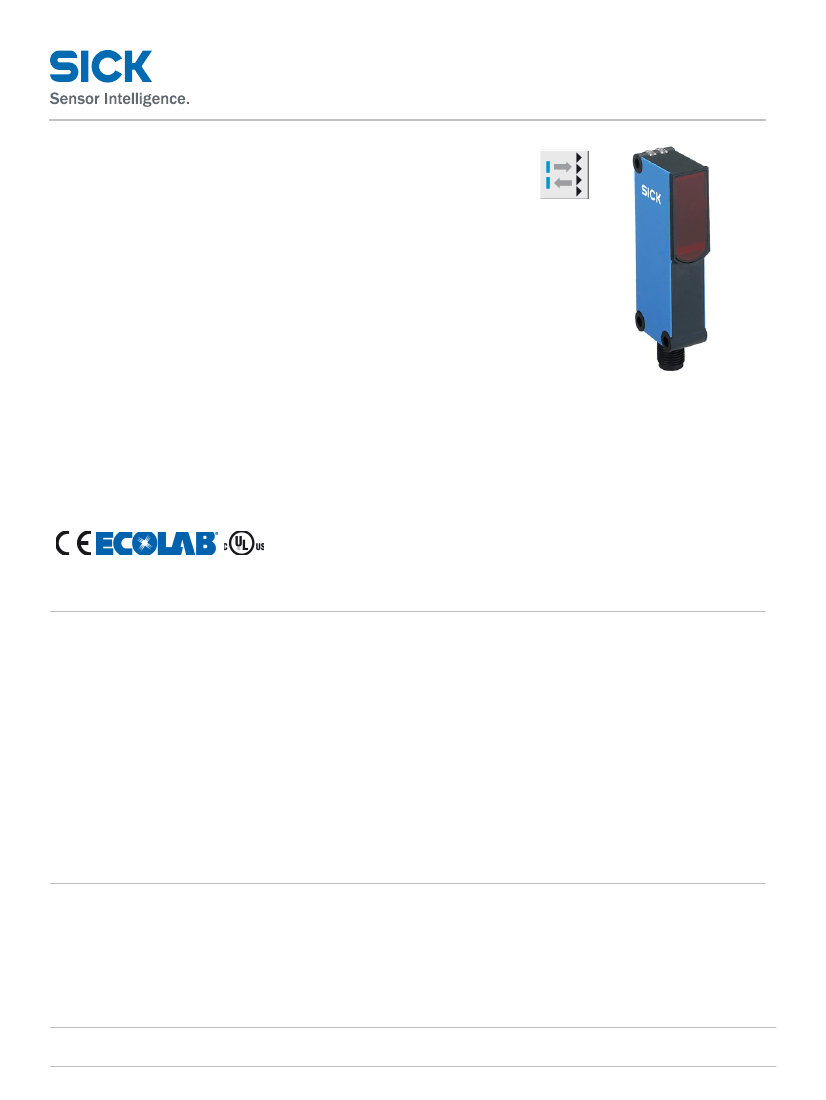

W18-3, Photoelectric retro-reflective sensor, autocollimation
Type
Part No.
> WL18-3P630
> 1025912
At a glance
• Sender LED with visible red light
• Autocollimation optics with polarizing filter
• Sensitivity control via potentiometer
• Immune to ambient light
• Optional test input for system diagnostics
• Rugged plastic housing
Your benefits
• Fast installation due to highly visible red light saves time
• Reliable detection of shiny objects without a blind zone due to autocollimation
optics and a polarizing filter
• Quick and easy sensing range adjustment due to 270° potentiometer
• Crosstalk and ambient light immunity reduce false readings and downtime
• Reliable availability in the field
Illustration may differ
Features
Sensor/detection principle:
Dimensions (W x H x D):
Housing design (light emission):

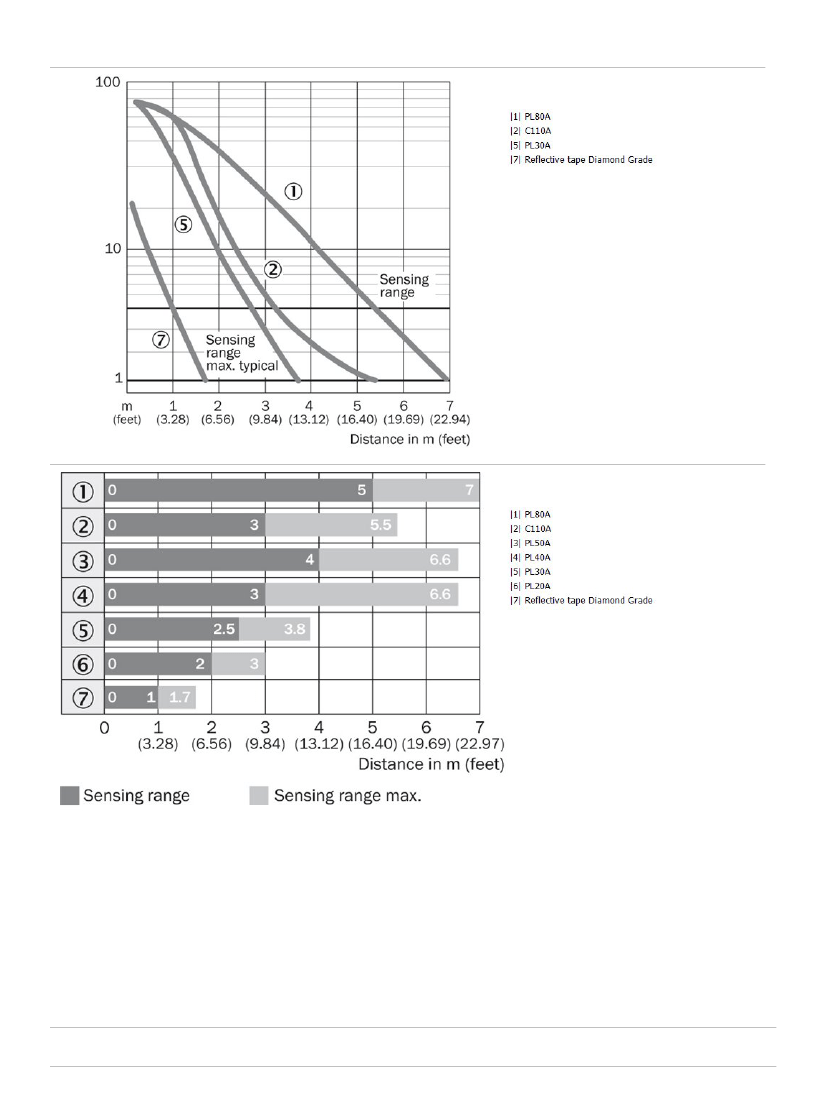

Sensing range max.:
Sensing range:
Type of light:
Light source:
Angle of dispersion:
Adjustment:
Light spot size (distance):
Continuous threshold adaption:
1) 2)
PL80A
3)
Average service life of 100,000 h at T = +25 °C
A
Photoelectric retro-reflective sensor, autocollimation
17.6 mm x 75.5 mm x 33.5 mm
Rectangular
1)
0 m ... 7 m
2)
0 m ... 5 m
Visible red light
3)
LED
1.8 °
Potentiometer, 1 turn
Ø 40 mm (2 m)
-
Mechanics/electronics
Supply voltage:
Ripple:
Power consumption:
Output type:
Switching mode:
10 V DC ... 30 V DC
2)
< 5 Vpp
3)
40 mA
PNP
Light/dark switching
1)
Photoelectric sensorsAAAAAAAAAAAAA© SICK AG. Subject to change without notice.AAAAAAAAAAAAA3/8/2016 3:48:12 AM
Output current Imax.:
Response time:
Switching frequency:
Connection type:
Circuit protection:::
Weight:
Polarisation filter:
Housing material:
Optics material:
Enclosure rating:
Test input sender off:
Test input:
Ambient operating temperature:
Ambient storage temperature:
UL File No.:
1)
100 mA
4)
< 500 µs
5)
1,000 Hz

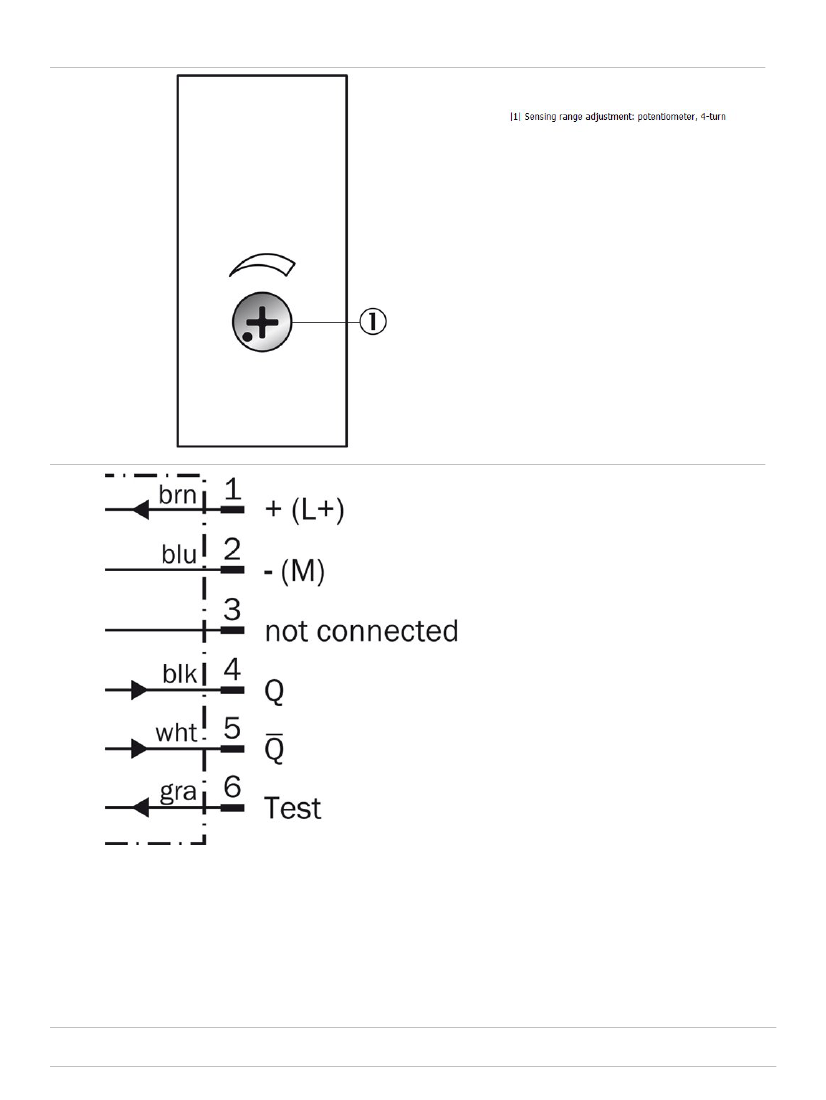

Cubic connector, 6-pin
6) 7) 8)
A, C, D
70 g
ü
ABS, Plastic
PMMA
IP 65
TE to 0 V
ü
-40 °C ... +60 °C
-40 °C ... +75 °C
NRKH.E181493 & NRKH7.E181493
2)
3)
4)
Limit values, operation in short-circuit protected network max. 8 A
May not exceed or fall short of V tolerances
Without load
Signal transit time with resistive
S
5)
6)
7)
8)
load
With light/dark ratio 1:1
A = V connections reverse-polarity protected
C = interference suppression
D = outputs overcurrent and short-circuit
S
protected

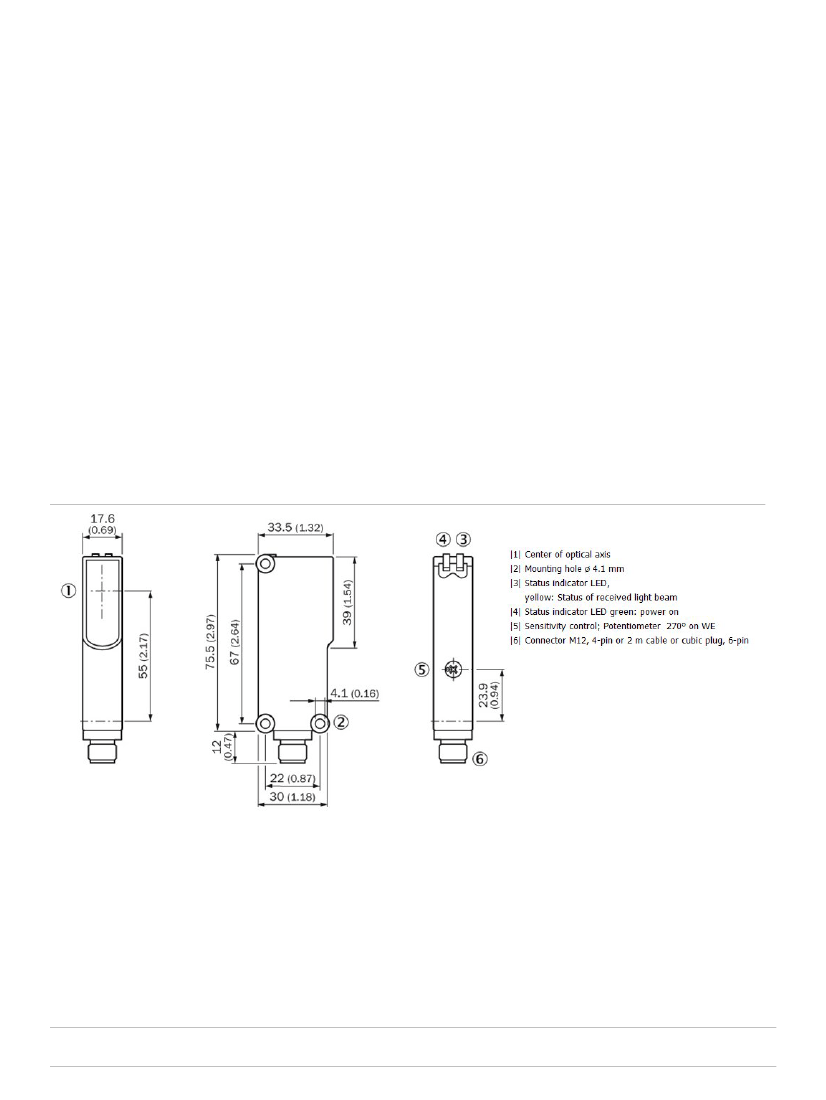

Dimensional drawing
Photoelectric sensorsAAAAAAAAAAAAA© SICK AG. Subject to change without notice.AAAAAAAAAAAAA3/8/2016 3:48:12 AM
