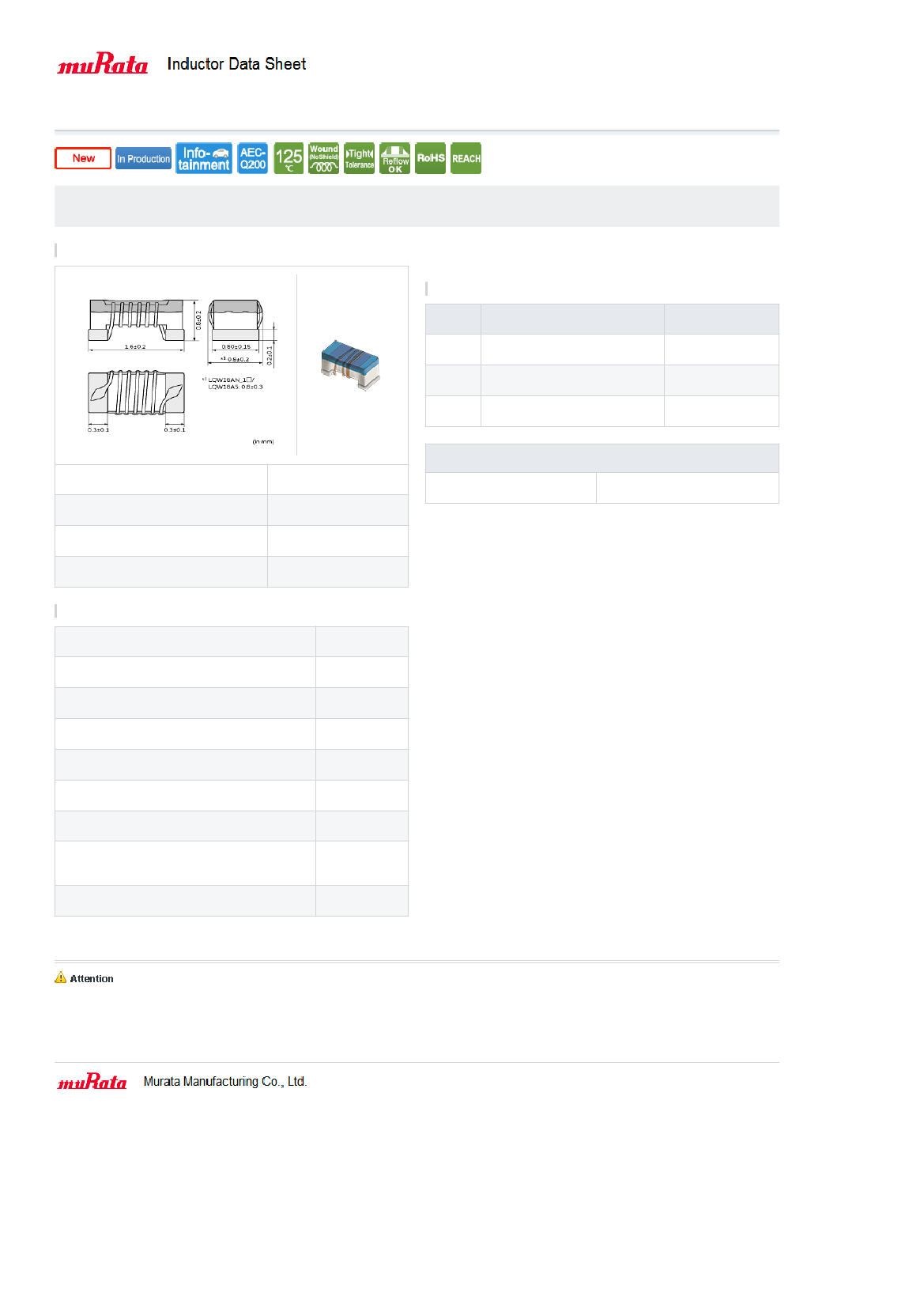

LQW18AS22NG0Z

Description
Inductance
File Size57KB,1 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Download Datasheet Compare View All

LQW18AS22NG0Z Overview

Inductance

LQW18AS22NG0Z#
# indicates a package specification code.
< List of part numbers with package codes >
LQW18AS22NG0ZD , LQW18AS22NG0ZJ , LQW18AS22NG0ZB
Shape
References
Packaging
code
Specifications
φ180mm Paper taping
φ330mm Paper taping
Packing in bulk
Minimum quantity
4000
10000
500
Mass (Typ.)
L size
W size
T size
Size code in inch (mm)
1.6 ±0.2mm
0.8 ±0.3mm
0.8 ±0.2mm
0603 (1608)
1 piece
0.003½
Specifications
Inductance
Inductance test frequency
Rated current (Itemp) (Based on Temperature rise)
Max. of DC resistance
Q (min.)
Q test frequency
Self resonance frequency (min.)
Operating temperature range (Self-temperature rise is
included)
Class of magnetic shield
22nH ±2%
250MHz
700mA
0.19Ω
38
250MHz
3000MHz
-40∼125℃
No magnetic shield
1 of 1
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : http://www.murata.com/
Last updated: 2016/01/11
