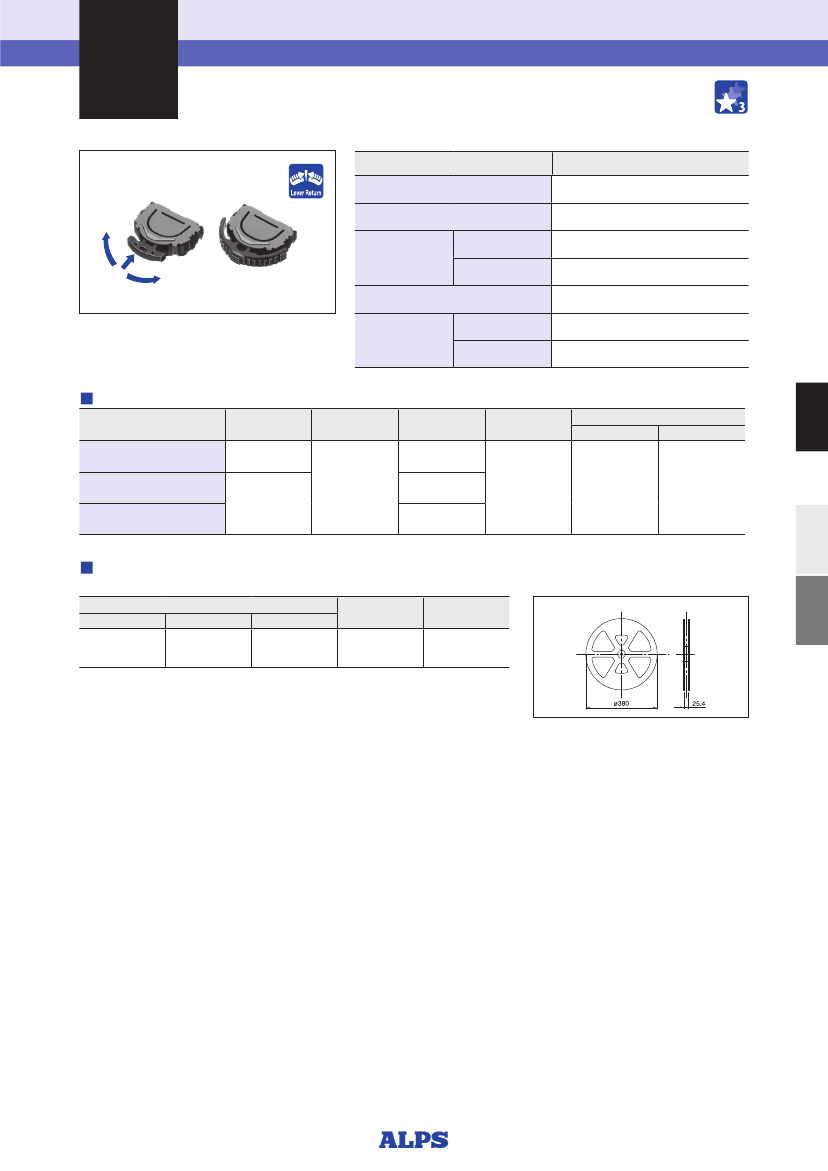

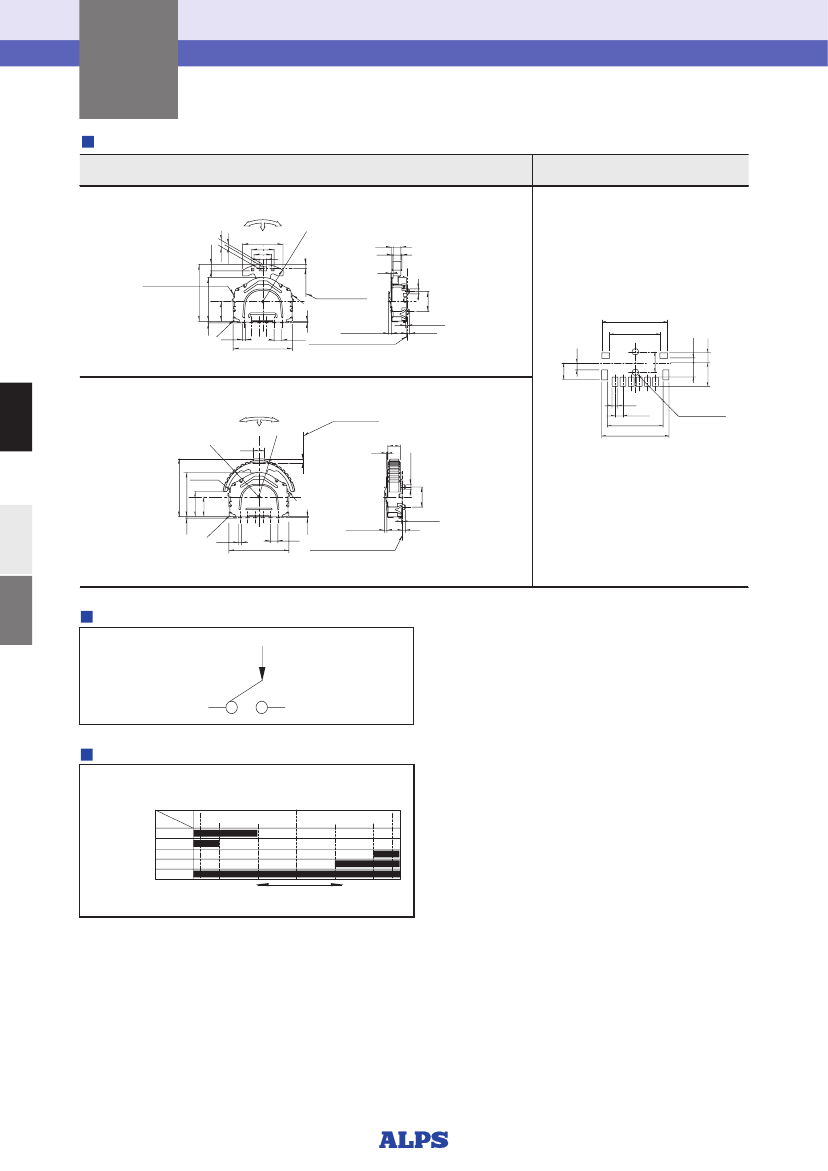

SLLB
Lever and Push Operation Type Switch
Compact and low-profile horizontal type for various applications
■
Typical Specifications
Items
Rating（max.） min.）
（
/
（Resistive load）
Output voltage
Operating force
Lever portion
Push portion
Specifications
10mA 5V DC/50μA 3V DC
1V max. at 1mA 5V DC（Resistive load）
0.65±0.3N
2±1N
Refer to the dimensions.
100,000 cycles
100,000 cycles（10mA 5V DC）
Travel（Push operation）
Operating life
Without load
With load
Product Line
Product No.
SLLB120100
SLLB120200
SLLB120300
Multi Control
Devices
Actuator
configuration
Standard type
Mounting knob
Standard type
Mounting knob
integrated
Push-on
switch
Actuator
color
Black
Location lug
Minimum order unit（pcs.）
Japan
Export
With
Gray
Black
With
1,350
5,400
Variable
Resistor Type
Packing Specifications
Taping
Number of packages
（pcs.）
1 reel
1 case / Japan 1 case / export packing
1,350
2,700
5,400
Unit:mm
Switch
Type
Tape width
（mm）
24
Export package
measurements（mm）
428×413×
172
Reel size
Refer to P.461 for soldering conditions.
457
SLLB
Lever and Push Operation Type Switch
Dimensions
Style
Mounting knob
with push-on switch
R7
.4
PC board mounting hole and land dimensions
（Viewed from switch mounting face）
Unit:mm
CCW
1.3
1.3
0.5
Push
8
4.5
3.5
1.5
CW
0.35
0.2
0.1
Travel
Push portion
3
1.5
0.2
11.3
8.7
3.9
ø1
4
Ground terminal
(0.85)
C
0.2
0.3
1.4
11.8
3.25
4
2.9
6-1
P=1.5
10.5
12.5
0.8
Mounting knob integrated
with push-on switch
（0.85）
CCW
Push
CW
Travel
Push portion
0.1
2.5
ø1
2-ø1.1 hole
2.2
11.4
8.7
4.9
3.9
Ground
terminal
R7.5
C
.
R0
0.3
1 2T 3 4C
11.8
0.6
1.5
Circuit Diagram
（Push Portion）
PUSH
C
T
Code Table
Standard type
25˚
(21.5˚)
(11˚)
0˚
0.2
2
3
0.5 max.
Travel
PC board mounting face
0.35 max.
0.6
Code Table（■ ■=
ON）
■
Lever circuit
Angle
Terminal
1
2
3
4
C
25˚
(11˚)
(21.5˚)
CCW
CW
4
SLLB
458
4.5
1.8
.2
R0
0.6
1 2T
34C
0.5 max.
Travel
1.5 PC board mounting face
0.35 max.
0.6
12.2
9.6
Multi Control
Devices
Variable
Resistor Type
Switch
Type
.
R7
2

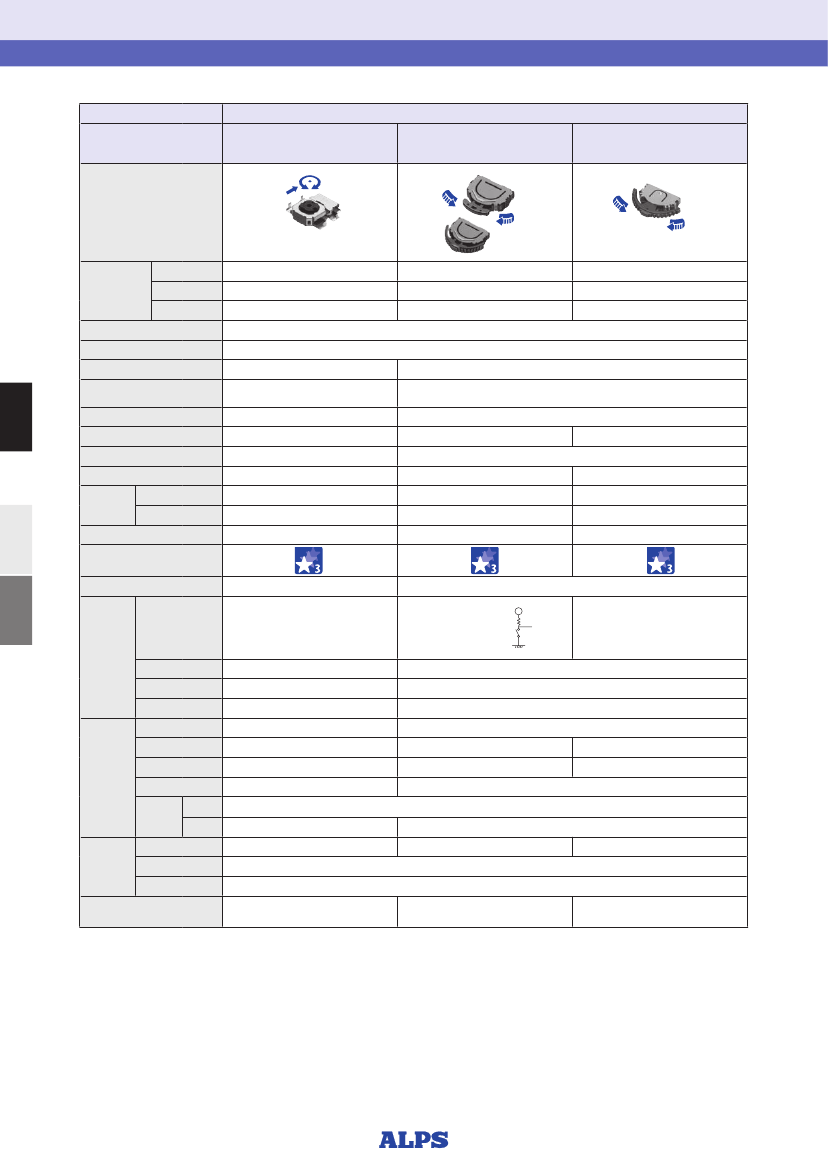

Multi Control Devices
List of Varieties
Type
Series
Switch type
SRBE
SLLB
Small type
SLLB5
Dimensions
（typical value）
（mm）
W
D
H
ー
ー
ー
1
1.8
8.7
3
Single-shaft
Resin
9.5
5.5
2.2
Number of operating shafts
Shaft material
Directional resolution
Directional operating feeling
（tactile feeling）
Lever return mechanism
Center-push switch
Encoder
Operating temperature range
Operating
life
Operating
life without load
Operating life with load
(at max. rated load)
Multi Control
Devices
Variable
Resistor Type
Switch
Type
ー
With
Without
With
With
−
10℃ to +60℃
100,000 cycles
ー
ー
−40℃ to +85℃
100,000 cycles
100,000 cycles
ー
With／Without
2-direction
Without
With
With
Without
−
10℃ to +60℃
100,000 cycles
100,000 cycles
ー
Automotive use
Life cycle (availability)
Rating（max.）
（Resistive load）
1mA 5V DC
1V max. at
Measuring
1mA 5V DC
circuit
（Resistive load）
10mA 5V DC
Output voltage
Electrical
performance
1V max. at 1mA 5V DC
（Resistive load）
+
5V
5K
Measuring
terminal
ー
Encoder resolution
Insulation resistance
Voltage proof
Push operating force
Encoder detent torque
6 pluses/360°
10MΩ min. 50V DC
50V AC for 1min.
ー
3.5±
1.5N
3±2mN m
・
ー
50N
ー
−30℃ 96h
−40℃ 96h
85℃ 96h
40℃, 90 to 95%RH 96h
455
457
2±
1N
ー
ー
100MΩ min. 100V DC
100V AC for 1min.
0.65±0.3N
2.5±
1N
ー
3N for 1min.
Mechanical
performance
Terminal strength
Terminal strength
Actuator
strength
Push / pull
directions
Operating
direction
10N
−20℃ 96h
Cold
Environmental
performance
Dry heat
Damp heat
Page
459
Switch Type Multi Control Devices Soldering Conditions ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 461
Switch Type Multi Control Devices Cautions ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 462
436
Switch Type / Soldering Conditions
Reference for Manual Soldering
Series
RKJXT1F, RKJXM, RKJXL,
SLLB, SLLB5, SRBE, SKRV, SKRH
RKJXS
Tip temperature
350±5℃
350±
10℃
Soldering time
3s max.
3
−0
s
＋
1
No. of solders
1 time
2 time max.
Reference for Dip Soldering
Series
RKJXT1F, RKJXM
RKJXL
Preheating
Soldering surface temperature Heating time
100℃ max.
120℃ max.
2 min. max.
70s max.
Dip soldering
No. of solders
Soldering temperature Soldering time
260±5℃
260℃ max.
5±
1s
6s max.
2 time max.
2 time max.
Multi Control
Devices
Example of Reflow Soldering Condition
Temperature profile
Temperature
（℃）
300
A
B
Variable
Resistor Type
200
C
D
100
Switch
Type
Room
temperature
Pre-heating
E max.
F max.
I max.
G max.
Time s）
（
H max.
Series
RKJXS
SLLB5
SKRV, SKRH, SLLB, SRBE
A
260℃
250℃
260℃
B
230℃
230℃
230℃
C
150℃
150℃
180℃
D
150℃
150℃
150℃
E
2 min.
ー
2 min.
F
ー
2 min.
ー
G
10s
ー
ー
H
40s
30s
40s
I
4 min.
ー
ー
No. of reflows
1 time
1 time
1 time
Notes
1. The above temperature shall be measured on the mounting surface of a PC board. There are cases where the PC
board’ temperature greatly differs from that of the switch, depending on the material, size thickness of PC boards
s
and others. The above-stated conditions shall also apply to switch surface temperatures.
2. Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is
highly recommended.
461
