SPECIFICATIONS
Current Rating:
Contact Material:
Contact Resistance:
Insulation Material:
Insulation Resistance:
Withstanding:
Operating Temp:
1 Amp
Brass
20mΩ Max.
Polyester UL94V-0
1000MΩ Max.
300V AC
-40ºC to +105ºC
B
C
C
D
D
E
Series
CAPH
Pin Header
.05 x .100
Rows
X
2=Dual Row
1=Single Row
Height (H)
X
Blank=.100” (2.54mm)
C=.067” (1.70mm)
G=.055” (1.4mm)
Type
XX
ST=Straight
RA=Right Angle
SM=Surface Mount
Positions
XX
01-40 Single Row
02-80 Double
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Pin Length
Plating
XX
XX
SD=.236/.454
TN=Tin
CS=Custom Specified SGXX=Selective Gold
Length (A/E)
GDXX=Gold
XX=Flash if blank,
3,5,10,15,30
E
F
Date
7/12/06
7/12/06
7/12/06
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
Part No.:
CAPH-2-ST-XX-SD-XX
G
7
8
9
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

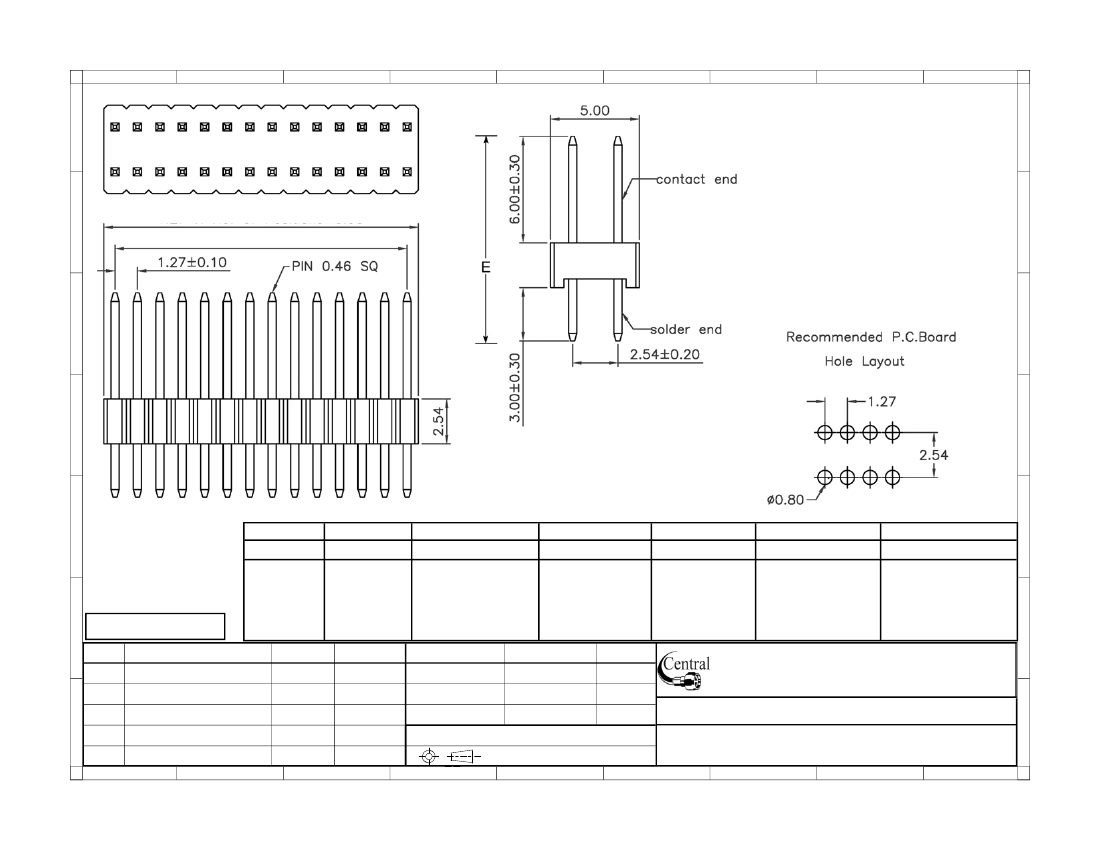

Description: 1.27 Pin Header Dual Rows DIP Type
