SLS-026-H562-55/2E datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> SLS-026-H562-55/2E

Preview

SLS-026-H562-55/2E: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size213KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

SLS-026-H562-55/2E Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle

SLS-026-H562-55/2E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304756056
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
body width	0.216 inch
subject depth	0.244 inch
body length	1.307 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	SLS
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.4958 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	26

Preview

Download Datasheet

View All

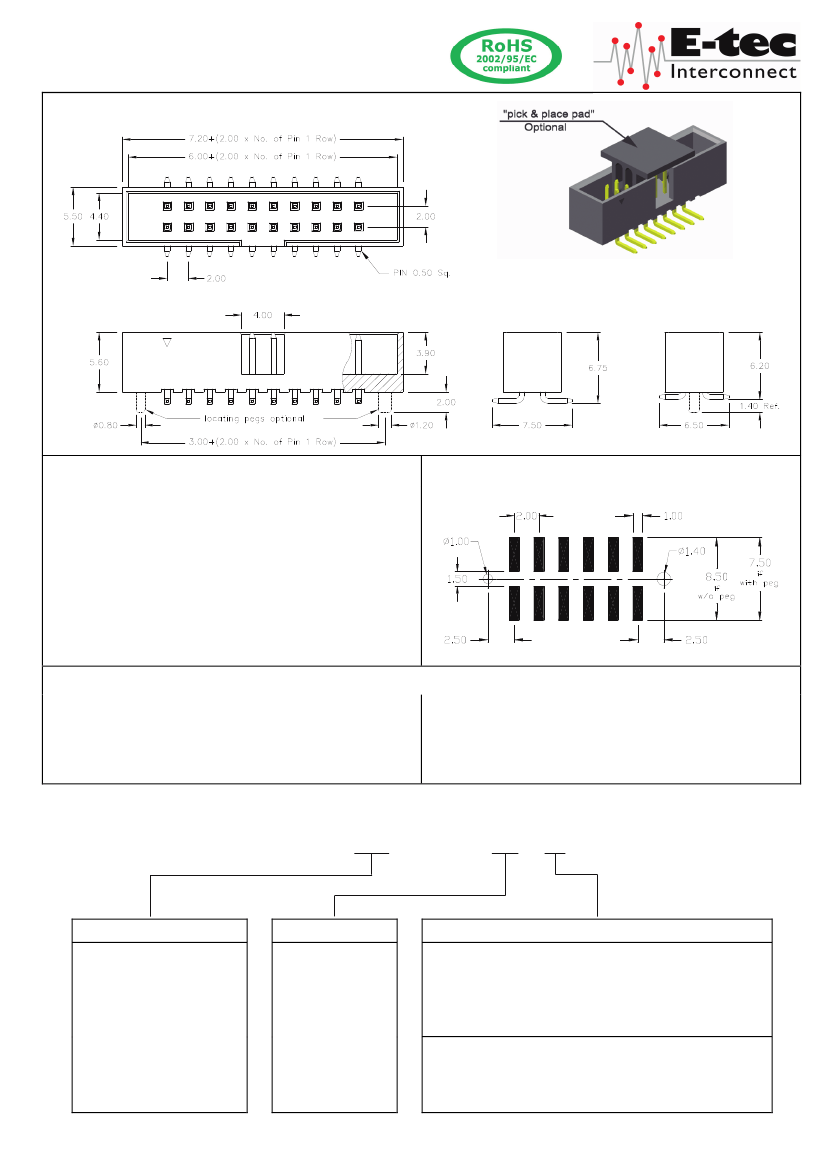

2.00mm pitch

- SMT -

Box Header

APPLICATION AND FEATURES

PCB

Surface Mount Layout

Standard:

without locating pegs, tray packing

and without ”pick & place pad”

Also available “tape & reel” packing

Designed to mate with IDC female connector

IDS-xxx-X 200-95/P

Reliable flat cable to PCB connection

No ejection latches for space saving

SPECIFICATIONS

Current rating

Insulator resistance

Withstanding voltage

1A

1000 MΩ min.

500 V AC

Operating temperature

Processing temperature

Contact material

Insulator material

(RoHS compliant)

- 40°C to +105°C

+250°C

+0/-5°C

for 5sec.

Copper Alloy

Nylon

UL 94 V-0

How to order

SLS - xxx - H 562 -

55

/2 X

Nbr of pins

without ”locating pegs”

Plating

Packing and “pick & place pad” Option

without “locating pegs”

F

=

tray packing; with pick & place pad

T

=

tube packing; without pick & place pad

A

=

tube packing; with pick & place pad

B

=

reel packing; with pick & place pad

with “locating pegs”

tube packing; without pick & place pad

C

=

D

=

tube packing; with pick & place pad

E

=

reel packing; with pick & place pad

47

006

to

068

55

=

gold

except:

038; 042; 046; 048 052;

054; 056; 058 062; 066

with ”locating pegs”

Other platings on

request

008

to

050

SLS-026-H562-55/2E Related Products

	SLS-026-H562-55/2E	SLS-012-H562-55/2A	SLS-012-H562-55/2T	SLS-026-H562-55/2C	SLS-026-H562-55/2D	SLS-022-H562-55/2D	SLS-036-H562-55/2B
Description	Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 36 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.216 inch	0.216 inch	0.216 inch	0.216 inch	0.216 inch	0.216 inch	0.216 inch
subject depth	0.244 inch	0.263 inch	0.263 inch	0.244 inch	0.244 inch	0.244 inch	0.263 inch
body length	1.307 inch	0.756 inch	0.756 inch	1.307 inch	1.307 inch	1.15 inch	1.701 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU
Contact completed and terminated	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
Manufacturer's serial number	SLS	SLS	SLS	SLS	SLS	SLS	SLS
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.4958 mm	5.0038 mm	5.0038 mm	4.4958 mm	4.4958 mm	4.4958 mm	5.0038 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	26	12	12	26	26	22	36
Objectid	304756056	-	-	304756054	304756055	304756049	304756002
Board mount options	PEG	-	-	PEG	PEG	PEG	-
