ESX330K25BA5X11T2 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> ESX330K25BA5X11T2

ESX330K25BA5X11T2: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 10% +Tol, 10% -Tol, 33uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size103KB，2 Pages; ManufacturerHitano Enterprise Corp; Environmental Compliance

Download Datasheet Parametric View All

ESX330K25BA5X11T2 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 10% +Tol, 10% -Tol, 33uF, Through Hole Mount, RADIAL LEADED

ESX330K25BA5X11T2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1240455189
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	33 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.00825 mA
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	BULK
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	25 V
ripple current	93 mA
surface mount	NO
Delta tangent	0.09
Terminal surface	NOT SPECIFIED
Terminal shape	WIRE

Preview

Download Datasheet

View All

ESX

SERIES

●

ESX series capacitors are low length (max 25mm height) with low impedance for high frequency.

●

Load life 105

℃

, 5000 hours assured. (2000 hours for D≦8mm)

Characteristics

6.3 ~ 63V

0.47 ~4700uF

-55 ~ + 105

℃

I=0.01CV or 3uA, whichever is greater (After 2 minutes)

±20%

at 120Hz , 20

℃

( 10% Tol. is available upon request)

6.3

0.15

0.12

0.11

0.09

0.08

0.06

0.05

tanδ

For capacitance > 1000uF, add 0.02 for every 1000uF.(at 20

℃

, 120Hz)

Load life after application of

Leakage current

Less than initial specified value

the rated voltage with ripple

Capacitance change

Within

±20%

of initial value

current for 5000 hrs at 105

℃

tanδ

200% or less of initial specified value

(2000 hrs for D≦8mm)

Shelf life (at 105

℃

)

After 1000 hrs no load test the leakage current, capacitance and tanδsame as load life value.

Voltage Range

Capacitance Range

Temperature Range

Leakage Current

Capacitance Tolerance

Dissipation Factor

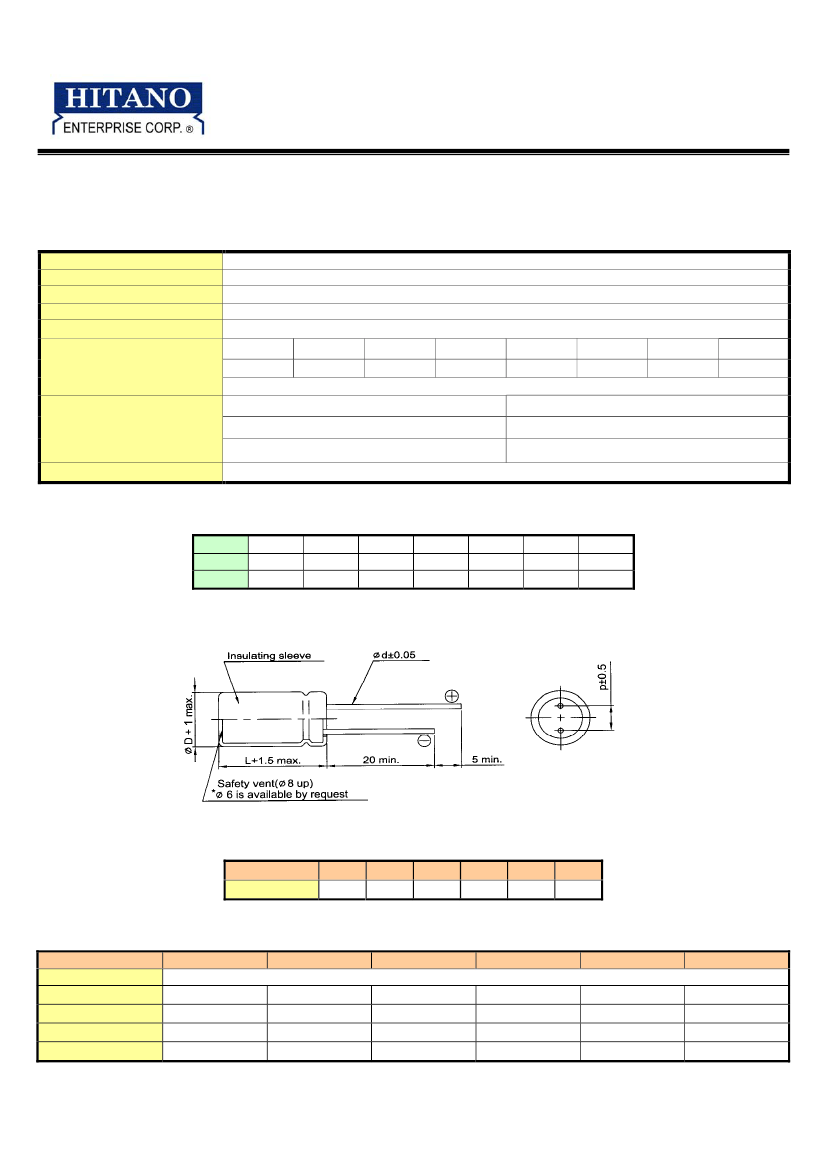

Diagram of dimensions

Dφ

dφ

2.0

0.5

6.3

2.5

0.5

3.5

0.5

5.0

0.6

5.0

0.6

7.5

0.8

7.5

0.8

Multiplier for R.C. vs Temparature

Temp.(℃)

Multiplier

2.10

1.90

1.65

1.40

1.25

105

1.00

Ripple Current Coefficients

Frequency (Hz)

Cap.(uF) / Hz

Cap.

≦

10＜Cap.≦100

100＜Cap.≦1000

1000＜Cap.

0.47

0.52

0.58

0.63

120

0.59

0.62

0.72

0.78

400

Multiplier

0.76

0.80

0.84

0.87

0.85

0.89

0.90

0.91

0.97

0.98

10K

50K - 100K
